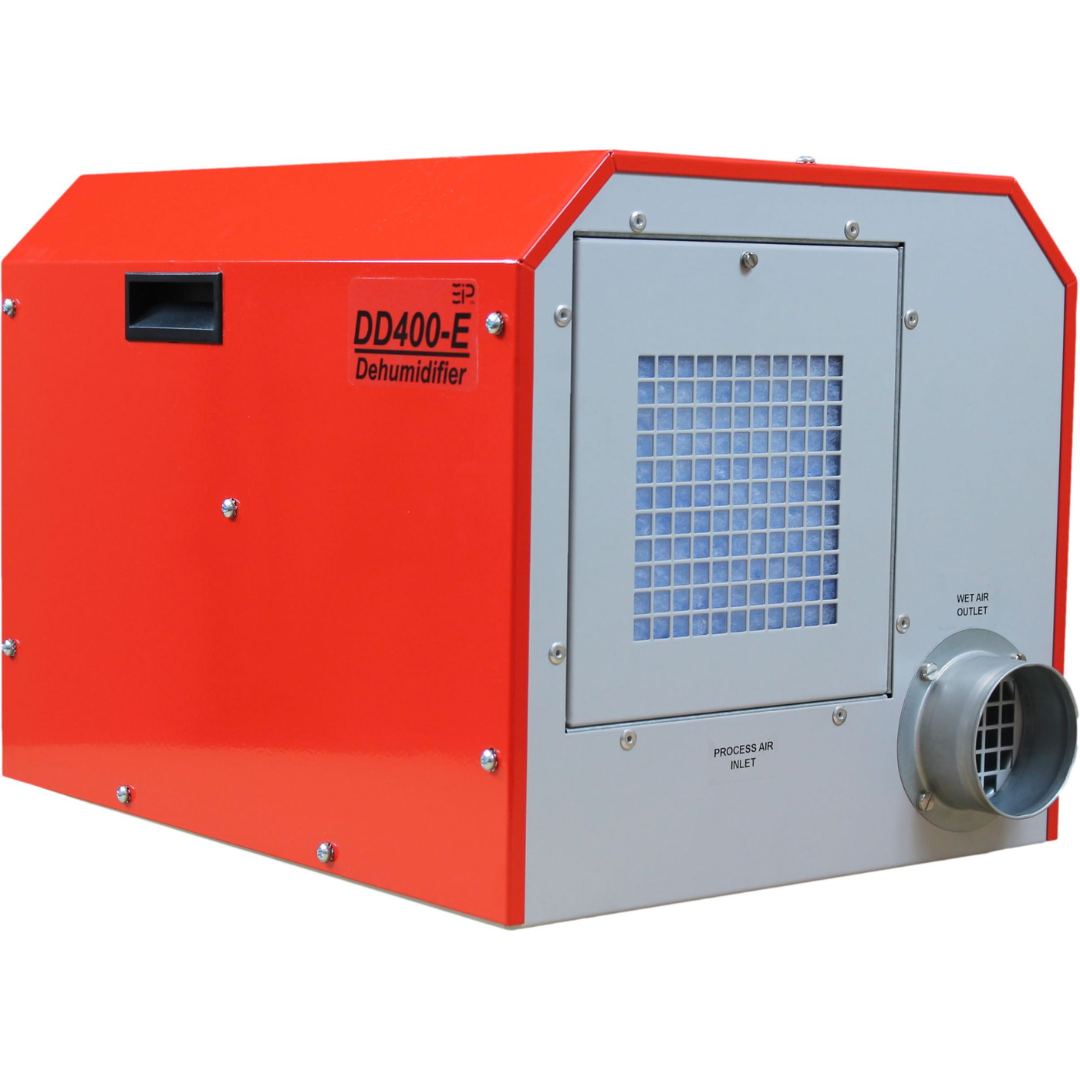

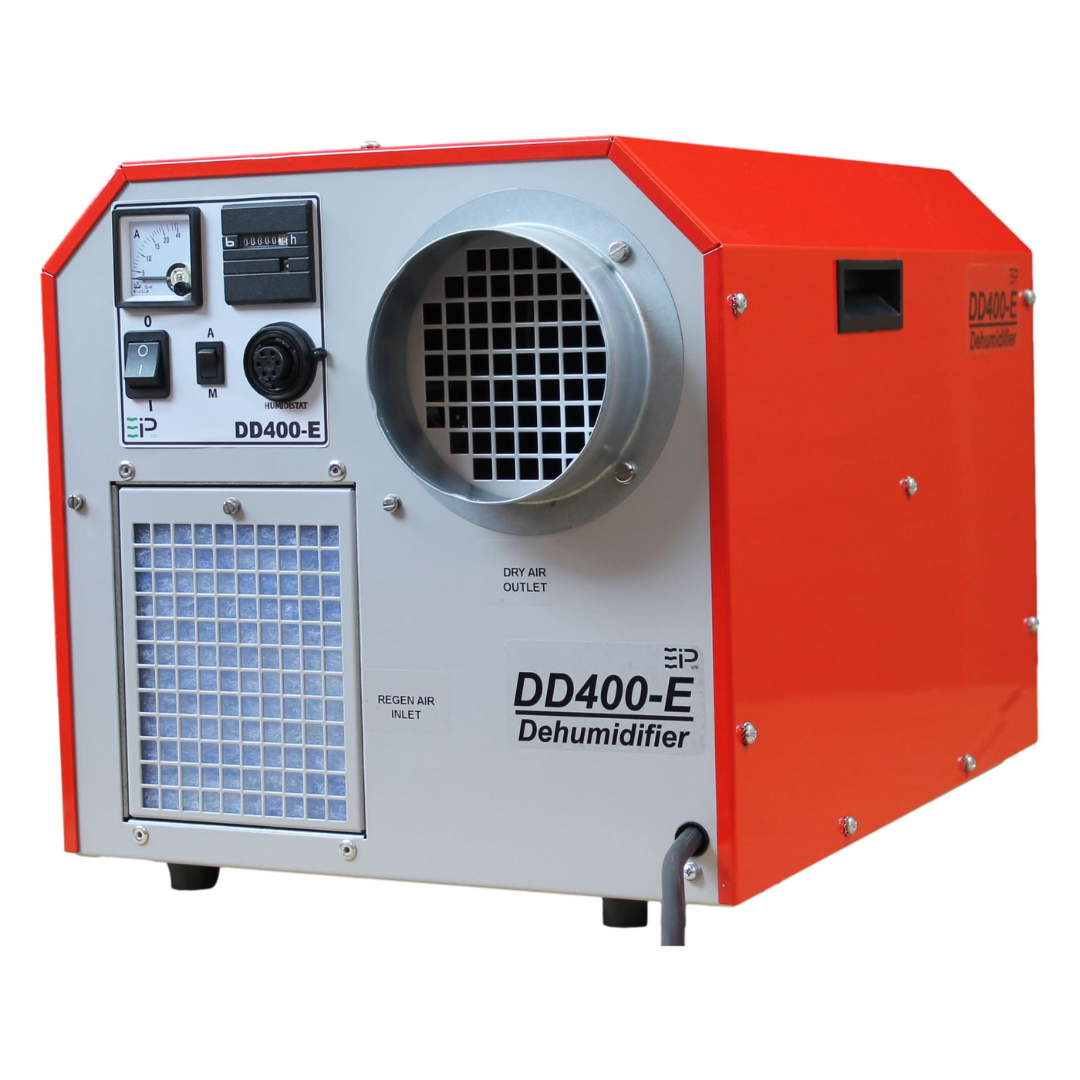

Ebac DD400-E Desiccant Dehumidifier Applications
- Industrial manufacturing and production facilities
- Packaging and storage of hygroscopic products
- Cold storage environments and refrigerated warehouses
- Corrosion prevention in machinery and equipment rooms
- Pharmaceutical, laboratory, and electronics production areas
- Humidity control in warehouses and storage facilities
Desiccant technology allows the Ebac DD400-E Desiccant Dehumidifier to maintain low humidity levels even in cold climates where refrigeration-based dehumidifiers lose efficiency.
Ebac DD400-E Desiccant Dehumidifier Specifications
| Model | DD400-E |
|---|---|
| Part Number | 10500GR-US |
| Voltage Requirements | 220V / 1 Phase / 60 Hz |
| Typical Extraction | 77.5 PPD |
| Power Consumption | 1.8 kW |
| Current | 8 A |
| Process Airflow (Dry Air) | 271 CFM |
| Regeneration Airflow (Wet Air) | 80 CFM |
| Rotor Wheel Speed | 20 RPH |
| Process Air Duct Size | 5 in |
| Regeneration Air Duct Size | 4 in |
| Noise Level | 67 dBA |
| Operating Temperature Range | -4°F to 104°F |
| Dimensions (H × W × D) | 14.3" × 14.5" × 18.7" |
| Weight | 59.5 lbs |
Ebac DD400-E Desiccant Dehumidifier Performance & Construction
- High Efficiency Silica Gel Rotor removes moisture directly from the air for deep drying performance.
- High Capacity PTC Heater provides consistent regeneration heat to maintain continuous drying efficiency.
- Manual or Automatic Mode Selection allows flexible operation depending on humidity control requirements.
- Remote Humidity Sensor Compatibility enables automated humidity control through an external humidistat.
- Integrated Ammeter and Hours Run Meter allow operators to monitor performance and system efficiency.
- Process and Regeneration Air Filters protect internal components and maintain airflow efficiency.
- Dual Air Inlet Design allows regeneration air and process air streams to remain separated for flexible installation.
- Compact Lightweight Construction enables easy transport and installation in space-restricted environments.
- High Temperature Safety Cut-Outs protect internal components and ensure safe system operation.
Ebac DD400-E Desiccant Dehumidifier How Desiccant Drying Works
- Moist air is drawn into the Ebac DD400-E Desiccant Dehumidifier as process air.
- The air passes over a rotating silica gel rotor wheel that absorbs moisture from the air.
- The dried air exits the unit as warm low-humidity air suitable for controlled environments.
- A separate regeneration air stream is heated before passing over a portion of the rotor.
- The heated airflow releases trapped moisture from the rotor and exhausts it outside the drying area.
- The rotor continuously rotates to provide uninterrupted moisture removal.
- This adsorption process enables efficient dehumidification even in sub-zero environments.
Ebac DD400-E Desiccant Dehumidifier Package Contents
- 1 × DD400-E Desiccant Dehumidifier
- 1 × Owner’s Manual
- 1 × Power Plug
Why Choose the Ebac DD400-E Desiccant Dehumidifier
- Advanced desiccant drying technology for cold and low humidity environments.
- Reliable industrial construction built for demanding applications.
- Compact design suitable for installations with limited space.
- High efficiency silica gel rotor ensures long service life.
- Manual and automatic control options for flexible operation.
- Engineered by EIPL with decades of proven humidity control expertise.
The Ebac DD400-E Desiccant Dehumidifier delivers reliable deep drying performance for industrial, manufacturing, and storage environments where precise humidity control is critical.
