Ebac DD300-S Desiccant Dehumidifier Applications
- Industrial manufacturing and production facilities
- Product packaging and storage of hygroscopic materials
- Cold storage areas and low temperature environments
- Prevention of condensation and corrosion in equipment rooms
- Pharmaceutical, laboratory, and electronics environments
- Commercial humidity control for sensitive storage areas
Desiccant technology allows the Ebac DD300-S to maintain low humidity levels even in cold climates where traditional refrigeration dehumidifiers become inefficient.
Ebac DD300-S Desiccant Dehumidifier Specifications
| Model | DD300-S |
|---|---|
| Part Number | 10501SU-US |
| Voltage Requirements | 115V / 1 Phase / 60 Hz |
| Typical Extraction | 69 PPD |
| Power Consumption | 1.4 kW |
| Process Airflow (Dry Air) | 136 CFM |
| Regeneration Airflow (Wet Air) | 42 CFM |
| Rotor Wheel Speed | 20 RPH |

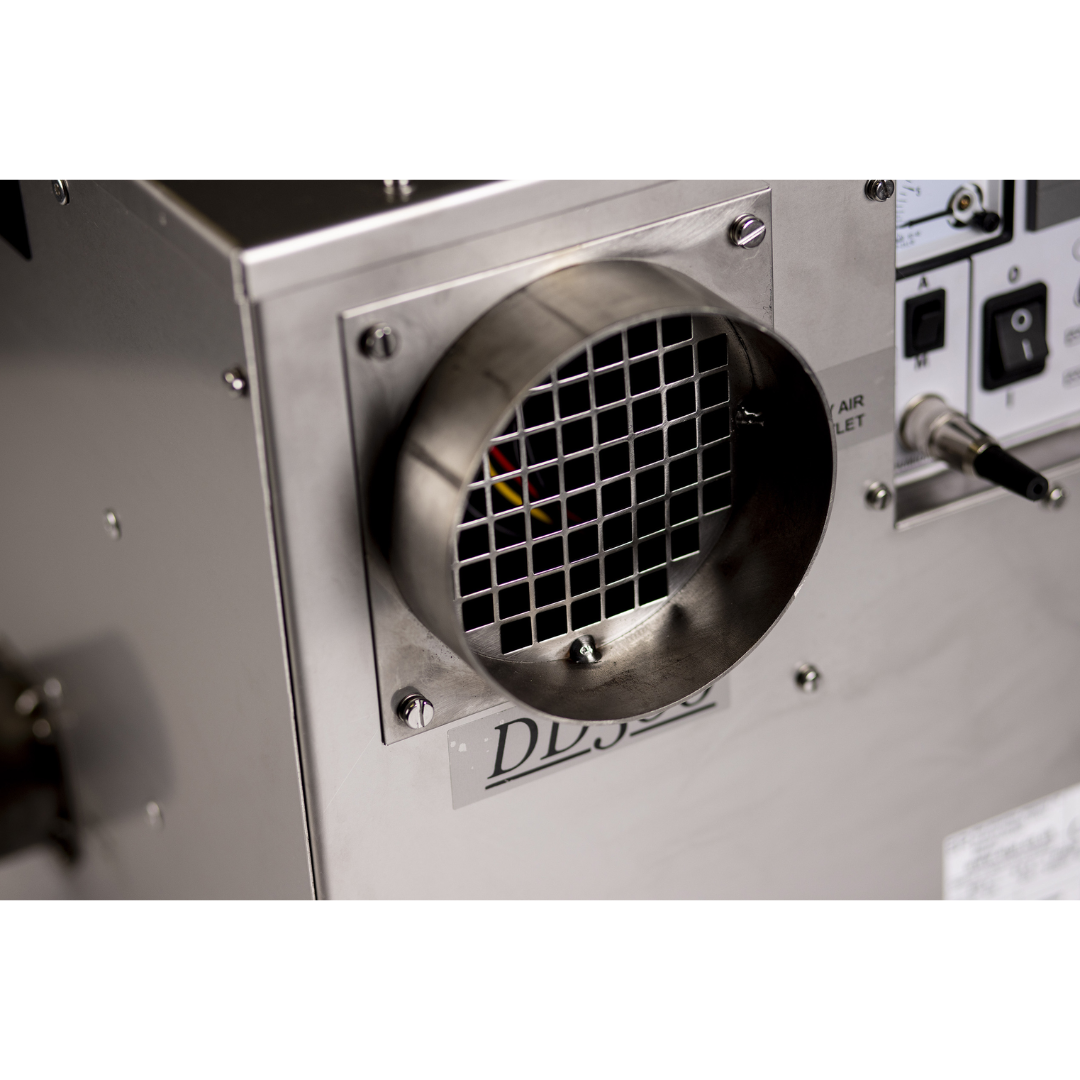

| Process Air Duct Size | 5 in |

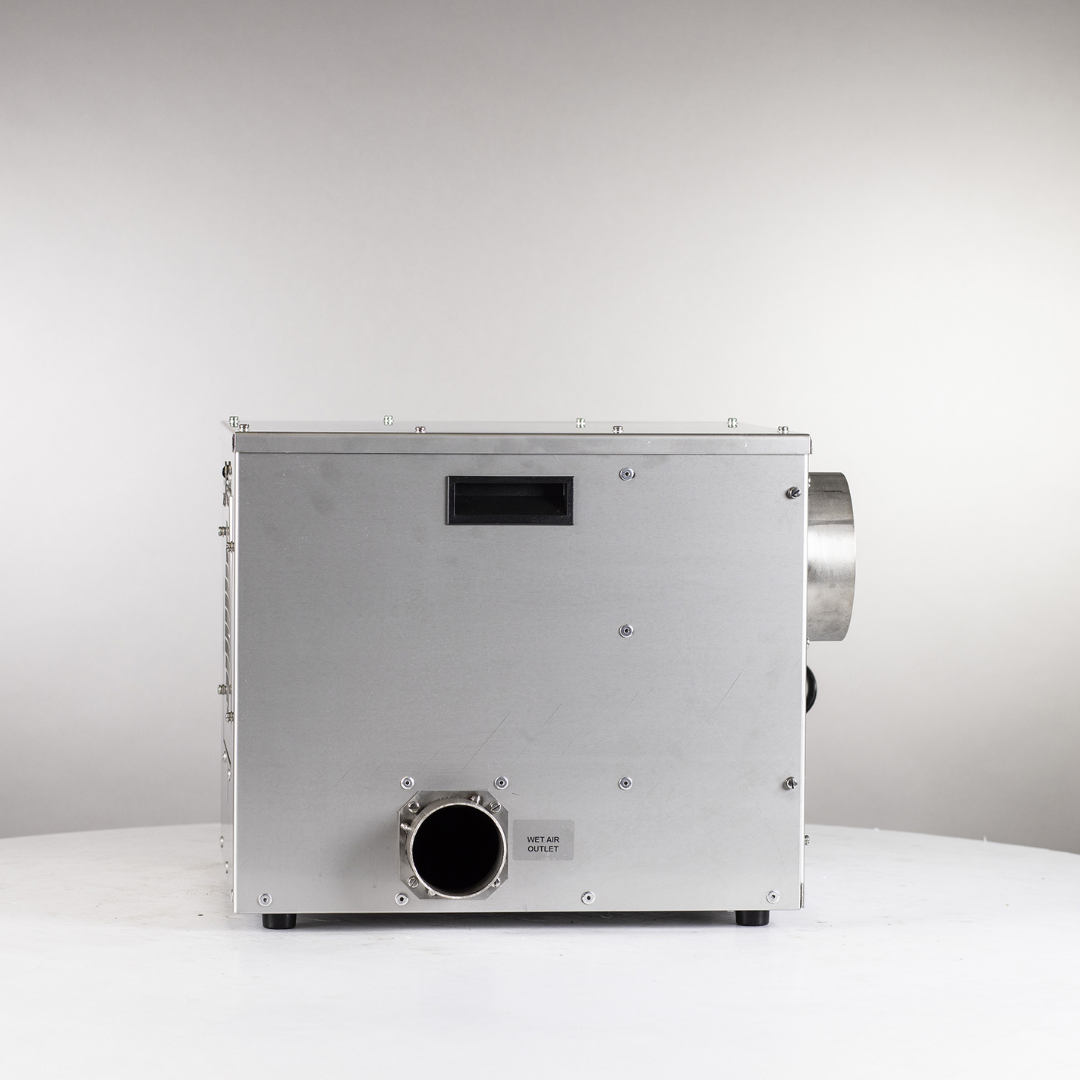

| Regeneration Air Duct Size | 2.75 in |
| Noise Level | 67 dBA |
| Operating Temperature Range | -4°F to 104°F |
| Dimensions (H × W × D) | 14.5" × 14.2" × 17" |
| Weight | 44 lbs |
Ebac DD300-S Desiccant Dehumidifier Performance & Construction
- High Efficiency Silica Gel Desiccant Rotor removes moisture directly from air for deep drying performance.

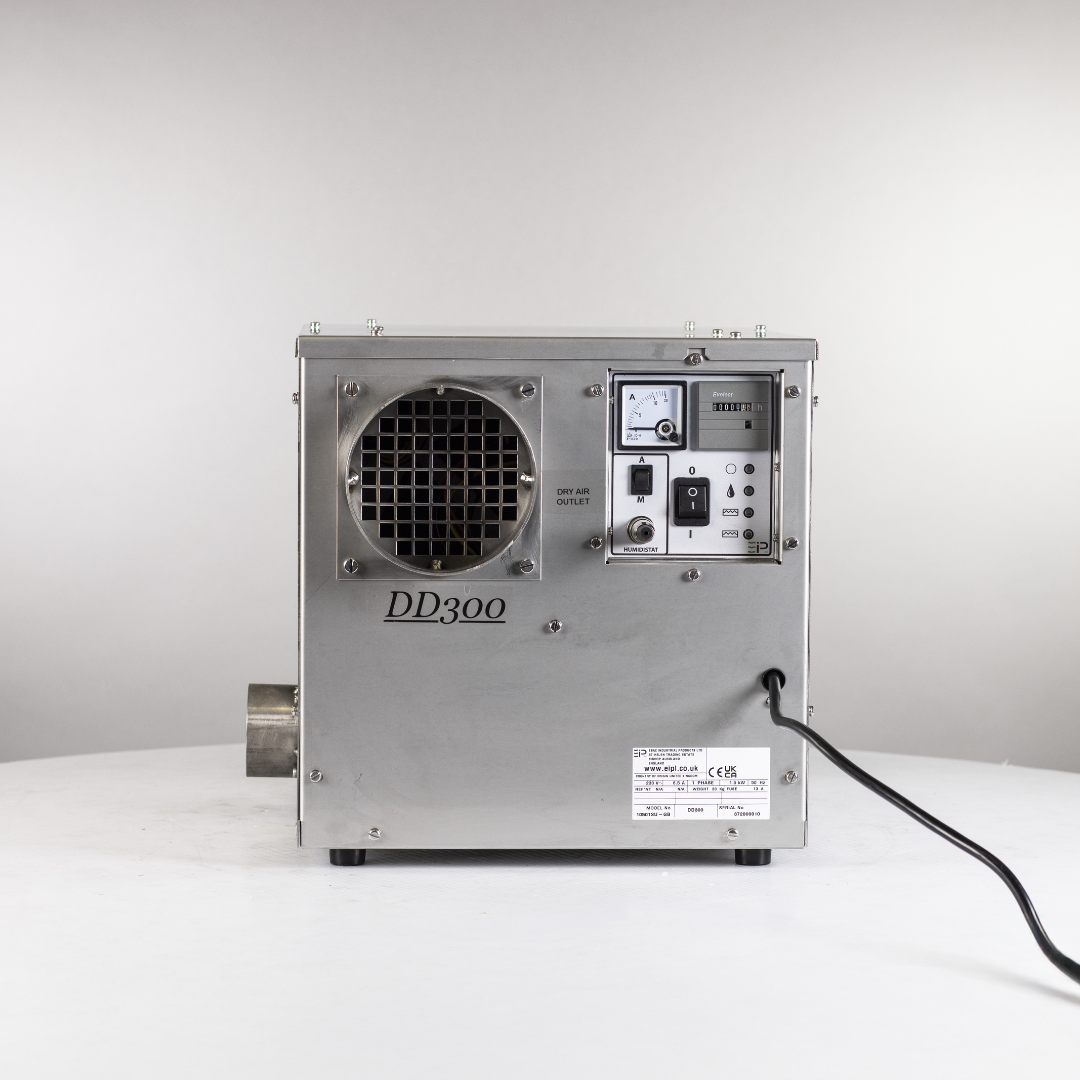

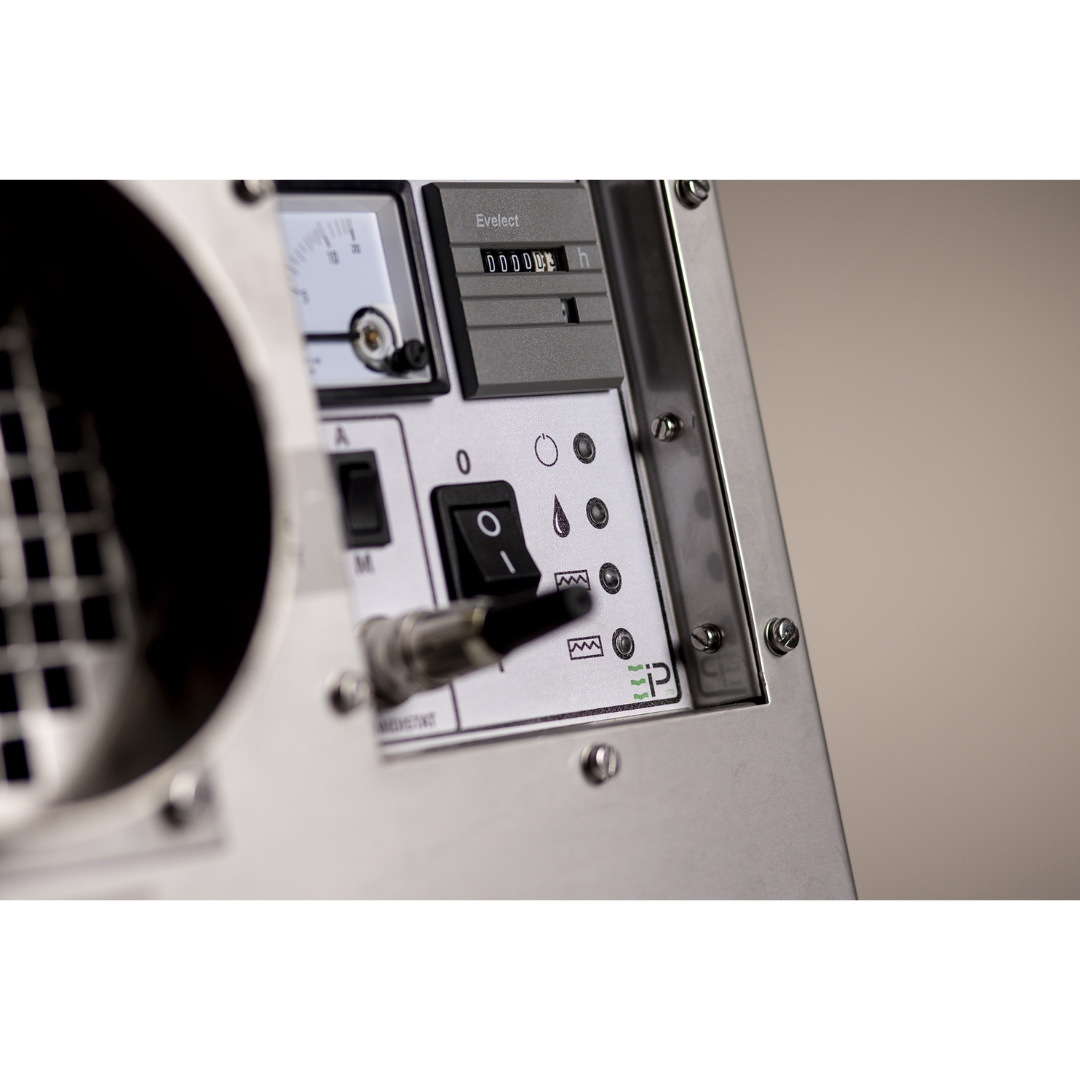

- Integrated Ammeter allows operators to monitor drying effectiveness and system performance.
- PTC Heater Technology ensures consistent regeneration heat and rapid drying performance.
- Manual or Automatic Mode Selection enables flexible humidity control depending on application requirements.
- Remote Humidity Sensor Compatibility allows automated operation through external humidistat control.
- Process and Regeneration Air Filters protect internal components and maintain efficient airflow.
- Compact Lightweight Design allows single-person transport and easy installation in restricted spaces.
- Quiet Operation ensures minimal disruption in sensitive work environments.
- High Temperature Safety Cut-Outs protect internal components and enhance operational safety.
Ebac DD300-S Desiccant Dehumidifier How Desiccant Drying Works
- Moist air is drawn into the Ebac DD300-S Desiccant Dehumidifier as process air.
- The air passes across a rotating silica gel rotor that absorbs moisture from the air.
- The dried air exits the unit as warm low-humidity air suitable for controlled environments.
- A separate regeneration air stream is heated and directed across a portion of the rotor.
- This heated airflow releases trapped moisture from the rotor and exhausts it outside the drying area.
- The rotor continuously rotates to maintain uninterrupted moisture removal.
- This adsorption process allows effective dehumidification even in sub-zero temperatures.
Ebac DD300-S Desiccant Dehumidifier Package Contents
- 1 × DD300-S Desiccant Dehumidifier
- 1 × Owner’s Manual
- 1 × Power Plug
Why Choose the Ebac DD300-S Desiccant Dehumidifier
- Reliable deep drying performance using industrial desiccant technology.
- Operates efficiently in extremely cold or low dew point environments.
- Compact lightweight design for easy installation and transport.
- Advanced silica gel rotor technology for long service life.
- Manual and automatic control modes for flexible operation.
- Engineered by EIPL for industrial reliability and durability.
The Ebac DD300-S Desiccant Dehumidifier delivers dependable humidity control for industrial, commercial, and manufacturing environments where precise low humidity conditions are essential.
