Ebac DD200-S Desiccant Dehumidifier Applications
- Manufacturing environments requiring controlled humidity
- Product packaging and storage of hygroscopic materials
- Cold storage rooms and low temperature facilities
- Corrosion prevention in industrial equipment and machinery
- Prevention of condensation and mold formation
- Environmental control in laboratories and production facilities
Desiccant dehumidification technology allows reliable moisture removal even in extremely cold environments where refrigeration systems become ineffective.

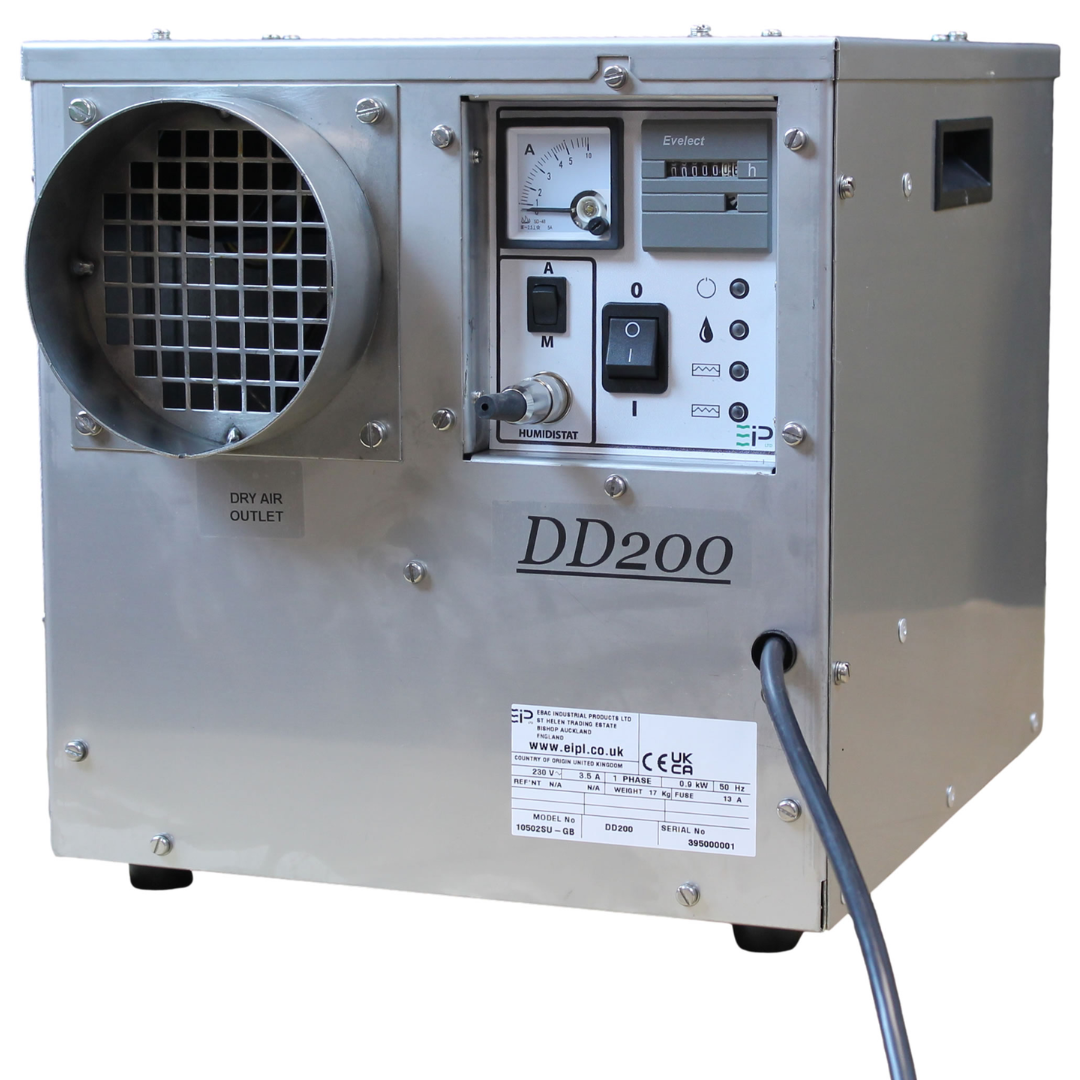

Ebac DD200-S Desiccant Dehumidifier Specifications
| Model | DD200-S |
|---|---|
| Part Number | 10502SU-US |
| Voltage Requirements | 115V / 1 Phase / 60 Hz |
| Typical Extraction | 36 PPD |
| Power Consumption | 0.8 kW |
| Process Airflow (Dry Air) | 115 CFM |
| Regeneration Airflow (Wet Air) | 38 CFM |
| Rotor Wheel Speed | 20 RPH |
| Noise Level | 67 dBA |
| Operating Temperature Range | -4°F to 104°F |

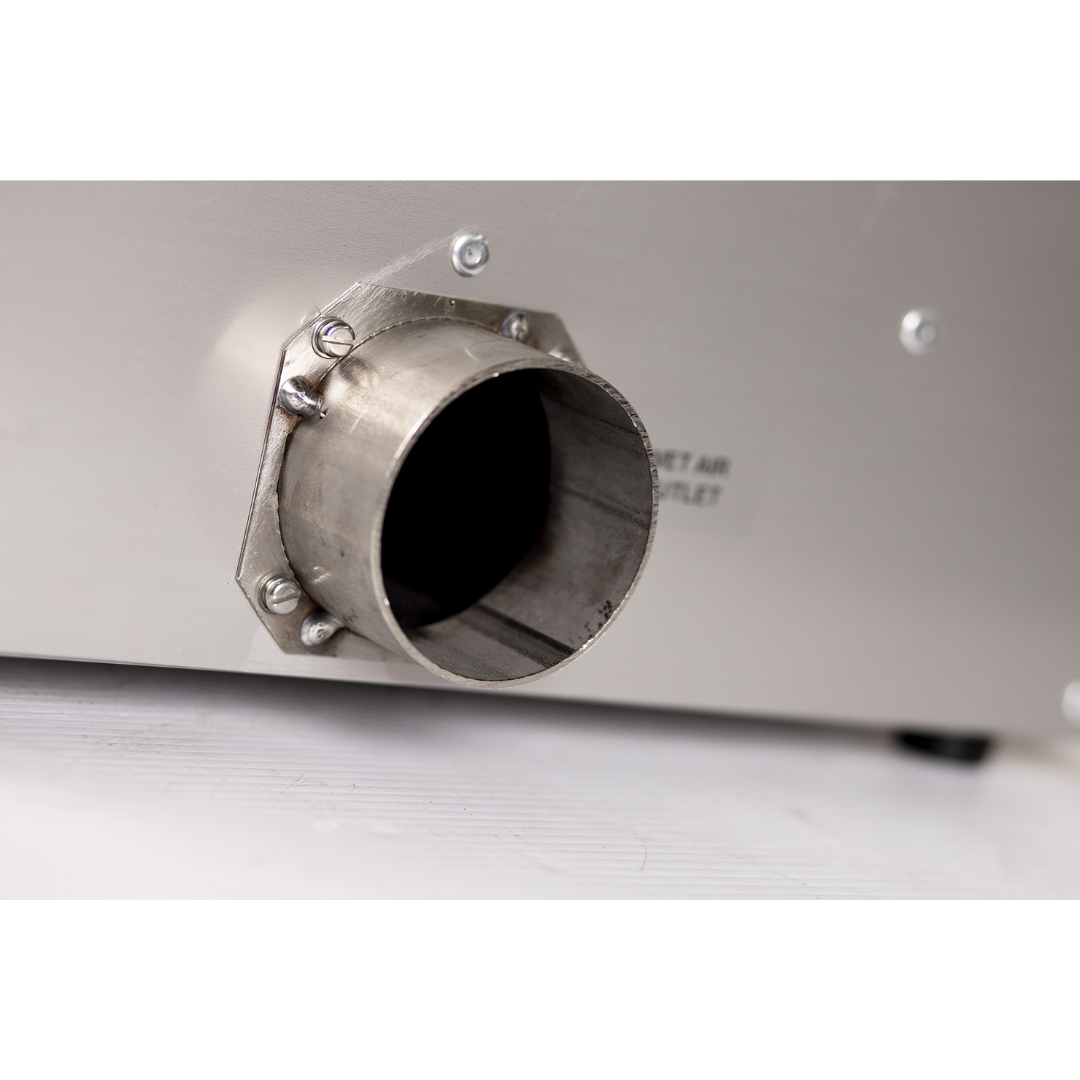

| Process Air Duct Size | 5 in |
| Regeneration Air Duct Size | 2.75 in |
| Dimensions (H × W × D) | 13.3" × 13" × 15" |
| Weight | 37.5 lbs |
Ebac DD200-S Desiccant Dehumidifier Performance & Construction
- Advanced Silica Gel Desiccant Rotor absorbs moisture directly from the air to achieve deep drying performance.
- High Capacity PTC Heater ensures fast regeneration of the rotor for continuous high efficiency drying.
- Manual or Automatic Mode Selection allows flexible operation depending on application requirements.
- Remote Humidity Sensor Capability enables automated humidity control when connected to an external humidistat.

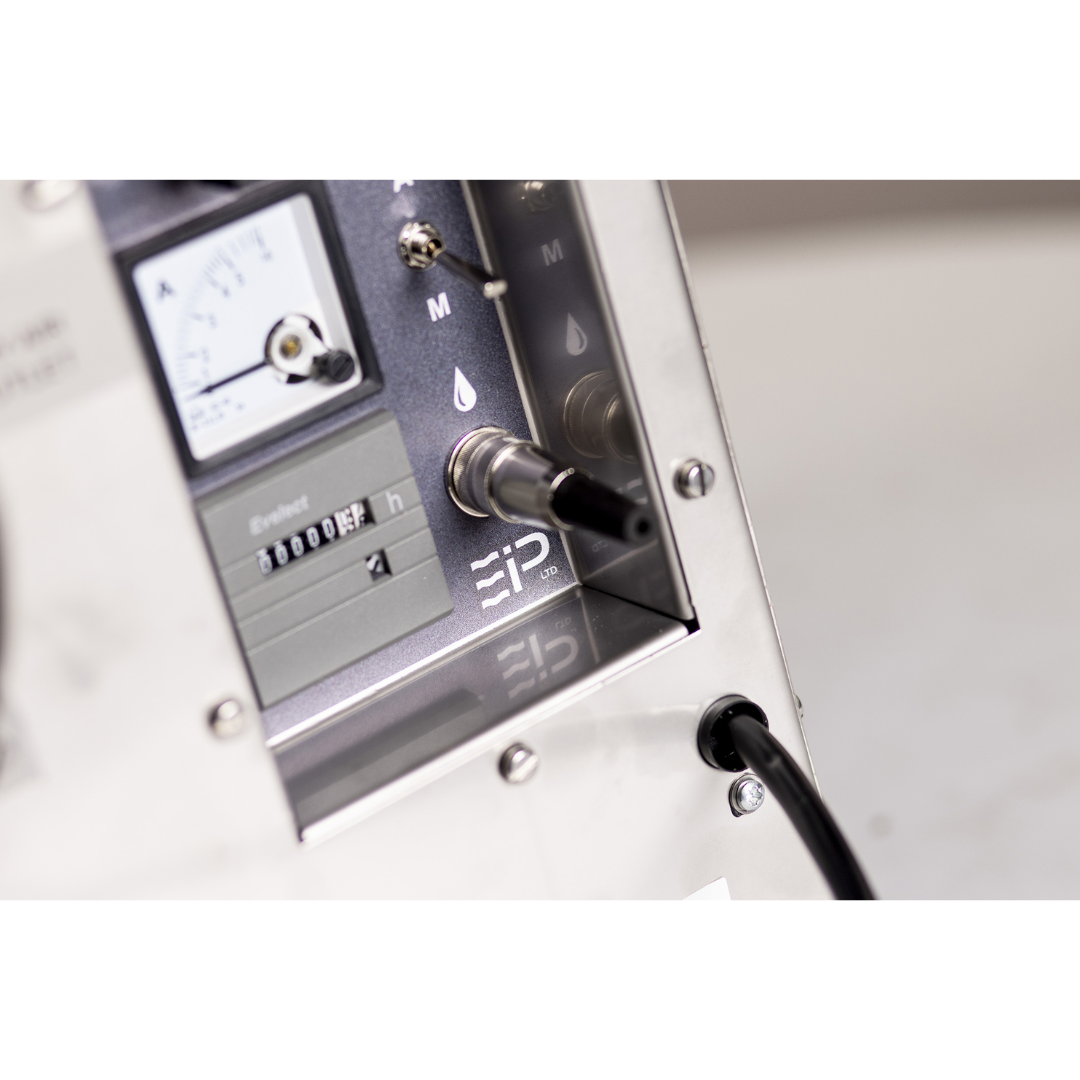

- Integrated Ammeter provides visual monitoring of system performance and drying effectiveness.
- Process and Regeneration Air Filters protect internal components and maintain efficient airflow.
- Compact Lightweight Design allows easy transportation and installation in space-restricted areas.
- Quiet Operation makes the unit suitable for sensitive working environments.
- High Temperature Safety Cut-Outs protect internal components and ensure safe operation.
Ebac DD200-S Desiccant Dehumidifier How the System Works
- Moist air is drawn into the Ebac DD200-S Desiccant Dehumidifier as process air.
- The air passes across a rotating silica gel rotor wheel that absorbs moisture from the air.

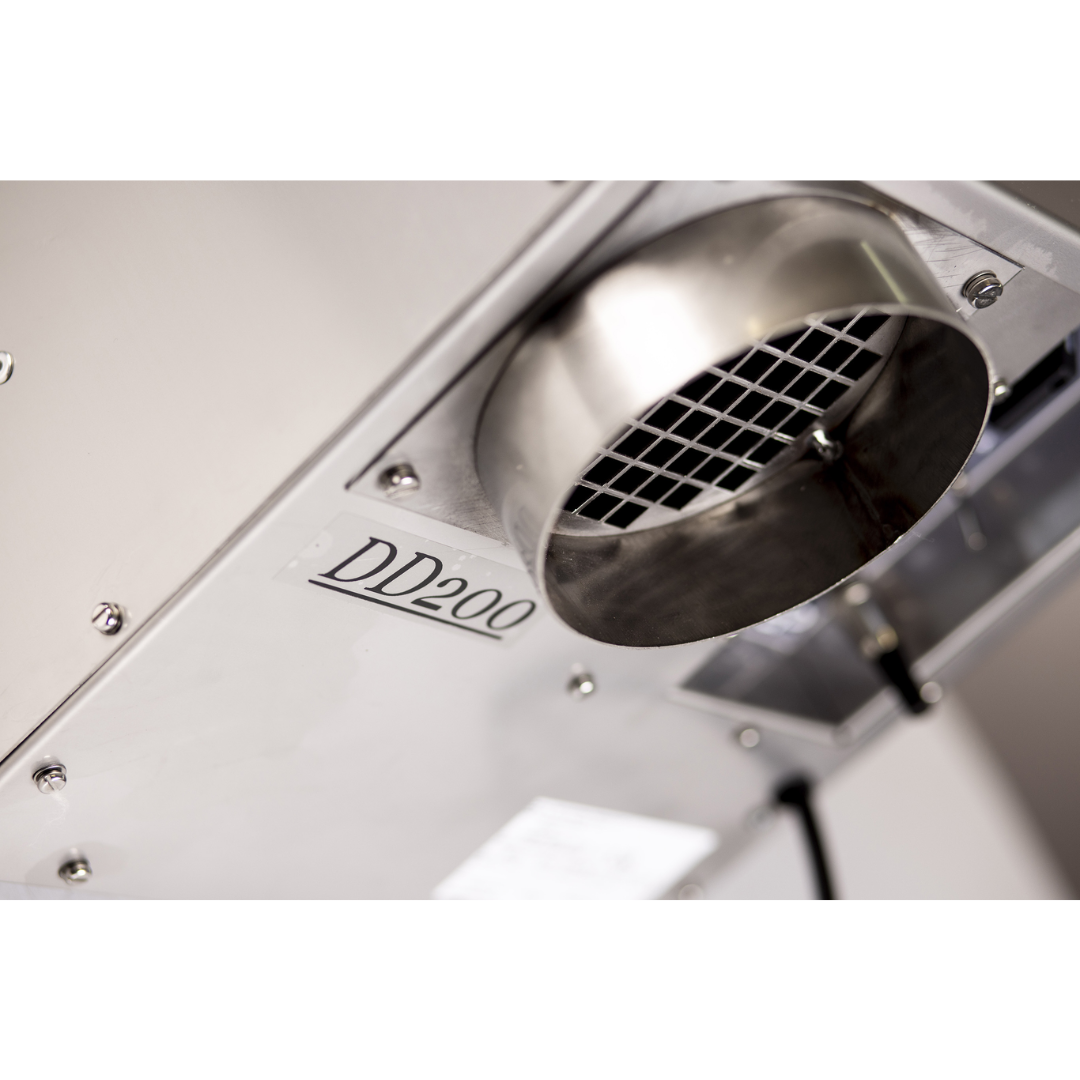

- The dry air exits the unit as warm, low humidity air suitable for controlled environments.
- A separate regeneration air stream is heated and directed across a section of the rotor.
- The heated air removes moisture trapped within the rotor and exhausts it from the system.
- The rotor continuously rotates to ensure uninterrupted moisture removal.
- This adsorption process allows effective dehumidification even in sub-zero environments.
Ebac DD200-S Desiccant Dehumidifier Package Contents
- 1 × DD200-S Desiccant Dehumidifier
- 1 × Owner’s Manual
- 1 × Free Power Plug
Why Choose the Ebac DD200-S Desiccant Dehumidifier
- Reliable deep drying performance using desiccant technology.
- Operates efficiently in extremely cold temperatures.
- Compact and lightweight for easy transport and installation.
- High efficiency rotor design ensures long service life.
- Manual and automatic control modes for flexible humidity management.
- Built with proven EIPL engineering for industrial reliability.
The Ebac DD200-S Desiccant Dehumidifier delivers dependable humidity control for industrial, manufacturing, and storage environments where low humidity levels and reliable cold temperature performance are essential.
