Ebac CD85-D Dehumidifier 11293GL-US Applications
- Commercial offices and laboratory environments
- Warehouses and storage facilities
- Restaurants, bars, and hospitality locations
- Museums and archival storage rooms
- Computer and telecommunications equipment rooms
- Locker rooms, basements, and crawl spaces
- Industrial facilities requiring dependable humidity control
The Ebac CD85-D Dehumidifier 11293GL-US is engineered to eliminate excess humidity that can cause condensation, mold growth, corrosion, and damage to equipment, structures, and stored materials.
Ebac CD85-D Dehumidifier 11293GL-US Specifications
| Model | CD85-D |
|---|---|
| Part Number | 11293GL-US |
| Power Requirement | 110V / 1 Phase / 60 Hz |
| Power Consumption | 880 W |
| Current Draw | 7 A |
| Typical Moisture Extraction | 62 Pints per Day |
| Airflow | 230 CFM |
| Noise Level | 57 dBA |
| Refrigerant | R407c |
| Effective Coverage Volume | 8,370 cu.ft. |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 15.75 in |
| Width | 23.6 in |
| Depth | 13.5 in |
| Weight | 75 lbs |
| Compressor Type | Rotary |
Ebac CD85-D Dehumidifier 11293GL-US Performance & Construction
- Adjustable Digital Humidistat maintains the desired humidity level automatically for consistent moisture control.
- Configurable Inlet and Outlet Positions allow flexible airflow configuration to suit different installation environments.
- High Capacity Backward Curved Fan delivers strong airflow for improved moisture extraction efficiency.

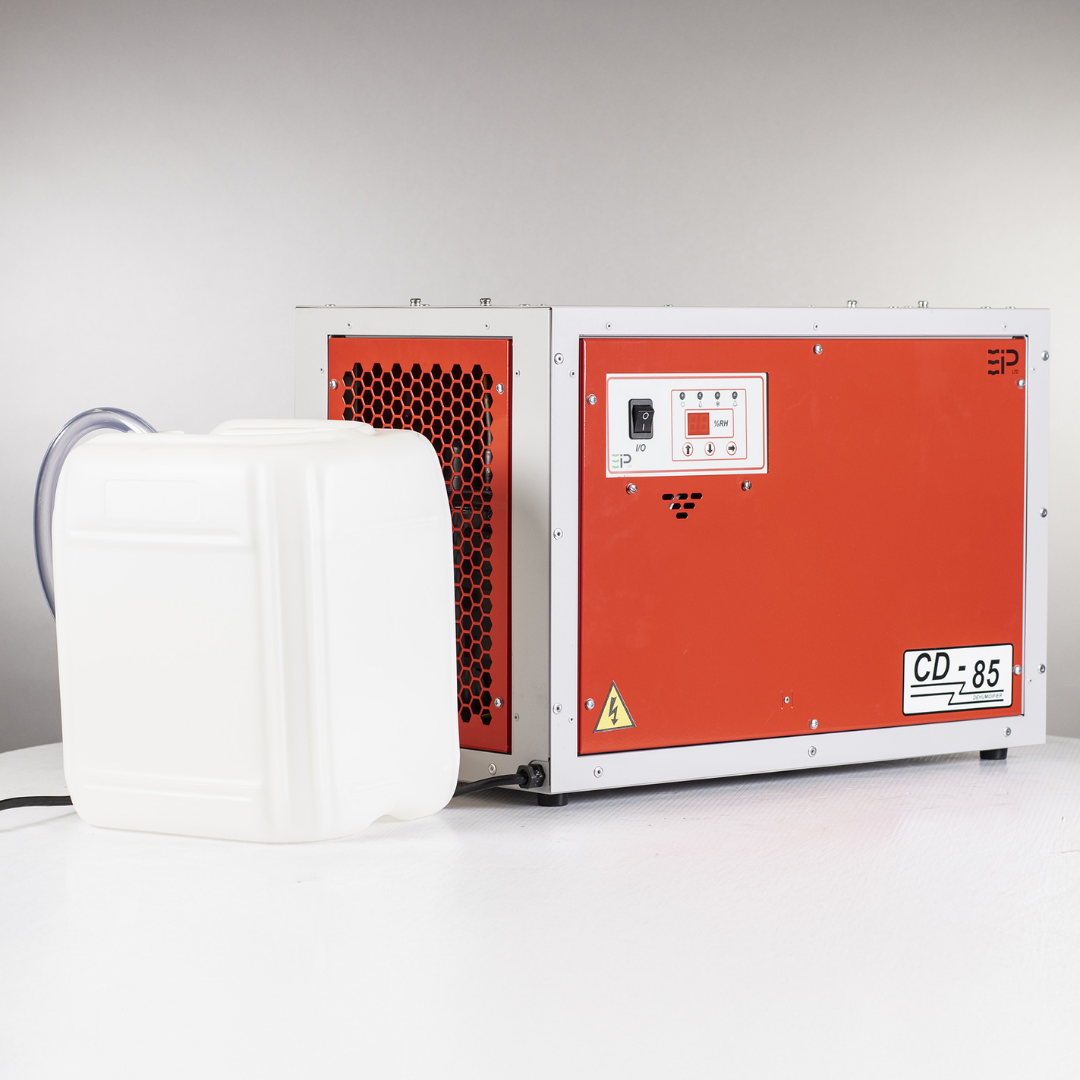

- Integrated Condensate Pump automatically removes collected moisture and pumps it to a drain location.
- Temperature Sensitive Defrost Control prevents frost buildup and ensures efficient operation at lower ambient temperatures.
- Inlet Air Filter helps protect internal components while maintaining clean airflow.

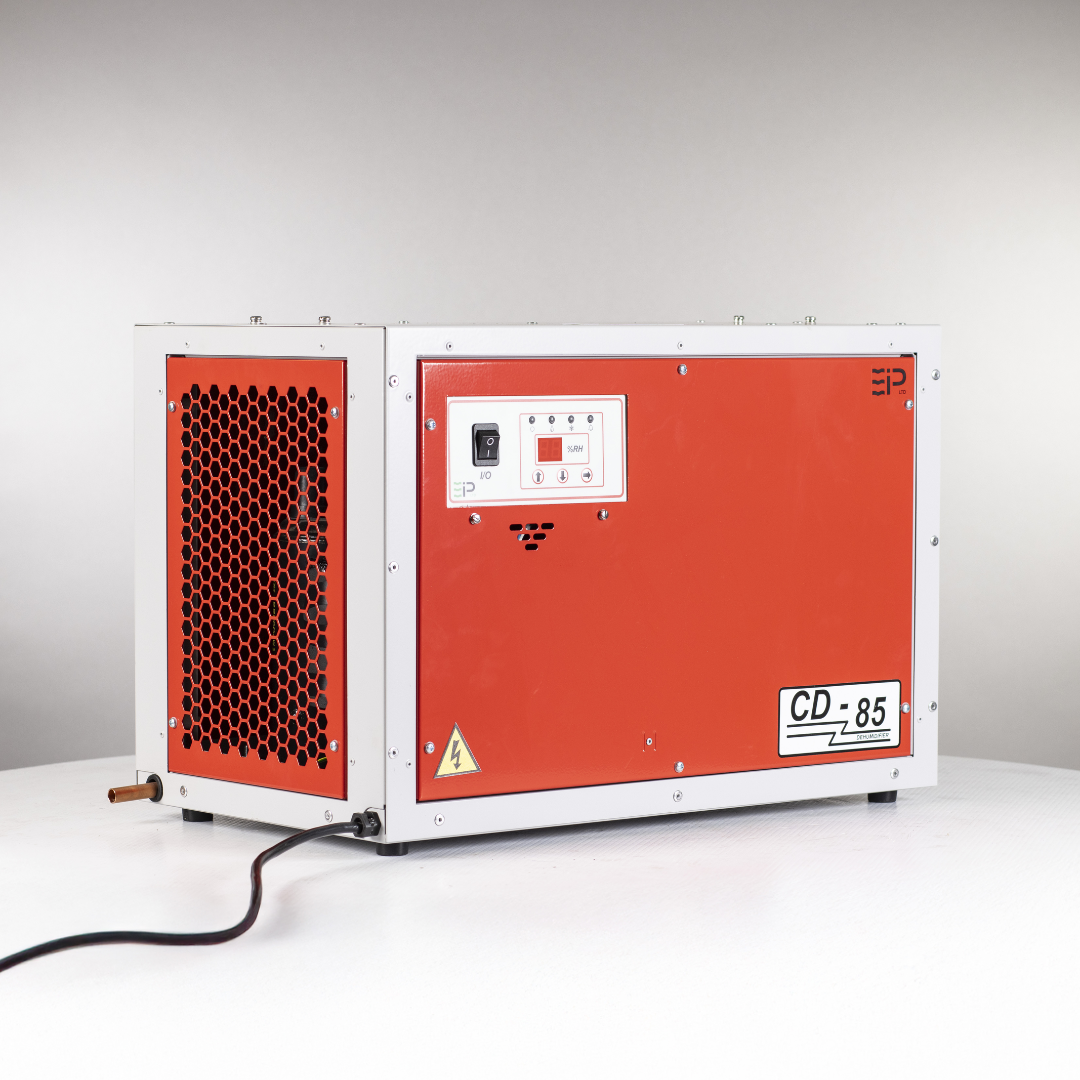

- Epoxy Powder-Coated Steel Chassis provides long-term durability and corrosion resistance in demanding environments.

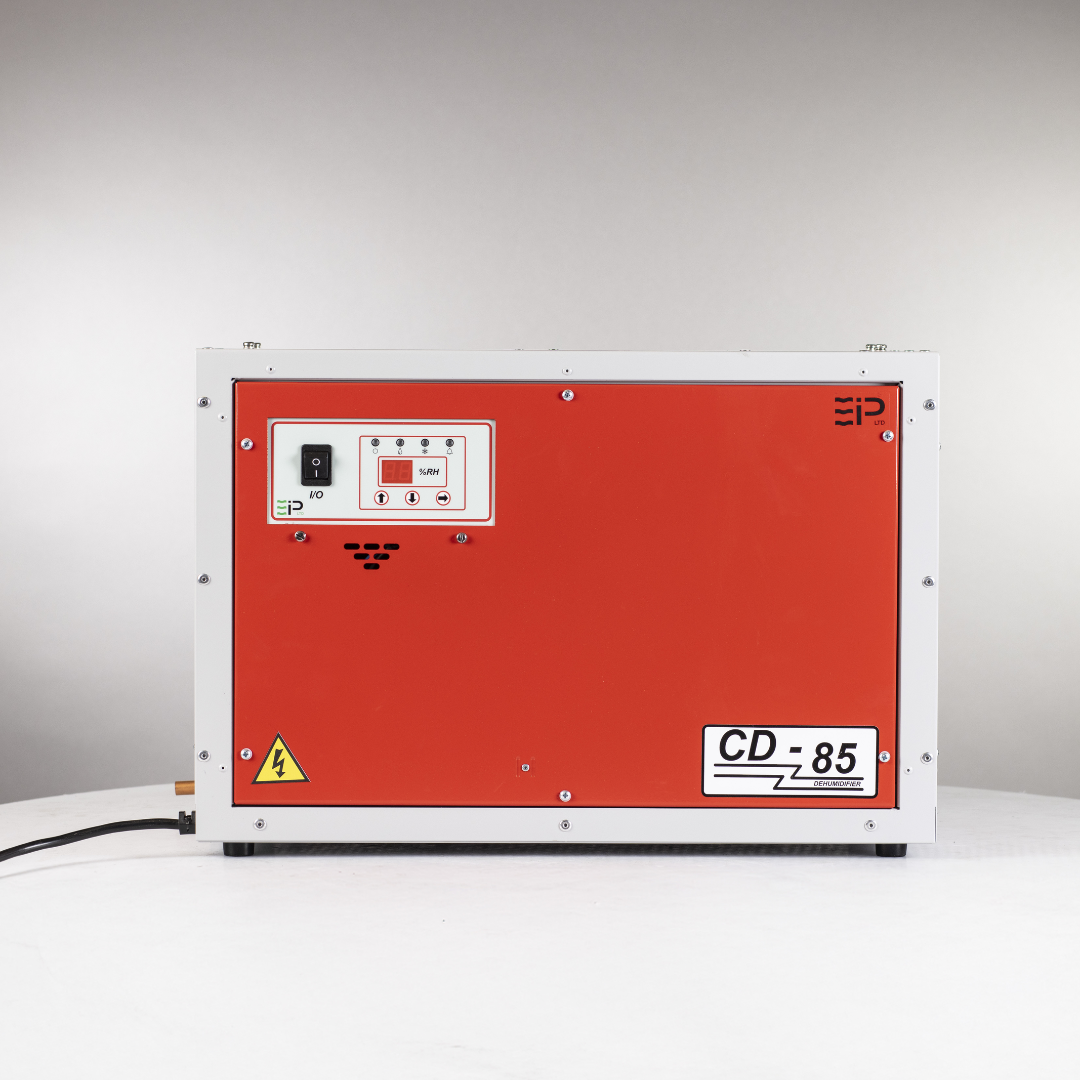

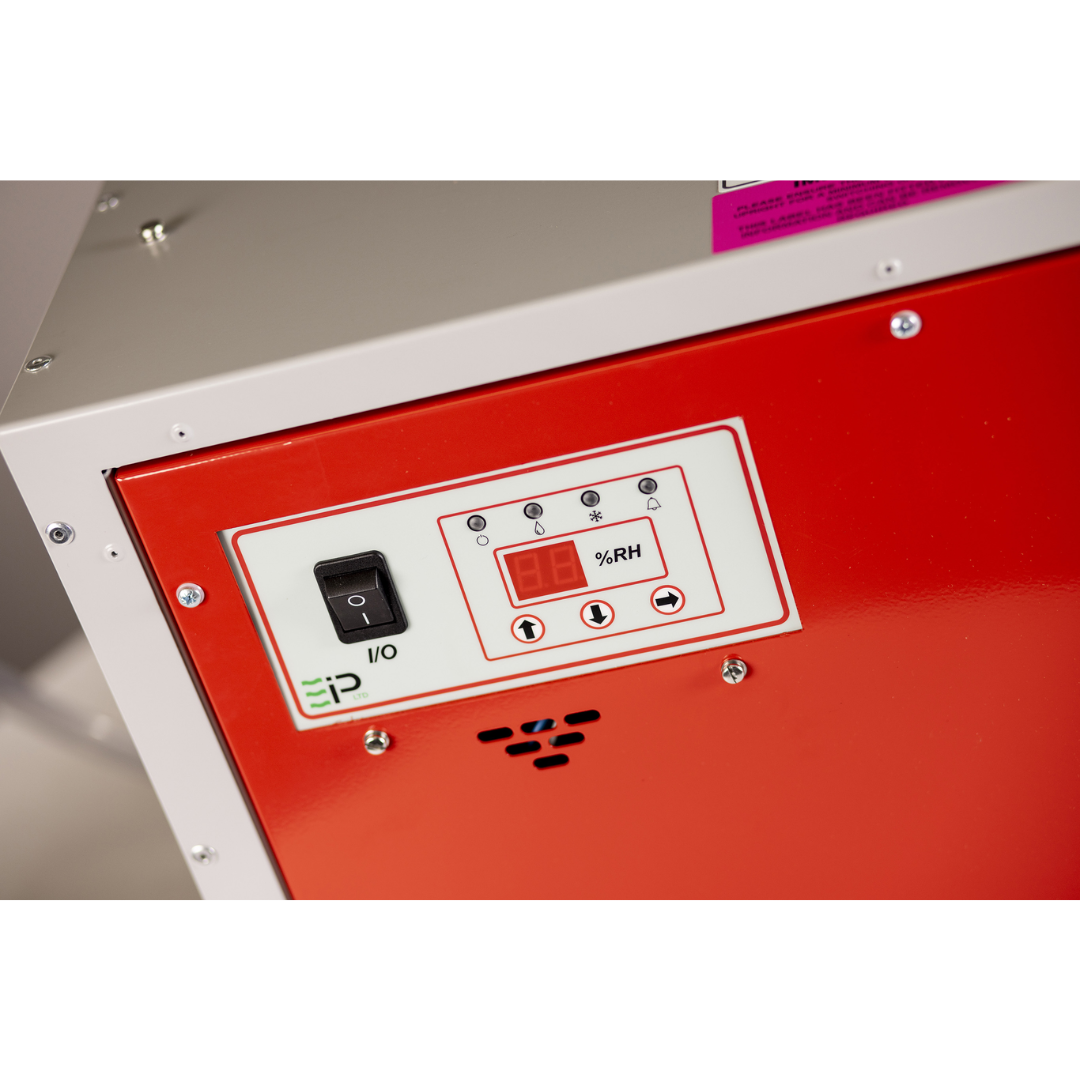

- Status Indicator Panel provides quick visual confirmation of system operation.
- Anti-Vibration Rubber Feet reduce operational noise and vibration.
- Quick Disconnect Hose Coupling simplifies installation and drainage setup.
Ebac CD85-D Dehumidifier 11293GL-US Dehumidification Process
- Air is drawn into the Ebac CD85-D Dehumidifier 11293GL-US by a high-capacity internal fan.
- The air passes across a cold evaporator coil where moisture condenses.
- Condensed water collects in the condensate tray and is pumped away through the internal condensate pump.
- The air then passes through the condenser coil where recovered heat slightly warms the air.
- The discharged air returns to the room warmer and significantly drier.
- Continuous air circulation gradually lowers humidity levels within the controlled environment.
- An automatic defrost system protects the unit during colder operating conditions.
- The digital humidistat cycles the system on and off to maintain the selected humidity level.
Using an efficient refrigeration-based drying process, the Ebac CD85-D Dehumidifier 11293GL-US delivers consistent industrial-grade humidity control while maintaining energy-efficient operation.
Ebac CD85-D Dehumidifier 11293GL-US Included Components
- 1 × CD85-D Dehumidifier
- 1 × CD85 Owner’s Manual
- 1 × PVC Drain Tube (3/8" I/D – 3 m Long)
- 1 × Jubilee Clip
- 2 × Carrying Handles
Why Choose the Ebac CD85-D Dehumidifier 11293GL-US
- Removes up to 62 pints of moisture per day for high-capacity humidity control.
- Flexible airflow configuration for versatile installation.
- Integrated condensate pump allows drainage to elevated points.
- Energy-efficient rotary compressor reduces operating costs.
- Durable epoxy-coated steel construction for industrial environments.
- Reliable humidity control for commercial, industrial, and infrastructure spaces.
The Ebac CD85-D Dehumidifier 11293GL-US combines high extraction capacity, flexible airflow configuration, and durable construction to deliver dependable moisture control for commercial and industrial environments.
