Ebac CD425-D (460V) Dehumidifier Applications
- Large warehouses and logistics centers
- Industrial manufacturing facilities
- Large commercial buildings and offices
- Production plants and equipment rooms
- Storage facilities and distribution centers
- Industrial environments exposed to severe humidity
Designed to control humidity across large facilities without placing additional strain on HVAC or ventilation systems.
Ebac CD425-D (460V) Dehumidifier Specifications
| Model | CD425-D (460V) |
|---|---|
| Power Supply | 460V / 3 Phase / 60 Hz |
| Typical Extraction | 285 Pints / Day |
| Effective Coverage | 1,500 m³ |
| Airflow | 1,750 CFM |
| Noise Level | 69 dBA |
| Power Consumption | 3,680 W |
| Current | 8 A |
| Refrigerant | R454c |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 47" |
| Width | 43" |
| Depth | 19" |
| Weight | 353 lbs |
Ebac CD425-D Industrial Performance & Construction
- High Capacity Moisture Removal – Removes up to 285 pints of moisture per day to control humidity in very large spaces.

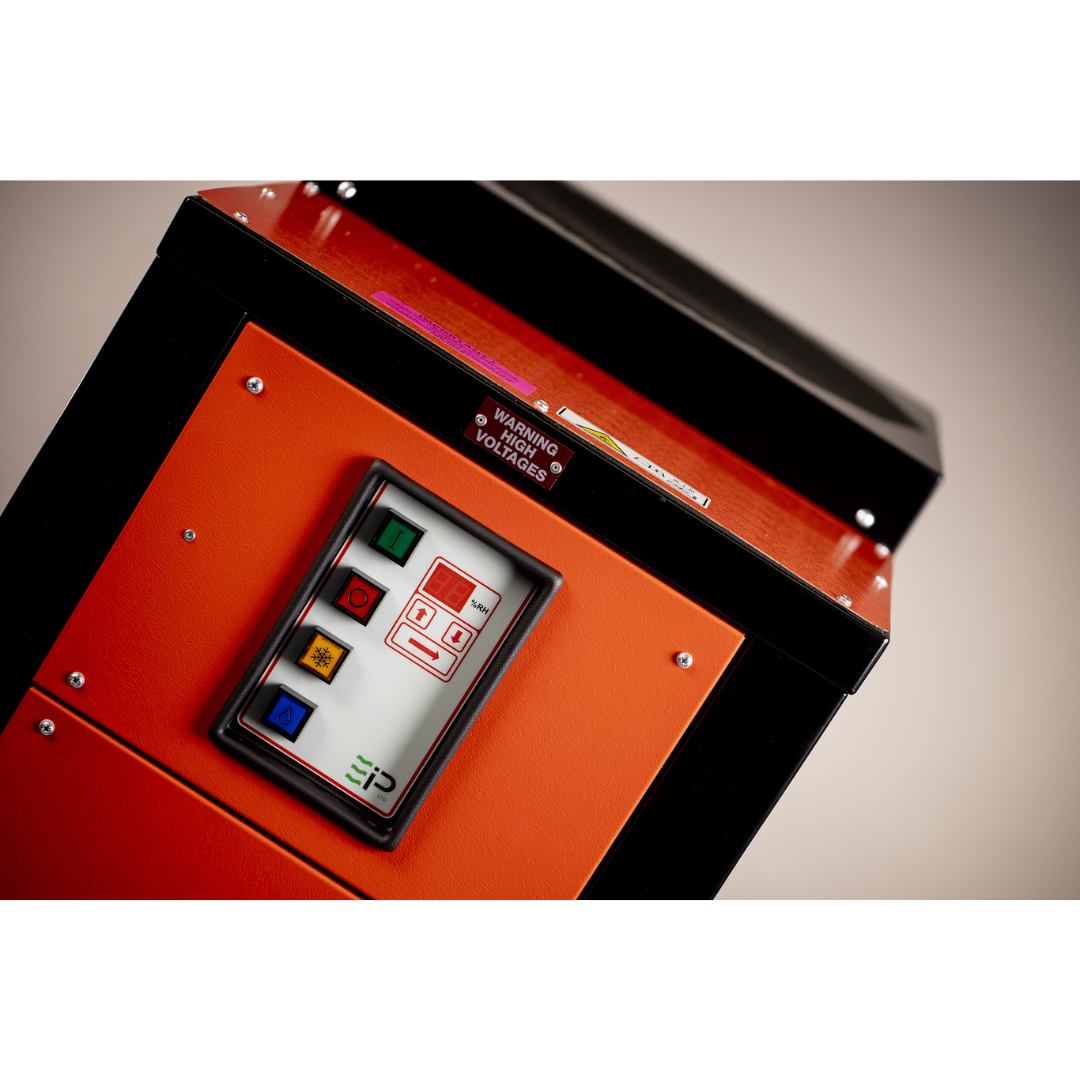

- Digital Humidity Control – Allows users to set and maintain precise humidity levels automatically.
- Adjustable Humidistat – Automatically regulates the desired dryness level.
- Reverse Cycle Defrost Technology – EIPL’s proven defrost system ensures effective operation at low temperatures down to 33°F.

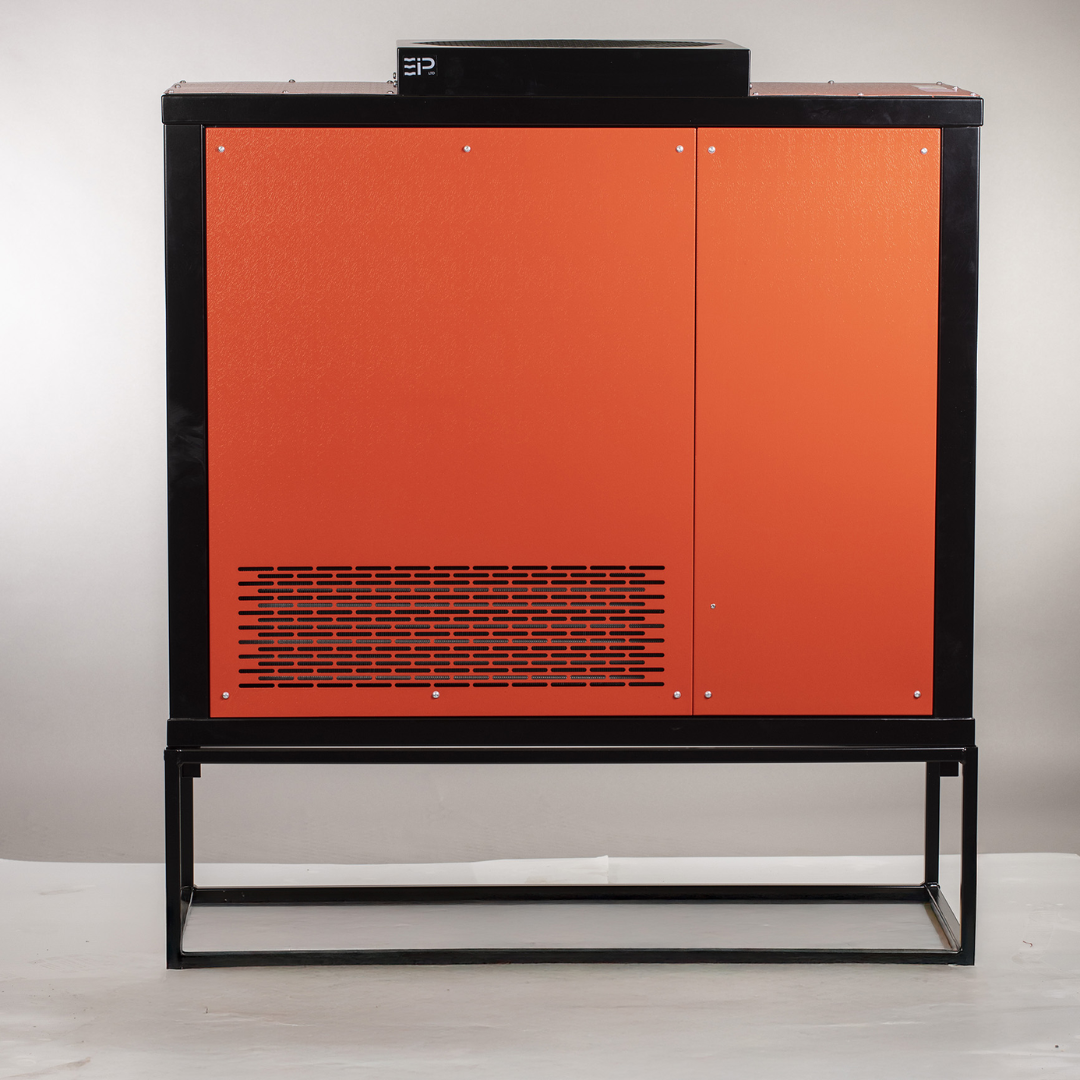

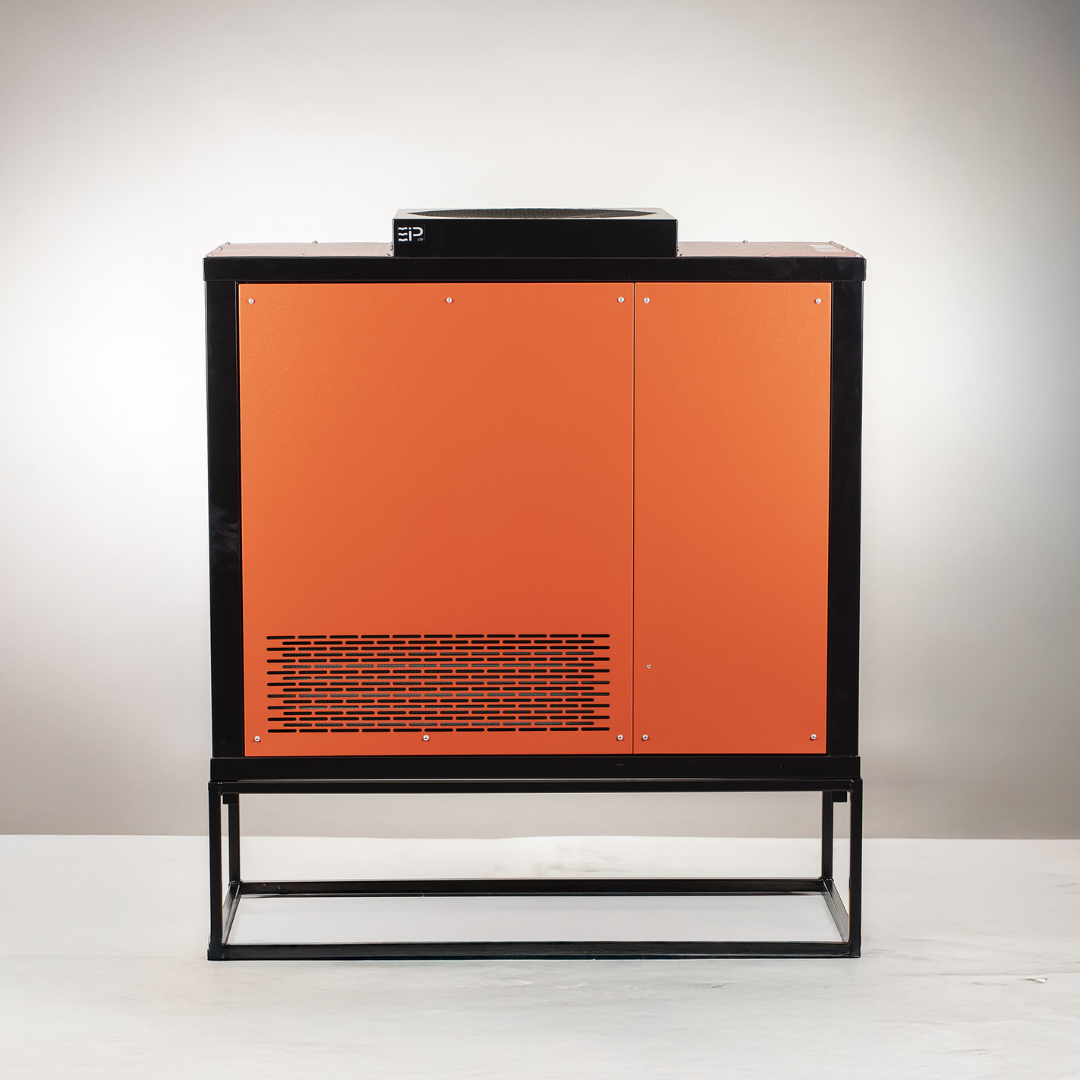

- Heavy Duty Industrial Construction – Welded steel chassis with baked epoxy and vinyl coatings for corrosion and abrasion resistance.
- Status Indicator Lamps – Provide quick visual confirmation of operating status.
- Ductable Design – Can operate as a standalone system or be integrated into ducted airflow systems.
- Reciprocating Compressor – Designed for reliable high-capacity operation in demanding industrial environments.
- Optional High Capacity Condensate Pump – Available pump option for automatic drainage.
- Low Temperature Operation Option – Capable of operating in environments down to 0°F with optional configuration.
How the Ebac CD425-D Dehumidifier Works
- Air is drawn into the unit by a high-capacity fan.
- The air passes over a cold evaporator coil.
- Moisture condenses from the air as it cools.
- Condensed water collects in the condensate tray.
- Water drains through a gravity drain or internal pump.
- The air passes through the condenser coil where it is reheated.
- The air returns to the room slightly warmer and significantly drier.
- The automatic defrost system prevents frost buildup.
- The humidistat cycles the system on and off to maintain the selected humidity level.
What’s Included
- 1 × Ebac CD425-D (460V) Industrial Dehumidifier
- 1 × Owner’s Manual
- 2 × 3/8" PVC Drain Tube – 3 m
- 2 × Jubilee Clips
Why Choose the Ebac CD425-D (460V) Industrial Dehumidifier
- 285 PPD high-capacity moisture removal
- Coverage for large facilities up to 1,500 m³
- Industrial-grade welded steel construction
- Reverse cycle defrost for low temperature performance
- Ductable installation for flexible integration
- Designed for continuous operation in harsh environments
The Ebac CD425-D (460V) Industrial Dehumidifier provides powerful humidity control for large industrial spaces, delivering dependable performance, heavy-duty construction, and efficient moisture removal for warehouses, factories, and demanding commercial facilities.
