Ebac CD425-D Industrial Dehumidifier Applications
- Large warehouses and distribution facilities
- Manufacturing plants and industrial production floors
- Commercial buildings and large office complexes
- Storage facilities and logistics centers
- Facilities requiring ducted or standalone humidity control
- Industrial environments exposed to severe moisture conditions
Designed to control humidity across large spaces without the need for multiple smaller units.
Ebac CD425-D (220V) Dehumidifier Specifications
| Model | CD425-D |
|---|---|
| Power Supply | 220V / 3 Phase / 60 Hz |
| Typical Extraction | 285 Pints Per Day |
| Effective Coverage | 1,500 m³ |
| Airflow | 1,750 CFM |
| Noise Level | 69 dBA |
| Power Consumption | 3,680 W |
| Current | 16 A |
| Refrigerant | R454c |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 47" |
| Width | 43" |
| Depth | 19" |
| Weight | 353 lbs |
Ebac CD425-D Performance & Construction
- High Capacity Moisture Removal – Extracts up to 285 pints of moisture per day for powerful humidity control.

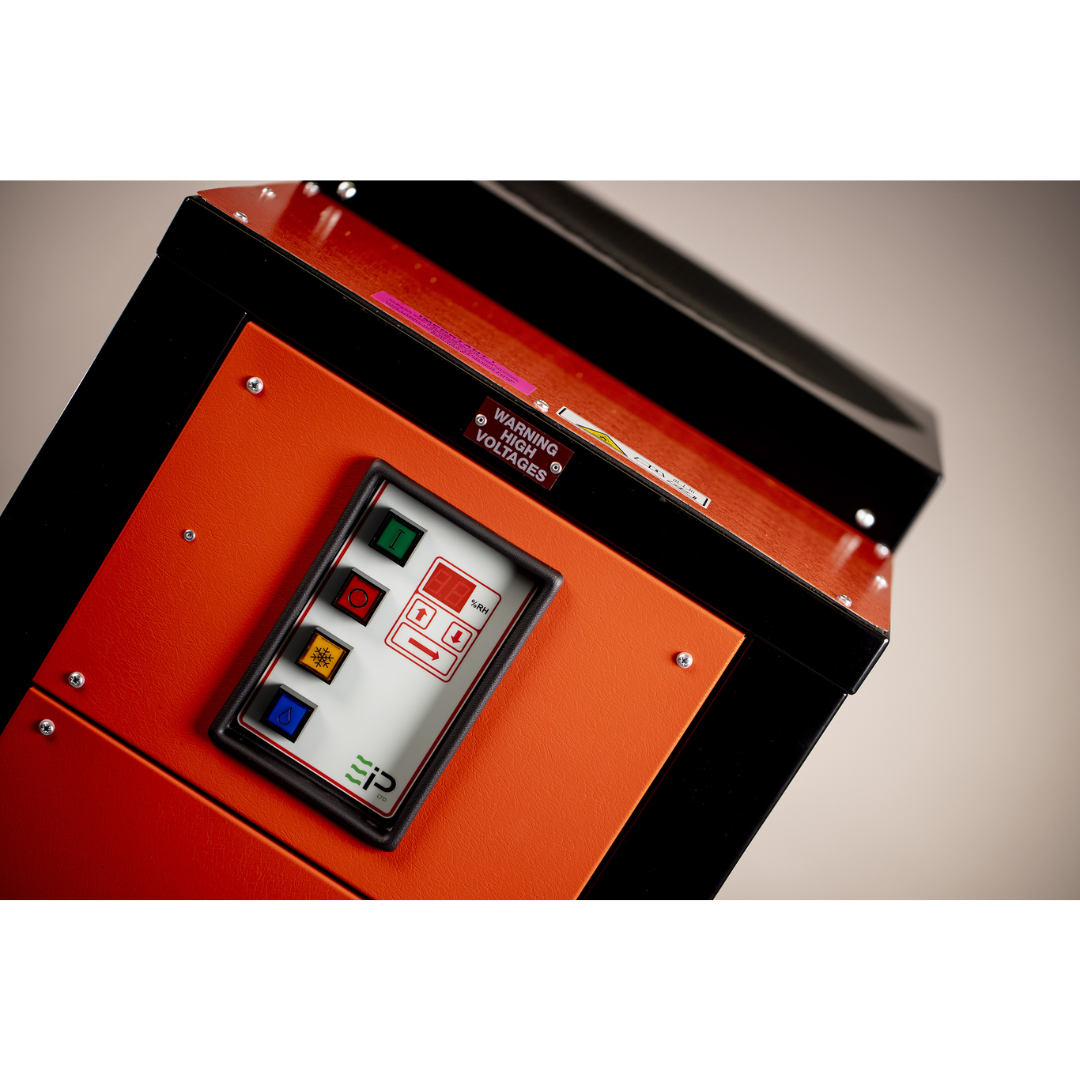

- Digital Humidity Control – Allows precise humidity set points for consistent environmental management.
- Adjustable Humidistat – Automatically maintains the desired dryness level.
- Reverse Cycle Defrost System – EIPL’s proven defrost technology enables operation in low temperatures down to 33°F without frost buildup.
- Heavy Duty Industrial Construction – Welded steel chassis with epoxy and vinyl coating for corrosion and abrasion resistance.
- Status Indicator Lamps – Quickly display the operating status of the unit.
- Ductable Design – Can operate as a standalone unit or be integrated into ducted air systems.
- Reciprocating Compressor – Durable compressor designed for high-capacity industrial operation.
- Optional Internal Condensate Pump – Available pump option allows convenient automatic drainage.
- Rugged Design – Built to withstand demanding industrial conditions and continuous operation.
How the Ebac CD425-D Dehumidifier Works
- Air is drawn into the unit by a high capacity fan.
- The air passes over a cold evaporator coil.
- Moisture condenses from the air as it cools.
- Collected water drains into the condensate tray.
- The condensate is removed through the drain line or pump.
- The air then passes across the condenser coil.
- The air is reheated and discharged back into the room warmer and significantly drier.
- The defrost system automatically removes frost buildup when necessary.
- The humidistat cycles the unit on and off to maintain the desired humidity level.
What’s Included
- 1 × Ebac CD425-D (220V) Industrial Dehumidifier
- 1 × Owner’s Manual
- 1 × 3/8" ID PVC Drain Tube – 7.8 m
Why Choose the Ebac CD425-D Industrial Dehumidifier
- High capacity 285 PPD moisture extraction
- Coverage for large industrial spaces up to 1,500 m³
- Industrial-grade welded steel construction
- Reverse cycle defrost for reliable low-temperature operation
- Ductable configuration for flexible installation
- Built for continuous operation in demanding environments
The Ebac CD425-D (220V) Industrial Dehumidifier is engineered for large-scale humidity control, offering powerful moisture removal, durable construction, and reliable performance in warehouses, factories, and demanding industrial environments.
