Ebac CD100E Dehumidifier 10273GY-US Applications
- Warehouses and industrial storage facilities
- Electrical and telecommunications switching stations
- Industrial factories and production environments
- Basements, crawl spaces, and locker rooms
- Marine vessels and offshore installations
- Pumping stations and infrastructure equipment rooms
- Facilities requiring remote humidity monitoring and alarms
The Ebac CD100E Dehumidifier 10273GY-US is designed to eliminate excessive moisture that can lead to corrosion, mold growth, equipment failure, and structural damage.
Ebac CD100E Dehumidifier 10273GY-US Specifications
| Model | CD100E |
|---|---|
| Part Number | 10273GY-US |
| Power Requirement | 110V / 1 Phase / 60 Hz |
| Power Consumption | 1.09 kW |
| Current Draw | 16 A |
| Typical Moisture Extraction | 97 Pints per Day |
| Airflow | 324 CFM |
| Noise Level | 66 dBA |
| Refrigerant | R454c |
| Effective Coverage Volume | 10,594 cu.ft. |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 16 in |
| Width | 36 in |
| Depth | 20 in |
| Weight | 135 lbs |
| Compressor Type | Reciprocating |
Ebac CD100E Dehumidifier 10273GY-US Performance & Construction
- Heavy-Duty Epoxy-Coated Steel Chassis ensures long-lasting durability in harsh industrial environments.
- Floating Compressor Mount minimizes vibration and protects internal components during operation and transportation.

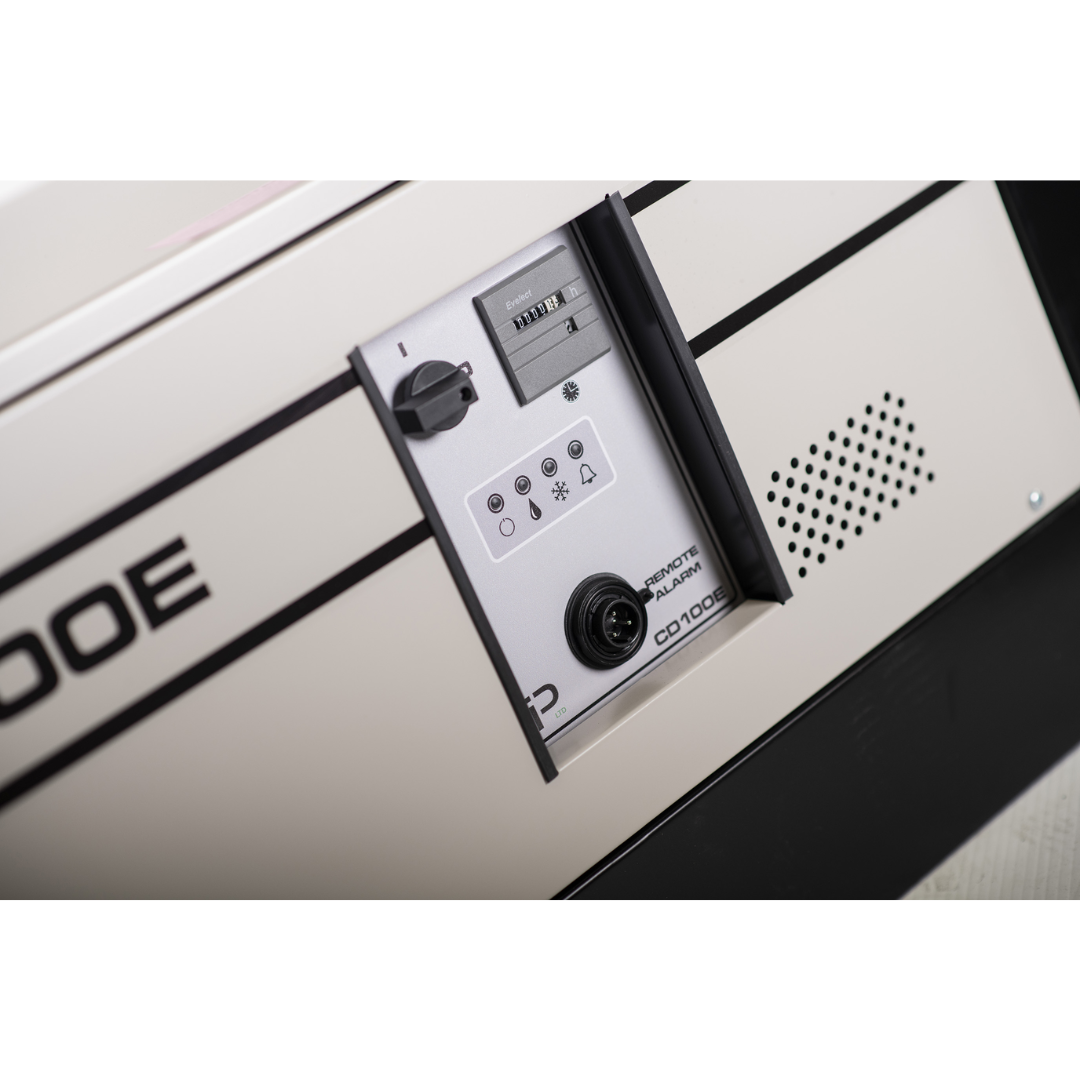

- Adjustable Humidistat Control automatically maintains the desired humidity level within the environment.
- Reverse Cycle Defrost System prevents frost buildup and enables reliable performance at low ambient temperatures.
- Alarm Humidistat with Voltage-Free Connector allows remote monitoring and high humidity alarm integration.
- Power On Indicator and Status Lamps provide quick visual confirmation of operating conditions.
- Hours Run Meter records accurate operating time for maintenance scheduling and monitoring.
- Standard 115V Electrical Connection allows operation in virtually any facility without specialized power requirements.
- Gravity Drain System provides continuous moisture removal through a drainage tube.
- Wall Mounting Bracket Included allows secure permanent installation when required.
Ebac CD100E Dehumidifier 10273GY-US Dehumidification Process
- Air is drawn into the Ebac CD100E Dehumidifier 10273GY-US by the internal fan.
- The air passes across a cold evaporator coil where moisture condenses from the air.
- Collected water drains into the condensate tray and exits through the drain tubing.
- The air then passes through the condenser coil where it is reheated using recovered system heat.
- The discharged air returns to the room warmer and significantly drier.
- Continuous air circulation gradually reduces the relative humidity within the controlled space.
- The reverse cycle defrost system prevents frost buildup during low temperature operation.
- The internal humidistat cycles the unit on and off to maintain the selected humidity level.
Using an efficient refrigeration-based drying process, the Ebac CD100E Dehumidifier 10273GY-US delivers reliable humidity control for demanding industrial and commercial environments.
Ebac CD100E Dehumidifier 10273GY-US Included Components
- 1 × CD100E Static Dryer
- 1 × CD100 DV Owner’s Manual
- 1 × Wall Mounting Kit
- 1 × Free Socket
- 1 × Jubilee Clip
- 1 × 12 mm ID PVC Tubing (3 m Long)
Why Choose the Ebac CD100E Dehumidifier 10273GY-US
- Removes up to 97 pints of moisture per day for powerful humidity control.
- Reverse cycle defrost system enables operation down to 33°F.
- Alarm humidistat and voltage-free connector allow remote monitoring.
- Industrial-grade steel construction for harsh environments.
- High airflow capacity for efficient moisture extraction.
- Flexible installation with optional wall mounting.
The Ebac CD100E Dehumidifier 10273GY-US combines industrial durability, high moisture removal capacity, and advanced monitoring features to deliver reliable humidity control for demanding commercial and industrial environments.
