Ebac CD100 Dehumidifier 11324BR-US Applications
- Warehouses and storage facilities
- Electrical and telecommunications switching stations
- Industrial plants and factories
- Basements and crawl spaces
- Locker rooms and recreational facilities
- Marine vessels and offshore installations
- Pumping stations and infrastructure environments
The Ebac CD100 Dehumidifier 11324BR-US is designed to eliminate excessive humidity that can cause corrosion, mold growth, equipment damage, and structural deterioration.
Ebac CD100 Dehumidifier 11324BR-US Specifications
| Model | CD100 |
|---|---|
| Part Number | 11324BR-US |
| Power Requirement | 110V / 1 Phase / 60 Hz |
| Power Consumption | 1.09 kW |
| Current Draw | 16 A |
| Typical Moisture Extraction | 97 Pints per Day |
| Airflow | 324 CFM |
| Noise Level | 66 dBA |
| Refrigerant | R454c |
| Effective Coverage Volume | 10,594 cu.ft. |
| Minimum Operating Temperature | 33°F |
| Maximum Operating Temperature | 95°F |
| Height | 16 in |
| Width | 36 in |
| Depth | 20 in |
| Weight | 135 lbs |
| Compressor Type | Reciprocating |
Ebac CD100 Dehumidifier 11324BR-US Performance & Construction
- Epoxy-Coated Steel Chassis provides superior durability and corrosion resistance in harsh industrial environments.
- Floating Compressor Mount reduces vibration and protects internal components during operation and transport.

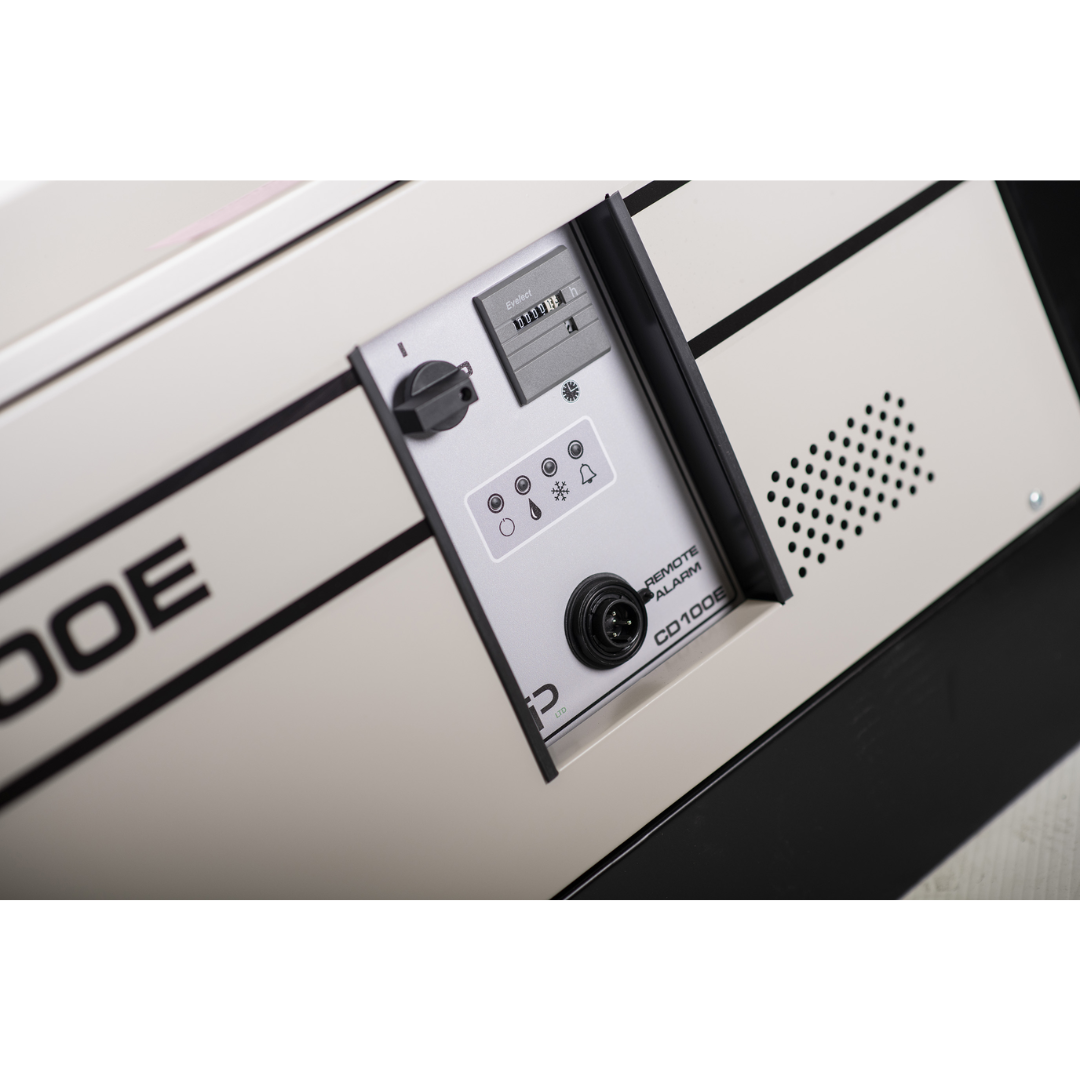

- Adjustable Humidistat Control allows precise control of humidity levels for automated operation.
- Reverse Cycle Defrost System prevents frost buildup and ensures reliable performance in low temperature environments.
- Status Indicator Lamps provide quick visual confirmation of system operation.
- High Capacity Airflow System delivers strong air movement for efficient moisture extraction.
- Standard 115V Power Requirement allows operation in a wide range of locations with common electrical service.
- Gravity Drain Connection enables continuous moisture removal through a drain tube.
- Industrial Carrying Handles and Skid allow easy movement and positioning between job sites.
Ebac CD100 Dehumidifier 11324BR-US Dehumidification Process
- Air is drawn into the Ebac CD100 Dehumidifier 11324BR-US by a powerful internal fan.
- The air passes over a cold evaporator coil where moisture condenses from the air.
- Condensed moisture collects in the condensate tray and drains through the connected drainage tube.
- The air then passes through the condenser coil where it is reheated using recovered heat.
- The discharged air returns to the room slightly warmer and significantly drier.
- Continuous circulation of air gradually lowers the relative humidity within the controlled environment.
- The automatic defrost system protects internal components during low temperature operation.
- The humidistat cycles the unit on and off automatically to maintain the desired humidity level.
The refrigeration-based drying system used by the Ebac CD100 Dehumidifier 11324BR-US delivers reliable, energy-efficient humidity control for industrial and commercial environments.
Ebac CD100 Dehumidifier 11324BR-US Included Components
- 1 × CD100 Static Dryer
- 1 × CD100 Owner’s Manual
- 1 × Jubilee Clip
- 1 × 12 mm ID PVC Drain Tubing (3 m Long)
Why Choose the Ebac CD100 Dehumidifier 11324BR-US
- Removes up to 97 pints of moisture per day for powerful humidity control.
- Reverse cycle defrost system enables operation in low ambient temperatures.
- Industrial steel construction built for demanding environments.
- High airflow capacity for efficient moisture extraction.
- Standard 115V power allows flexible installation locations.
- Reliable solution for warehouses, marine environments, and industrial facilities.
The Ebac CD100 Dehumidifier 11324BR-US delivers high-capacity moisture removal, rugged construction, and dependable industrial performance for environments where humidity control is critical.
