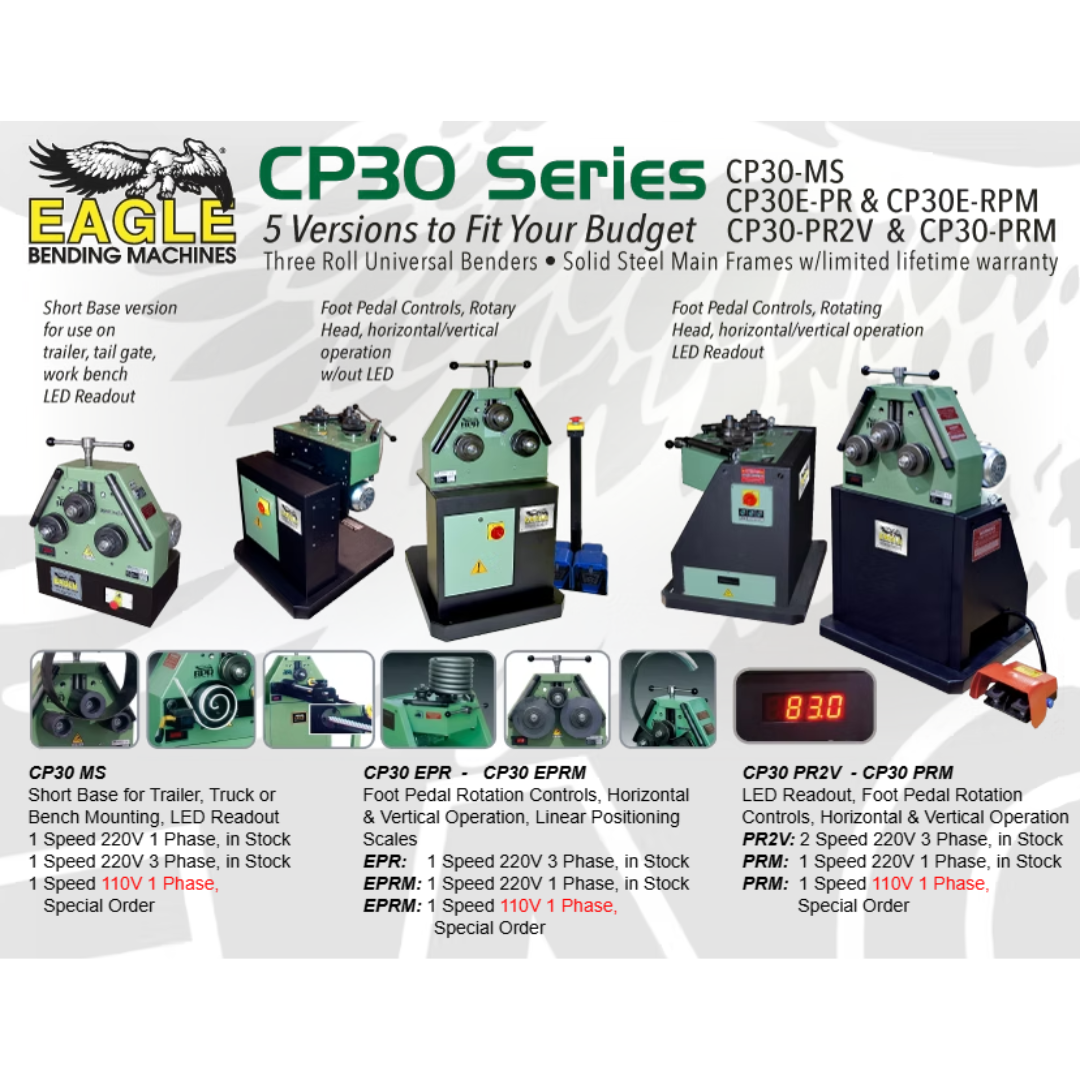

Eagle CP30EPRM - 1-1/2" Pipe Tube 3-Roll Universal Roll Bender

Roll over image to zoom in Click on image to zoom

Eagle CP30EPRM - 1-1/2" Pipe Tube 3-Roll Universal Roll Bender

Name: Eagle CP30EPRM - 1-1/2" Pipe Tube 3-Roll Universal Roll Bender
Brand: Carell Industrial Solutions
SKU: eaglecp30m
Price: 9500.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: Carell Industrial Solutions

Official Partner

IN STOCK & RECEIVE IN 2-5 DAYS

SKU: eaglecp30m

Price:

$9,500.00

Quantity:

Financing as low as ~$158 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦

Share this product

Power: 220V single-phase • 2 driven lower rolls, adjustable top roll • Foot pedal forward/reverse control.
Size & Weight: 543 lbs • 36" x 29" x 42" dimensions.
Capacity: 30mm hardened steel shafts • 2-3/8" maximum OD • 12 feet per minute max bending speed • 360° max bend • Material limits: Square tube (1-1/2" x 0.120"), Pipe/round tube (1-1/2" Schedule 40), Solid bar (1-1/4"), C-channel (2" x 1"), Flat bar (up to 3-5/8").
Features: Pyramid-style 3-roll universal bending geometry • Manual linear scale for repeatable bends • Horizontal or vertical operation for long/awkward stock • Dual tapered roller bearings, Z-block top roll journal • Low-voltage controls with emergency stop. Includes: 18-piece hardened steel universal tooling set.

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Carell Industrial Eagle CP30E-PRM 1½” Sq. Tube 3-Roll Universal Roll Bender

220V Single Phase • Foot Pedal Control • Manual Linear Scale Repeatability • Horizontal & Vertical Operation

Overview of the CP30E-PRM 3-Roll Universal Roll Bender

The Carell Industrial Eagle CP30E-PRM is a professional-grade 3-roll universal roll bender built for fabricators, ornamental metalworkers, and industrial shops. Designed to bend 1½” square tube, pipe, angle, and flat materials, this 220V single-phase bender delivers reliable performance with simple, operator-controlled precision.

With its powerful pyramid geometry and lower rolls driven, the CP30E-PRM provides smooth, consistent bending while the top roll adjusts to achieve the desired radius. The included foot pedal controls allow hands-free forward and reverse rotation, making it safer and easier to guide material during bends.

Key Features of the CP30E-PRM 1½” Tube Bender

Universal 3-Roll Design: Lower rolls powered for smooth bending; adjustable top roll for radius control.
Foot Pedal Control: Forward and reverse roll rotation for hands-free operation and precise material handling.
Manual Linear Scale: Enables precise repeatable bends without complex electronics.
220V Single Phase Power: Easy to install in most shops without 3-phase wiring.
Horizontal & Vertical Operation: Adaptable for bending long or awkwardly shaped material.
Heavy-Duty Construction: 30mm hardened steel shafts, dual tapered roller bearings, Z-block top roll journal, and a solid steel frame for years of reliable service.
Included Universal Tooling: 18 hardened steel components capable of bending most standard pipes, tubes, and angles.
Industrial Safety Features: Emergency stop switches, low-voltage controls, and durable protective covers.

CP30E-PRM Material Capacity

The CP30E-PRM is versatile enough for a variety of material shapes:

Material	Capacity (Mild Steel)
Square Tube	1½” x .120”
Round Tube / Pipe	1½” Schedule 40
Solid Bar	1¼”
C-Channel	2 x 1”
Flat Bar	Up to 3-5/8”

Specifications

Driven Rolls: 2 lower rolls powered, top roll adjustable
Bending Style: 3-roll universal bending
Maximum Bend: 360°
Maximum Bending Speed: 12 feet per minute
Shaft Diameter: 30mm hardened steel
Control Method: Foot pedal forward/reverse
Repeatability: Manual linear scale
Bending Roll Adjustment: Manual
Maximum OD: 2-3/8”
Weight: 543 lbs
Dimensions (LxWxH): 36" x 29" x 42"

Warranty & Support

✔ 1-Year Manufacturer’s Warranty
✔ Access to worldwide OEM components
✔ Professional support from Carell Industrial

Why Choose the CP30E-PRM 1½” Sq. Tube Roll Bender

The Carell Industrial Eagle CP30E-PRM combines heavy-duty construction, precise manual control, and versatile operation. Perfect for small to medium fabrication shops, ornamental metalwork, or any setting where 1½” tube, pipe, or section bending is required. With powered rolls, manual linear scale repeatability, and easy foot pedal controls, this machine gives you professional-grade bending without complex electronics.
