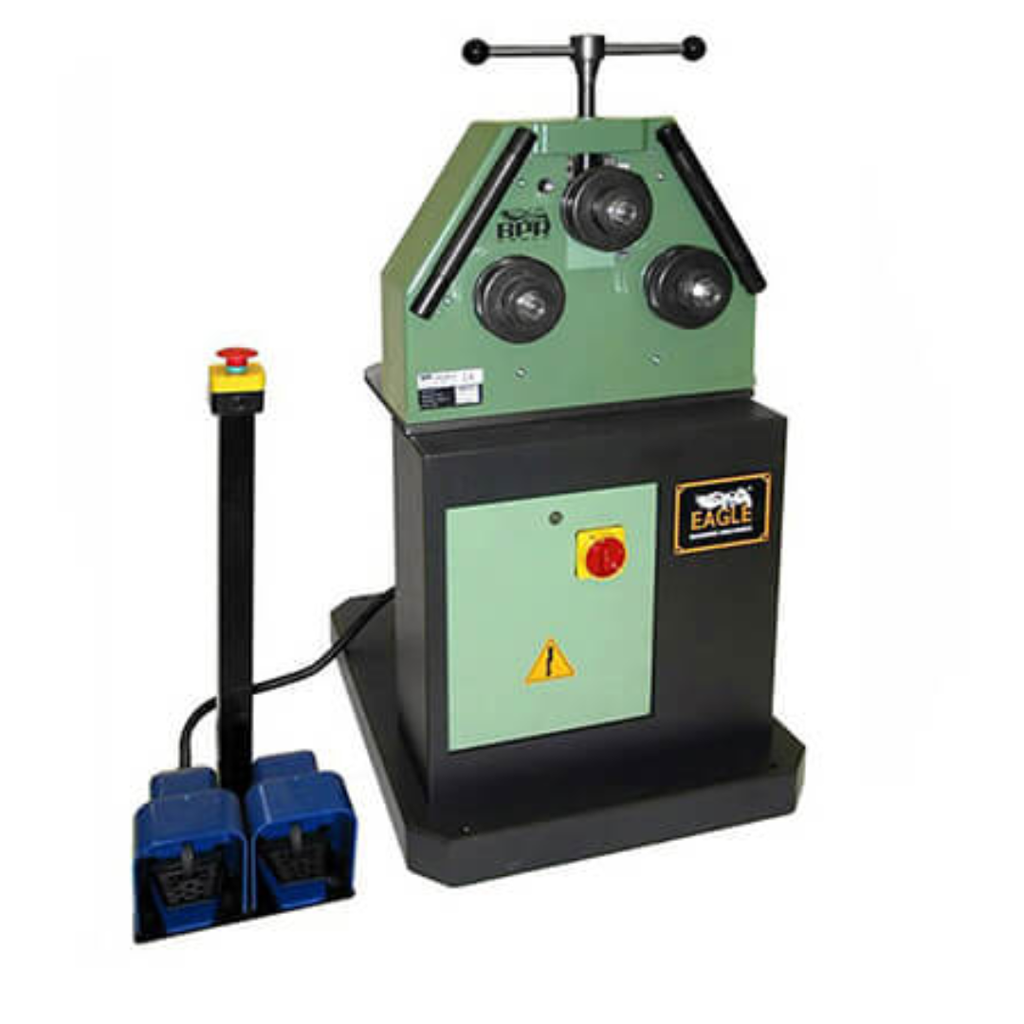

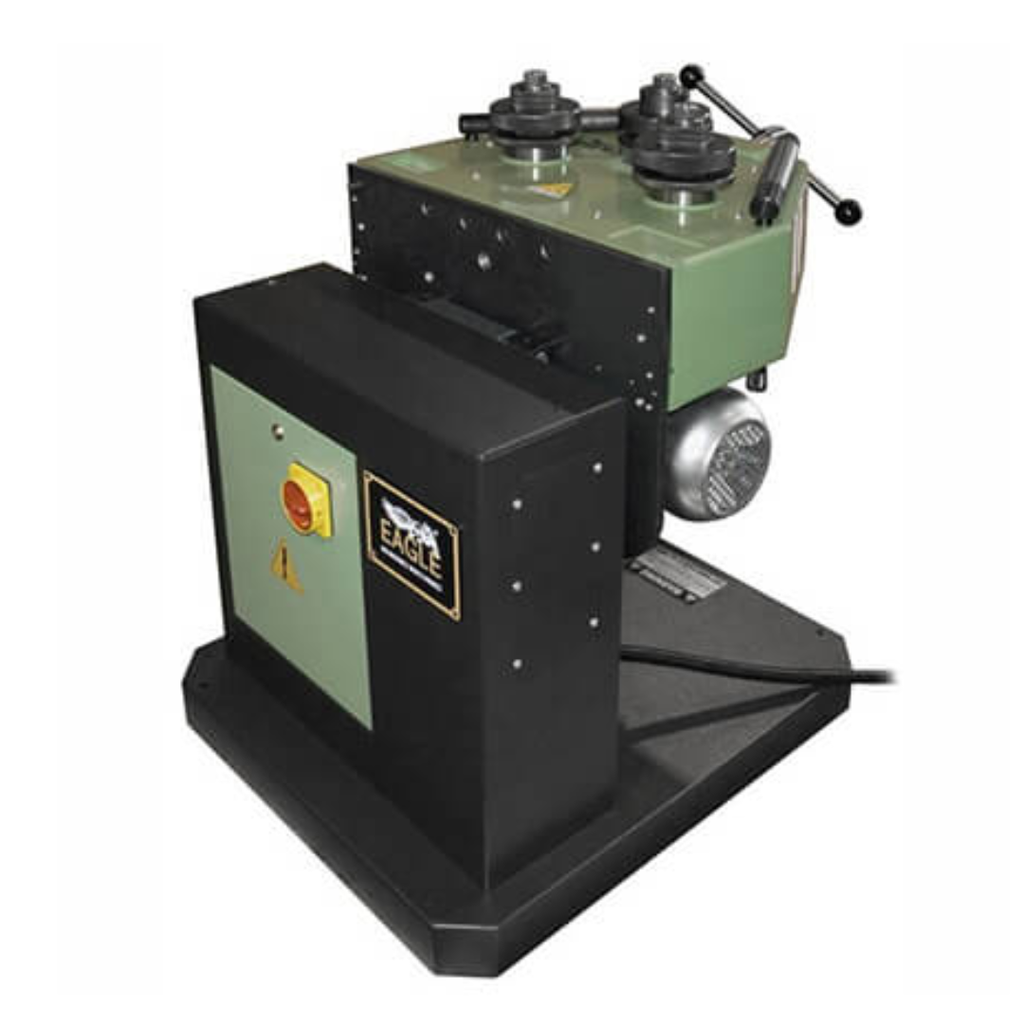

Eagle CP30 EPR 1-1/2" Pipe Roll Bending Machine
Industrial Section Bender • Foot Pedal Control • Manual Scale Repeatability • Horizontal & Vertical Operation
Overview of the Eagle CP30 EPR 1-1/2" Pipe Bender
The Eagle CP30 EPR 1-1/2" Pipe Roll Bending Machine is one of the most widely used section benders globally, trusted by architectural fabricators, job shops, and industrial manufacturers. Combining rugged industrial engineering with precision control, it bends pipes, tubes, angles, flats, and other standard profiles efficiently and reliably.
The EPR model features manual scale repeatability, giving operators complete control over roll positions while simplifying setup and maintenance. This makes it perfect for shops needing flexibility, durability, and professional-grade performance without the complexity of CNC systems.
Key Features of the Eagle CP30 EPR Pipe Roll Bender
- Industrial-Strength Pyramid Design: Lower rolls powered for smooth, consistent bending while the top roll adjusts for different diameters.
- Universal Tooling Included: 18 components made from hardened tool steel (55 HRC) to bend most standard sections immediately.
- Manual Scale Repeatability: Precisely monitor roll positions for consistent bends.
- Versatile Operation: Horizontal or vertical bending orientations for easier handling of long parts.
- Foot Pedal Controls: Forward and reverse operation allows hands-free material feeding with complete safety.
- Heavy-Duty Construction: 30mm hardened steel shafts, dual tapered roller bearings, Z-Block top roll journal, and solid steel frame for years of maintenance-free performance.
- Industrial Safety: Emergency stop switches, low-voltage 24VAC controls, and durable protective covers.
- Proven Reliability: Used worldwide in decorative, architectural, and industrial fabrication — trusted by professional shops and aerospace companies alike.
Material Capacity for Eagle CP30 EPR 1-1/2" Pipe Roll Bending Machine
Handle a wide variety of profiles and sizes with ease:
| Material | Capacity (Mild Steel) |
|---|---|
| Round Tube / Pipe | 1-1/2" Schedule 40 |
| Square Tube | 1-1/2" x .120" |
| Solid Bar | 1-1/4" |
| C-Channel | 2 x 1" |
| Flat Bar | Up to 3-5/8" |
Specifications for the Eagle CP30 EPR 1-1/2" Pipe Bender
- Driven Rolls: 2 (lower rolls powered, top roll adjustable)
- Bending Style: Roll bending
- Maximum Bend: 360°
- Max Bending Speed: 12 feet per minute
- Shaft Size: 30mm hardened steel
- Control Method: Foot pedal forward/reverse
- Repeatability Control: Manual linear scale
- Bending Roll Adjustment: Manual
- Maximum OD: 2-3/8"
- Weight: 543 lbs
- Dimensions (LxWxH): 36" x 29" x 42"
Warranty & Support for Eagle CP30 EPR Pipe Roll Bending Machine
✔ 1-Year Manufacturer’s Warranty
✔ Access to worldwide OEM components
✔ Renowned Eagle professional support
Why Choose the Eagle CP30 EPR 1-1/2" Pipe Roll Bender
The Eagle CP30 EPR 1-1/2" Pipe Roll Bending Machine combines industrial-grade durability, precision, and versatility in a compact, easy-to-use package. Perfect for shops that need reliable 1-1/2" pipe and section bending without the complexity of CNC automation.
