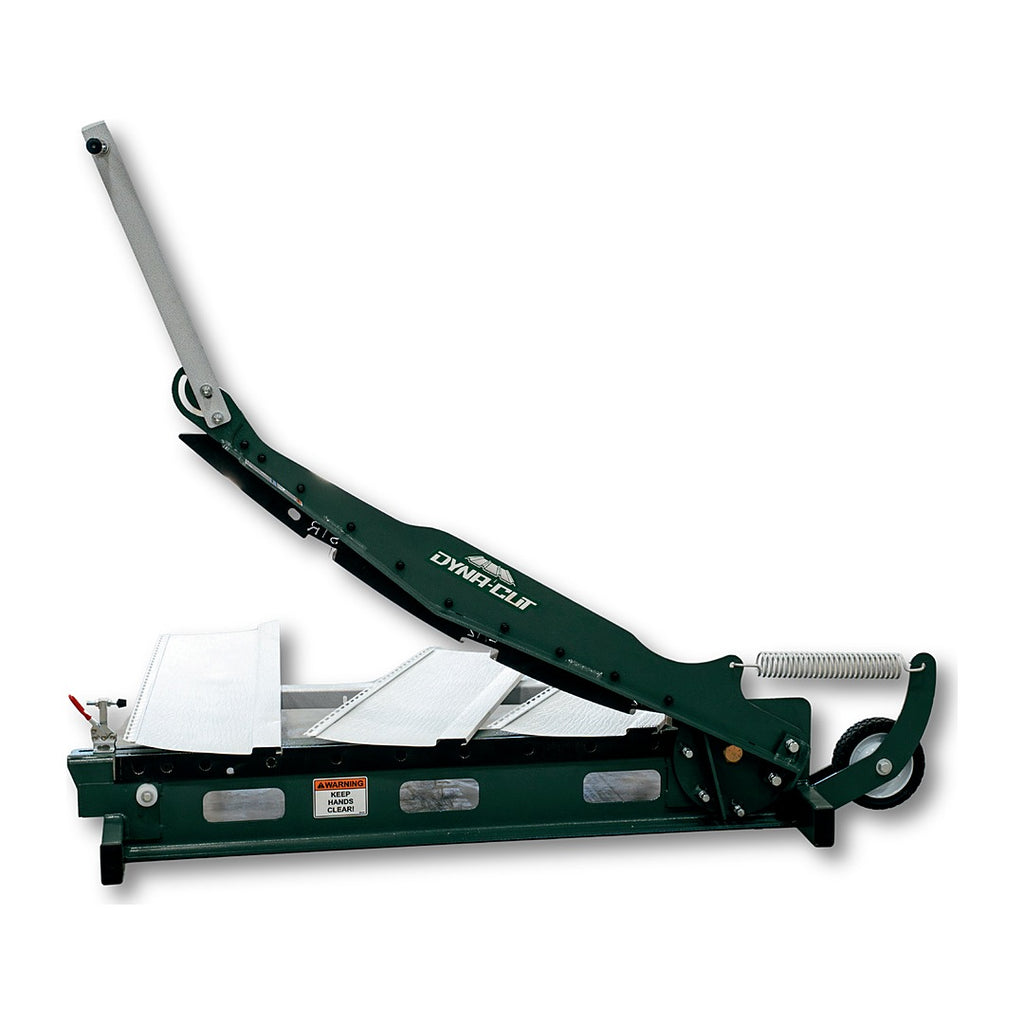

Dyna-Cut HRB-36 Portable Manual Shear Highlights
- Adapts to multiple profiles: A simple blade change handles both straight and angle cuts on gable pitches up to 5/12 with only two sets of blades.
- Quality cut guaranteed: Clean, accurate cuts on metal roofing and siding panels.
- Profile-matched blades: Blades are profiled to fit your metal; provide the manufacturer of your panel when ordering.
- User-friendly controls: Folding handle with a bushing in the handle swivel, a toggle clamp, and a spring-loaded locking pin.
- One-person operation: Saves labor cost and gives greater flexibility in crew size and scheduling.
Dyna-Cut HRB-36 Portable Manual Shear Specifications
| Brand | Dyna-Cut |
|---|---|
| Model | HRB-36 |
| Type | Portable manual shear |
| Footprint | 67 in. x 12 in. |
| Weight | 125 lb |
| Shipping weight | 129 lb (145 lb with extra blade set) |
| Blade options | Straight cut and angle cut sets |
| Optional accessories | Infeed stand, infeed/outfeed table on castors, replacement toggle clamp and tip |
Available Packages
| Package | Part # |
|---|---|
| Shear Only | HRB-36 |
| Shear + Straight Cut Blade Set | HRB-36+BLADE-STR |
| Shear + Angle Cut Blade Set | HRB-36+BLADE-ANG |
| Shear + Infeed Stand with Poly Profile | HRB-36+INFEED |

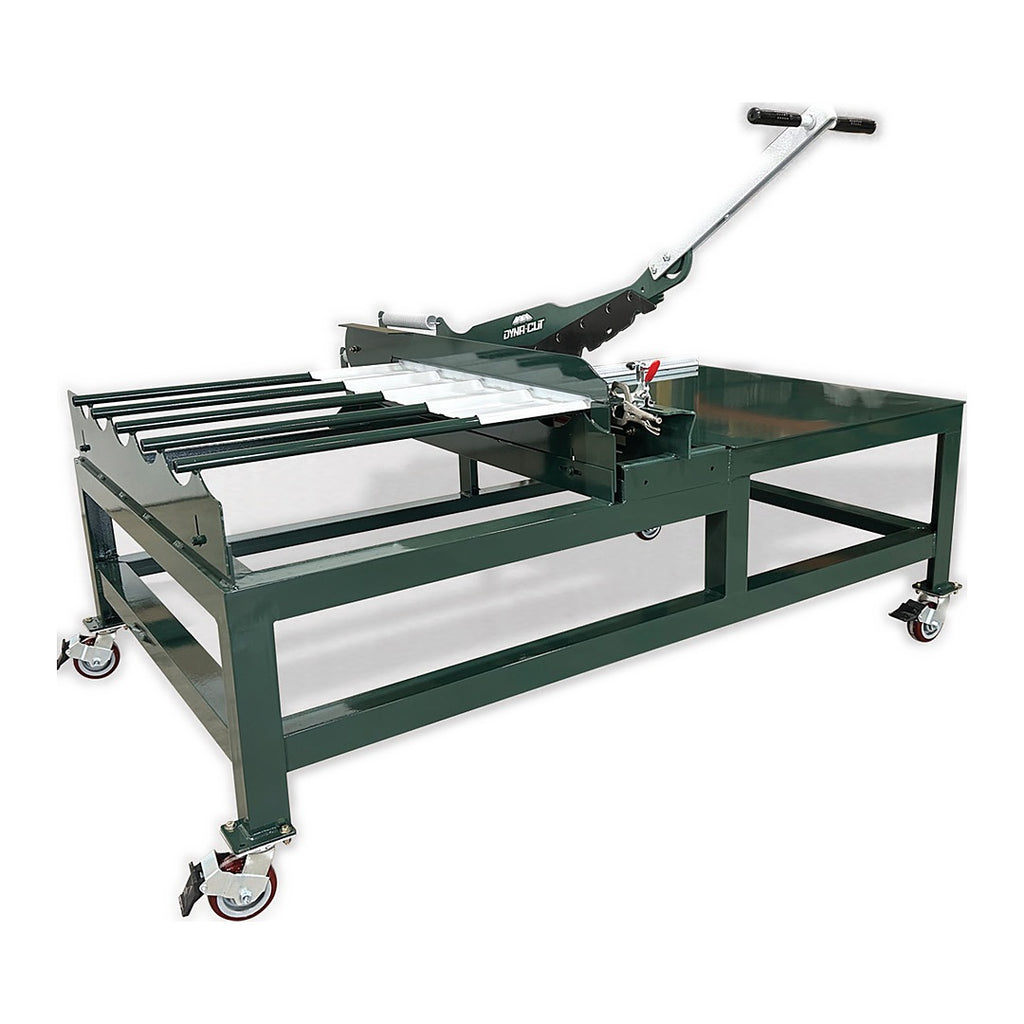

| Shear + Infeed / Outfeed Table on Castors | HRB-36+TABLE |
| Shear + Replacement Toggle Clamp | HRB-36+CLAMP |
| Shear + Replacement Toggle Clamp Tip | HRB-36+CLAMP-TIP |
