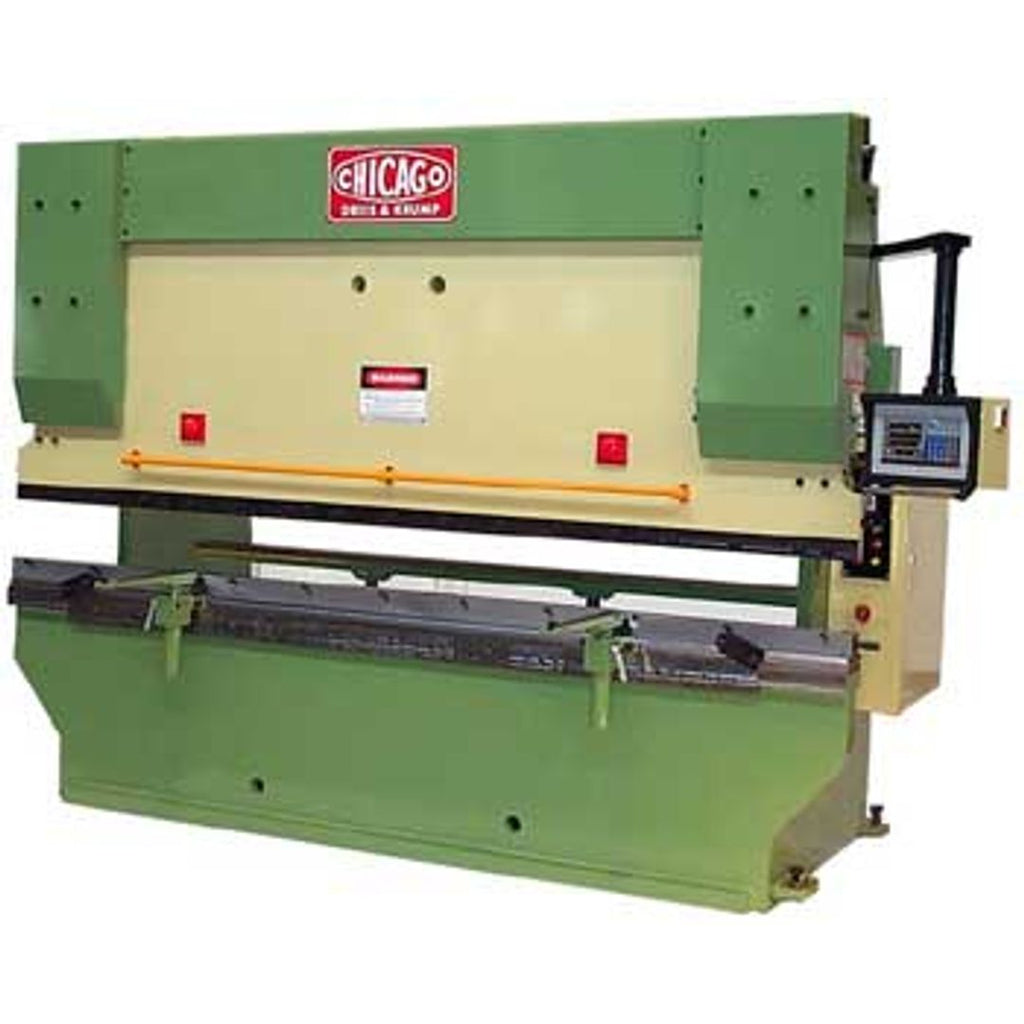

Dreis & Krump HPB 8026 hydraulic press brake, 90-ton capacity with 8 ft 6 in bed length

Roll over image to zoom in Click on image to zoom

Dreis & Krump HPB 8026 Hydraulic Press Brake, 90 Ton x 8 ft 6 in

Name: Dreis & Krump HPB 8026 Hydraulic Press Brake, 90 Ton x 8 ft 6 in
Brand: Dreis & Krump
SKU: HPB-8026
Price: 85170.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: Dreis & Krump

Official Partner

IN STOCK & READY TO SHIP

SKU: HPB-8026

Price:

$85,170.00

Quantity:

Financing as low as ~$1419 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $17,885.70 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Capacity: 90 tons over a 8 ft 6 in machine length.
All-steel welded frame: Rigid construction with mechanical torsion-bar leveling and a deflection compensator built into the bed top.
10 in touch screen control: Chicago HPB series controls with second-axis numeric control.
NC back gauge: Ball-screw-driven back gauge with vertical height adjustment.

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Dreis & Krump • Chicago Hydraulic Press Brakes

Dreis & Krump HPB 8026 Hydraulic Press Brake, 90 Ton x 8 ft 6 in

The Dreis & Krump HPB 8026 is a 90-ton Chicago hydraulic press brake with a 8 ft 6 in bed and a 7.5 HP drive. All-steel welded construction, a 10 in touch screen control and a ball-screw NC back gauge make it a dependable workhorse for job shops and fabrication floors that want American-brand press brake capacity at a fair price.

HPB 8026 Highlights

Capacity: 90 tons over a 8 ft 6 in machine length.
All-steel welded frame: Rigid construction with mechanical torsion-bar leveling and a deflection compensator built into the bed top.
10 in touch screen control: Chicago HPB series controls with second-axis numeric control.
NC back gauge: Ball-screw-driven back gauge with vertical height adjustment.
Safety and setup: Tonnage indicator with adjustable load control, sectional ram clamping bars, adjustable slow-down switch, electronic stroke counter and a full-length dovetail slot.
Speeds: 240 IPM advance, 24 IPM press and 140 IPM return.

What's Included & Options

Optional 18 in Triad light curtain with brackets available (about $8,200 installed on the HPB 4015; ask us for other sizes)
Freight shipment from the manufacturer; we confirm delivery details before shipping
Specifications may change without notice; confirm current specs with us before ordering

HPB 8026 Specifications

Brand	Chicago Dreis & Krump
Model	HPB 8026
Type	Hydraulic press brake
Tonnage	90 tons
Machine length	8'6"
Between housings	7'
Open height	12"
Stroke	6"
Throat depth	12"
Advance / press / return speed	240 / 24 / 140 IPM
Motor	7.5 HP
Control	10 in touch screen
Shipping weight	11,600 lbs

Ideal For: Sheet metal shops, fabricators and contractors bending plate and sheet up to the machine's tonnage rating.

Shipping: This machine ships by freight from the manufacturer. We confirm delivery details and freight cost with you before your order ships.

About Dreis & Krump: Chicago Dreis & Krump has been building brakes, shears, rolls and presses since 1899 in the spirit of "building them like they had to last forever." Iron Line Tools is an authorized source for the line.
