Denray 4800 Tube Filtration Applications
- Wood sanding and finishing operations
- Cabinet and furniture manufacturing facilities
- Architectural millwork production
- Custom woodworking shops
- Hardwood and softwood sanding applications
- Composite wood material processing
- Dust control for handheld sanding equipment
- Workstations requiring a larger square sanding surface
Ideal for woodworking facilities that need high-efficiency dust collection, excellent filtration performance, and a spacious square work area for sanding and finishing operations.
Denray 4800 Tube Filtration Specifications
| Model | 4800 Tube Filtration |
|---|---|
| Work Surface Size | 48" × 48" |
| Overall Height | 36" |
| Weight | 580 lbs |
| Motor | 2 HP |
| Fan Diameter | 16.5" |
| Airflow Capacity | 3,400 CFM |
| Sound Level | 77 dB |
| Filtration System | 15 Tube Filters |
| Filtration Efficiency | 99% Capture Rate at 1 Micron |
| Mobility | Integrated Casters |
| Electrical Receptacles | 3 Receptacles |
Denray 4800 Tube Filtration Electrical Requirements
| Configuration | Voltage | Amperage |
|---|---|---|
| Single Phase | 115V | 18.8 Amps |
| Single Phase | 220V | 9.4 Amps |
| Three Phase | 230V | 5.8 Amps |
| Three Phase | 460V | 2.9 Amps |
| Three Phase | 575V | 2.4 Amps |
Denray 4800 Tube Filtration Performance & Construction
- 99% Filtration Efficiency at 1 Micron captures fine airborne wood dust and helps improve indoor air quality throughout the facility.

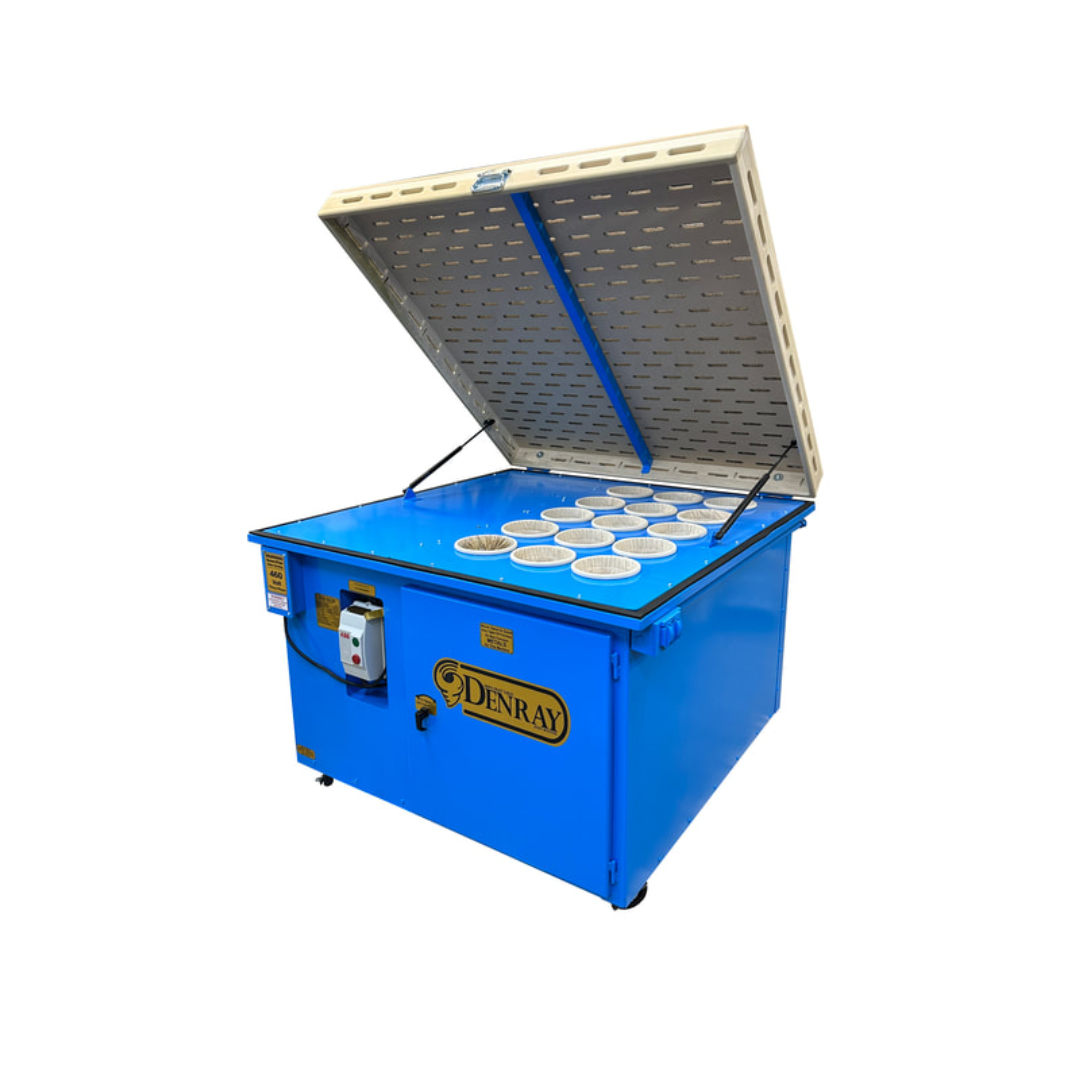

- 15 High-Efficiency Tube Filters provide substantial filtration surface area for consistent airflow and superior dust collection performance.
- Powerful 3,400 CFM Airflow Capacity creates strong downward airflow that captures dust directly at the source before it becomes airborne.
- 16.5-Inch Industrial Fan delivers reliable suction and efficient dust extraction for demanding sanding applications.
- Large 48" × 48" Work Surface offers ample room for cabinetry components, furniture parts, panels, and other woodworking projects.

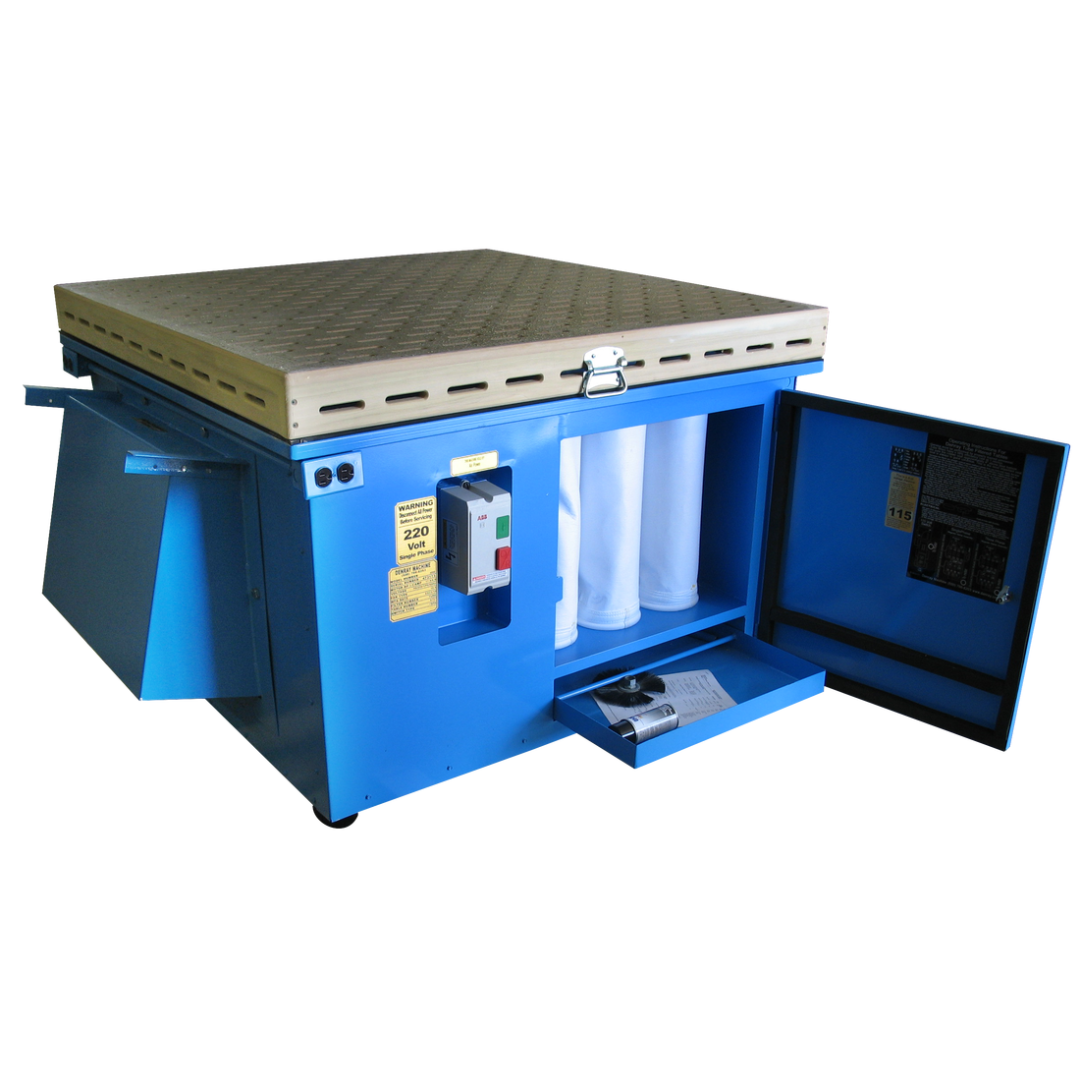

- Manual Filter Cleaning System includes a filter brush and handle for quick maintenance and optimal filtration performance.
- Rubber-Coated Tabletop protects finished workpieces from scratches while providing a durable, slip-resistant work surface.
- Three Integrated Receptacles provide convenient access to power for sanding tools and workstation accessories.

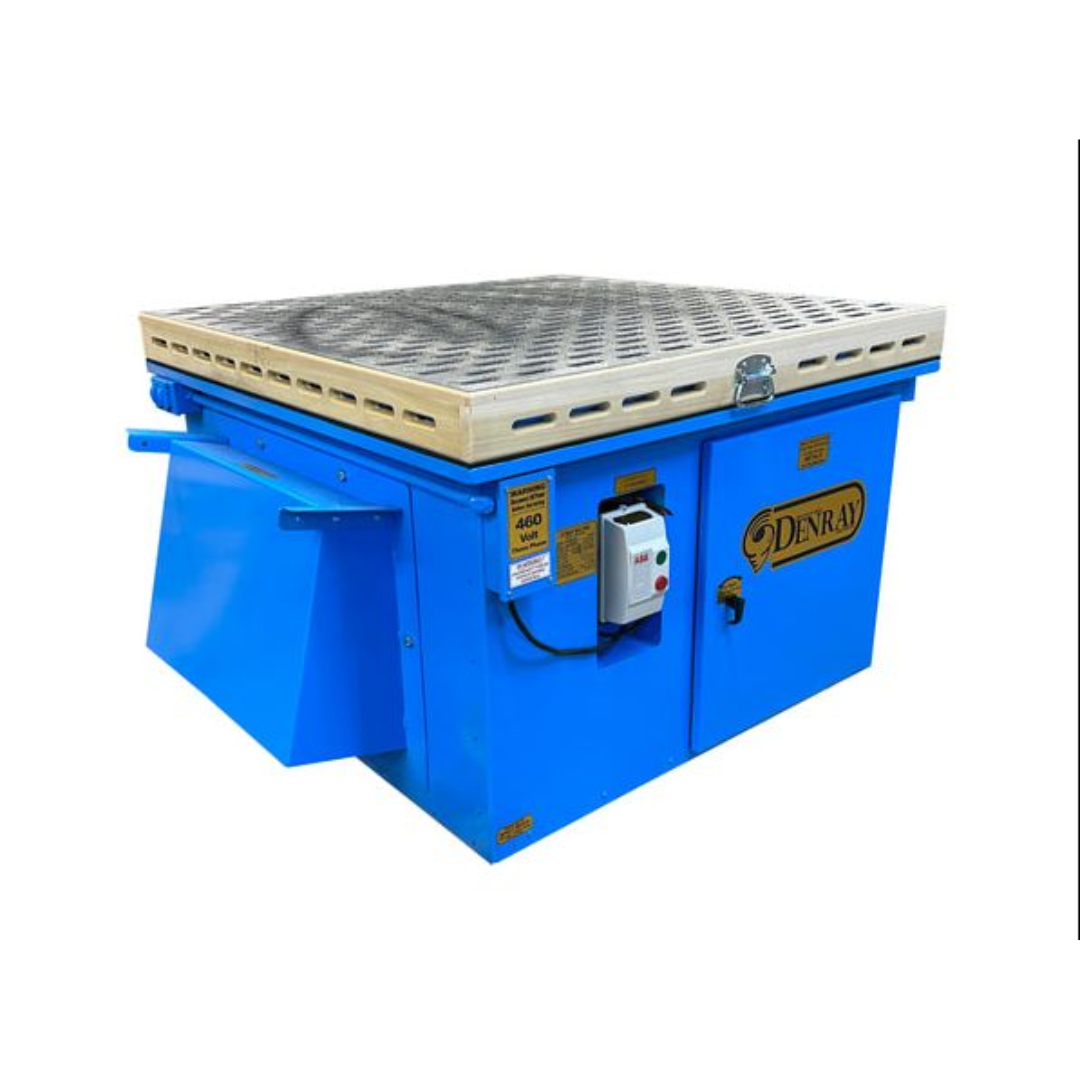

- Heavy-Duty Steel Construction is engineered for long-term industrial durability and dependable daily operation.
- Integrated Casters allow easy movement and flexible workstation placement throughout the facility.
Denray 4800 Tube Filtration Available Options
- Explosion Proof Motor (Three-Phase Models Only)
- Light Bar
- Muffler Package (Reduces Sound Levels by Approximately 10–12 dB)
- Three-Sided Hinged Safety Shield
- HDPE Plastic Tabletop Upgrade
- Larger Motor and Fan Upgrade Package
Optional upgrades allow the Denray 4800 Tube Filtration to be configured for specialized applications, increased airflow performance, enhanced operator protection, and quieter operation.
Why Choose the Denray 4800 Tube Filtration
- Designed specifically for wood dust collection and sanding applications.
- 99% filtration efficiency at 1 micron for superior dust capture.
- Powerful 3,400 CFM airflow captures airborne dust directly at the source.
- Large 48" × 48" square work surface supports a wide variety of projects.
- 15-tube filtration system maximizes filtration capacity and airflow consistency.
- Three integrated receptacles improve workstation productivity.
- Manual filter cleaning system minimizes maintenance downtime.
- Durable rubber-coated tabletop protects valuable workpieces.
- Integrated casters provide mobility and flexible shop layouts.
The Denray 4800 Tube Filtration delivers exceptional dust collection performance for woodworking professionals who need a larger square work surface, advanced filtration technology, and reliable source-capture dust extraction. Featuring 99% filtration efficiency at 1 micron, powerful 3,400 CFM airflow, and fifteen tube filters, this downdraft sanding table is built for demanding wood dust collection applications.
