Denray 3696 Tube Filtration Applications
- Wood sanding and finishing operations
- Cabinet, furniture, and millwork manufacturing
- Architectural woodworking facilities
- Production sanding and finishing departments
- Large custom woodworking projects
- Solid wood and composite material processing
- Dust-producing fabrication and assembly workstations
- Collection of fine airborne wood dust generated during sanding operations
Ideal for woodworking facilities that require maximum tabletop capacity, increased filtration surface area, and high-performance dust collection for larger production workloads.
Denray 3696 Tube Filtration Specifications
| Model | 3696 Tube Filtration |
|---|---|
| Work Surface Size | 36" × 96" |
| Overall Height | 36" |
| Weight | 750 lbs |
| Motor | 2 HP |
| Fan Diameter | 16.5" |
| Airflow Capacity | 3,800 CFM |
| Sound Level | 78 dB |
| Filtration System | 24 Tube Filters |
| Filtration Efficiency | 99% Capture Rate at 1 Micron |
| Mobility | Integrated Casters |
| Electrical Receptacles | 4 Receptacles |
Denray 3696 Tube Filtration Electrical Requirements
| Configuration | Voltage | Amperage |
|---|---|---|
| Single Phase | 115V | 18.8 Amps |
| Single Phase | 220V | 9.4 Amps |
| Three Phase | 230V | 5.8 Amps |
| Three Phase | 460V | 2.9 Amps |
| Three Phase | 575V | 2.4 Amps |
Denray 3696 Tube Filtration Performance & Construction
- 99% Filtration Efficiency at 1 Micron captures fine airborne wood dust and helps maintain cleaner indoor air quality throughout the facility.

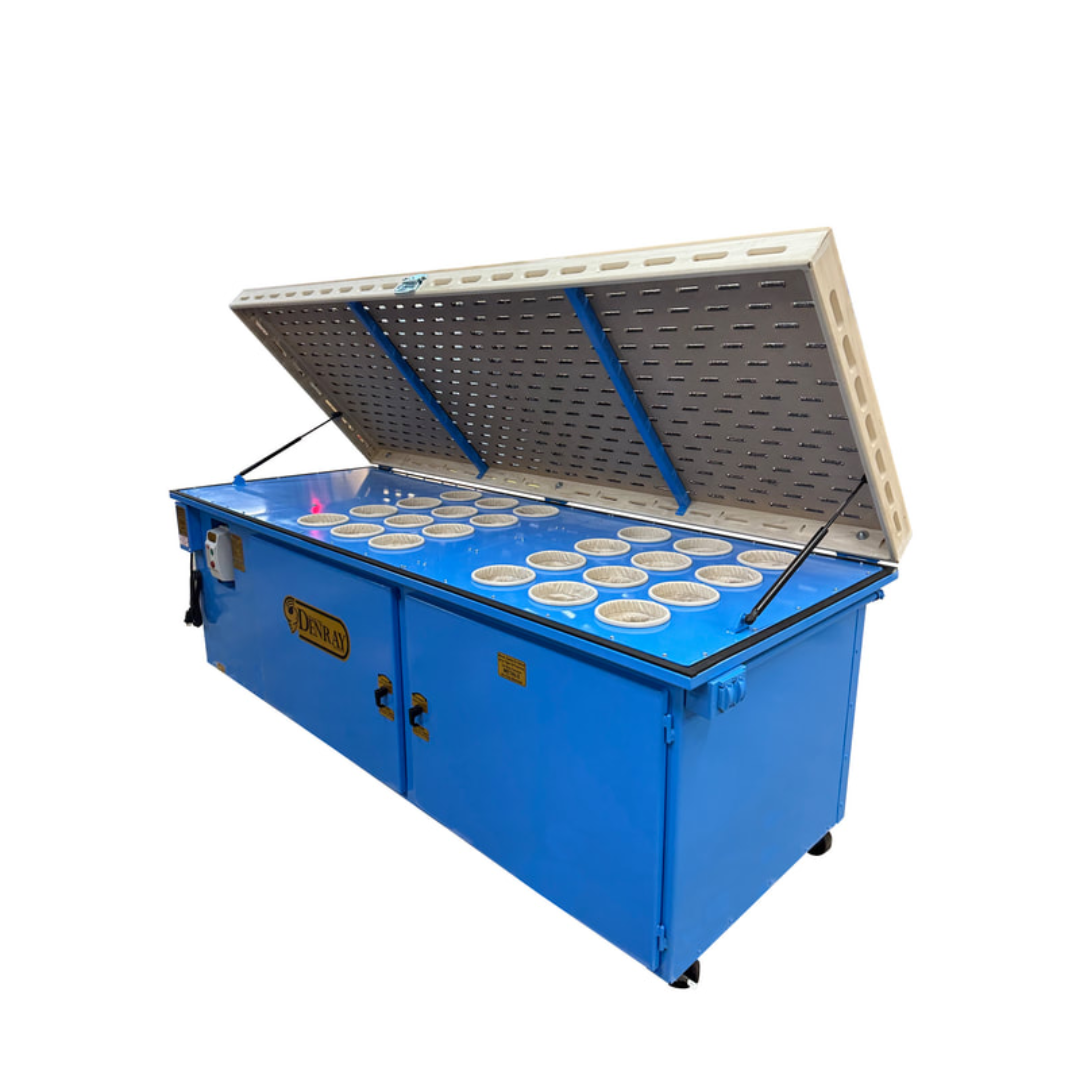

- 24 High-Efficiency Tube Filters provide extensive filtration surface area for maximum airflow consistency and dust collection performance.
- Powerful 3,800 CFM Airflow Capacity delivers strong downward airflow across the entire work surface, capturing dust directly where it is created.
- 16.5-Inch Industrial Fan provides dependable suction and efficient dust extraction for demanding sanding and finishing operations.

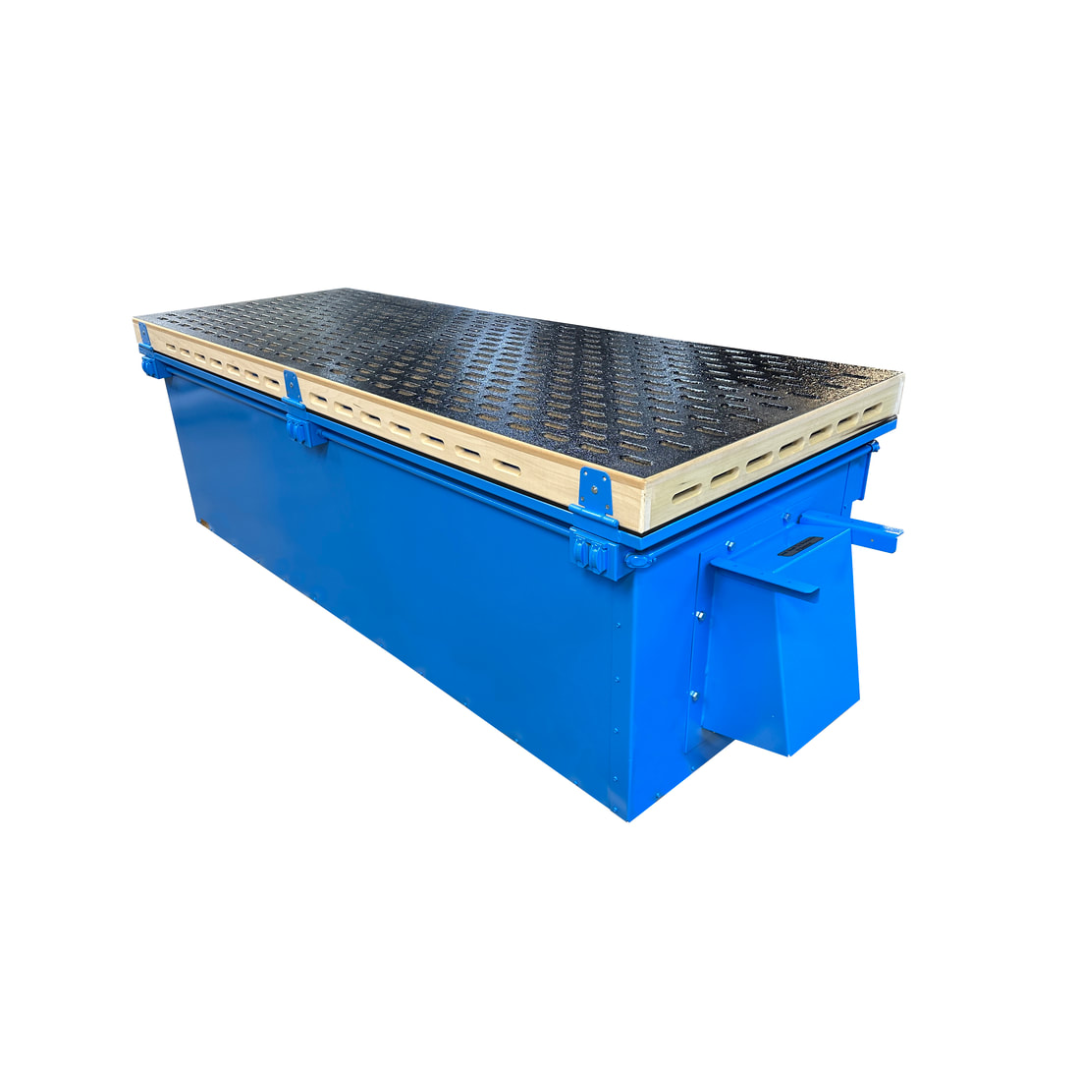

- Large 36" × 96" Work Surface accommodates oversized panels, doors, cabinetry components, and large woodworking projects.
- Manual Filter Cleaner Brush System allows operators to quickly clean filters and maintain peak airflow performance with minimal downtime.
- Rubber-Coated Tabletop protects finished materials from scratches while creating a durable, slip-resistant work surface.

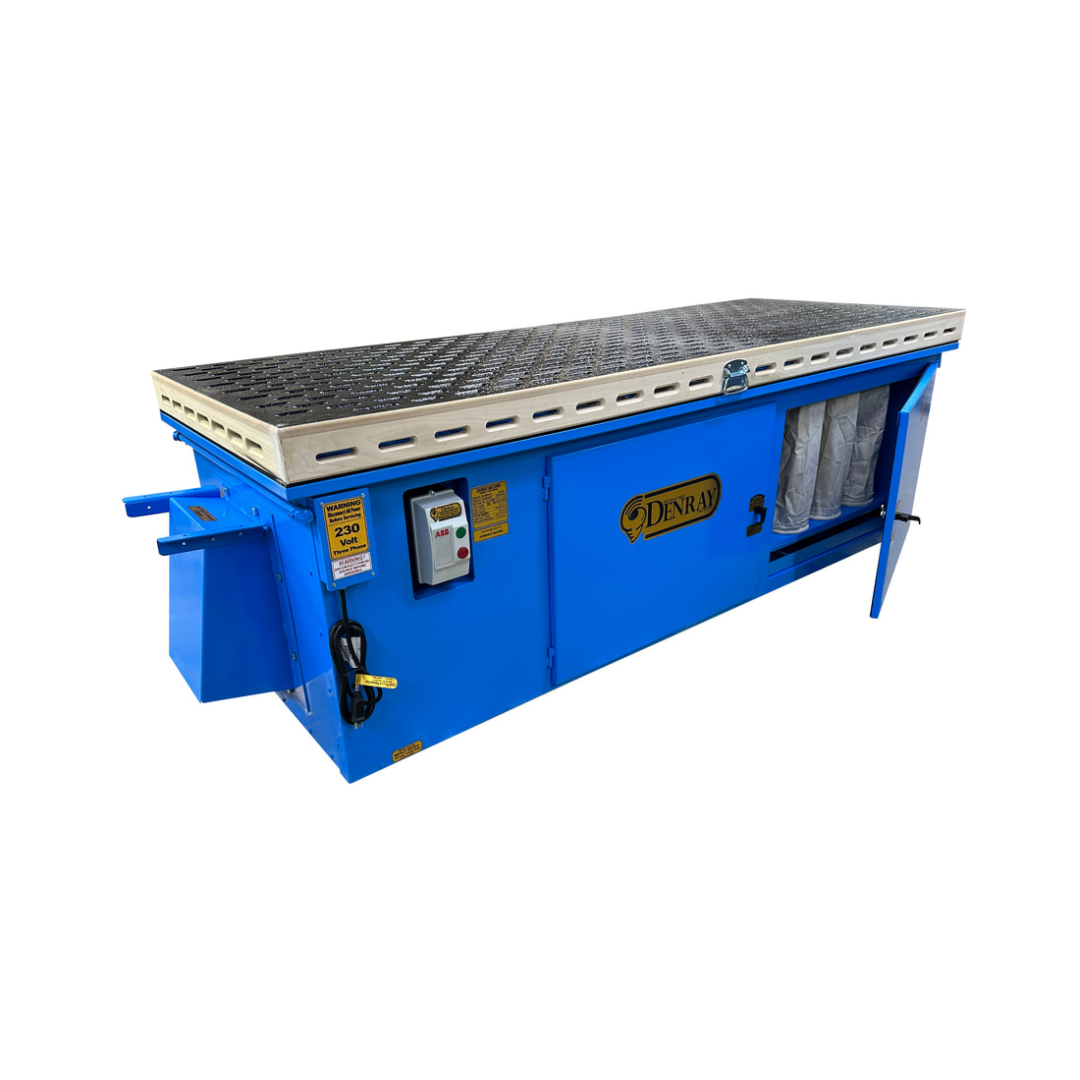

- Four Integrated Receptacles provide convenient power access for multiple tools and accessories directly at the workstation.
- Heavy-Duty Steel Construction is designed for continuous industrial use and long-term durability.
- Integrated Casters allow easy movement and flexible workstation placement within changing production environments.
Denray 3696 Tube Filtration Available Options
- Explosion Proof Motor (Three-Phase Models Only)
- Light Bar
- Muffler Package (Reduces Sound Levels by Approximately 10–12 dB)
- Three-Sided Hinged Safety Shield
- HDPE Plastic Tabletop Upgrade
- Larger Motor and Fan Upgrade Package
Optional upgrades allow the Denray 3696 Tube Filtration to be customized for specialized applications, increased airflow requirements, enhanced operator protection, and reduced operating noise.
Why Choose the Denray 3696 Tube Filtration
- Designed specifically for wood dust collection and sanding applications.
- 99% filtration efficiency at 1 micron for superior airborne dust capture.
- Powerful 3,800 CFM airflow maximizes source-capture dust collection.
- Large 36" × 96" work surface supports oversized projects and production workloads.
- 24-tube filtration system provides exceptional airflow and filtration capacity.
- Four integrated receptacles improve workstation productivity and convenience.
- Manual filter cleaning system reduces maintenance downtime.
- Durable rubber-coated tabletop protects valuable workpieces.
- Integrated casters allow flexible workstation placement throughout the facility.

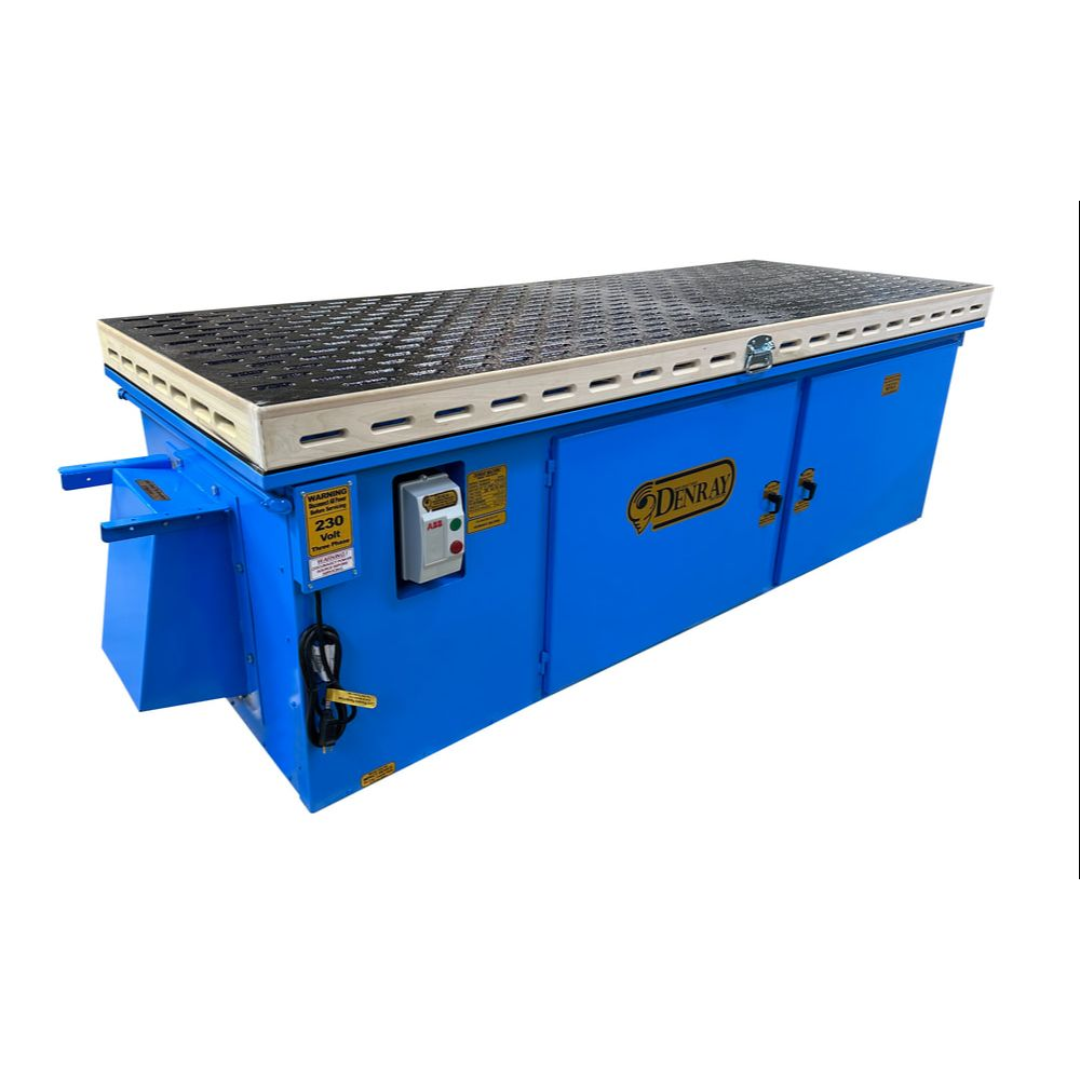

The Denray 3696 Tube Filtration is one of the largest and most capable downdraft sanding tables in the Denray tube filtration lineup. Combining a spacious 36" × 96" work surface, 3,800 CFM airflow capacity, twenty-four tube filters, and 99% filtration efficiency at 1 micron, this system delivers outstanding dust collection performance for demanding woodworking and sanding applications.
