Denray 3672 Tube Filtration Applications
- Wood sanding and finishing operations
- Cabinet and furniture manufacturing facilities
- Architectural millwork production
- Custom woodworking shops
- Hardwood and softwood sanding applications
- Composite wood product fabrication
- Production sanding stations handling larger components
- Dust control for handheld sanders, grinders, and finishing equipment
Ideal for woodworking facilities that require a larger workstation, increased filtration capacity, and powerful source-capture dust collection performance.
Denray 3672 Tube Filtration Specifications
| Model | 3672 Tube Filtration |
|---|---|
| Work Surface Size | 36" × 72" |
| Overall Height | 36" |
| Weight | 550 lbs |
| Motor | 2 HP |
| Fan Diameter | 16.5" |
| Airflow Capacity | 3,500 CFM |
| Sound Level | 78 dB |
| Filtration System | 20 Tube Filters |
| Filtration Efficiency | 99% Capture Rate at 1 Micron |
| Mobility | Integrated Casters |
| Electrical Receptacles | 3 Receptacles |
Denray 3672 Tube Filtration Electrical Requirements
| Configuration | Voltage | Amperage |
|---|---|---|
| Single Phase | 115V | 18.8 Amps |
| Single Phase | 220V | 9.4 Amps |
| Three Phase | 230V | 5.8 Amps |
| Three Phase | 460V | 2.9 Amps |
| Three Phase | 575V | 2.4 Amps |
Denray 3672 Tube Filtration Performance & Construction
- 99% Filtration Efficiency at 1 Micron captures fine airborne wood dust and helps maintain a cleaner, healthier work environment.

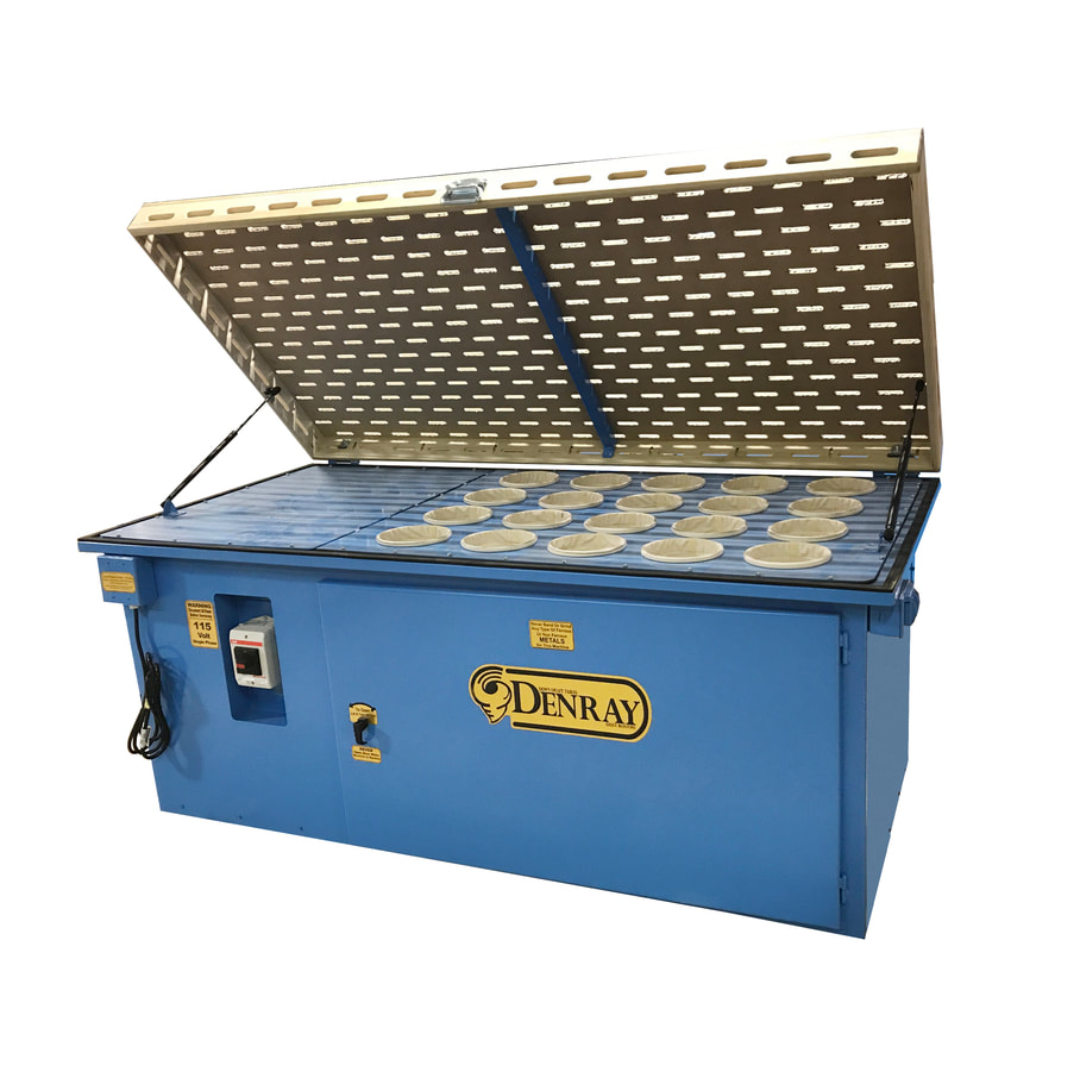

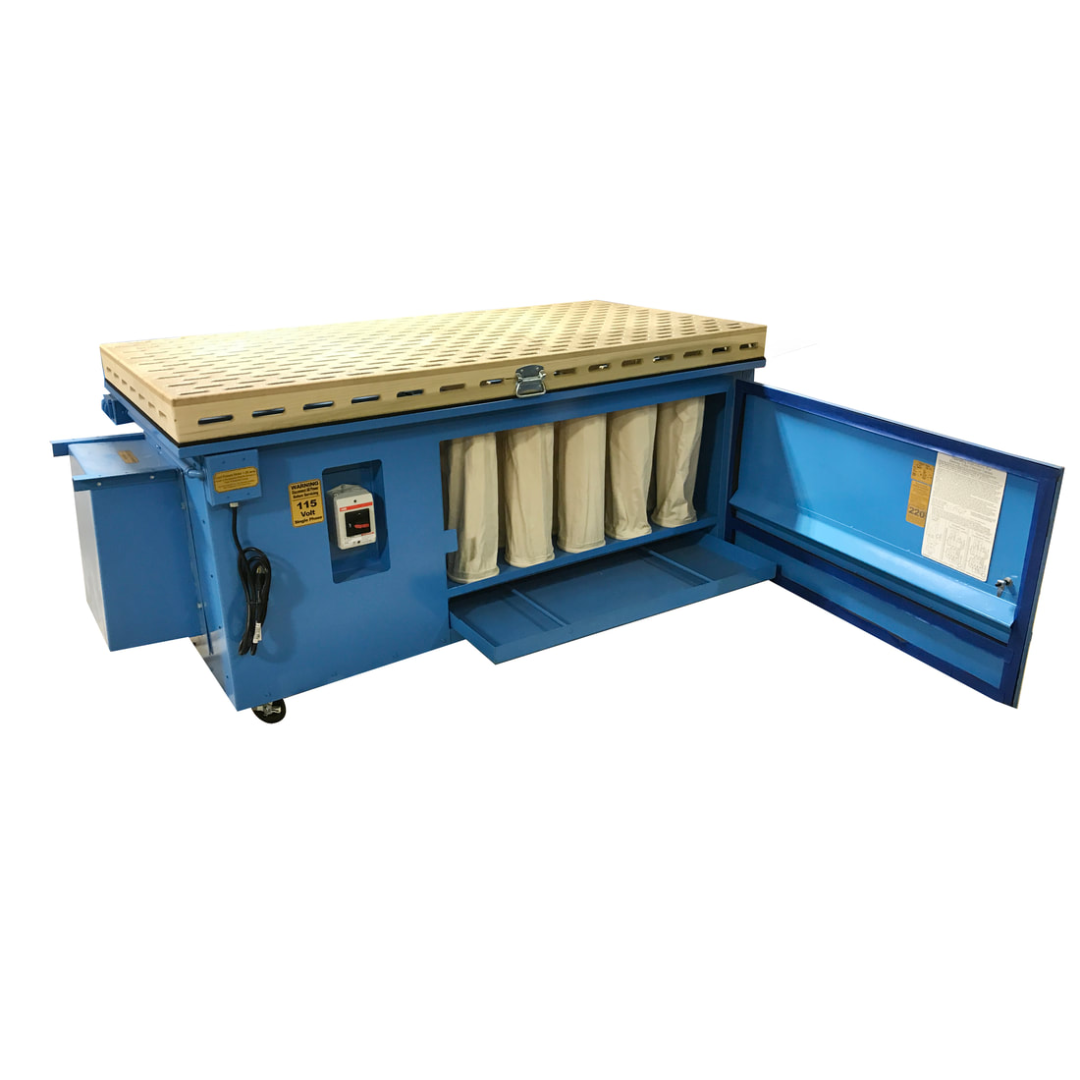

- 20 High-Efficiency Tube Filters provide extensive filtration surface area for maximum airflow consistency and exceptional dust collection performance.
- Powerful 3,500 CFM Airflow Capacity creates strong downward airflow across the work surface to capture dust directly at the source.
- 16.5-Inch Industrial Fan delivers dependable suction and efficient dust extraction for demanding sanding applications.

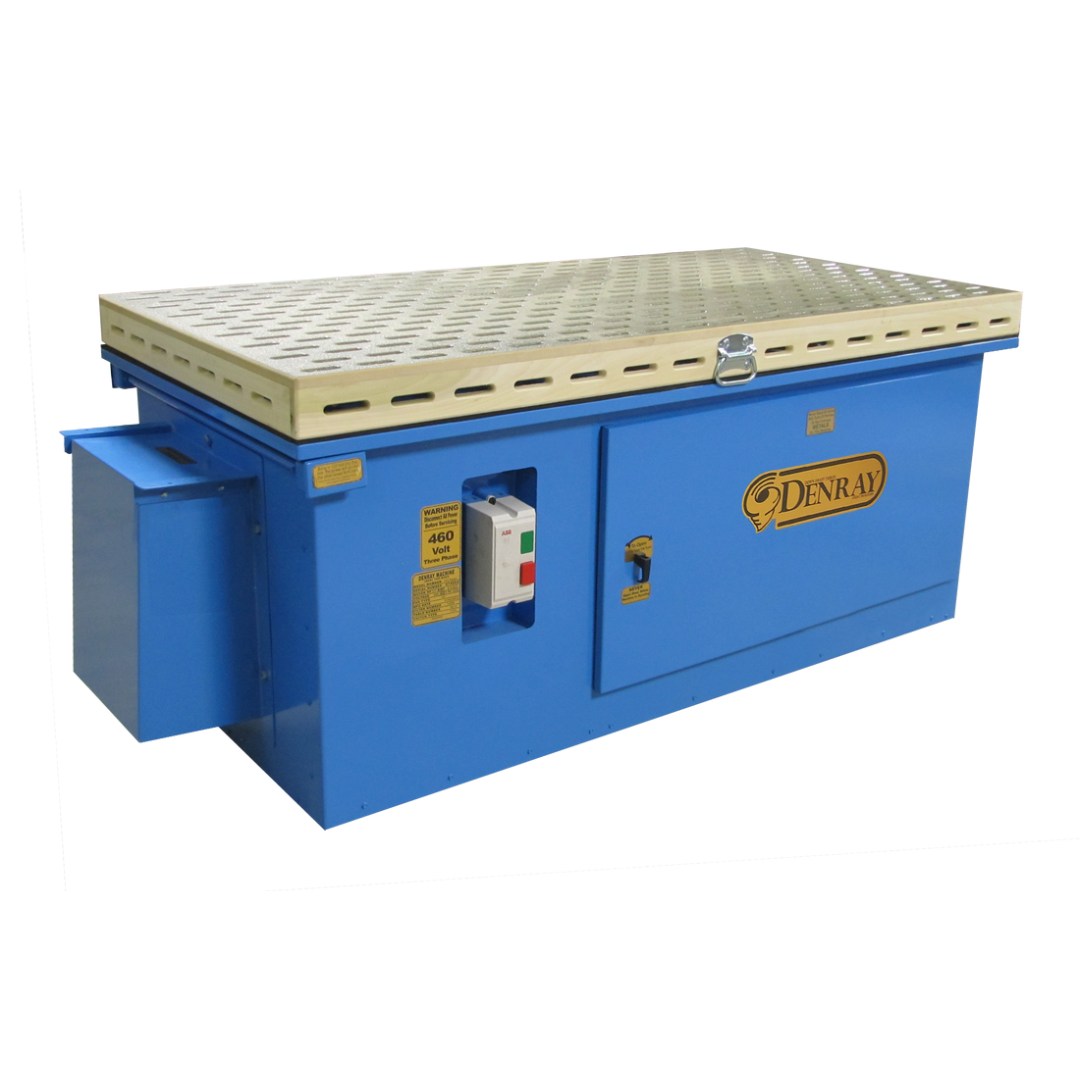

- Large 36" × 72" Work Surface accommodates larger projects, panels, and components while maintaining effective dust capture coverage.
- Manual Filter Cleaning System includes a standard filter brush and handle that allows operators to quickly clean filters and maintain optimal performance.
- Rubber-Coated Tabletop helps protect finished workpieces from scratches while providing a durable and comfortable working surface.
- Three Integrated Receptacles provide convenient power access for multiple tools and accessories directly at the workstation.
- Heavy-Duty Steel Construction is built to withstand demanding industrial environments and continuous production use.
- Integrated Casters allow easy repositioning and flexible workstation placement throughout the facility.
Denray 3672 Tube Filtration Available Options
- Explosion Proof Motor (Three-Phase Models Only)
- Light Bar
- Muffler Package (Reduces Sound Levels by Approximately 10–12 dB)
- Three-Sided Hinged Safety Shield
- HDPE Plastic Tabletop Upgrade
- Larger Motor and Fan Upgrade Package
Optional upgrades allow the Denray 3672 Tube Filtration to be customized for specialized applications, increased airflow requirements, enhanced operator protection, and quieter operation.
Why Choose the Denray 3672 Tube Filtration
- Designed specifically for wood sanding and dust collection applications.
- 99% filtration efficiency at 1 micron for superior air quality.
- Powerful 3,500 CFM airflow captures dust directly at the source.
- Large 36" × 72" work surface supports larger projects and production workloads.
- 20-tube filtration system maximizes airflow and filtration performance.
- Three integrated receptacles improve workstation efficiency and convenience.
- Manual filter cleaning system helps reduce maintenance downtime.
- Durable rubber-coated tabletop protects valuable workpieces.
- Mobile design with integrated casters for flexible facility layouts.

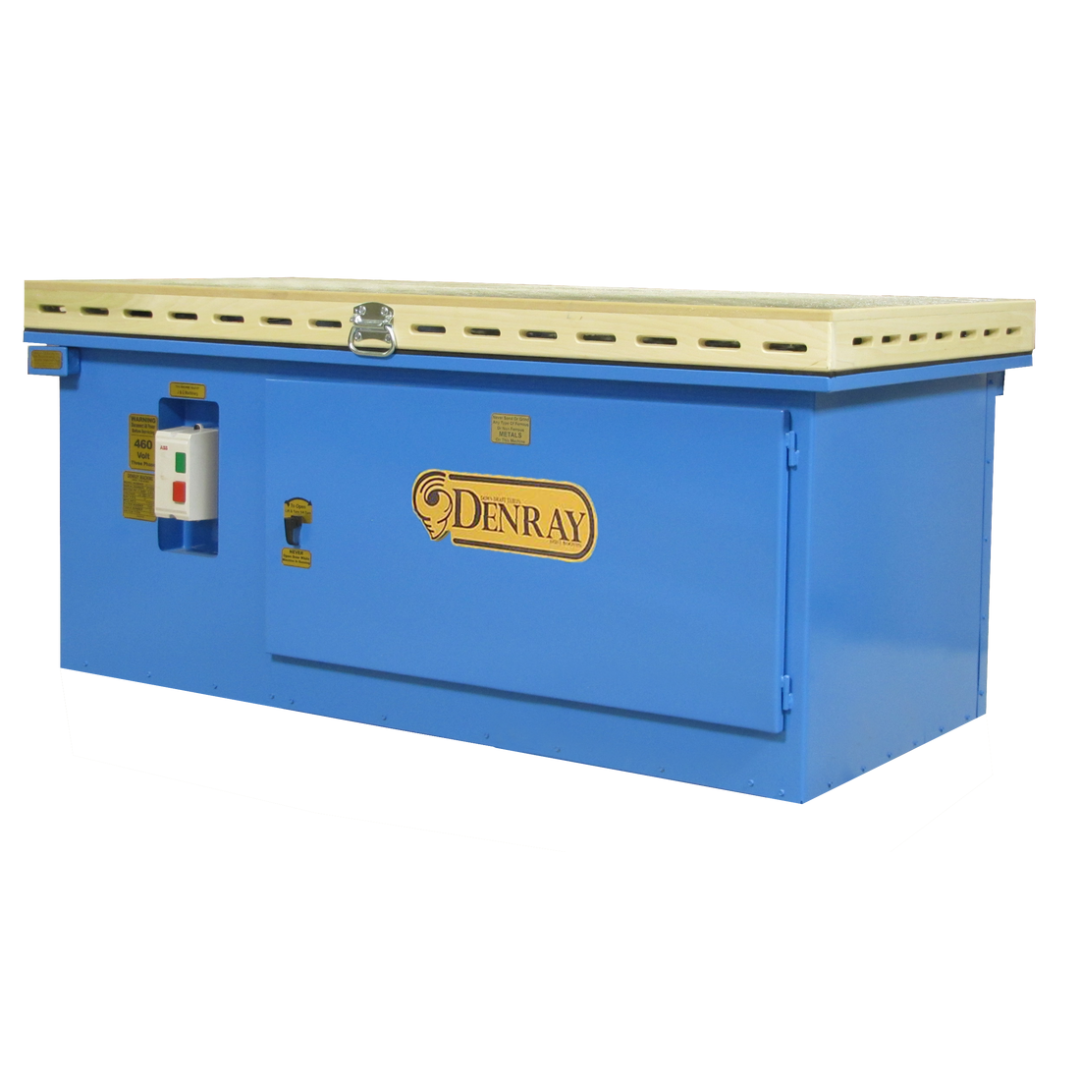

The Denray 3672 Tube Filtration combines powerful airflow, extensive filtration capacity, and a spacious work surface to deliver outstanding dust collection performance for woodworking professionals. With 99% filtration efficiency at 1 micron, 3,500 CFM airflow, and twenty tube filters, this downdraft sanding table provides reliable source-capture dust collection for demanding sanding and finishing operations.
