Denray 2896 Tube Filtration Applications
- Wood sanding and finishing operations
- Cabinet, furniture, and millwork manufacturing
- Architectural woodworking facilities
- Large custom woodworking projects
- Composite material sanding and finishing
- Dust-producing fabrication and assembly operations
- Collection of fine airborne wood dust and other dry particulates
- Workstations requiring extended sanding surfaces and increased dust capture performance
Ideal for woodworking facilities seeking high-efficiency dust collection with a larger work area and filtration system capable of handling demanding sanding applications.
Denray 2896 Tube Filtration Specifications
| Model | 2896 Tube Filtration |
|---|---|
| Work Surface Size | 28" × 96" |
| Overall Height | 36" |
| Weight | 650 lbs |
| Motor | 2 HP |
| Fan Diameter | 16.5" |
| Airflow Capacity | 3,500 CFM |
| Sound Level | 78 dB |
| Filtration System | 18 Tube Filters |
| Filtration Efficiency | 99% Capture Rate at 1 Micron |
| Mobility | Integrated Casters |
| Electrical Receptacle | 1 Receptacle (Single-Phase Models) |
Denray 2896 Tube Filtration Electrical Requirements
| Configuration | Voltage | Amperage |
|---|---|---|
| Single Phase | 115V | 18.8 Amps |
| Single Phase | 220V | 9.4 Amps |
| Three Phase | 230V | 5.8 Amps |
| Three Phase | 460V | 2.9 Amps |
| Three Phase | 575V | 2.4 Amps |
Denray 2896 Tube Filtration Performance & Construction
- 99% Filtration Efficiency at 1 Micron captures extremely fine airborne dust particles, helping improve workplace air quality and cleanliness.
- 18 High-Efficiency Tube Filters provide a large filtration surface area that supports consistent airflow and extended filter performance.
- Powerful 3,500 CFM Airflow creates strong downward suction across the entire tabletop to capture dust directly where it is generated.
- 16.5-Inch Industrial Fan delivers reliable airflow and dust collection performance for demanding sanding applications.
- Large 28" × 96" Work Surface accommodates oversized components, long panels, and larger workpieces while maintaining effective dust capture.
- Manual Filter Cleaning System includes a standard filter brush and handle, allowing operators to quickly clean filters and maintain peak operating efficiency.
- Rubber-Coated Tabletop protects finished materials from scratches and provides a durable, non-slip working surface.
- Heavy-Duty Steel Construction is designed for long-term industrial durability and dependable daily performance.
- Integrated Casters provide mobility and flexibility when repositioning the workstation within the facility.
- Multi-Application Capability makes the unit suitable for wood dust and many other dry airborne dust collection applications.
Denray 2896 Tube Filtration Available Options
- Explosion Proof Motor (Three-Phase Models Only)
- Light Bar
- Muffler Package (Reduces Sound Levels by Approximately 10–12 dB)
- Three-Sided Hinged Safety Shield
- HDPE Plastic Tabletop Upgrade
- Larger Motor and Fan Upgrade Package
Optional accessories allow the Denray 2896 Tube Filtration to be customized for specialized dust collection requirements, enhanced operator protection, quieter operation, and increased airflow performance.
Why Choose the Denray 2896 Tube Filtration
- Designed specifically for wood dust collection and sanding applications.
- 99% capture efficiency at 1 micron for superior filtration performance.
- Powerful 3,500 CFM airflow captures dust directly at the source.
- Large 96-inch work surface supports oversized projects and components.
- 18-tube filtration system maximizes airflow and filtration capacity.
- Manual filter cleaning system helps reduce maintenance downtime.
- Durable rubber-coated tabletop protects valuable workpieces.
- Integrated casters provide mobility and flexible workstation placement.
- Suitable for wood dust and many additional dry airborne dust applications.

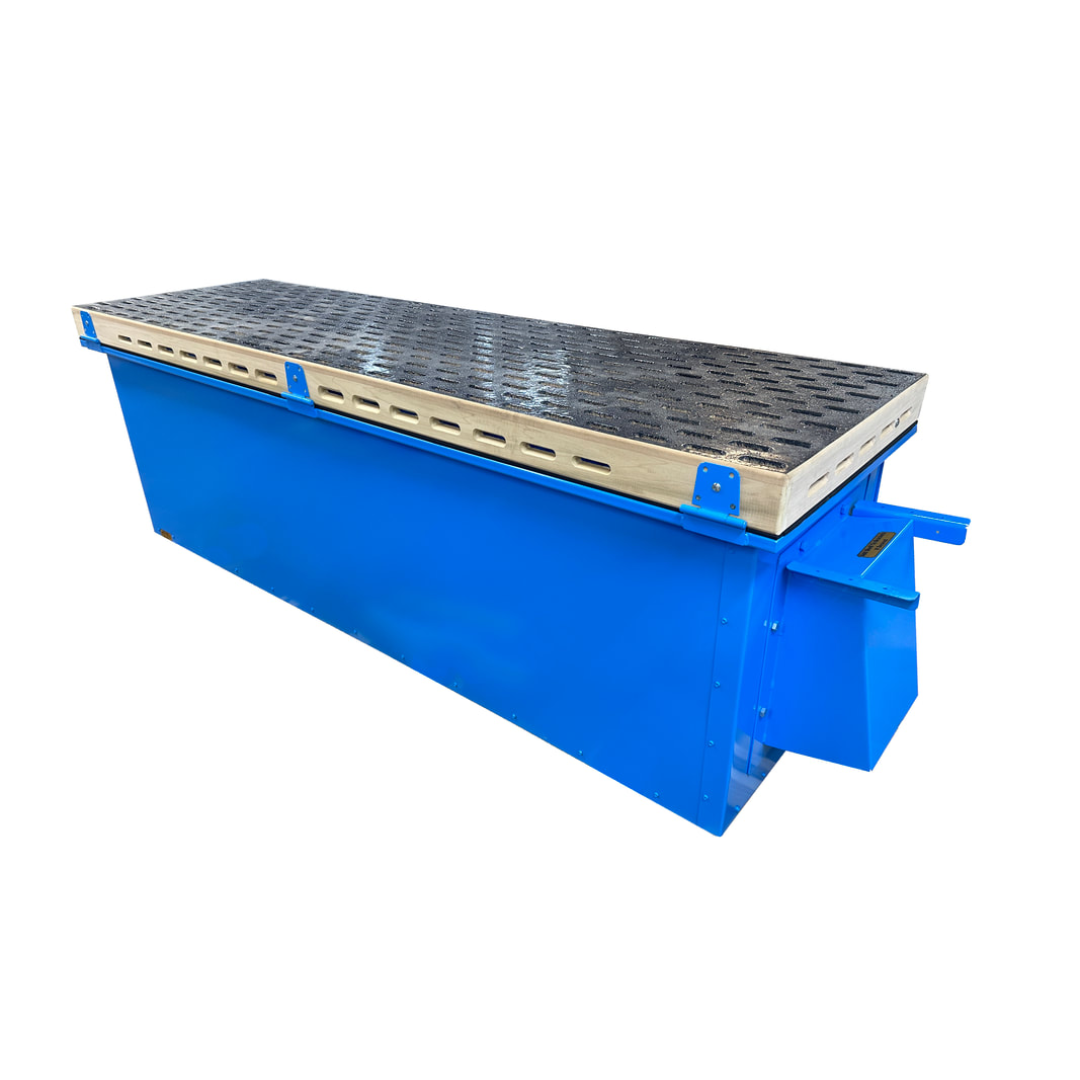

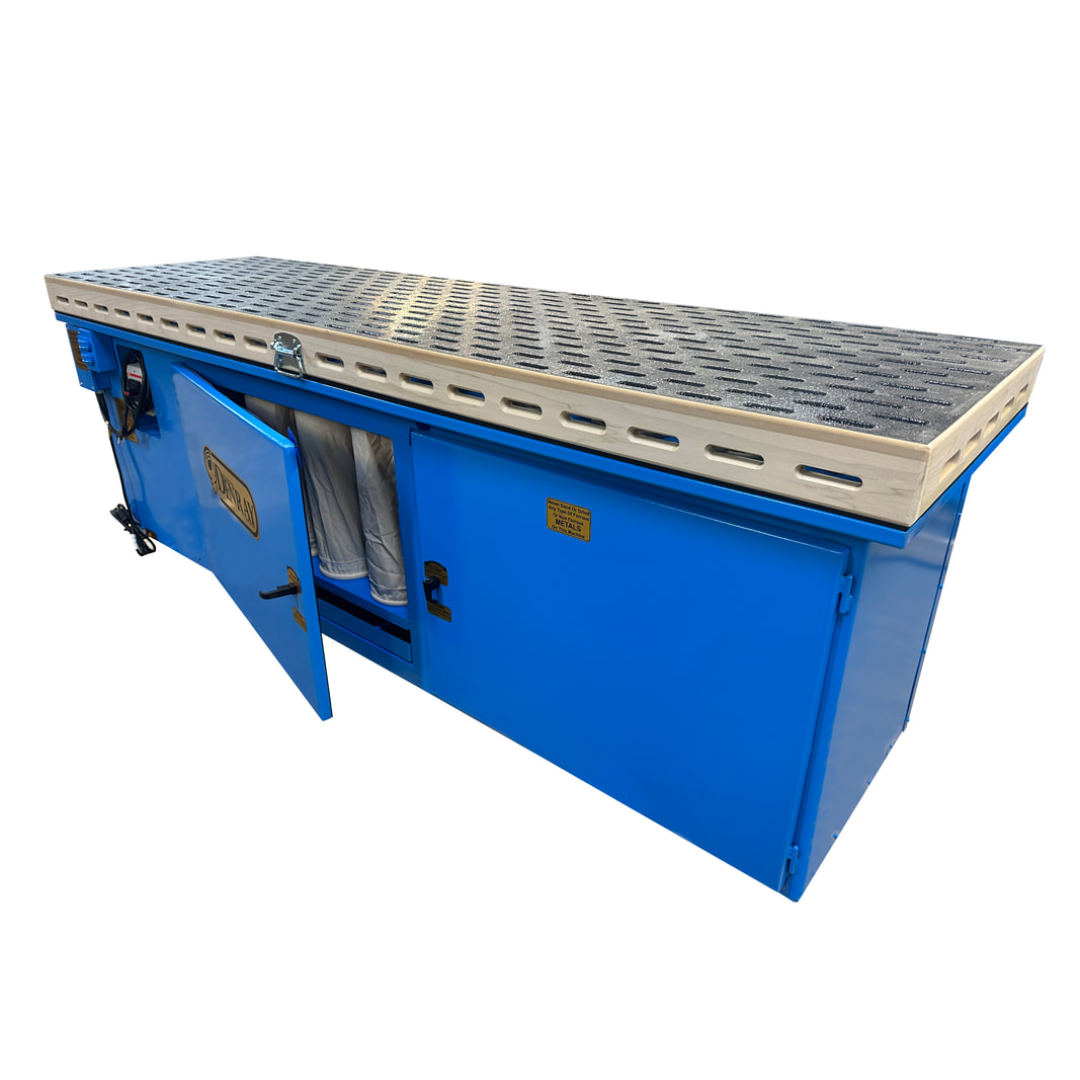

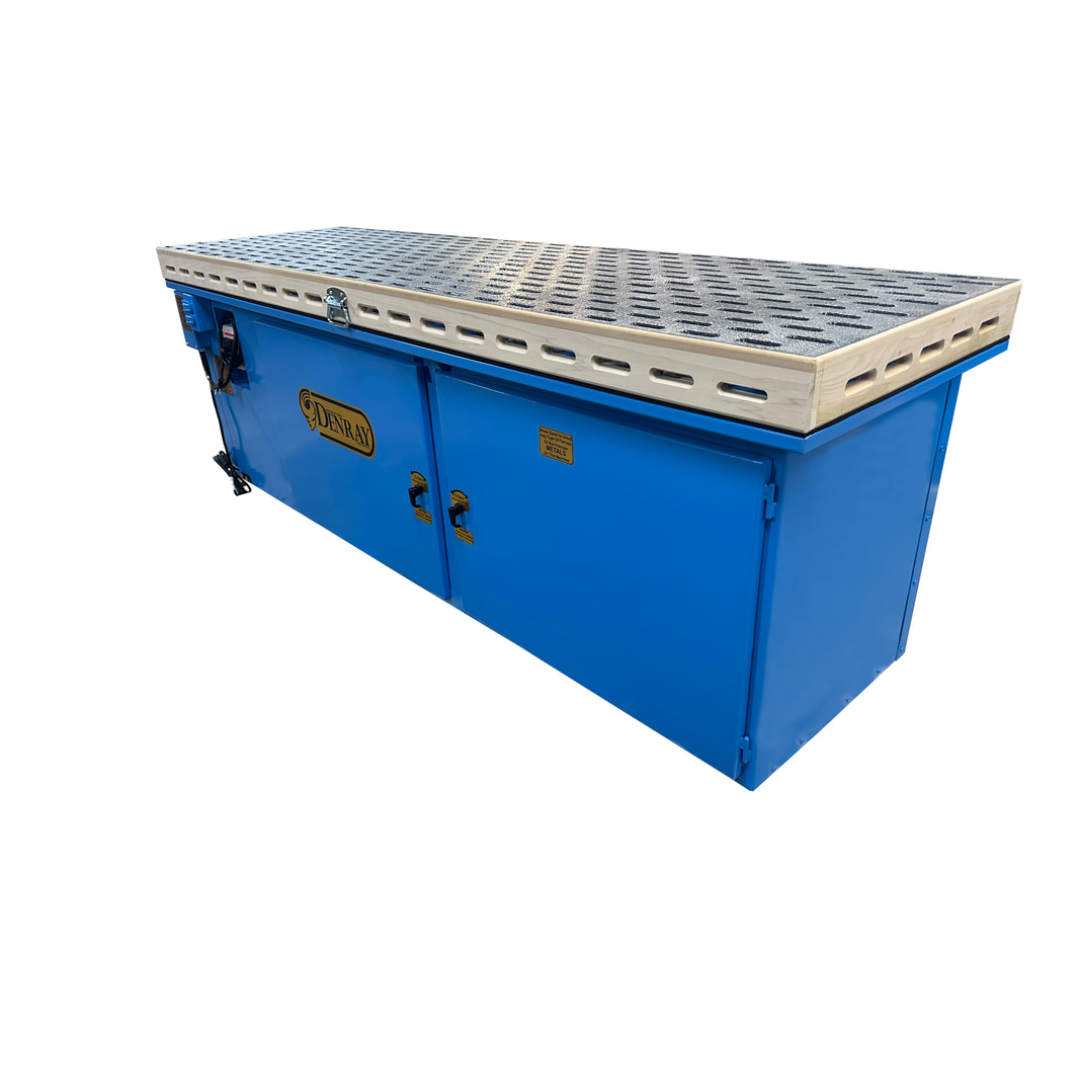

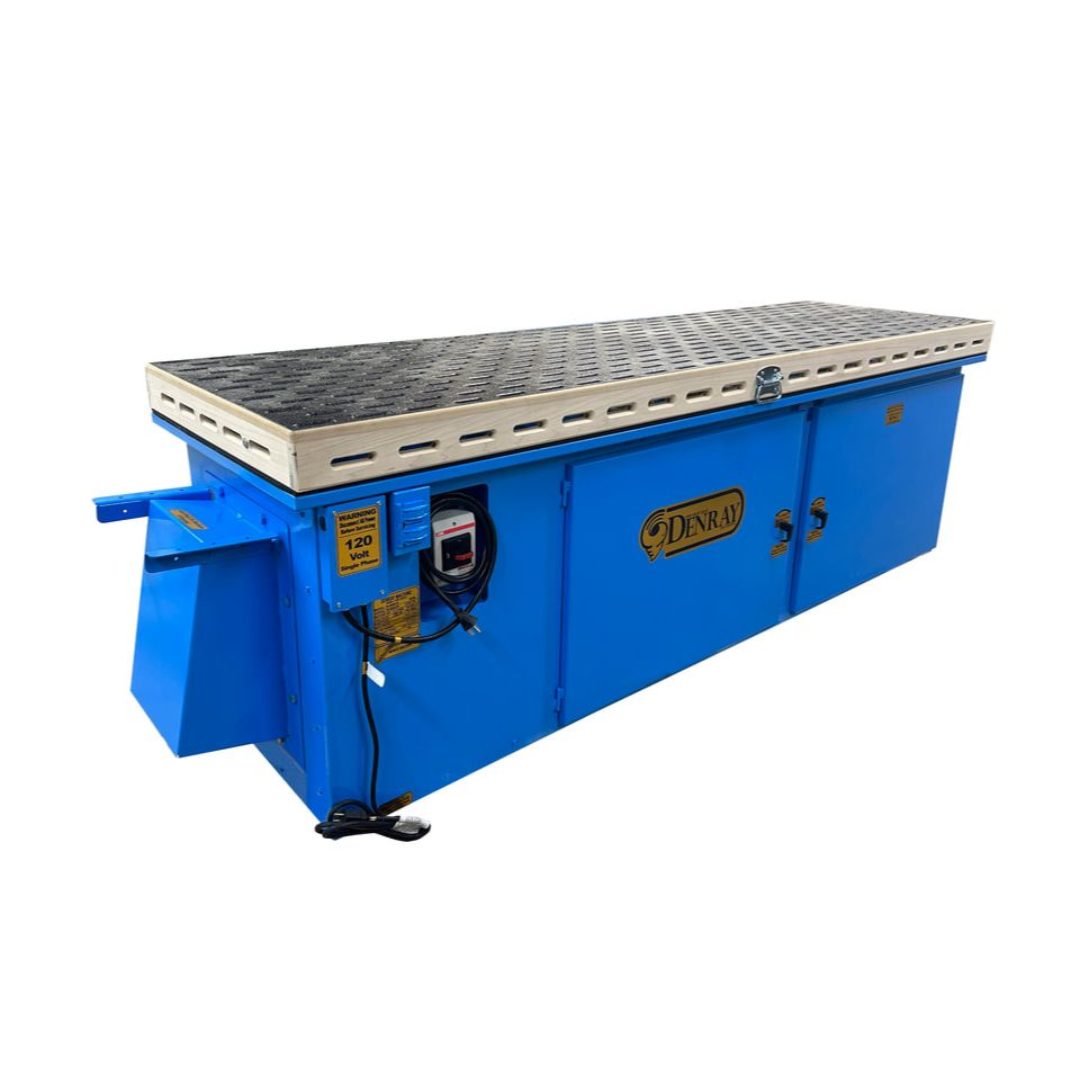

The Denray 2896 Tube Filtration delivers exceptional dust collection performance for woodworking professionals who require a larger workstation, increased airflow, and advanced filtration technology. Featuring 99% filtration efficiency at 1 micron, 3,500 CFM airflow, and an expansive 28" × 96" work surface, this downdraft sanding table provides reliable source-capture dust collection for demanding industrial environments.
