Denray 2872 Tube Filtration Applications
- Wood sanding and finishing operations
- Cabinet and furniture manufacturing facilities
- Architectural millwork production
- Custom woodworking shops
- Solid wood and composite material sanding
- Production workstations requiring larger work surfaces
- Dust control for handheld sanding equipment
- Collection of fine airborne wood dust generated during finishing processes
Perfect for medium-sized woodworking operations that need increased airflow, larger work capacity, and high-efficiency dust collection performance.
Denray 2872 Tube Filtration Specifications
| Model | 2872 Tube Filtration |
|---|---|
| Work Surface Size | 28" × 72" |
| Overall Height | 36" |
| Weight | 460 lbs |
| Motor | 2 HP |
| Fan Diameter | 16.5" |
| Airflow Capacity | 3,400 CFM |
| Sound Level | 77 dB |
| Filtration System | 15 Tube Filters |
| Filtration Efficiency | 99% Capture Rate at 1 Micron |
| Mobility | Integrated Casters |
| Electrical Receptacle | 1 Receptacle (Single-Phase Models) |
Denray 2872 Tube Filtration Electrical Requirements
| Configuration | Voltage | Amperage |
|---|---|---|
| Single Phase | 115V | 18.8 Amps |
| Single Phase | 220V | 9.4 Amps |
| Three Phase | 230V | 5.8 Amps |
| Three Phase | 460V | 2.9 Amps |
| Three Phase | 575V | 2.4 Amps |
Denray 2872 Tube Filtration Performance & Construction
- 99% Filtration Efficiency at 1 Micron helps remove fine airborne wood dust before it can circulate throughout the facility.

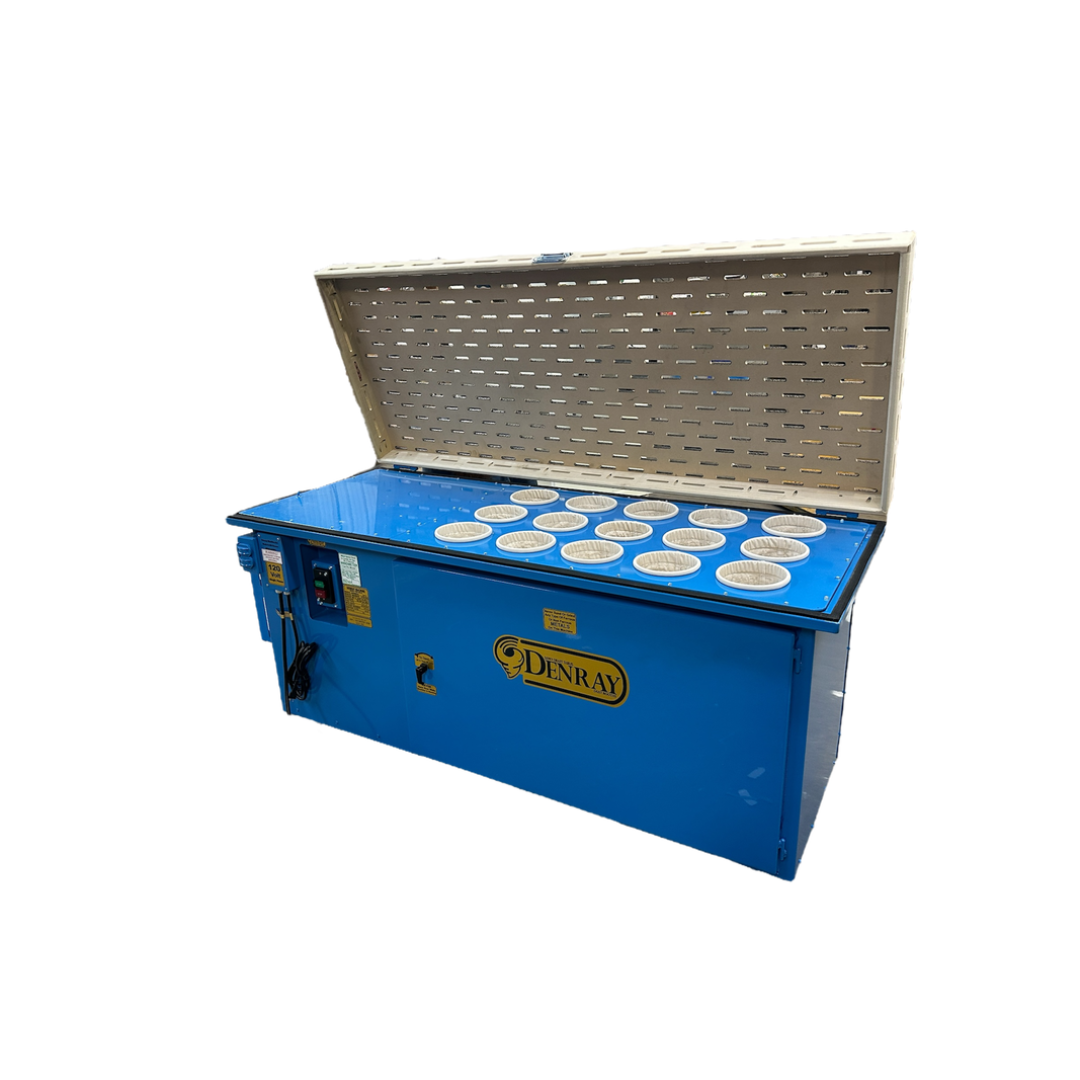

- 15 High-Efficiency Tube Filters provide substantial filtration surface area to maintain consistent airflow and filtration performance.
- 3,400 CFM Airflow Capacity delivers powerful downward airflow to capture dust directly at the source during sanding and finishing operations.
- 16.5-Inch Industrial Fan generates strong suction and dependable airflow across the entire work surface.
- Manual Filter Cleaning System includes a standard filter brush and handle, allowing operators to clean filters quickly and maintain optimal airflow.
- Rubber-Coated Tabletop protects finished workpieces from scratches while creating a durable and comfortable working surface.
- Heavy-Duty Steel Construction is engineered for demanding industrial environments and long-term durability.
- Integrated Casters make it easy to reposition the unit as workflow requirements change.
- Large 28" × 72" Work Surface accommodates larger parts and projects while maintaining effective dust capture performance.
- Quiet Operating Design maintains a sound level of approximately 77 dB, supporting a more comfortable shop environment.
Denray 2872 Tube Filtration Available Options
- Explosion Proof Motor (Three-Phase Models Only)
- Light Bar
- Muffler Package (Reduces Sound Levels by Approximately 10–12 dB)
- Three-Sided Hinged Safety Shield
- HDPE Plastic Tabletop Upgrade
- Larger Motor and Fan Upgrade Package
Optional upgrades allow the Denray 2872 Tube Filtration to be customized for specialized production requirements, improved operator safety, quieter operation, and increased airflow performance.
Why Choose the Denray 2872 Tube Filtration
- Designed specifically for wood dust collection and sanding applications.
- 99% filtration efficiency at 1 micron for exceptional air quality.
- Powerful 3,400 CFM airflow for medium-duty industrial woodworking operations.
- Large 28" × 72" work surface accommodates larger workpieces.
- 15-tube filtration system maximizes filtration area and airflow consistency.
- Manual filter cleaning system reduces maintenance downtime.
- Durable rubber-coated tabletop protects finished materials.
- Mobile design with integrated casters for operational flexibility.
- Available in multiple voltage configurations to suit various facilities.
The Denray 2872 Tube Filtration delivers the ideal combination of filtration efficiency, airflow performance, and workstation capacity for medium-sized woodworking operations. With 99% capture efficiency at 1 micron, a powerful 3,400 CFM airflow system, and a spacious 72-inch work surface, this downdraft sanding table provides reliable dust control for demanding wood sanding and finishing applications.
