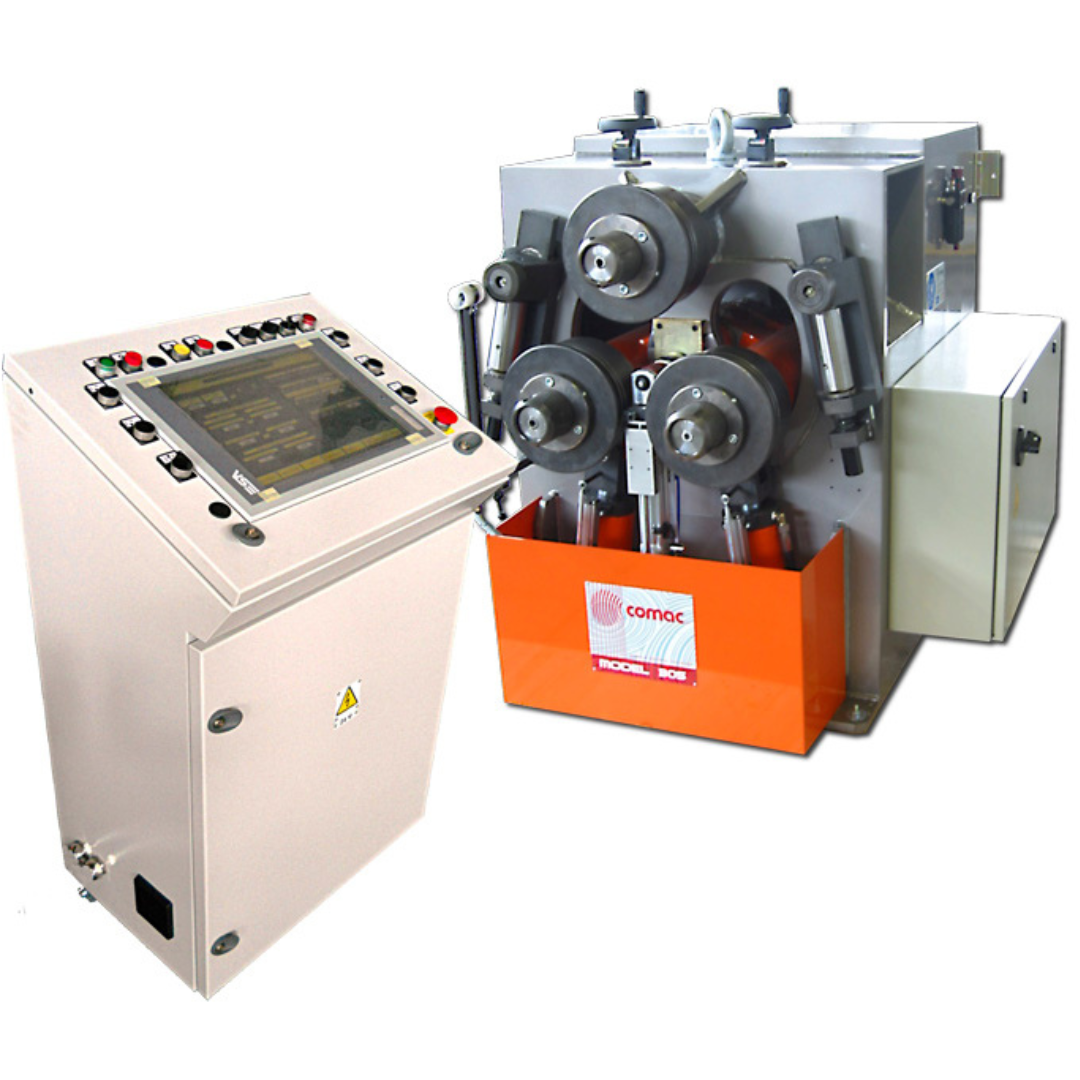

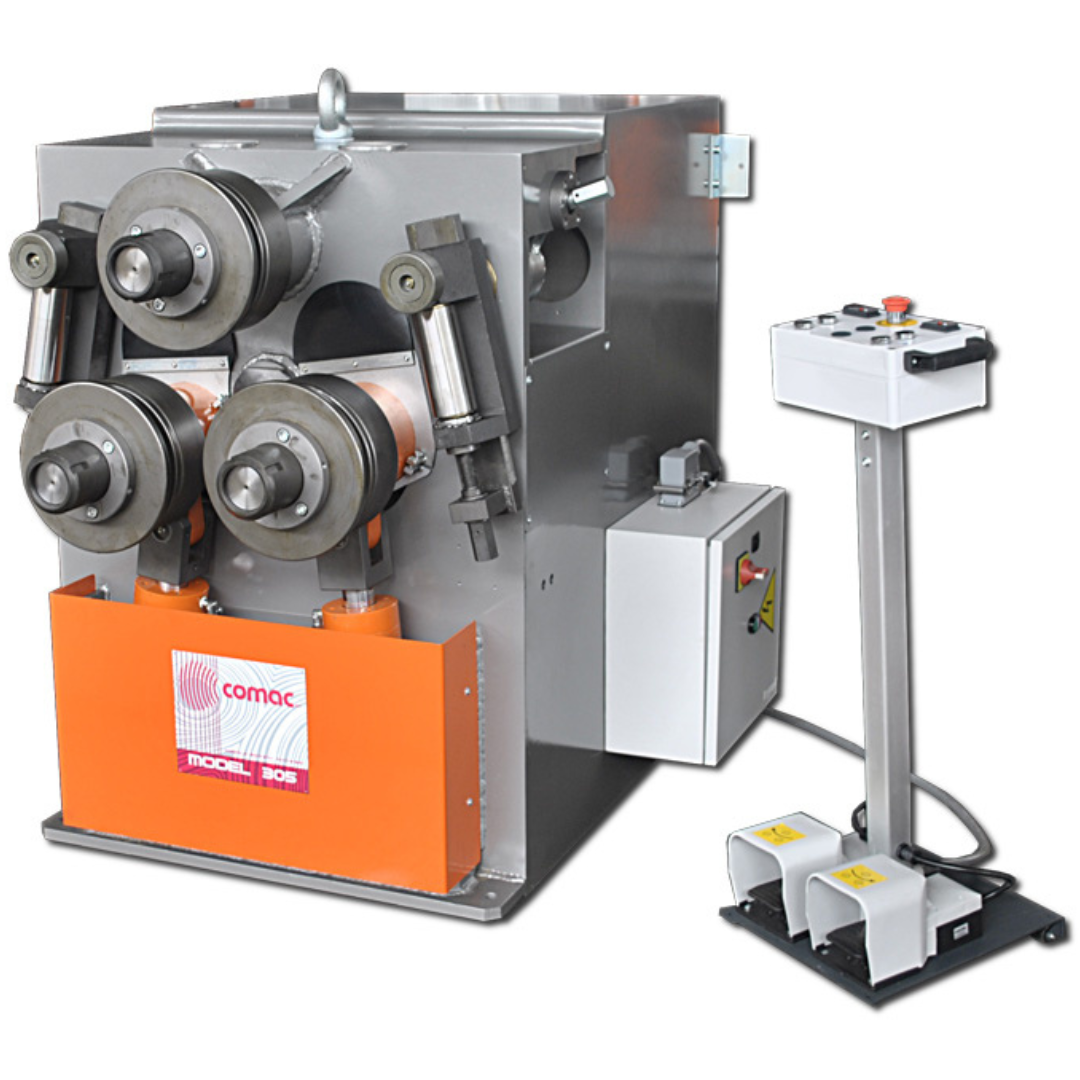

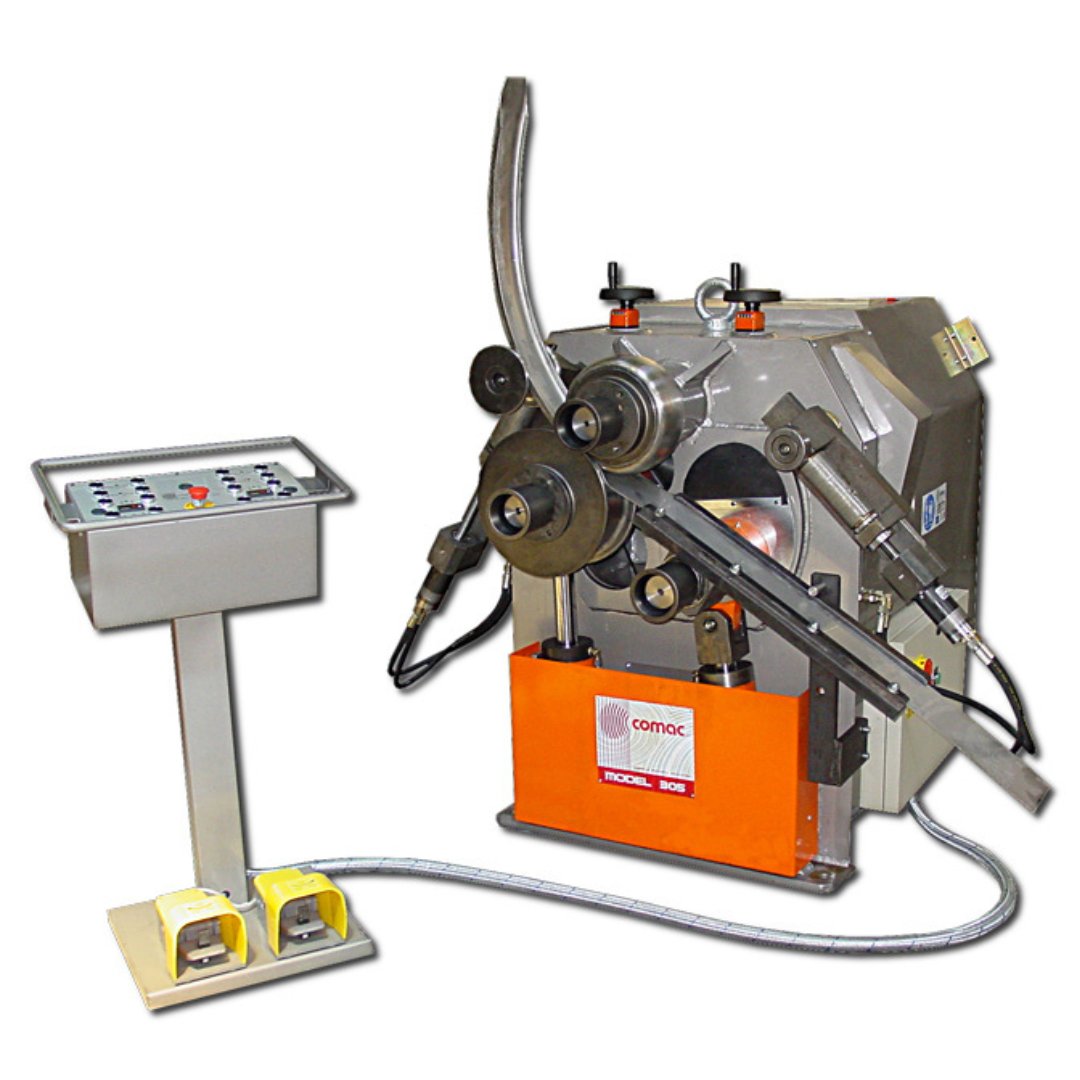

Comac 3000 Series Model 305HV Double Pinch Angle Roll Highlights
- Three driven rolls: guarantee maximum drive on the profile for consistent, repeatable bends.
- Double-pinch bending rolls: independently adjustable lower rolls pre-bend both ends of the material without removing or turning it.
- Hardened NiCrMo alloy rolls: rolling surfaces are hardened to 60 HRC for long service life under heavy use.
- Shaft diameter 70 mm: paired with a 245 mm roll diameter sized for this model's rated capacity.
- Motor rated at 4.9 kW: drives a one-piece welded steel frame weighing approximately 1,520 kg.
- Mid-range 3000 Series model: steps up shaft and roll diameter from the 304HV for heavier angle, tube and bar work.
Comac 3000 Series Model 305HV Double Pinch Angle Roll Specifications
| Brand | Comac |
|---|---|
| Model | 305HV |
| Series | 3000 Series Double Pinch Angle Roll |
| Shaft Diameter | 70 mm |
| Roll Diameter | 245 mm |
| Motor Power | 4.9 kW |
| Approx. Weight | 1,520 kg |
| Frame | One-piece welded steel frame |
| Roll Material | NiCrMo alloy steel, hardened to 60 HRC |
| Bending Method | 3-roll double-pinch, pre-bends both ends without re-handling material |
| Compliance | CE 2006/42 (EU Machinery Directive) |
