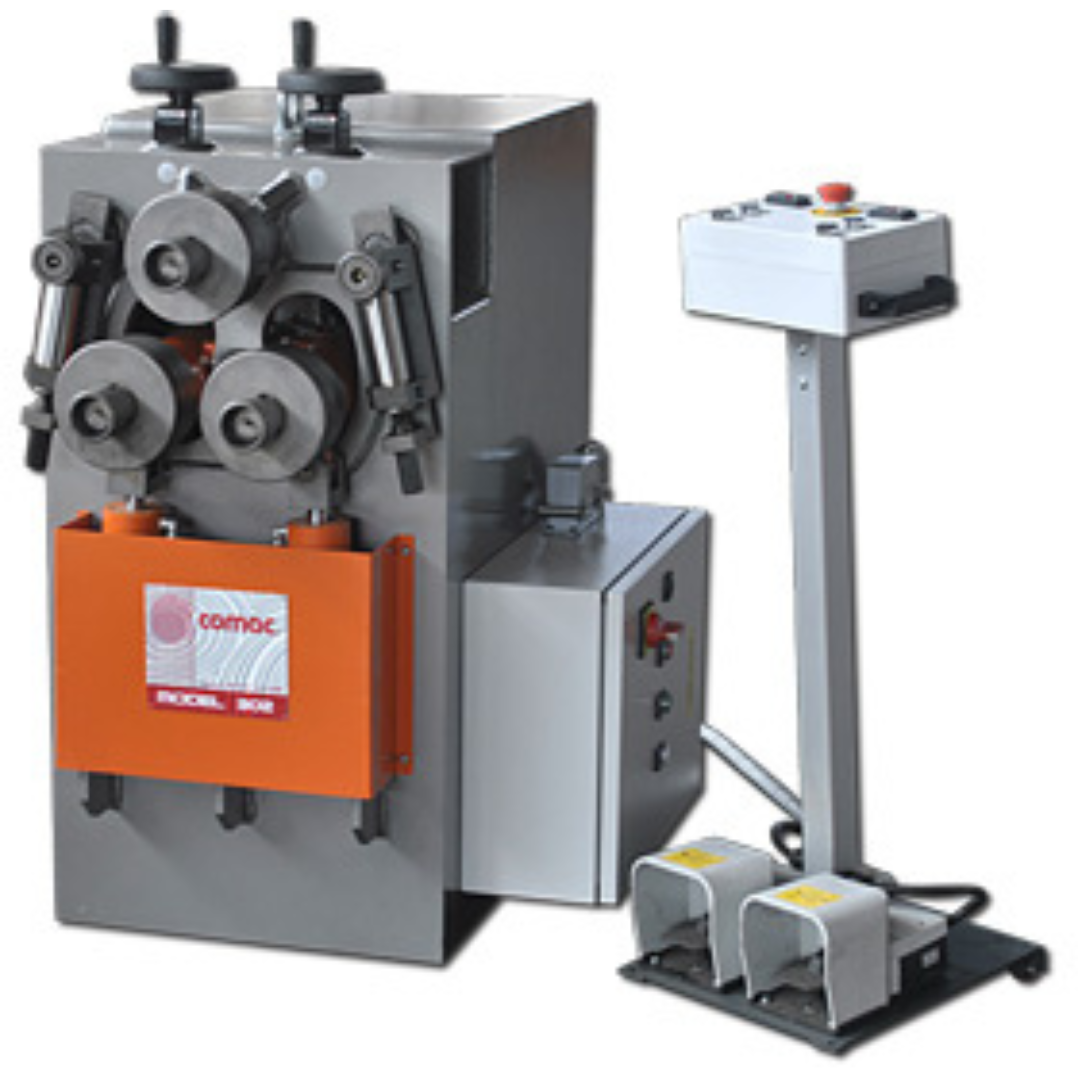

Comac 3000 Series Model 302HV Double Pinch Angle Roll Highlights
- Three driven rolls: guarantee maximum drive on the profile for consistent, repeatable bends.
- Double-pinch bending rolls: independently adjustable lower rolls pre-bend both ends of the material without removing or turning it.
- Hardened NiCrMo alloy rolls: rolling surfaces are hardened to 60 HRC for long service life under heavy use.
- Shaft diameter 40 mm: paired with a 145 mm roll diameter sized for this model's rated capacity.
- Motor rated at 2.8 kW: drives a one-piece welded steel frame weighing approximately 495 kg.
- Capacity: rolls flat bar up to 60x18 mm, square tube up to 50x50x6 mm, and round tube from Ø16 to Ø50 mm.
- Final bend diameter: down to approximately Ø400-600 mm depending on profile.
- Rolling speed: approximately 5.5 m/min.
Comac 3000 Series Model 302HV Double Pinch Angle Roll Specifications
| Brand | Comac |
|---|---|
| Model | 302HV |
| Series | 3000 Series Double Pinch Angle Roll |
| Shaft Diameter | 40 mm |
| Roll Diameter | 145 mm |
| Motor Power | 2.8 kW |
| Approx. Weight | 495 kg |
| Frame | One-piece welded steel frame |
| Roll Material | NiCrMo alloy steel, hardened to 60 HRC |
| Bending Method | 3-roll double-pinch, pre-bends both ends without re-handling material |
| Compliance | CE 2006/42 (EU Machinery Directive) |
| Flat Bar Capacity | up to 60 x 18 mm |
| Square Tube Capacity | up to 50 x 50 x 6 mm |
| Round Tube/Pipe | Ø16 mm to Ø50 mm OD |
| Min. Bend Diameter | approx. Ø400-600 mm |
| Rolling Speed | approx. 5.5 m/min |
