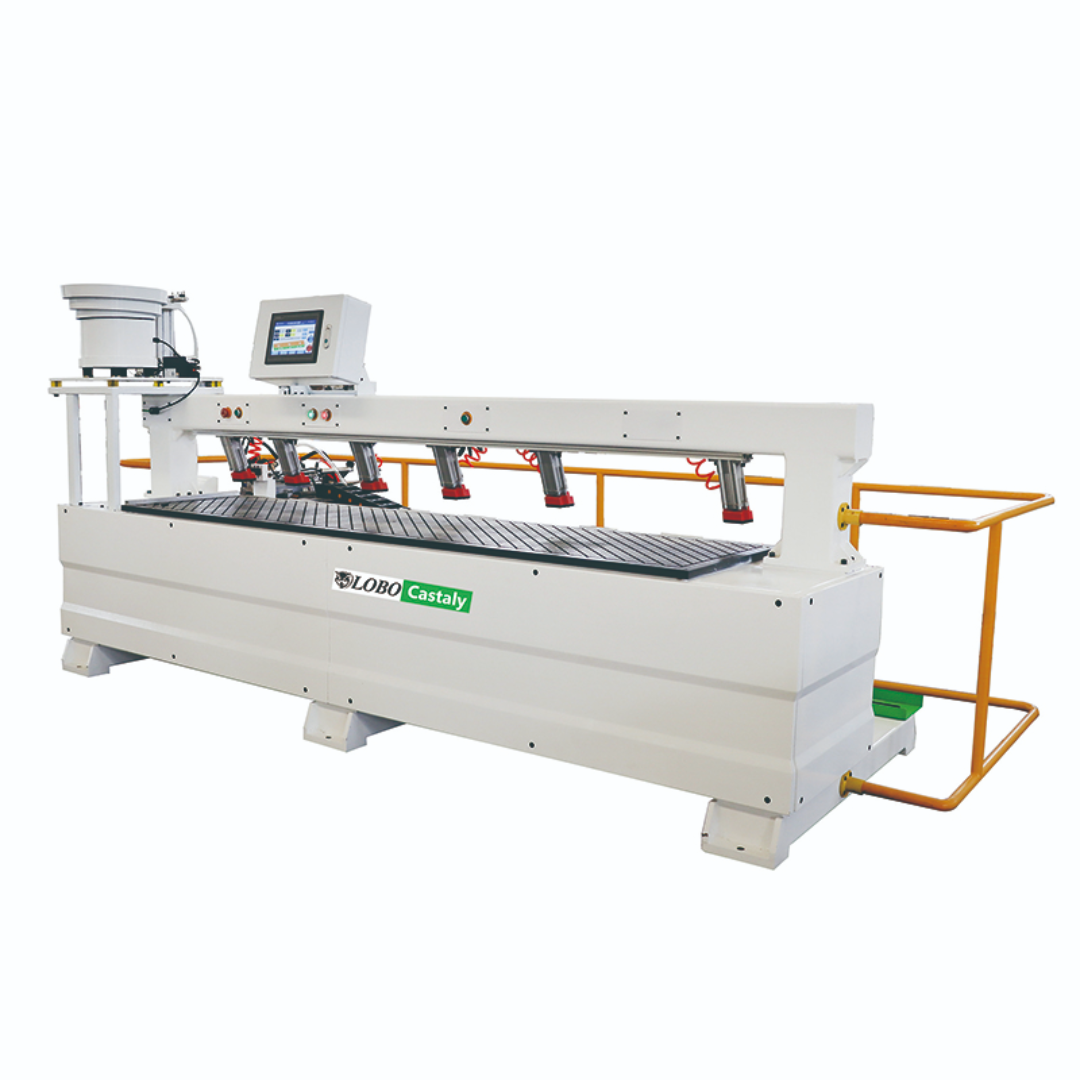

Castaly CNC Boring / Drilling Glue Injection & Dowel Insert Machine Overview
The Castaly CNC Boring / Drilling Glue Injection & Dowel Insert Machine integrates drilling, glue injection, and dowel insertion into one automated process. Equipped with a pneumatic hold-down cylinder and automatic glue cleaning system, the machine ensures clean operation, high productivity, and reduced labor requirements.
Max Travel Speed: 1,380 IPM | Max Working Speed: 393 IPM
Key Features
- Automatic drilling, glue injection & dowel insertion cycle.
- Brushless high-torque AC servo motors on X, Y, Z axes.

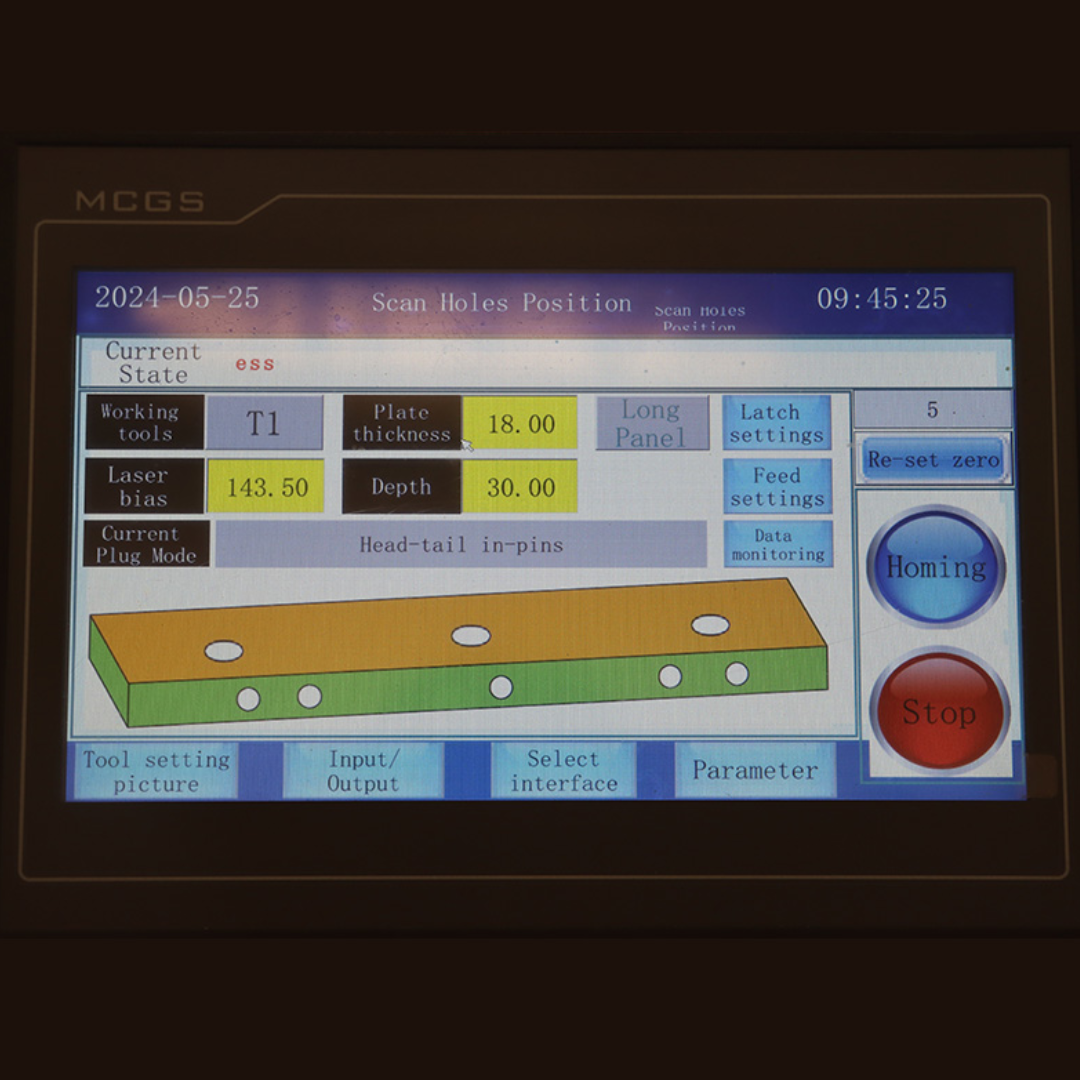

- PLC control system with HMI touchscreen interface.
- Automatic glue cleaning system with water tank.
- Heavy-duty welded frame with stress-relieved structure.
- Precision linear square rails with recirculating bearings.
- X-axis helical rack & pinion drive system.
- Y & Z axes precision ball screw assemblies.
- Automatic lubrication system for long-term reliability.

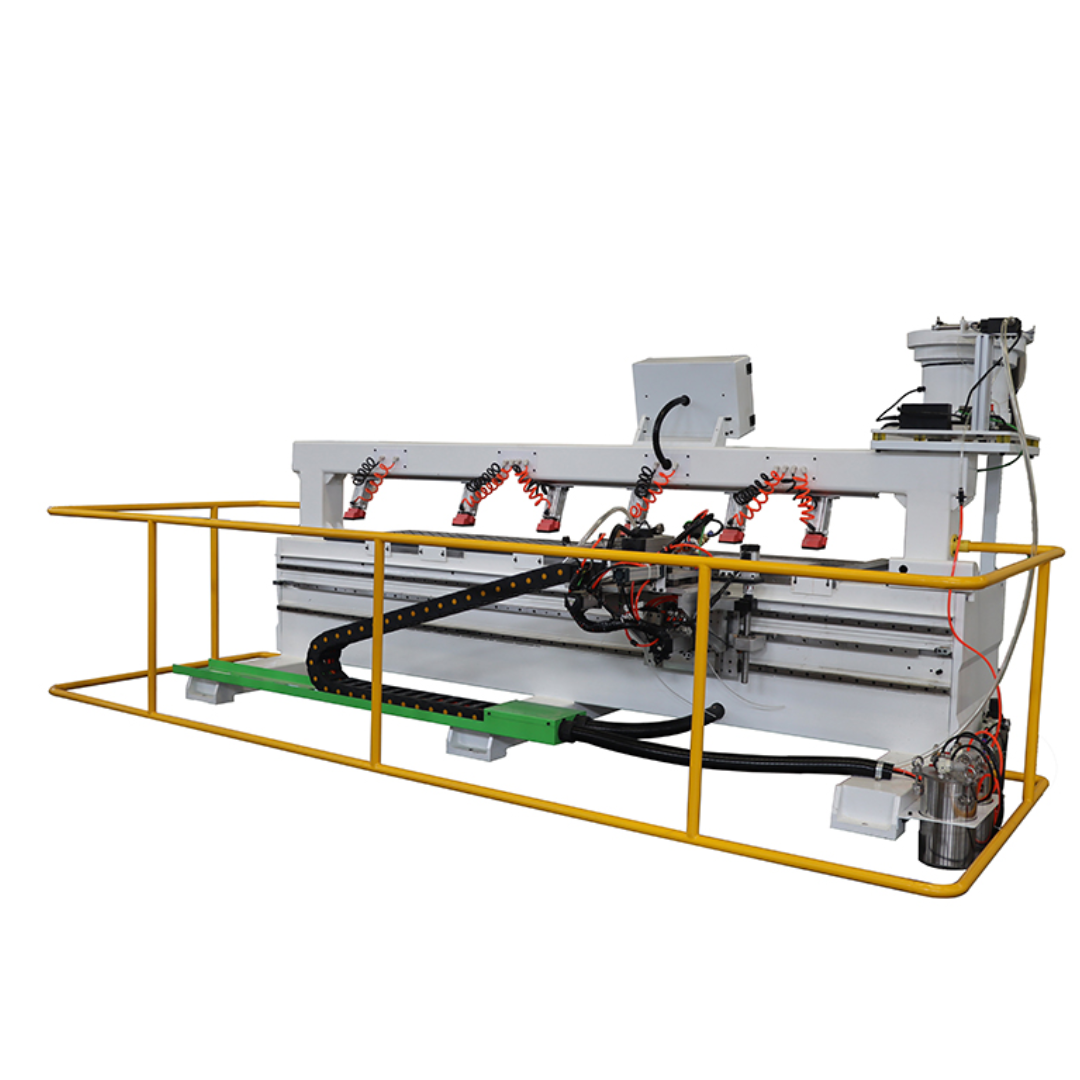

Integrated Production Systems

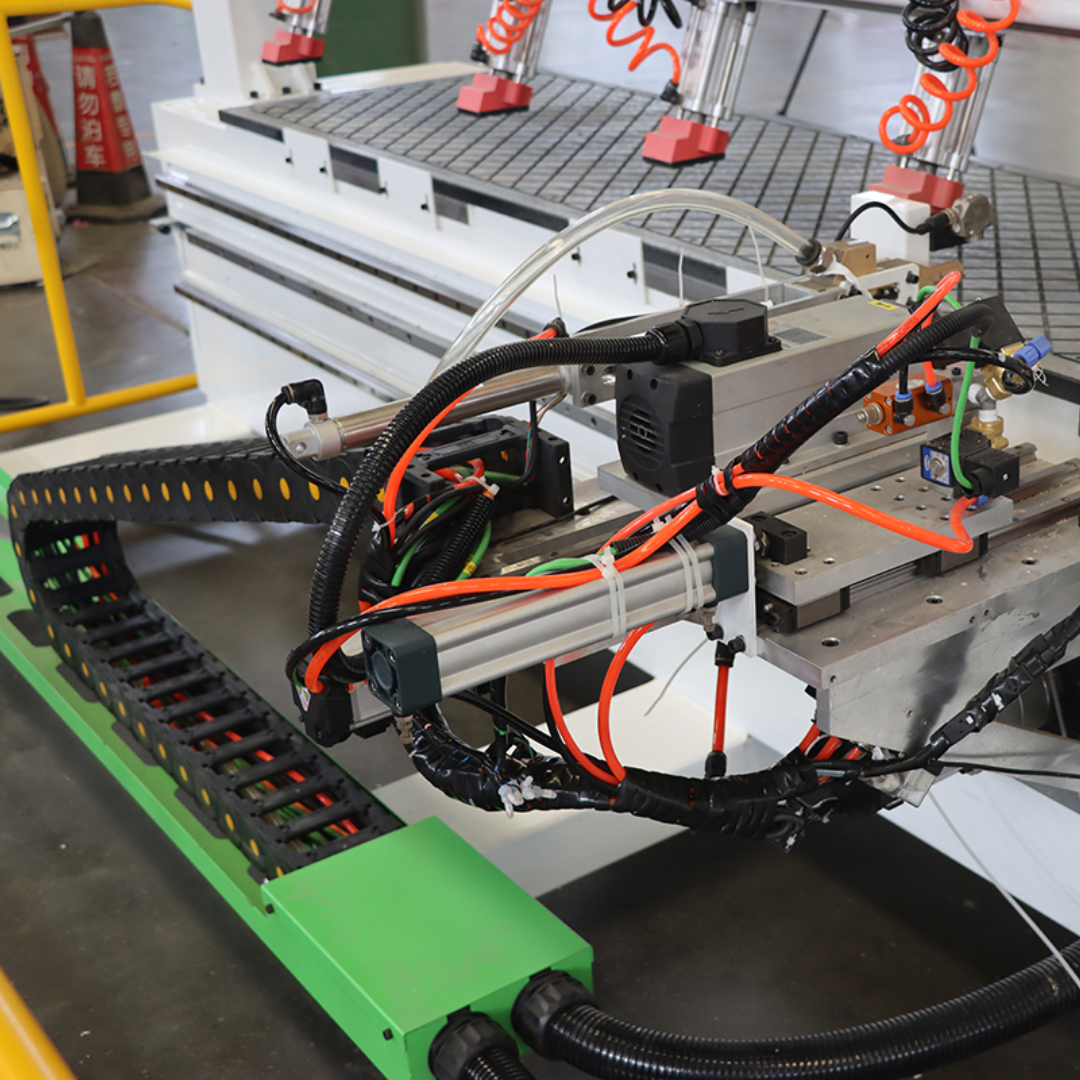

- Glue Injection Tank – 1 Unit
- Glue Cleaning Water Tank – 1 Unit
- Dowel Sorting Vibrating System – 1 Unit
- Dowel Insert System – 1 Unit
- Pneumatic Air Hold-Down Table
Technical Specifications
| Specification | Details |
|---|---|
| Control System | PLC Control with HMI Screen |
| Spindle | 3.5 kW Air Cooling, 6,000–18,000 RPM |
| Drive System | AC Servo 750W Motors |
| Table | 19” PVC / Bakelite Table with Air Hold Down |
| X Axis Structure | Helical Rack & Pinion |
| Y & Z Axis Structure | Ball Screw |
| Linear Rails | Square Linear Rails |
| Inverter | 3.5 kW |
| Working Size | X: 96” Length | Y & Z: 4” Stroke |
| Machine Size | 110” x 55” x 63” |
| Max Travel Speed | 1,380 IPM |
| Max Working Speed | 393 IPM |
| Power | 3 Phase, 220V |
| Machine Weight | 1,720 lbs |
| Supported Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *uoo |
| CAD/CAM Software | Optional |
General Information
- Model: BR-9603CNC-DW
- FOB Los Angeles, CA (USA)
- Warranty: 1 year
- Delivery Time: xx days after deposit
- Training, installation, tooling & rigging optional
- Customer responsible for local regulations and utility connections
