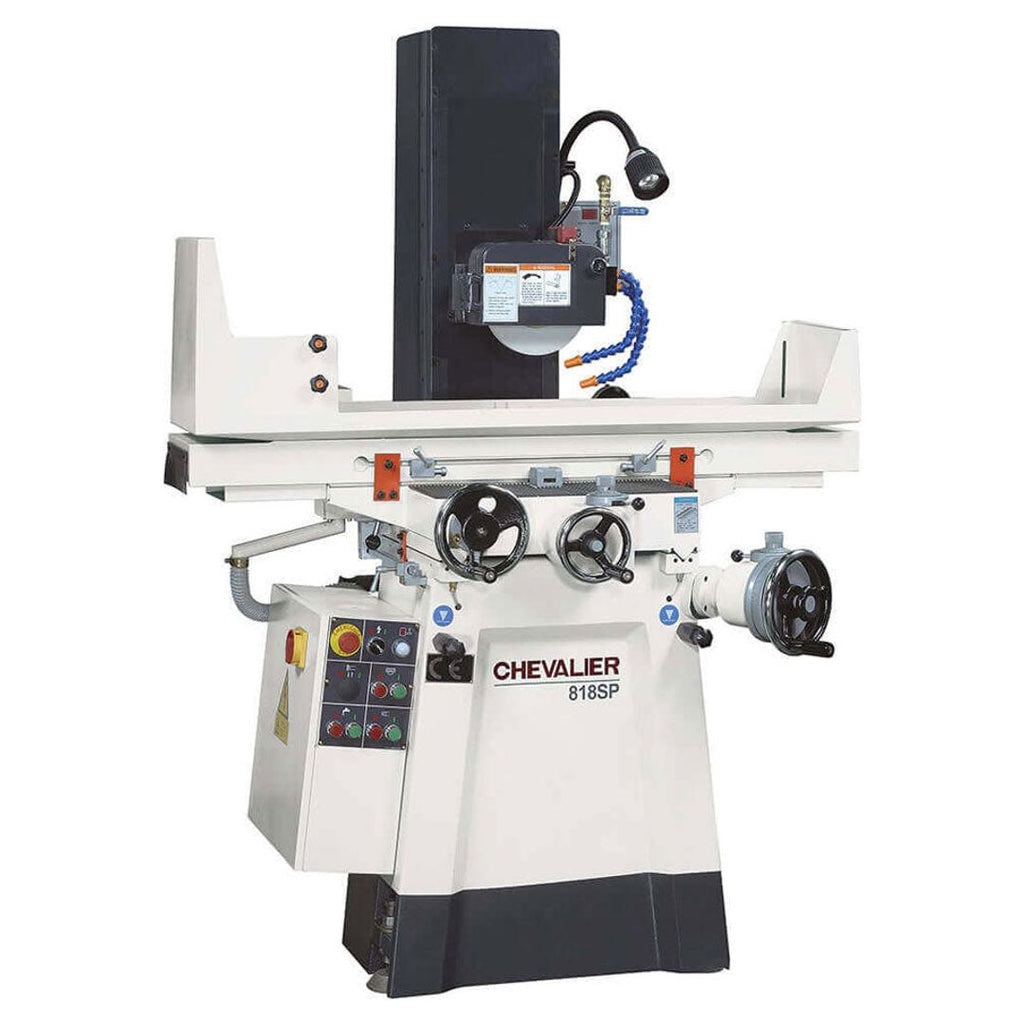

Chevalier FSG-818SP Surface Grinder Highlights
- Linear Ball Bearing Table: The table traverses on linear ball bearings and hardened D2 (SKD11) ground guideways for smooth, accurate movement.
- Turcite-B Hand-Scraped Slideways: Machine-base slideways are laminated with Turcite-B and hand-scraped, with an automatic intermittent lubrication system for high accuracy and longer slideway life.
- Cartridge-Type Spindle: Four Class 7 (P4) super-precision angular contact ball bearings are preloaded and assembled for grinding accuracy and surface finish.
- Wider 8.7" Grinding Width: The 8" x 18.9" table and 8.7" maximum grinding width handle wider workpieces than the 6" models, with a 551 lb. maximum table load.
- Waist-Level Vertical Handwheel: The ergonomically designed vertical handwheel is at waist level, with an elevating micro-feed device for fine vertical feeds.
Chevalier FSG-818SP Surface Grinder Specifications
| Brand | Chevalier |
|---|---|
| Model | FSG-818SP |
| Type | Manual surface grinder |
| Table Size | 8.0" x 18.9" (200 x 480 mm) |
| Max Grinding Length x Width | 19.7" x 8.7" (500 x 220 mm) |
| Max Table Travel / Crossfeed Travel | 20.5" (520 mm) / 8.7" (220 mm) |
| Distance, Table Surface to Spindle Center Line | 19.7" (500 mm) |
| Max Table Load | 551 lbs. (250 kg) |
| Wheelhead Elevation Handwheel | 0.0001" per graduation / 0.05" per revolution |
| Crossfeed Handwheel | 0.001" per graduation / 0.2" per revolution (micro feed 0.00005" optional) |
| Spindle Motor / Speed | 2 HP (1.5 kW) / 3,450 rpm at 60 Hz |
| Grinding Wheel (OD x Width x Bore) | 8" x 1/2" x 1-1/4" (205 x 12.7 x 31.75 mm) |
| Power Required | 2 kVA |
| Floor Space (W x D x H) | 80.3" x 53.5" x 84.0" (2,040 x 1,360 x 2,134 mm) |
| Net Weight | 2,310 lbs. (1,050 kg) |
Standard Accessories Included with the FSG-818SP
- Wheel flanges, grinding wheel, wheel fixing nut, and balancing arbor
- Leveling pads and leveling bolt set, fixing bolt, lock nut, and plug
- Lifting rod and lifting bolt
- Tool box, hex wrench set, wheel wrench, and hook wrench
Important Note: This is heavy machinery that ships freight on a pallet. Please confirm your shop's power requirements and delivery access (loading dock or liftgate) before ordering, and contact us with any questions about magnetic chucks and other optional accessories.
