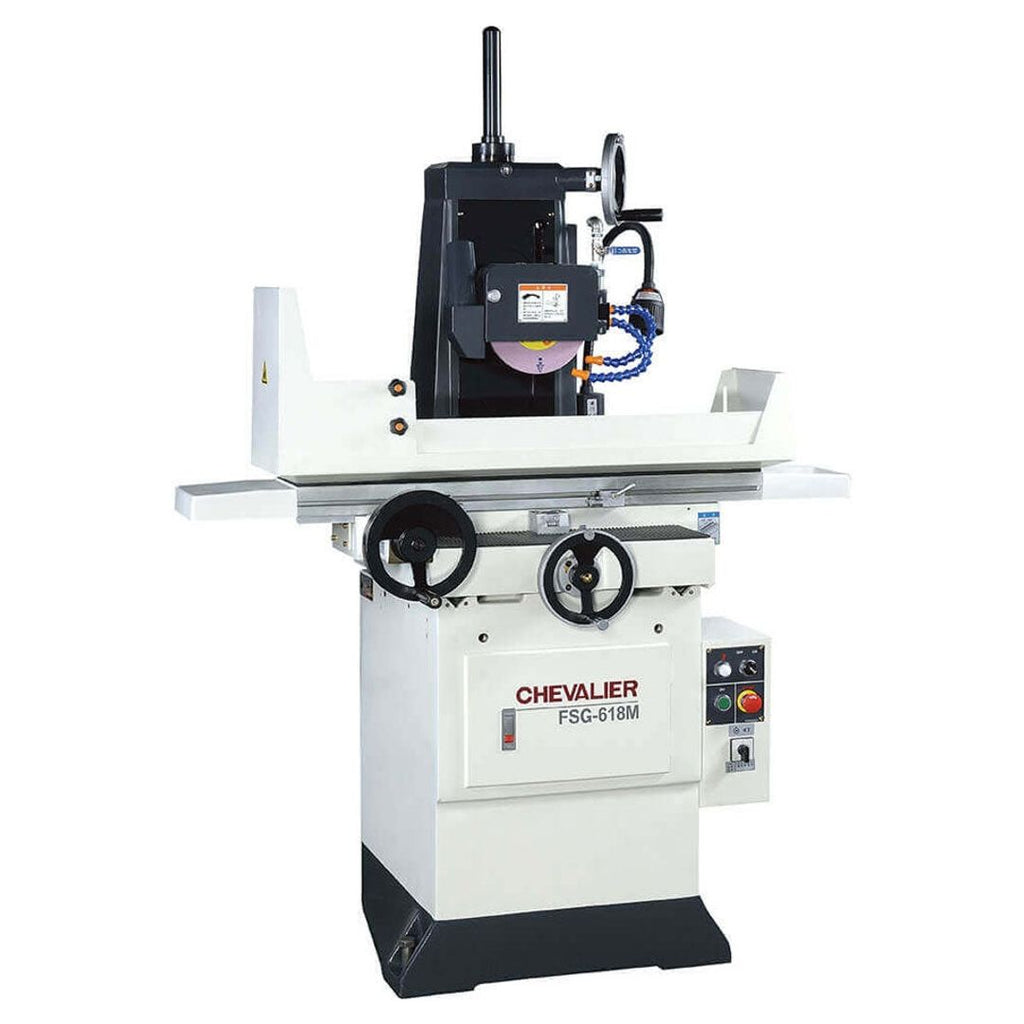

Chevalier FSG-618M manual surface grinder, 6 x 18 inch magnetic chuck table for precision metal grinding

Roll over image to zoom in Click on image to zoom

Chevalier FSG-618M 6x18 Manual Surface Grinder

Name: Chevalier FSG-618M 6x18 Manual Surface Grinder
Brand: Chevalier
SKU: FSG-618M
Price: 13464.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: Chevalier

Official Partner

IN STOCK & READY TO SHIP

SKU: FSG-618M

Price:

$13,464.00

Quantity:

Financing as low as ~$224 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $2,827.44 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

2 HP Low Vibration Spindle Motor: Direct-drive 2 HP, 3,450 rpm spindle with run-out held within 0.000060" for fine surface finishes.
Precision Cartridge-Type Spindle: Four class 7 angular contact ball bearings support the spindle for heavy duty grinding.
Guaranteed Flatness: Flatness is guaranteed to be within 0.0001" across the entire working surface.
Hardened and Ground Table Guideways: Steel-ball guideways and a patented continuous-loop, steel core reinforced cog timing belt drive give smooth, trouble-free table travel.

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered Fast

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Chevalier • Manual Surface Grinder • 6" x 18" Table • 2 HP Spindle • 0.0001" Downfeed Graduation

Chevalier FSG-618M 6x18 Manual Surface Grinder

The Chevalier FSG-618M is a precision handfeed surface grinder with a 6" x 18" table, a 2 HP low-vibration spindle motor, and a high precision cartridge-type spindle. Hardened and ground table guideways, hand-scraped double-V saddle ways, and Meehanite castings give job shops and tool rooms a rigid, accurate grinder for precision surface and form grinding.

Chevalier FSG-618M Surface Grinder Highlights

2 HP Low Vibration Spindle Motor: Direct-drive 2 HP, 3,450 rpm spindle with run-out held within 0.000060" for fine surface finishes.
Precision Cartridge-Type Spindle: Four class 7 angular contact ball bearings support the spindle for heavy duty grinding.
Guaranteed Flatness: Flatness is guaranteed to be within 0.0001" across the entire working surface.
Hardened and Ground Table Guideways: Steel-ball guideways and a patented continuous-loop, steel core reinforced cog timing belt drive give smooth, trouble-free table travel.
Hand-Scraped Double-V Saddle Ways: Saddle ways are laminated with Turcite-B and fed by an automatic continuous lube system with an oil flow indicator on the column.

Special Promo: FREE permanent magnetic chuck (part B09-0102, 5.9" x 17.7") with your Chevalier FSG-618M.

Chevalier FSG-618M Surface Grinder Specifications

Brand	Chevalier
Model	FSG-618M
Type	Manual (handfeed) surface grinder
Table Size / Chuck Size	6" x 18"
Max Grinding Length x Width	18" x 6"
Max Table Travel	Longitudinal 19" / Crossfeed 7"
Max Distance, Table Surface to Spindle Center Line	18"
Downfeed Handwheel	0.0001" per graduation / 0.050" per revolution
Crossfeed Handwheel	0.0005" per graduation / 0.100" per revolution
Spindle Motor	2 HP, 3,450 rpm (direct drive)
Grinding Wheel (Dia. x Width x Bore)	8" x 1/2" x 1-1/4"
Machine Weight	1,498 lbs.
Shipping Weight	1,709 lbs.
Packing Dimensions (L x W x H)	45" x 42" x 85"

Standard Accessories Included with the FSG-618M

LED machine lamp and exhaust hood
Diamond dresser and diamond
Automatic lubricator
One grinding wheel and hub, wheel extracting screw and nuts, and balancing arbor
Leveling screw set and pads
Toolbox and tools
Operating manual and parts list

Important Note: This is heavy machinery that ships freight on a pallet. Please confirm your shop's power requirements and delivery access (loading dock or liftgate) before ordering, and contact us with any questions about magnetic chucks and other optional accessories.
