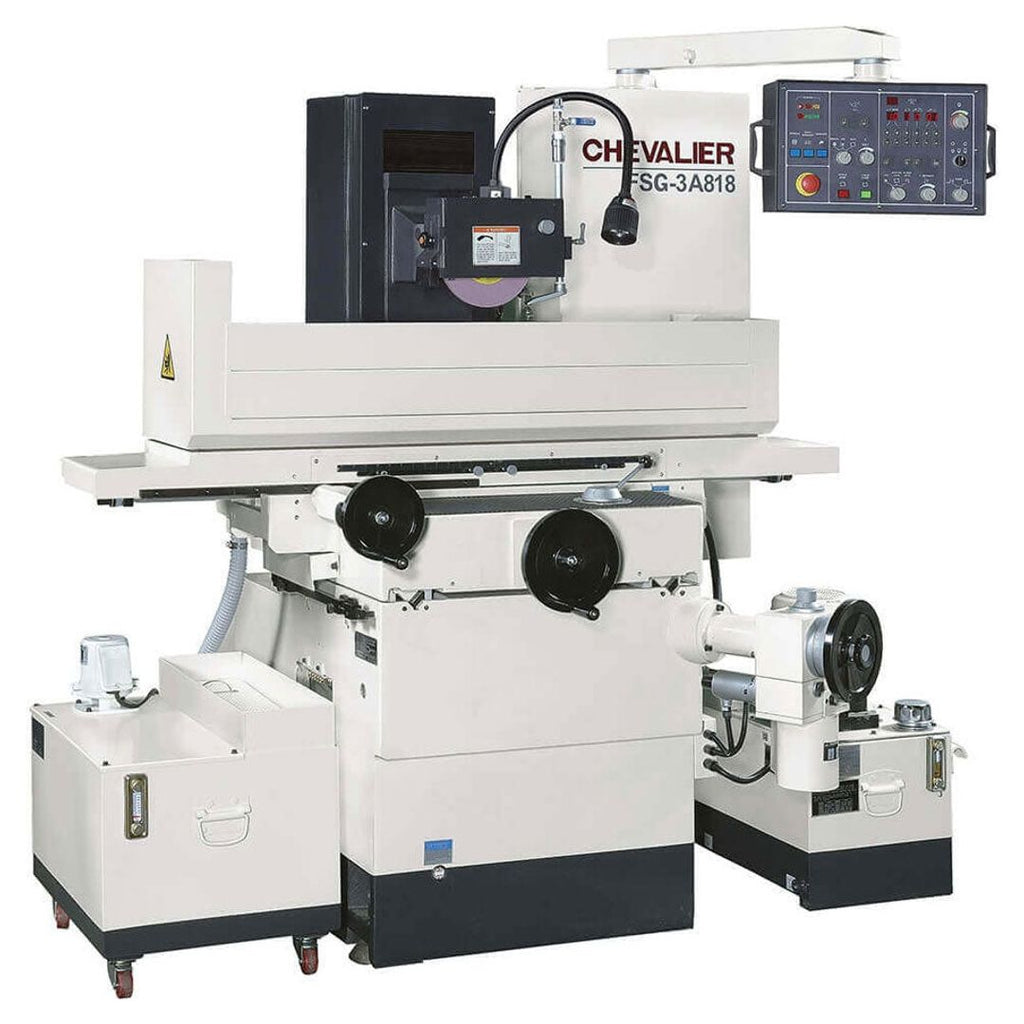

Chevalier FSG-3A818 Surface Grinder Highlights
- Automatic Wheelhead Downfeed: Motorized Y-axis downfeed in increments of 0.0001" to 0.0002" (0.002 to 0.04 mm), reducing operator intervention compared to semi-automatic models.
- Hydraulic Table Drive: A specially designed hydraulic system drives the table, giving smooth, accurate, and efficient table movement at 5 to 25 m/min (16 to 82 fpm).
- Electronic Non-Contact Table Reverser: Set the table stroke for each workpiece to save grinding time and get higher grinding efficiency.
- Automatic Crossfeed: Automatic transverse movement of 0.4 to 6 mm (0.02" to 0.24") at up to 37 ipm.
- Cartridge-Type Spindle: Four Class 7 (P4) super-precision angular contact ball bearings are preloaded and assembled in a temperature-controlled room for grinding accuracy and surface finish.
Chevalier FSG-3A818 Surface Grinder Specifications
| Brand | Chevalier |
|---|---|
| Model | FSG-3A818 |
| Type | Automatic surface grinder |
| Table Size | 8.0" x 18.1" (200 x 460 mm) |
| Max Grinding Length x Width | 18.9" x 8.7" (480 x 220 mm) |
| Max Table Travel | 19.7" (500 mm) |
| Table Speed | 5 to 25 m/min (16 to 82 fpm) |
| Distance, Table Surface to Spindle Center Line | 18" (approx. 457 mm) |
| Wheelhead Automatic Downfeed | 0.0001" to 0.0002" (0.002 to 0.04 mm) per stroke |
| Max Automatic Crossfeed Travel | 8.9" (225 mm) |
| Max Table Load | 551 lbs. (250 kg) |
| Spindle Motor / Speed | 2 HP (1.5 kW) / 3,450 rpm at 60 Hz |
| Grinding Wheel (OD x Width x Bore) | 8" x 1/2" x 1-1/4" (205 x 12.7 x 31.75 mm) |
| Machine Weight | 2,620 lbs. (approx. 1,188 kg) |
Standard Accessories Included with the FSG-3A818
- Wheel flanges, grinding wheel, wheel fixing nut, and balancing arbor
- Leveling pads and leveling bolt set, fixing bolt, lock nut, and plug
- Lifting rod
- Tool box, hex wrench set, wheel wrench, hook wrench, and cross and slotted screwdrivers
Important Note: This is heavy machinery that ships freight on a pallet. Please confirm your shop's power requirements and delivery access (loading dock or liftgate) before ordering, and contact us with any questions about magnetic chucks and other optional accessories.
