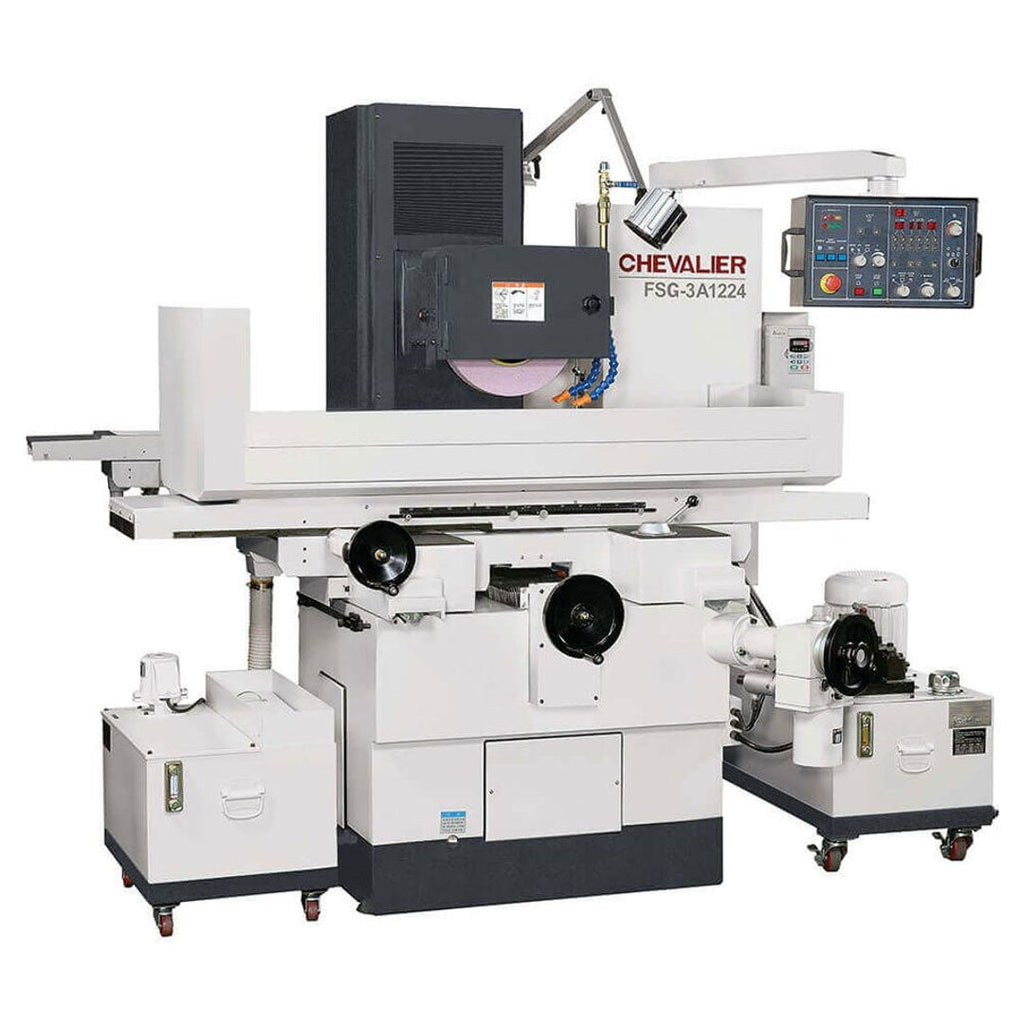

Chevalier FSG-3A1224 Surface Grinder Highlights
- Automatic Wheelhead Downfeed: Motorized Y-axis downfeed in increments of 0.0001" to 0.0002" (0.002 to 0.04 mm), reducing operator intervention compared to semi-automatic models.
- Large 12" x 24" Capacity: A 305 x 610 mm table, 24.8" grinding length, 14.0" grinding width, and 24-3/4" clearance from the table to the spindle center line.
- 5 HP Spindle with 14" Wheel: A 5 HP (3.7 kW) spindle turns a 14" x 2" x 5" grinding wheel.
- Electronic Non-Contact Table Reverser: Set the table stroke for each workpiece to save grinding time and get higher grinding efficiency, with covered proximity switches for operator safety.
- Cartridge-Type Spindle: Four Class 7 (P4) super-precision angular contact ball bearings are preloaded and assembled in a temperature-controlled room for grinding accuracy and surface finish.
Chevalier FSG-3A1224 Surface Grinder Specifications
| Brand | Chevalier |
|---|---|
| Model | FSG-3A1224 |
| Type | Automatic surface grinder |
| Table Size | 12.0" x 24.0" (305 x 610 mm) |
| Max Grinding Length x Width | 24.8" x 14.0" (630 x 355 mm) |
| Max Table Travel | 25.6" (650 mm) |
| Table Speed | 5 to 25 m/min (16 to 82 fpm) |
| Distance, Table Surface to Spindle Center Line | 24-3/4" (approx. 629 mm) |
| Wheelhead Automatic Downfeed | 0.0001" to 0.0002" (0.002 to 0.04 mm) per stroke |
| Automatic Crossfeed | 0.04" to 0.47" (1 to 12 mm), up to 43 ipm |
| Max Table Load | 925 lbs. (420 kg) |
| Spindle Motor / Speed | 5 HP (3.7 kW) / 1,750 rpm at 60 Hz |
| Grinding Wheel (OD x Width x Bore) | 14" x 2" x 5" (355 x 50 x 127 mm) |
| Machine Weight | 4,630 lbs. (approx. 2,100 kg) |
Standard Accessories Included with the FSG-3A1224
- Wheel flanges, grinding wheel, wheel fixing bolt set, and balancing arbor
- Leveling pads and leveling bolt set, fixing bolt, lock nut, and plug
- Lifting rod
- Tool box, hex wrench set, wheel wrench, and cross and slotted screwdrivers
Important Note: This is heavy machinery that ships freight on a pallet. Please confirm your shop's power requirements and delivery access (loading dock or liftgate) before ordering, and contact us with any questions about magnetic chucks and other optional accessories.
