Castaly Universal CNC Router (4 Axis Head) Applications
- Advanced 3D contouring and multi-angle machining applications
- Cabinet and furniture production including complex curved components
- Woodworking applications such as doors, panels, and decorative elements
- Advertising and signage production including acrylic and composite materials
- Die and mold machining for aluminum, plastics, PVC, and non-metal materials
Ideal for manufacturers requiring enhanced flexibility for multi-surface and complex geometry machining.
Castaly Universal CNC Router (4 Axis Head) Specifications
| Model | UNIVERSAL-408 |
|---|---|
| Control System | SYNTEC CNC Control System |
| Tool Changer | Rotary Automatic Tool Changer (8 ISO30 Tools) |
| Spindle | 12 HP (9 kW) Air-Cooled, 6,000–24,000 RPM |
| 4 Axis Capability | Universal 360° Rotating Spindle Head |
| Table | 6-Zone Vacuum Table |
| Machine Frame | Heavy Duty Welded Steel with Quenching Process |
| Drive System | Yaskawa AC Servo Motors with SHIMPO Gearboxes |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France), Siemens Wiring, Omron Switches |
| Lubrication | Automatic Lubrication System with Filter |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 53 AMP |
| Working Size | 51" (X) × 98" (Y) × 12" (Z) |
| Machine Size | 122" × 98" × 98" |
| Net Weight | 5,020 lbs |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly Universal CNC Router (4 Axis Head) Performance & Construction
- 4-axis universal spindle head rotates 360° for complex multi-angle machining.
- Rotary automatic tool changer increases productivity with fast tool switching.
- High-performance AC servo drive system ensures smooth, precise motion control.

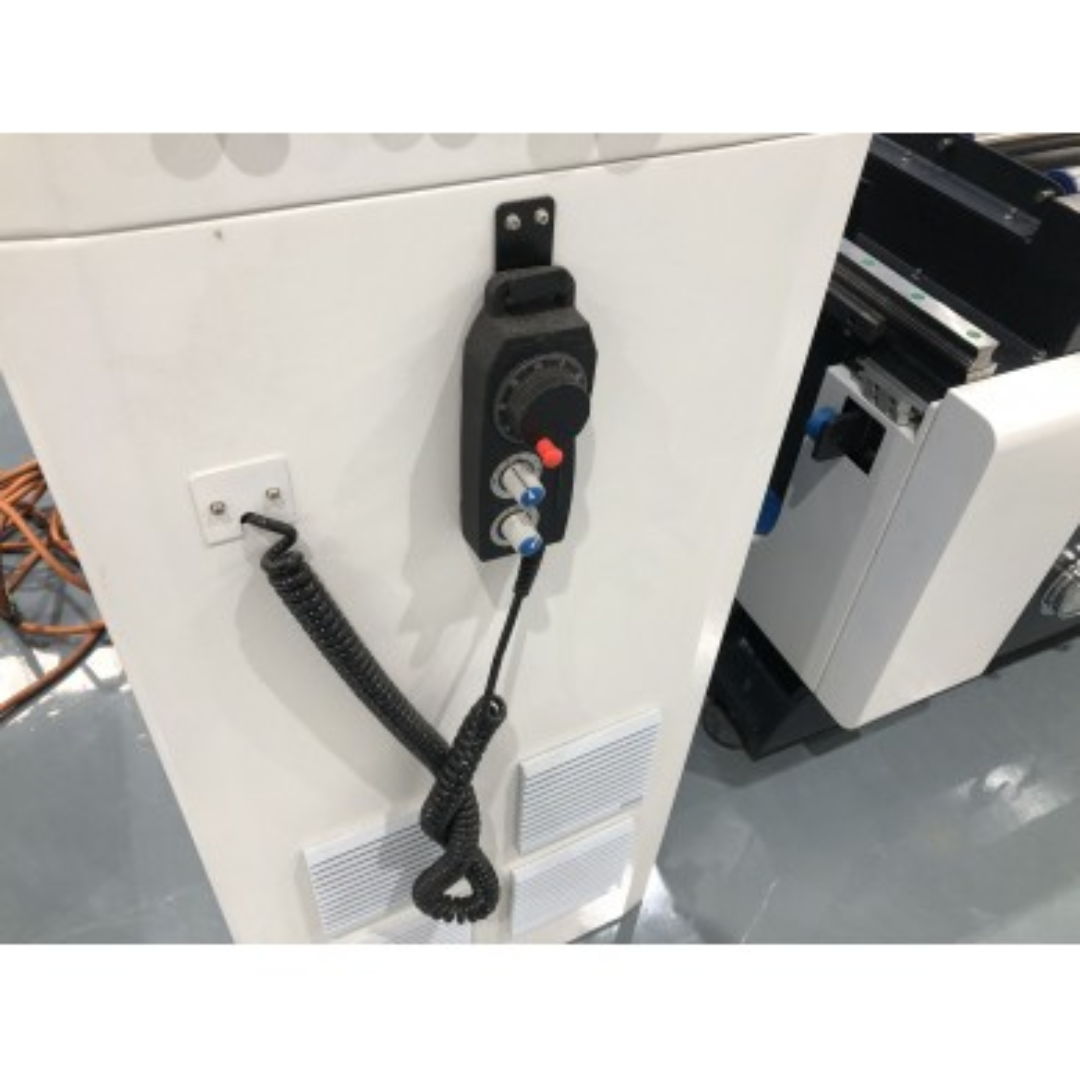

- Advanced Syntec CNC controller supports G-code programming and intuitive operation.
- Rigid stress-relieved steel frame provides long-term stability and accuracy.
- High-speed spindle with CP4 bearings ensures reliable cutting performance.
- Precision rack & pinion drive system enables fast and accurate X and Y axis movement.
- Ball screw Z-axis assembly ensures superior vertical positioning accuracy.
- Linear guideways with recirculating bearings provide smooth travel and maximum precision.

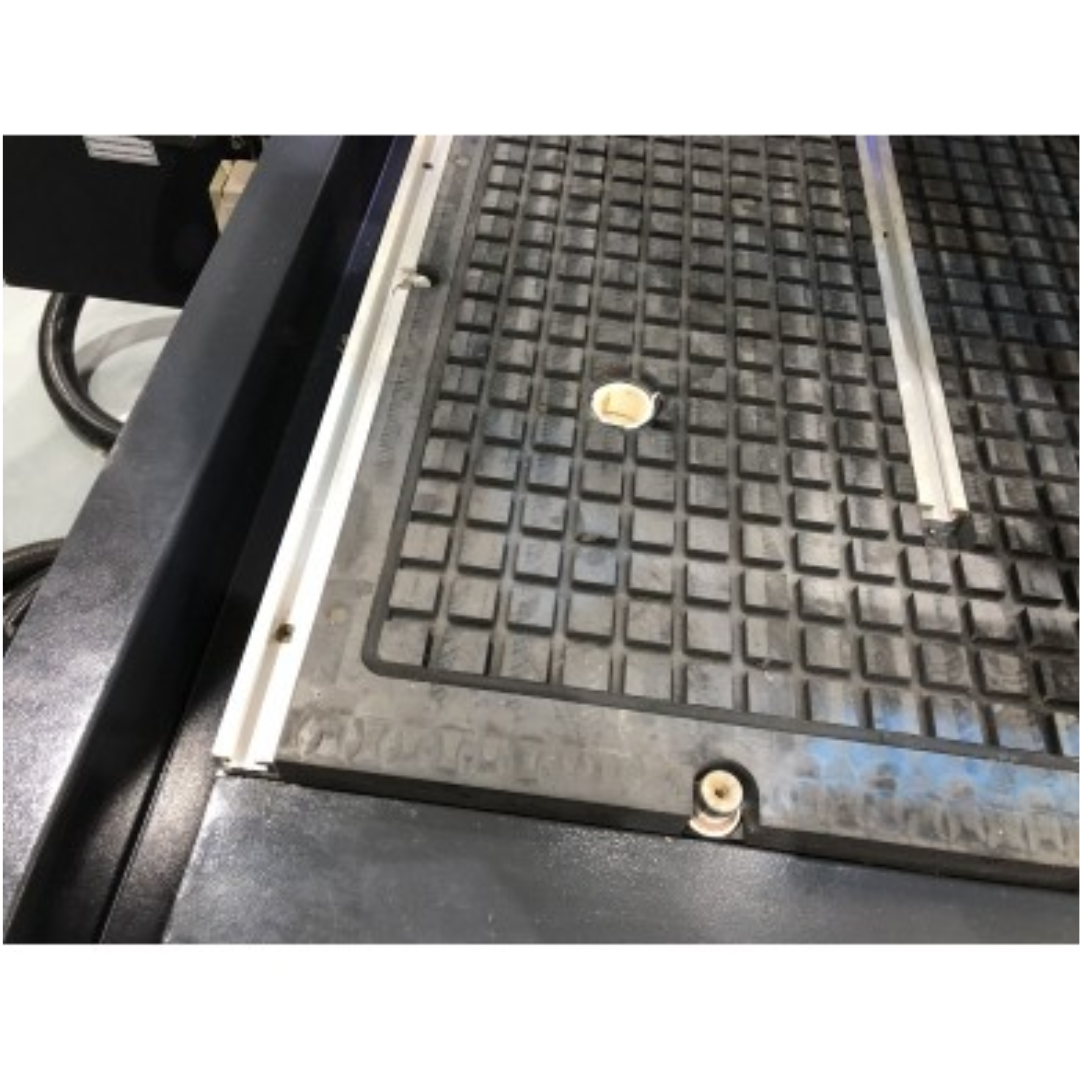

- 6-zone vacuum table delivers strong material hold-down for secure machining.
- Automatic spindle braking system improves tool change efficiency and reduces cycle time.
- Optional rotary axis attachment expands capabilities for cylindrical machining.
Castaly Universal CNC Router (4 Axis Head) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered for high-precision multi-axis machining with consistent and repeatable results.
Why Choose the Castaly Universal CNC Router (4 Axis Head)
- Full 4-axis machining capability for complex geometries.
- High-speed, precision servo-driven performance.
- Industrial-grade construction for durability and accuracy.
- Flexible machining for wood, plastics, and light metals.
- Expandable with optional rotary axis for additional applications.
The Castaly Universal CNC Router (4 Axis Head) is a powerful and flexible CNC solution designed for manufacturers who require advanced multi-axis capabilities, precision machining, and superior productivity.
