Castaly Twin CNC Router (Twin Tables or One Extra Long Table) Applications
- Cabinet and furniture manufacturing with continuous panel processing
- Nested-based production for high-volume operations
- Woodworking applications including doors, panels, and decorative components
- Advertising and signage production including acrylic and composite cutting
- Die and mold machining for aluminum, plastics, PVC, and non-metal materials
Ideal for production environments requiring uninterrupted workflow and high-output CNC machining.
Castaly Twin CNC Router (Twin Tables or One Extra Long Table) Specifications
| Models | TWIN-408 / TWIN-510 |
|---|---|
| Control System | SYNTEC CNC Control System |
| Tool Changer | Rotary Automatic Tool Changer (8 ISO30 Tools) |
| Spindle | HSD 12.8 HP (9.6 kW), Air-Cooled, 6,000–24,000 RPM |
| Working Tables | Dual Full-Size Working Zones or Extra Long Table Option |
| Vacuum Table | 6-Zone × 2 (Twin Table) / 12-Zone Combined |
| Machine Frame | Heavy Duty Welded Steel with Quenching Process |
| Drive System | Yaskawa AC Servo Motors with SHIMPO Gearboxes |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France), Siemens Wiring, Omron Switches |
| Lubrication | Automatic Lubrication System with Filter |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 53 AMP |
| Working Sizes | 408 / 510 Configurations Available |
| Net Weight | 7,720 – 8,910 lbs |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly Twin CNC Router (Twin Tables or One Extra Long Table) Performance & Construction
- Dual table system allows alternating processing for continuous production and increased efficiency.
- Automatic table switching reduces idle time and maximizes machine utilization.
- Infrared safety protection system ensures safe operation with automatic stop functionality.

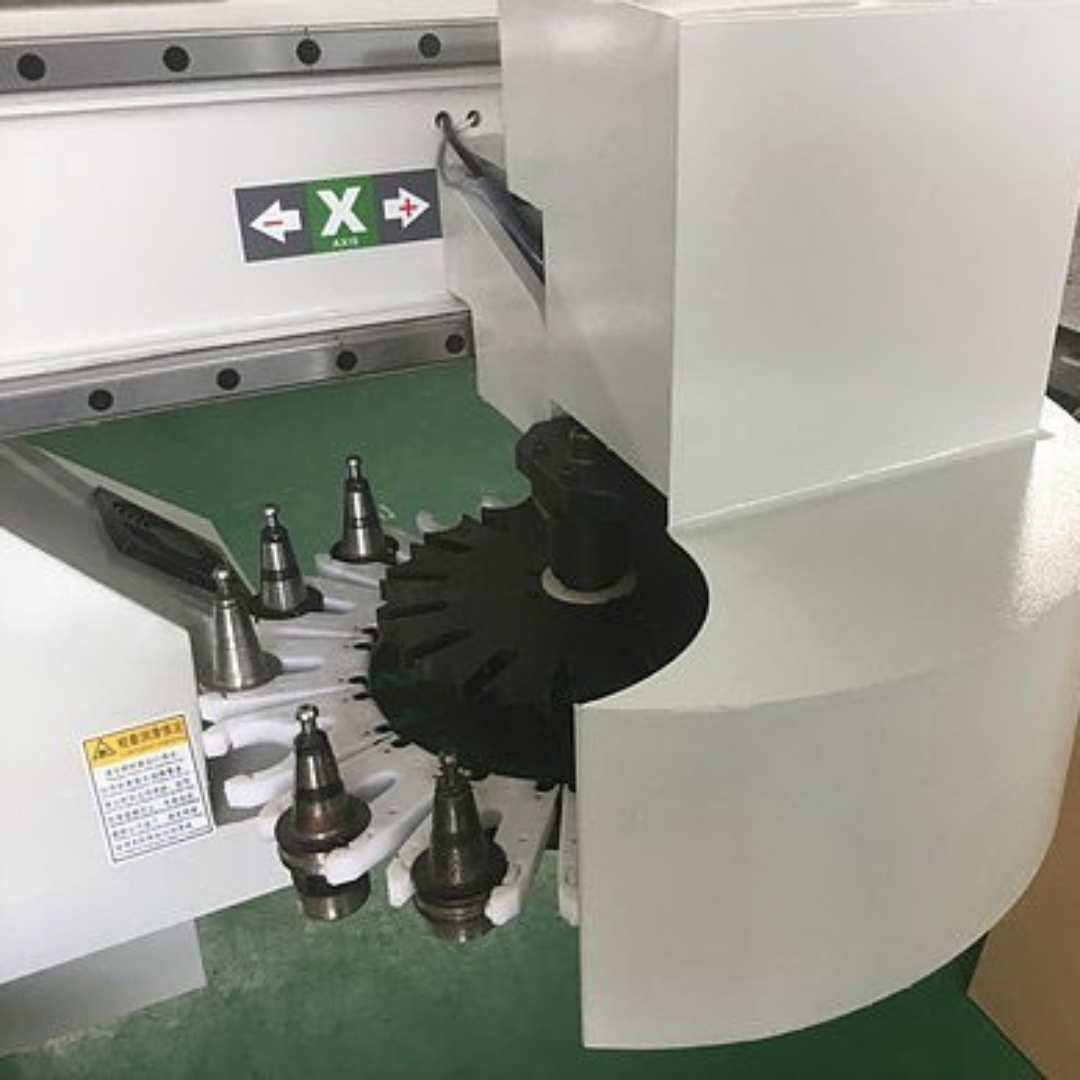

- Rotary automatic tool changer enables fast tool changes and improved workflow.
- High-performance AC servo drive system delivers smooth, precise, and high-speed motion.
- Advanced Syntec CNC controller supports G-code programming and onboard file management.
- Rigid stress-relieved steel frame ensures long-term accuracy and durability.

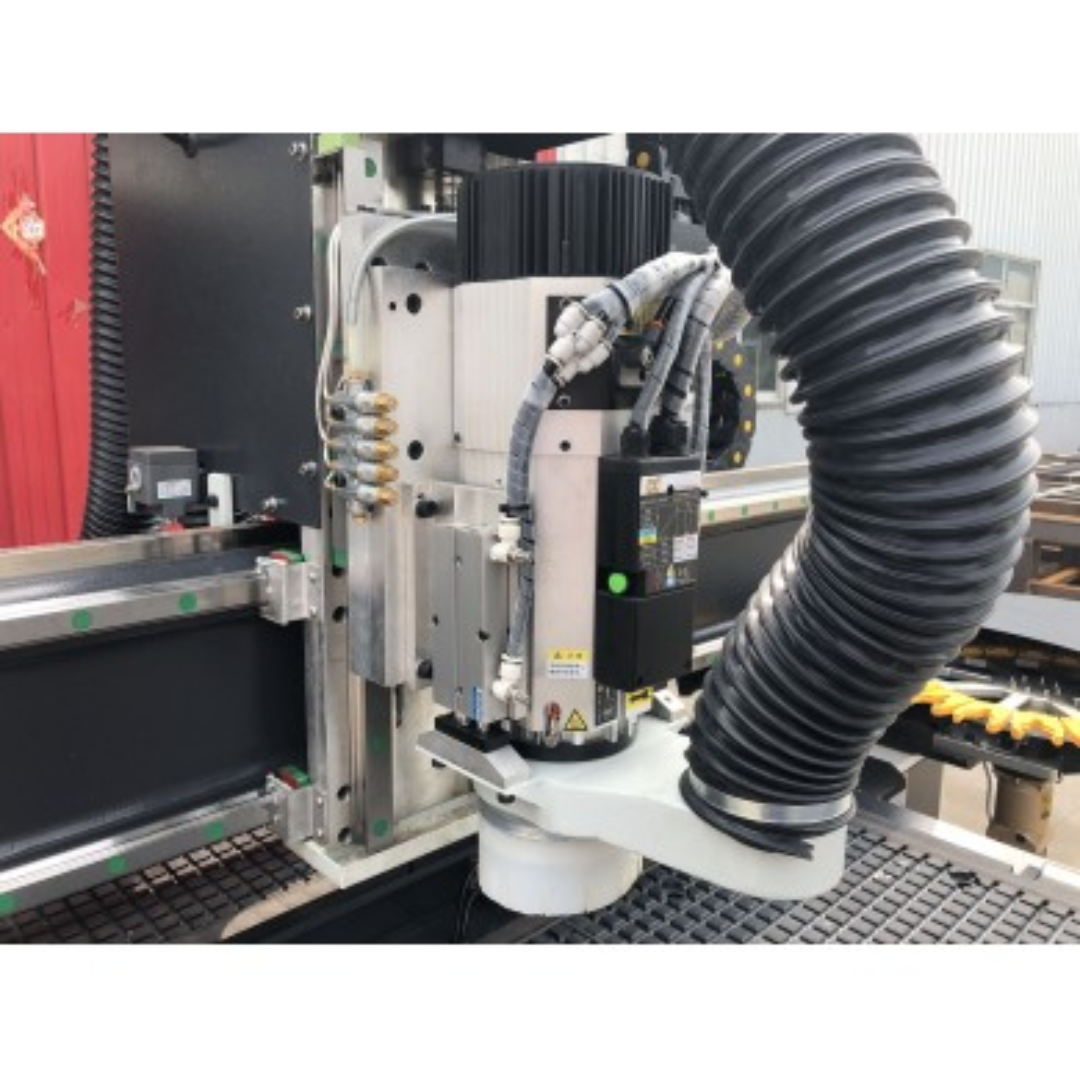

- High-speed HSD spindle with CP4 bearings provides reliable cutting performance.
- Precision rack & pinion drive system ensures fast and accurate movement on X and Y axes.
- Ball screw Z-axis assembly ensures superior vertical positioning accuracy.
- Linear guideways with recirculating bearings provide smooth travel and maximum precision.
- 12-zone vacuum hold-down system ensures strong material clamping across both tables.
Castaly Twin CNC Router (Twin Tables or One Extra Long Table) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered to maintain consistent high-precision performance across continuous, high-volume production cycles.
Why Choose the Castaly Twin CNC Router (Twin Tables or One Extra Long Table)
- Dual-table design maximizes productivity and minimizes downtime.
- High-speed, precision machining with servo-driven performance.
- Industrial-grade construction ensures long-term reliability.
- Advanced safety and automation features for efficient operation.
- Ideal for high-volume manufacturing environments.
The Castaly Twin CNC Router (Twin Tables or One Extra Long Table) is a powerful production solution designed to deliver continuous workflow, superior accuracy, and maximum efficiency for modern CNC machining operations.
