Castaly Standard CNC Router Applications
- Three-dimensional woodworking and decorative panel machining
- Cabinet, cupboard, and wooden door production
- Window frames, furniture components, and panel processing
- Advertising signage, logo production, and acrylic fabrication
- Plastic, PVC, and composite material cutting
- Light metal engraving including aluminum and copper molds
- Custom manufacturing such as gaming cabinets and display structures
Ideal for manufacturers requiring higher precision, speed, and reliability compared to entry-level CNC routers.
Castaly Standard CNC Router Specifications
| Models | STANDARD-408 / STANDARD-510 |
|---|---|
| Control System | NK105 DSP Controller |

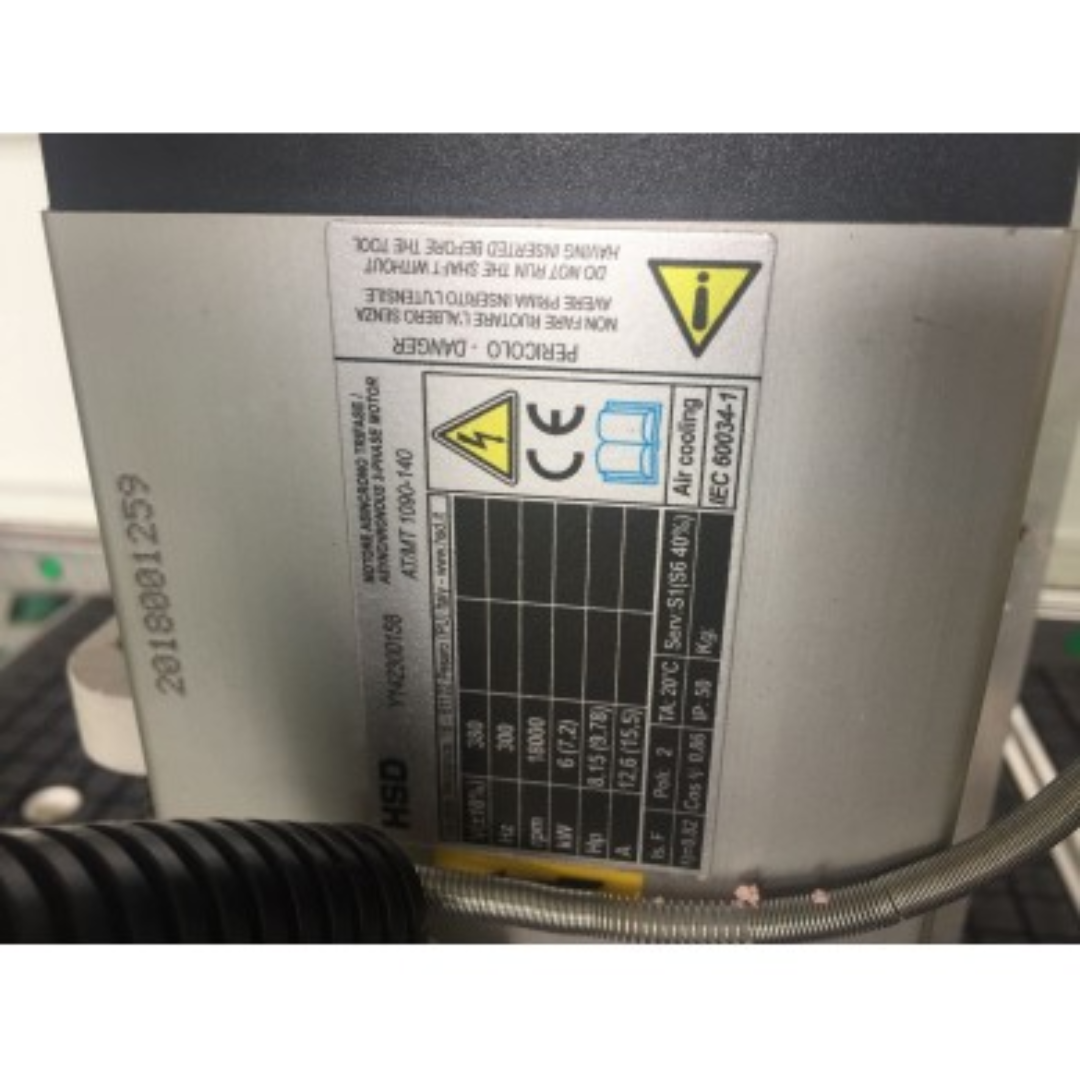

| Spindle | Italy HSD 8.6 HP (6 KW) Air-Cooled, 6,000–18,000 RPM |
| Drive System | Yaskawa AC Servo Motor & Drive |
| X/Y Transmission | Helical Rack & Pinion |
| Z Transmission | Ball Screw (TBI / HIWIN) |
| Linear Rails | HIWIN Square Rails (Taiwan) |
| Table | 6-Zone Vacuum Table |
| Max Travel Speed | 1,400 IPM |
| Max Working Speed | 1,000 IPM |
| Working Size | STANDARD-408: 51" × 98" × 7-3/4" / STANDARD-510: 63" × 126" × 7-3/4" |
| Machine Size | STANDARD-408: 122" × 87" × 71" / STANDARD-510: 149" × 99" × 71" |
| Net Weight | STANDARD-408: 3,510 lbs / STANDARD-510: 3,960 lbs |
| Electrical | 3 Phase, 220V, 38 AMP |
| Inverter | 7.5 KW |
| Electrical Components | Schneider (France), Omron (Japan), Siemens Cabling |
| Control Switch | Moeller (Germany) |
| DC Power Supply | Mean Well (Taiwan) |
| Lubrication | Manual with aluminum oil pipe |
| Supported Formats | .plt, .dst, .dxf, .bmp, .dwg, .uoo |
Castaly Standard CNC Router Performance & Construction
- Full AC servo motor system provides high torque, speed, and precise positioning across all axes.

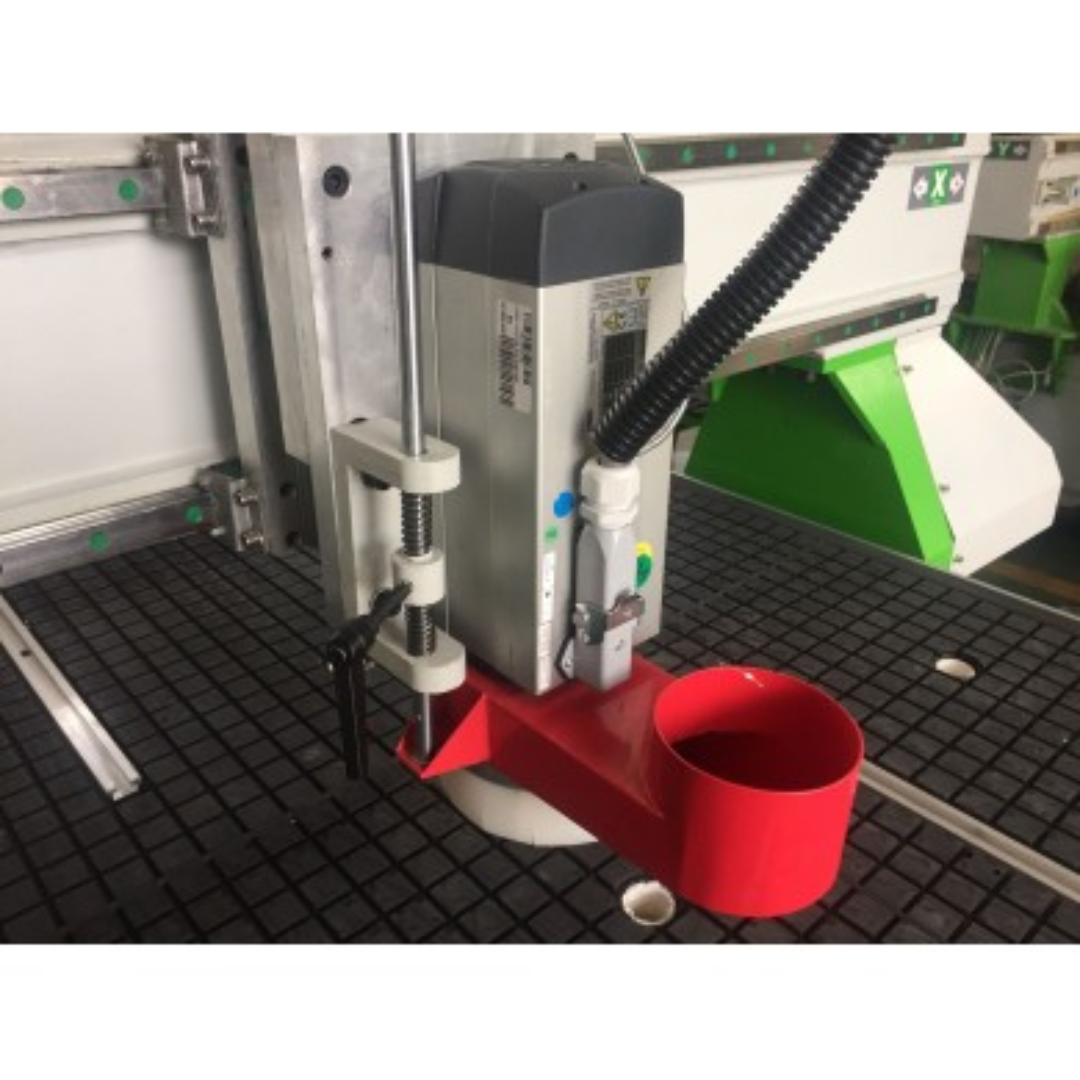

- Premium Italian HSD spindle with CP4 DB bearings ensures long life and consistent cutting performance.
- Heavy-duty welded steel frame stress-relieved for maximum rigidity and machining stability.
- Moving gantry design optimizes floor space while maintaining structural strength.
- High-precision motion system with rack & pinion drives and ball screw Z-axis for smooth operation.
- Advanced DSP controller supports G-code programming and easy machine operation.
- Automatic spindle braking system enables faster deceleration and improved tool change efficiency.
- 6-zone vacuum table ensures strong material hold-down for high-speed machining.
- Optional CAD/CAM integration allows efficient program creation and editing.
- Optional rotary axis attachment expands capabilities for cylindrical machining.
Castaly Standard CNC Router Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Designed for precision manufacturing environments requiring tighter tolerances and consistent repeatability.
Castaly Standard CNC Router Commercial Terms
- Pricing: FOB Los Angeles, CA (tooling, rigging, freight, and taxes not included)
- Payment Terms: 50% deposit, 50% balance prior to shipment
- Warranty: 1 Year
- Delivery Time: To be confirmed after deposit
- Optional Services: Training, installation, tooling, and rigging
- Optional Add-On: Rotary axis / lathe attachment available
- Customer Responsibility: Compliance with local regulations and utility connections
Why Choose the Castaly Standard CNC Router
- Upgraded servo-driven system for higher precision and faster operation.
- Industrial-grade HSD spindle for consistent and reliable performance.
- Robust construction ensures long-term durability in production environments.
- Flexible machining capabilities across wood, plastics, and light metals.
- Expandable with optional accessories for increased functionality.
The Castaly Standard CNC Router offers the perfect balance between performance and value, making it an ideal choice for growing shops and industrial users seeking precision, speed, and reliability.
