Castaly Rhéa CNC Top Face and One Edge Door Processing Machine Center Applications
- Complete door pre-hanging processing including lock, hinge, and latch preparation
- Door lite cutouts and panel machining for residential and commercial doors
- Wooden doors, cupboard doors, and window component processing
- Steel door machining and composite material door fabrication
- Custom door manufacturing with integrated multi-operation workflows
Engineered for manufacturers seeking to automate top face and edge processing in a single, efficient CNC system.
Castaly Rhéa CNC Top Face and One Edge Door Processing Machine Center Specifications
| Control System | Syntec 60WA CNC Control with All-in-One PC |
|---|---|
| Processing Capability | Top Face + One Edge (Horizontal) |
| Main Top Spindle | 9.0 kW Air-Cooled, Automatic Quick-Change (8 Tool ISO30 ATC) |
| Top Auxiliary Spindle | 1.5 kW for Drilling & Routing |

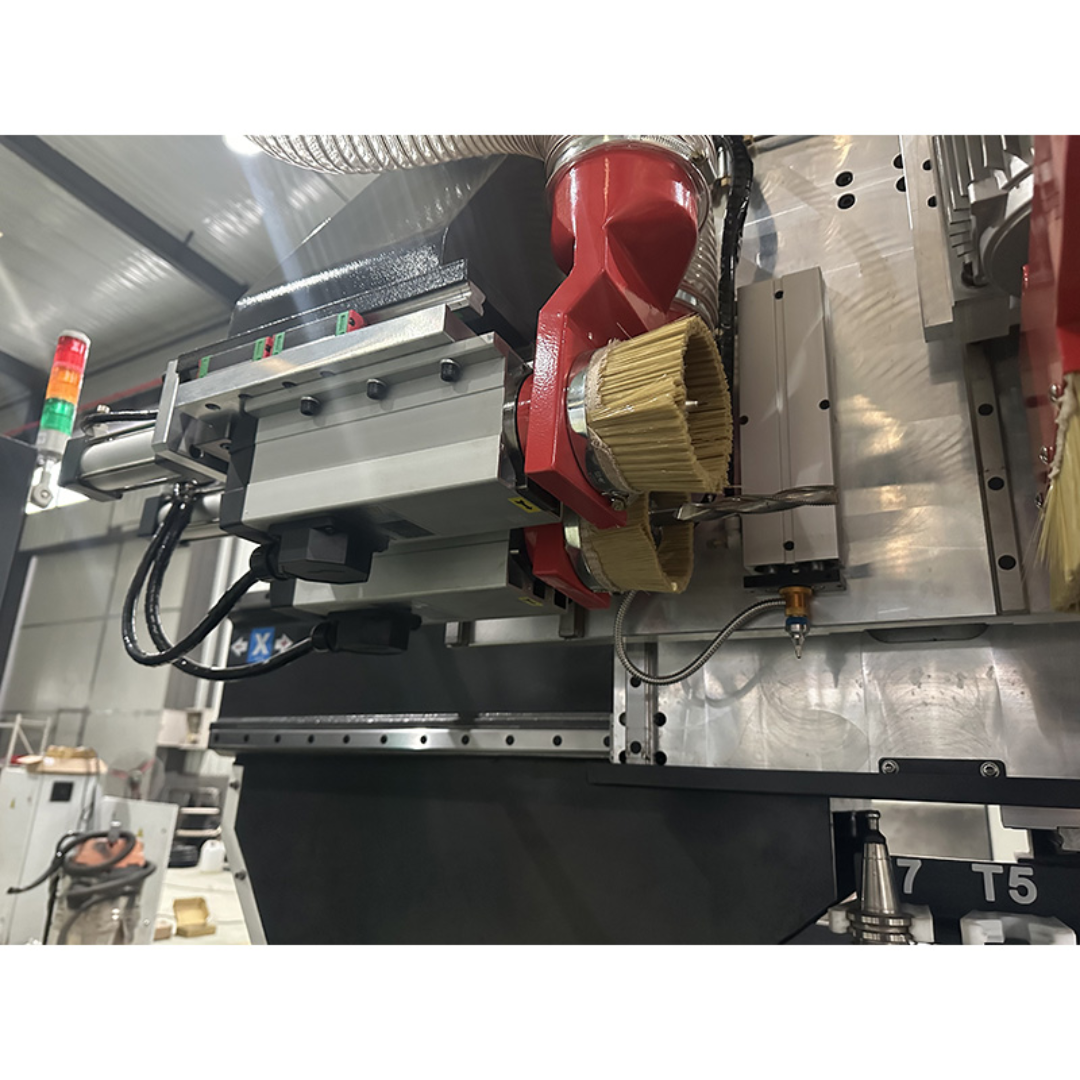

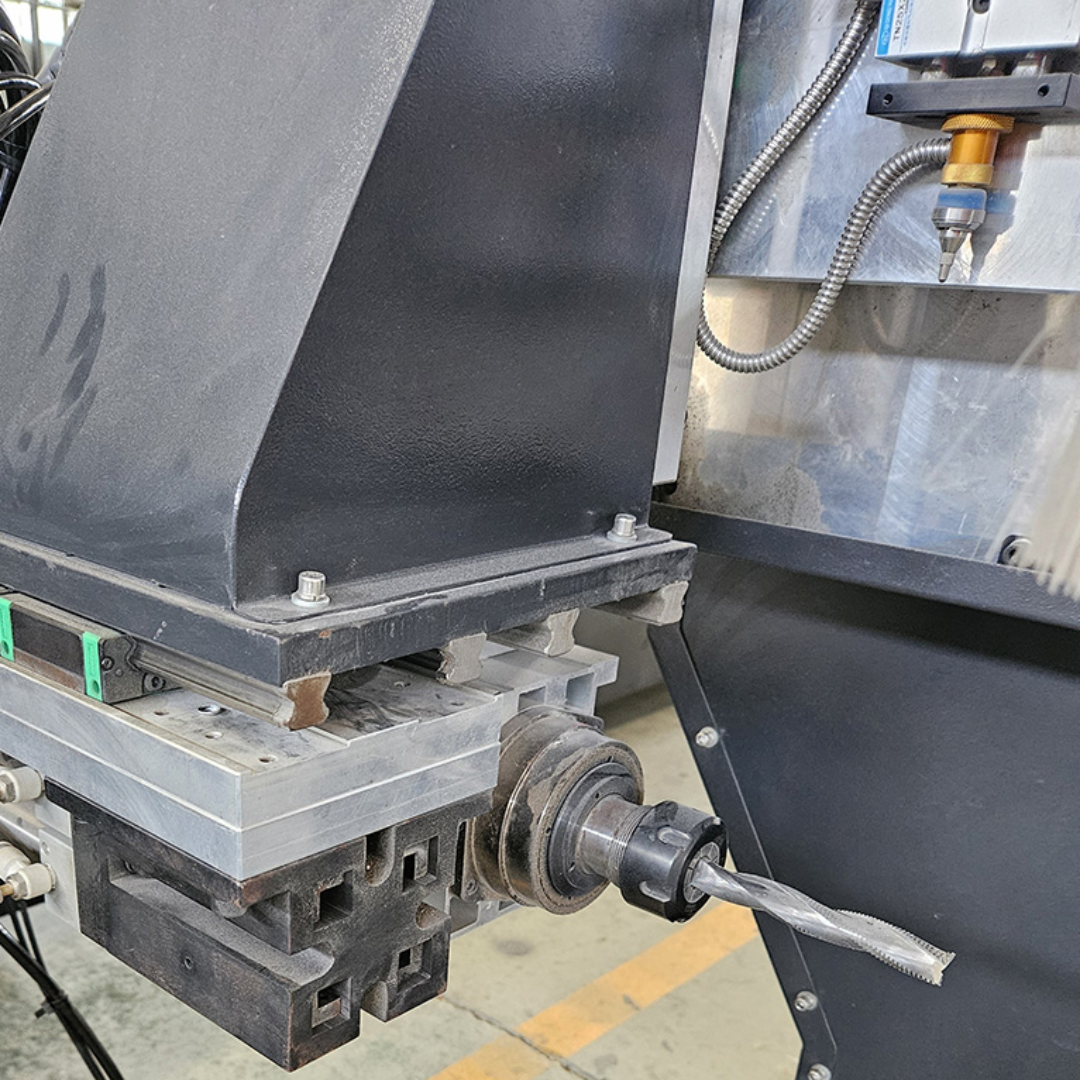

| Side Spindles | 6.0 kW + 3.5 kW for Edge Processing |
| Table | PTP Table with SCHMALZ Vacuum Pads (6 pcs) |
| Drive System | 1500W AC Servo Motors |
| Transmission | Helical Rack & Pinion + Ball Screw |
| Linear Guides | 30mm Precision Square Rails |
| Max Travel Speed | 200 FPM (60 m/min) |
| Max Working Speed | 50 FPM (15 m/min) |
| Working Capacity | 37-3/8" W × 110" L × 2-1/8" H (Max Lock Depth 7-7/8") |
| Lubrication | Automatic Oil Lubrication System |
| Additional Support | Extendable Mobile Side Roller Table (6 ft) |
| Optional | Vacuum Pump |
Castaly Rhéa CNC Top Face and One Edge Door Processing Machine Center Performance & Construction
- Dual processing capability allows simultaneous top face and one-edge machining in a single setup.
- Multi-spindle configuration supports routing, drilling, milling, hinge cutting, and lock preparation.
- Advanced door processing functions including door lite cutouts, cylindrical lock prep, mortise lock, hinge milling, and latch drilling.
- Precision Syntec CNC control system enables accurate programming and efficient operation.
- Rigid stress-relieved steel frame ensures long-term durability and machining stability.
- High-performance servo drive system delivers smooth motion and consistent accuracy.
- Precision rack & pinion and ball screw system ensures high-speed and accurate positioning.
- Linear guideways with recirculating bearings provide smooth travel and maximum precision.
- Professional PTP vacuum table with SCHMALZ pads ensures secure workpiece clamping.
- Expandable roller support system improves handling of large door panels.
Castaly Rhéa CNC Top Face and One Edge Door Processing Machine Center Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.02 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Built to deliver consistent precision for critical door hardware alignment and professional finish quality.
Why Choose the Castaly Rhéa CNC Top Face and One Edge Door Processing Machine Center
- Complete door pre-hanging solution in one machine.
- Multi-spindle system reduces setup time and increases productivity.
- High precision for hinge, lock, and latch machining.
- Industrial-grade construction for long-term reliability.
- Optimized for modern door manufacturing workflows.
The Castaly Rhéa CNC Top Face and One Edge Door Processing Machine Center is a highly specialized CNC solution designed to streamline door production, improve accuracy, and maximize efficiency in pre-hanging operations.
