Castaly RAPID-8R CNC Router (Rear 8 Tools ATC) Applications
- Cabinet and furniture manufacturing including panels, doors, and components
- Nested-based production for closets, kitchens, and modular furniture systems
- Advertising and signage production including acrylic cutting and engraving
- Die and mold machining for aluminum, plastics, PVC, and composite materials
- 3D contouring and complex routing applications across multiple materials
Designed for manufacturers seeking efficient rear tool changing, high-speed routing, and precision machining.
Castaly RAPID-8R CNC Router (Rear 8 Tools ATC) Specifications
| Models | RAPID-404-R6 / RAPID-408-R8 / RAPID-510-R8 / RAPID-612-R8 / RAPID-714-R8 |
|---|---|
| Control System | NK105 G3 DSP Control |
| Tool Changer | Rear Linear ATC (6 or 8 ISO30 Tools depending on model) |
| Spindle | 12 HP (9 kW) Air-Cooled, 6,000–24,000 RPM |
| Table | 6-Zone Vacuum Table |
| Machine Frame | Heavy Duty Welded Steel with Quenching Process |
| Drive System | AC Servo Motors & Drives |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France) |
| Limit Switch | Omron (Japan) |
| Cabling | Siemens Industrial Cable |
| Lubrication | Automatic Lubrication System with Filter |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 52 AMP |
| Working Sizes | Multiple Configurations (404 / 408 / 510 / 612 / 714) |
| Net Weight | 2,040 – 5,050 lbs (Model Dependent) |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly RAPID-8R CNC Router (Rear 8 Tools ATC) Performance & Construction

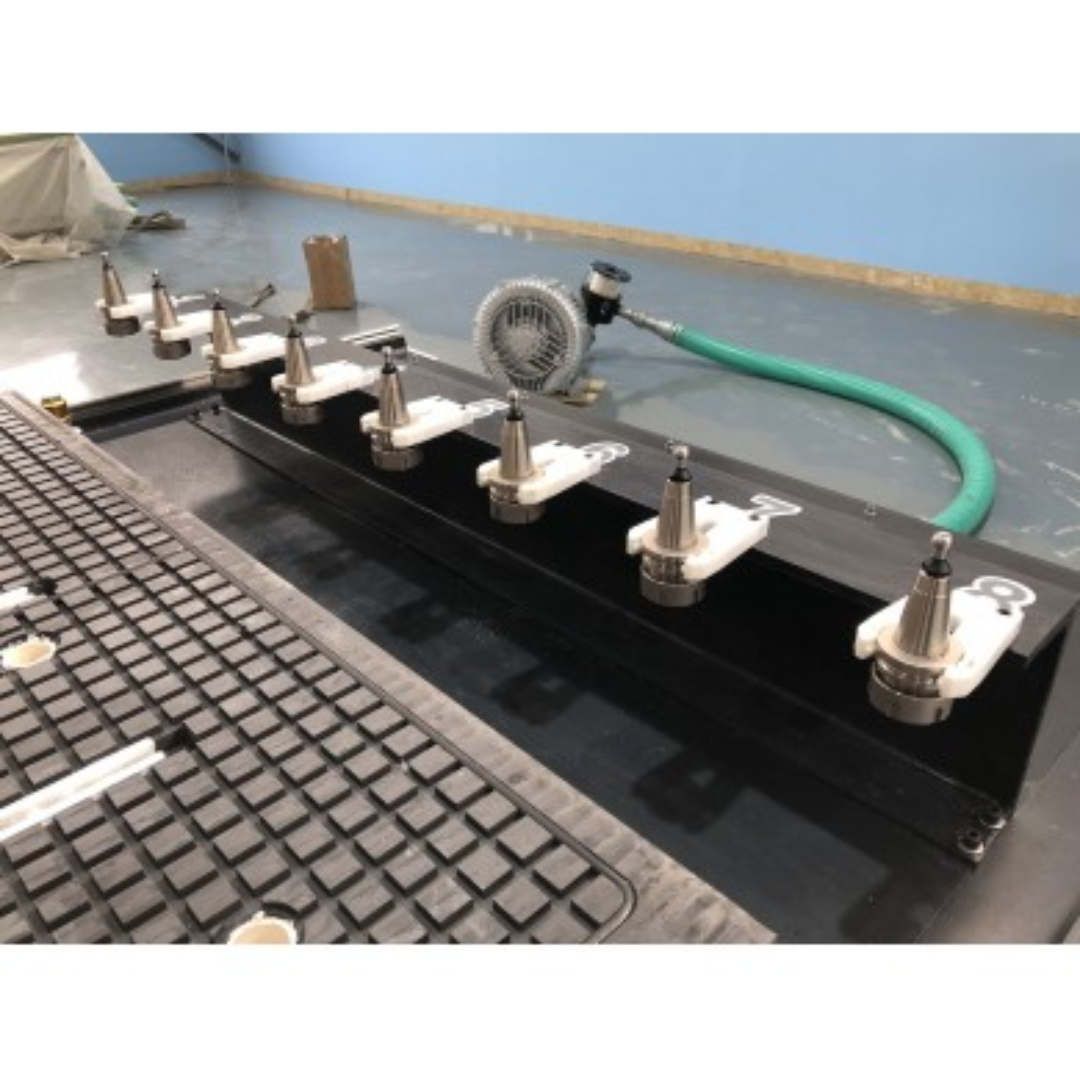

- Rear-mounted automatic tool changer improves workflow efficiency and reduces machining downtime.
- High-performance AC servo system ensures precise motion control and high-speed operation.
- Advanced DSP control system supports G-code programming with user-friendly operation.
- Rigid stress-relieved steel frame provides long-term stability and consistent machining accuracy.
- High-speed spindle with CP4 bearings delivers reliable cutting performance and extended service life.
- Precision rack & pinion drive system ensures smooth, fast, and accurate movement across X and Y axes.
- Ball screw Z-axis assembly guarantees superior vertical positioning accuracy.
- Linear guideways with recirculating bearings enable maximum traverse speed and precision.
- 6-zone vacuum table provides strong hold-down for nesting and panel processing.
- Automatic spindle braking system allows faster tool changes and improved productivity.
- Optional rotary axis (lathe) expands capabilities for cylindrical machining applications.
Castaly RAPID-8R CNC Router (Rear 8 Tools ATC) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered to meet strict industrial tolerance standards for reliable, repeatable machining performance.
Why Choose the Castaly RAPID-8R CNC Router (Rear 8 Tools ATC)
- Rear-mounted tool changer maximizes workspace and efficiency.
- High-speed machining with precision servo-driven motion.
- Industrial-grade construction ensures durability and accuracy.
- Flexible configurations to meet a wide range of production needs.
- Optional rotary axis expands machining capabilities.
The Castaly RAPID-8R CNC Router (Rear 8 Tools ATC) is a versatile, high-performance CNC solution designed for manufacturers seeking speed, precision, and efficient tool management in demanding production environments.
