Castaly Rapid-12R-SU CNC Router Applications
- Panel processing and nested-based manufacturing for cabinetry and furniture
- Precision cutting with integrated saw blade for grooving, trimming, and angled cuts
- Woodworking applications including doors, panels, and decorative components
- Sign making, plastics machining, and composite material processing
- Multi-process machining combining routing, drilling, and sawing operations
Ideal for manufacturers requiring both routing and sawing capabilities in a single high-performance CNC system.
Castaly Rapid-12R-SU CNC Router Specifications
| Control System | Syntec 60CB CNC Control |
|---|---|

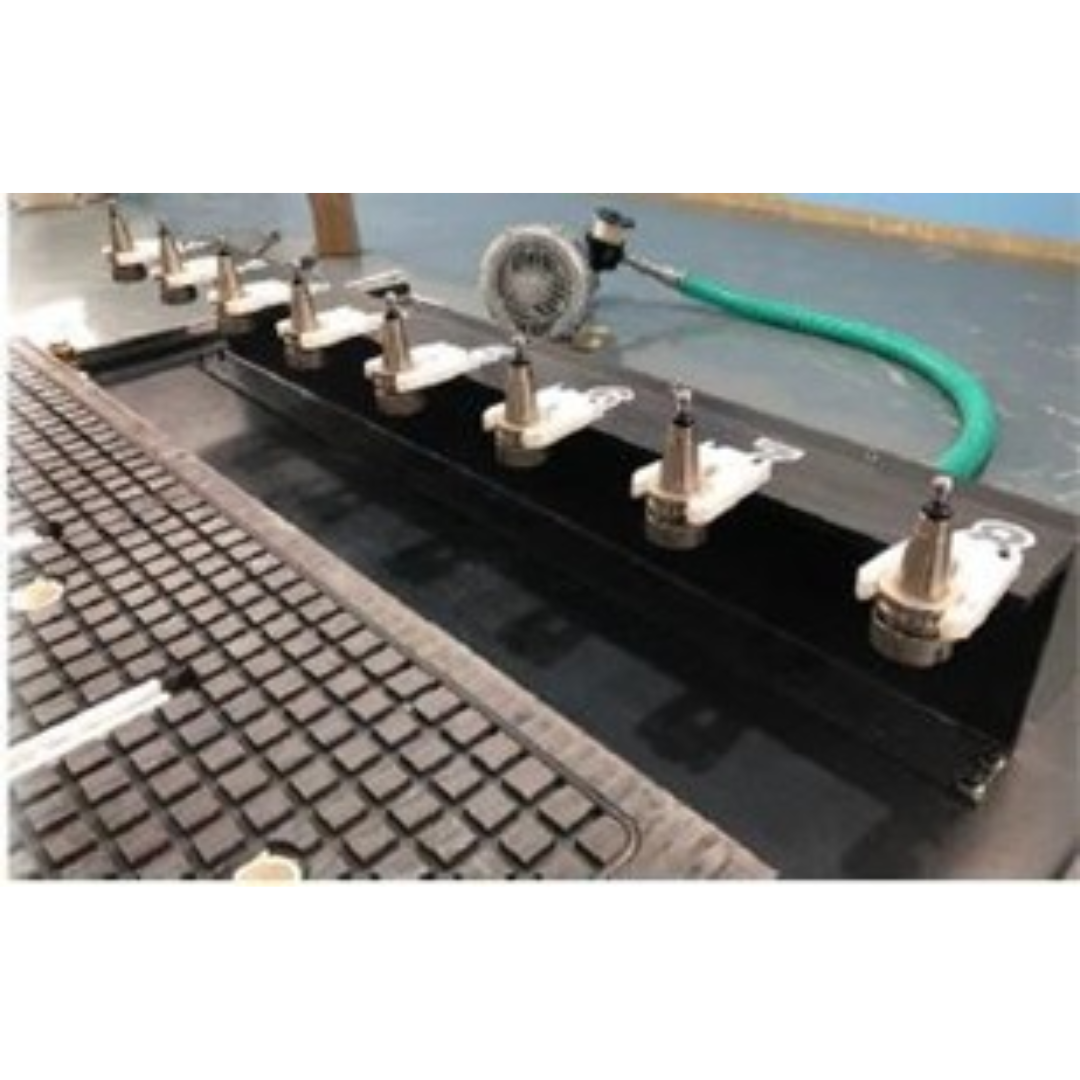

| Tool Changer | Rear Linear ATC (12 Tools, ISO30, ER32) |
| Router Spindle | 9.0 kW (12 HP) Air-Cooled, 6,000 – 24,000 RPM |
| Saw Blade | 5.5 kW, 300 mm Diameter, 0°–135° Servo Rotation |
| Machine Frame | Heavy Duty Welded Steel Construction |
| Table | 6-Zone Vacuum Table |
| Drive System | AC Servo Motors & Drives |
| X / Y Drive | Helical Rack & Pinion |
| Z Axis | Precision Ball Screw (HIWIN) |
| Linear Guides | HIWIN Square Rails (Taiwan) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France), Siemens Wiring, Omron Switches |
| Control Switch | Moeller (Germany) |
| Lubrication | Manual Control with Aluminum Oil Pipe |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 52A |
| Working Sizes | 408 / 510 / 612 Configurations Available |
| Net Weight | 3,960 – 6,300 lbs (Model Dependent) |
| Optional | Vacuum Pump, CAD/CAM Software |

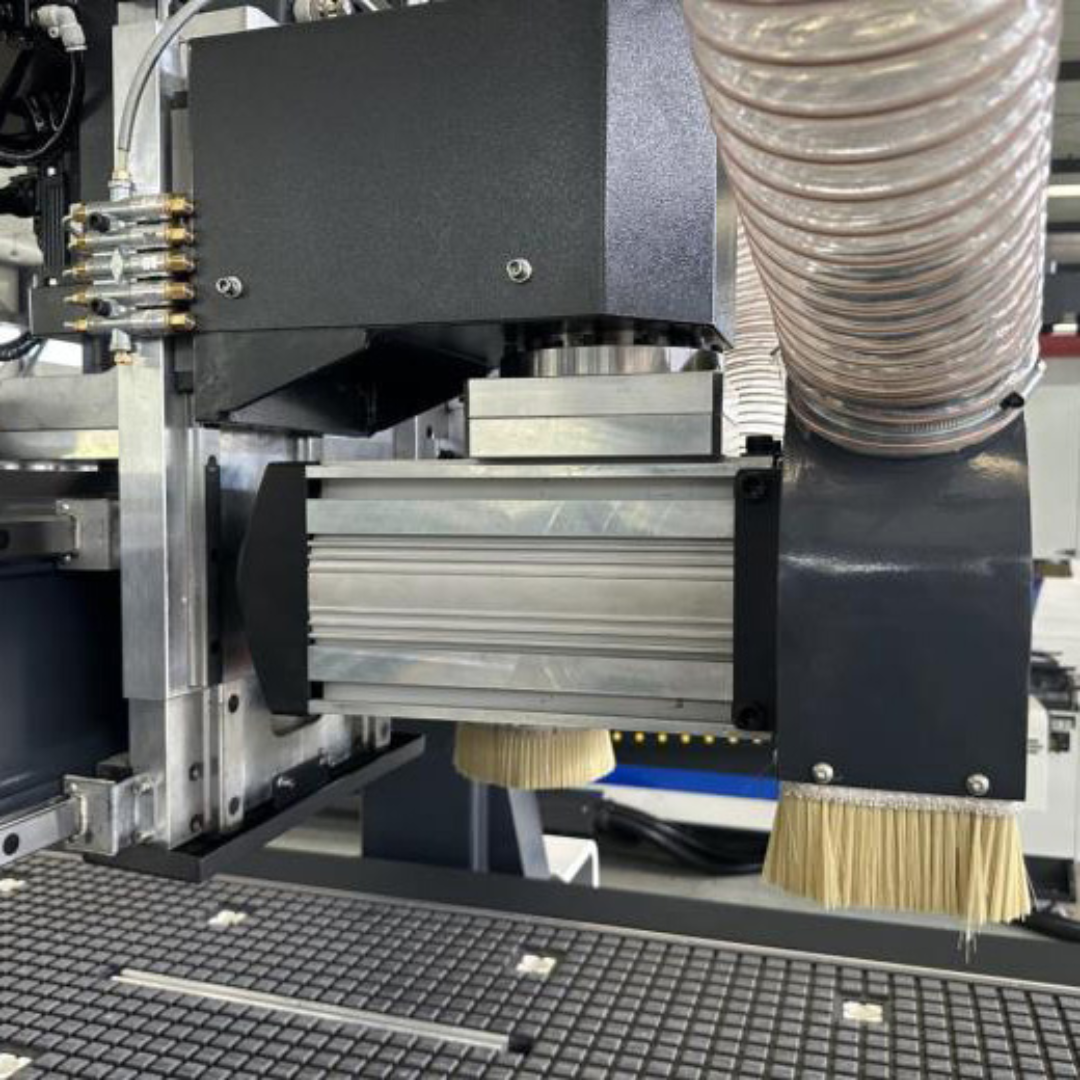

Castaly Rapid-12R-SU CNC Router Performance & Construction
- Integrated servo-controlled saw blade rotates from 0° to 135° for versatile cutting and grooving applications.
- 12-position rear linear automatic tool changer increases productivity and reduces downtime.
- High-performance AC servo system ensures precise, high-speed motion across all axes.
- Advanced Syntec CNC control system supports G-code programming and efficient machine operation.
- Rigid stress-relieved steel frame provides long-term stability and consistent machining accuracy.
- High-speed spindle with air cooling delivers reliable performance for continuous production.
- Precision rack & pinion drive system enables fast and accurate movement on X and Y axes.
- Ball screw Z-axis assembly ensures superior vertical positioning accuracy.
- Linear guideways with recirculating bearings provide smooth travel and maximum precision.
- 6-zone vacuum table ensures strong material hold-down for nesting operations.
- Automatic spindle braking system reduces cycle time and improves efficiency.
Castaly Rapid-12R-SU CNC Router Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.004" (0.10 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Engineered to maintain consistent precision across routing and sawing operations for demanding industrial applications.
Why Choose the Castaly Rapid-12R-SU CNC Router
- Combines routing and sawing in one versatile machine.
- 12-tool automatic changer maximizes production efficiency.
- High-speed servo-driven system ensures precision and performance.
- Industrial-grade construction for long-term durability.
- Flexible configurations for a wide range of applications.
The Castaly Rapid-12R-SU CNC Router is a powerful hybrid CNC solution designed for manufacturers who require both precision routing and advanced sawing capabilities in a single, efficient system.
