Castaly Rapid-12LN-RL CNC Router (With Press Roller & Enclosure Cover) Applications
- Nested-based manufacturing for cabinet and furniture production
- Processing of small parts with enhanced hold-down stability
- Woodworking applications including doors, panels, and decorative components
- Sign making and acrylic machining for advertising industries
- Machining of plastics, composites, and non-ferrous materials
Ideal for high-production environments where small part stability, dust control, and automation are critical.
Castaly Rapid-12LN-RL CNC Router (With Press Roller & Enclosure Cover) Specifications
| Models | RAPID-408LN RL / RAPID-510LN RL / RAPID-612LN RL |
|---|---|
| Control System | SYNTEC CNC Control |
| Tool Changer | 12 Position Linear ATC (Under Gantry) |
| Spindle | 12.8 HP (9.6 kW) Air-Cooled, 6,000–24,000 RPM |
| Optional Drill Bank | 9 (5 + 5) HSD Drill Bank (Optional) |
| Machine Frame | Heavy Duty Welded Steel with Quenching Process |
| Drive System | AC Servo Motors & Drives |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France) |
| Limit Switch | Omron (Japan) |
| Cabling | Siemens Industrial Cable |
| Lubrication | Automatic Lubrication System with Filter |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 52 AMP |
| Working Sizes | Multiple Configurations (408 / 510 / 612) |
| Net Weight | 3,970 – 4,800 lbs (Model Dependent) |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly Rapid-12LN-RL CNC Router (With Press Roller & Enclosure Cover) Performance & Construction

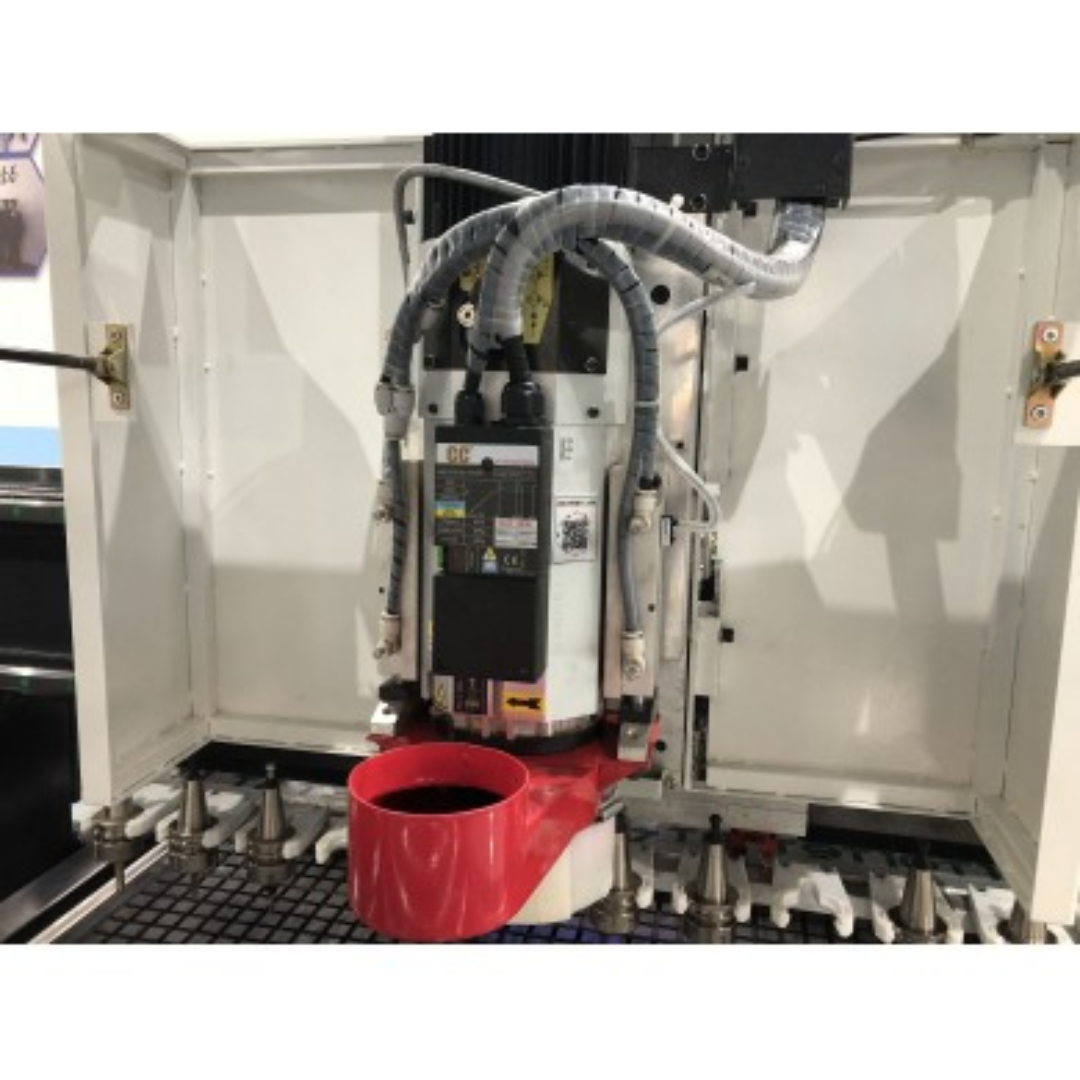

- 12-position linear automatic tool changer increases productivity with fast and efficient tool changes.

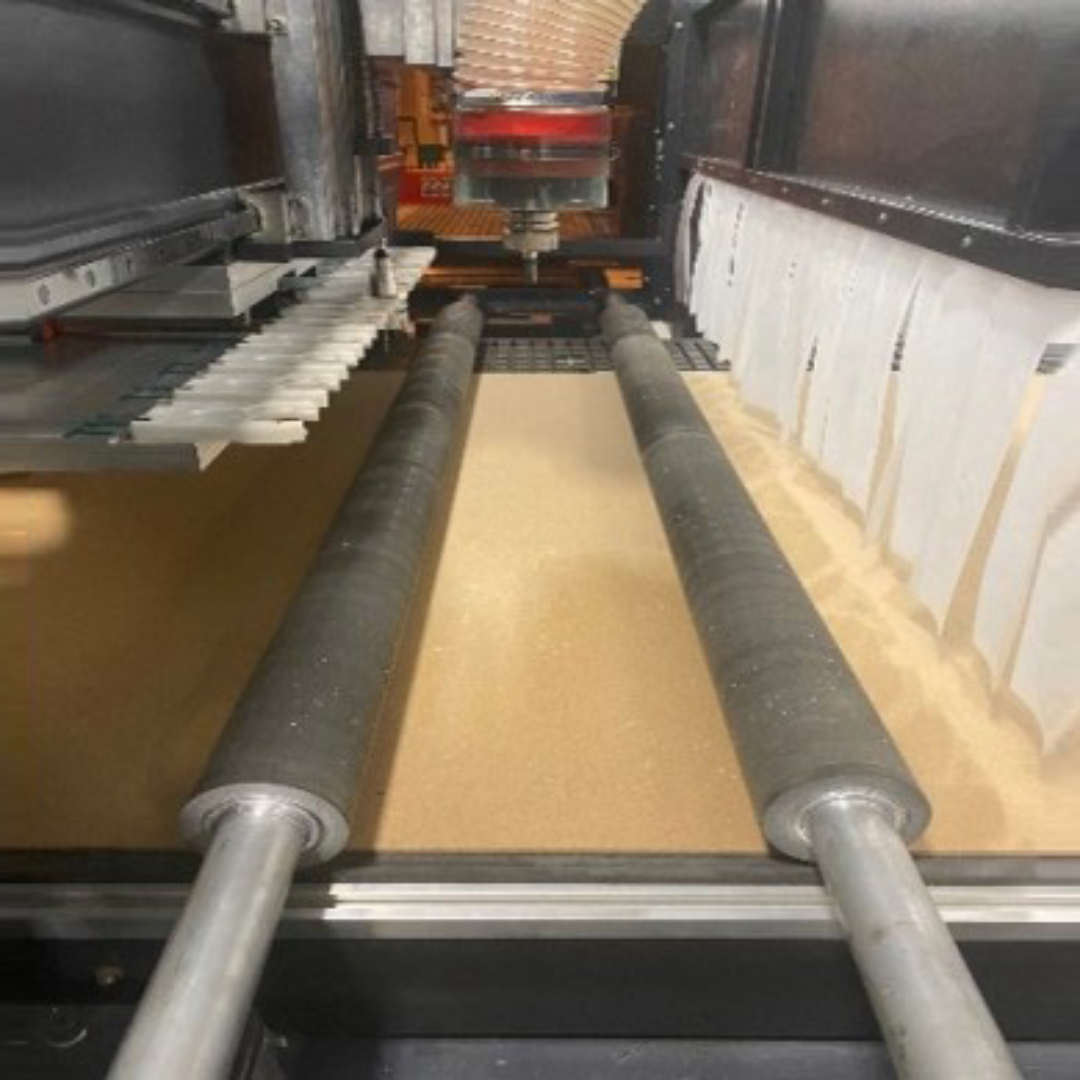

- Pneumatic press roller system ensures small parts remain secured on the vacuum table during machining.
- Integrated vacuum cleaning system quickly removes dust and debris from the table surface.
- Full enclosure cover enhances operator safety and improves dust containment.
- High-performance AC servo drive system provides smooth, accurate, and high-torque motion control.
- Advanced Syntec CNC controller supports G-code programming and onboard file management.
- Rigid stress-relieved steel frame ensures long-term stability and machining precision.
- High-speed spindle with CP4 bearings delivers reliable performance and extended service life.
- Precision rack & pinion drive system ensures fast and accurate movement on X and Y axes.
- Ball screw Z-axis assembly guarantees vertical accuracy and durability.
- 6-zone vacuum table provides strong material hold-down for nesting operations.
- Automatic spindle braking system reduces cycle times and improves efficiency.
Castaly Rapid-12LN-RL CNC Router (With Press Roller & Enclosure Cover) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Built to meet strict industrial tolerances, ensuring consistent, repeatable precision across all machining operations.
Why Choose the Castaly Rapid-12LN-RL CNC Router (With Press Roller & Enclosure Cover)
- Press roller system improves small part stability and machining quality.
- 12-tool automatic changer maximizes efficiency and reduces downtime.
- Enclosed design enhances safety and dust control.
- High-speed, high-precision performance for demanding applications.
- Industrial-grade construction for long-term reliability.
The Castaly Rapid-12LN-RL CNC Router (With Press Roller & Enclosure Cover) is a complete CNC solution for manufacturers seeking precision, automation, and superior handling of small and complex parts.
