Castaly Rapid-12LN CNC Router (12 Tools ATC Under Gantry) Applications
- Woodworking production including cabinet doors, furniture panels, and decorative components
- Nested-based manufacturing for cabinetry, closets, and modular furniture systems
- Advertising and signage production including acrylic cutting and engraving
- Die and mold machining for aluminum, plastics, PVC, and composite materials
- 3D contouring and complex machining operations across multiple materials
Designed for manufacturers requiring fast tool changes, high-speed routing, and precision machining in a compact footprint.
Castaly Rapid-12LN CNC Router (12 Tools ATC Under Gantry) Specifications
| Models | RAPID-408LN / RAPID-510LN / RAPID-612LN / RAPID-714LN |
|---|---|
| Control System | SYNTEC CNC Control |
| Tool Changer | 12 Position Linear ATC (Under Gantry) |
| Spindle | 12.8 HP (9.6 kW) Air-Cooled, 6,000–24,000 RPM |
| Optional Drill Bank | 9 (5 + 5) HSD Drill Bank (Optional) |
| Machine Frame | Heavy Duty Welded Steel with Quenching Process |
| Drive System | AC Servo Motors & Drives |
| X / Y Drive | Helical Rack & Pinion (TBI / HIWIN) |
| Z Axis | Precision Ball Screw (TBI / HIWIN) |
| Linear Guides | HIWIN Square Rails (X, Y, Z) |
| Inverter | 11 kW |
| Electrical Components | Schneider (France) |
| Limit Switch | Omron (Japan) |
| Cabling | Siemens Industrial Cable |
| Lubrication | Automatic Lubrication System with Filter |
| Max Travel Speed | 2,350 IPM |
| Max Working Speed | 1,100 IPM |
| Power Requirement | 3 Phase, 220V, 52 AMP |
| Working Sizes | Multiple Configurations (408 / 510 / 612 / 714) |
| Net Weight | 3,970 – 5,120 lbs (Model Dependent) |
| File Formats | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.uoo |
Castaly Rapid-12LN CNC Router (12 Tools ATC Under Gantry) Performance & Construction

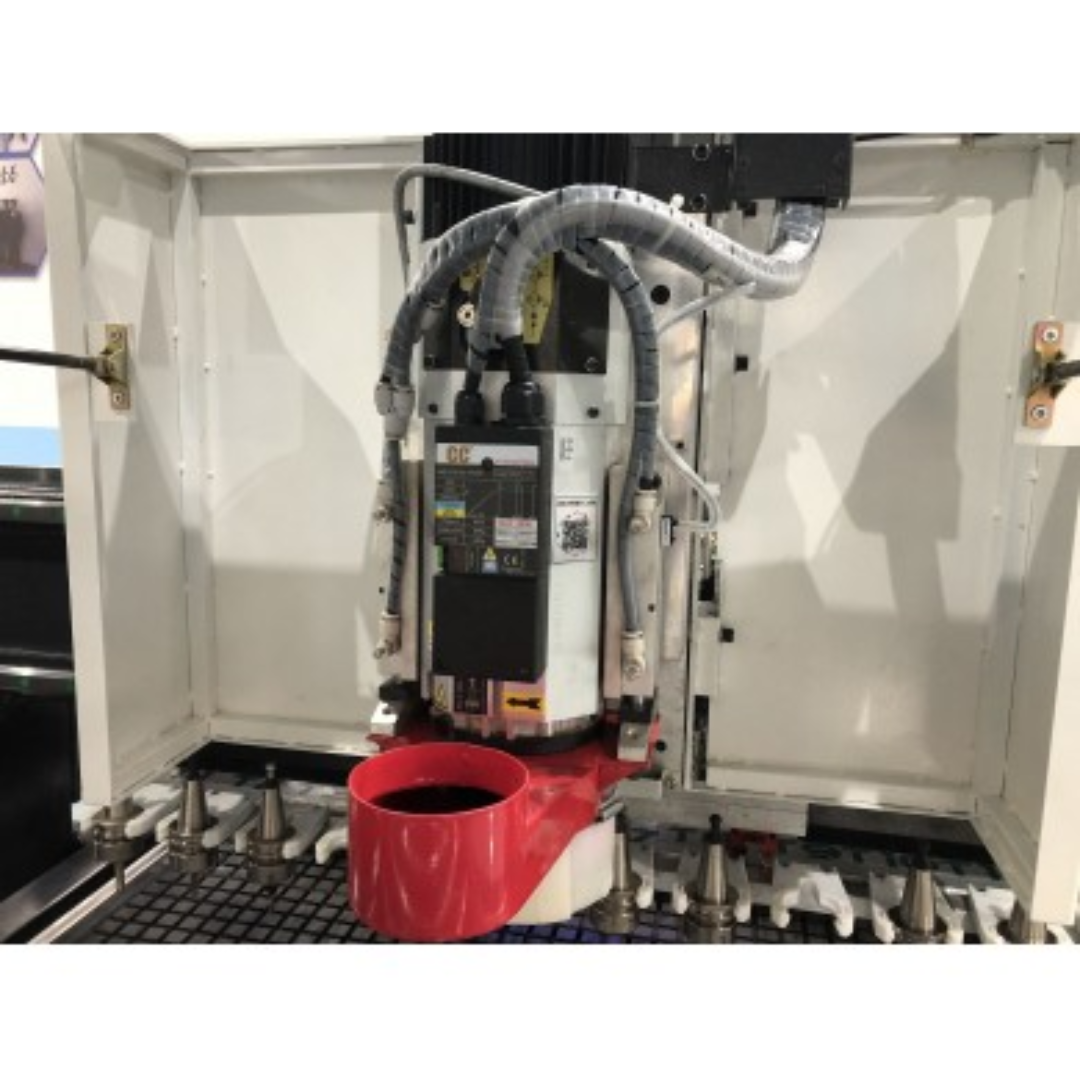

- 12-position linear automatic tool changer mounted under the gantry for rapid tool changes and increased efficiency.
- High-performance AC servo system delivers smooth motion, high torque, and precise positioning across all axes.
- Advanced Syntec CNC controller supports G-code programming with conversational interface and onboard storage.
- Rigid stress-relieved steel frame ensures long-term accuracy, durability, and vibration resistance.
- High-speed HSD spindle with CP4 bearings and air cooling for reliable, continuous operation.
- Precision rack & pinion drive system on X and Y axes for high-speed performance and accuracy.
- Ball screw Z-axis assembly provides superior vertical precision and long-term reliability.
- Linear guideways with recirculating bearings ensure smooth travel and maximum machining precision.

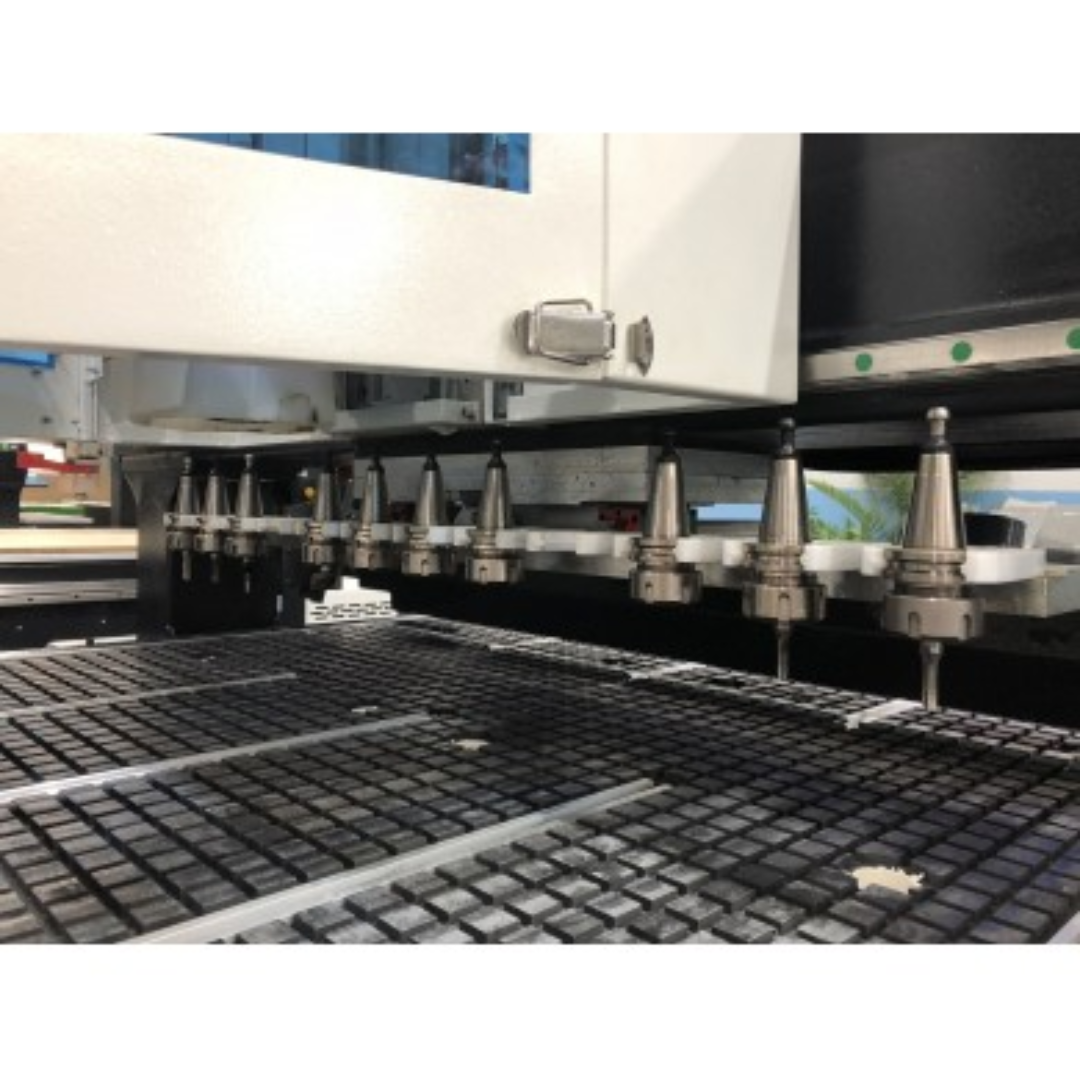

- 6-zone vacuum table design delivers strong material hold-down for nesting and panel processing.
- Automatic spindle braking system reduces tool change time and improves productivity.
- CAD/CAM compatibility enables DXF import, editing, and seamless G-code generation.
- Moving gantry design optimizes floor space while maintaining high production capability.
Castaly Rapid-12LN CNC Router (12 Tools ATC Under Gantry) Accuracy & Inspection Standards
- X, Y, Z axis parallel vertical accuracy: 0.001" (0.03 mm)
- Machine repositioning accuracy: 0.001" (0.02 mm)
- Working accuracy: 0.002" (0.05 mm)
- Grating ruler travel accuracy: 0.002" (0.05 mm)
Manufactured to meet strict industrial tolerances, ensuring consistent high-precision machining performance.
Why Choose the Castaly Rapid-12LN CNC Router (12 Tools ATC Under Gantry)
- 12-tool automatic changer increases production speed and reduces downtime.
- High-speed machining with precision servo-driven system.
- Industrial-grade construction for long-term reliability.
- Flexible configuration options for various production sizes.
- Ideal for woodworking, plastics, and light metal machining applications.
The Castaly Rapid-12LN CNC Router (12 Tools ATC Under Gantry) is a powerful, efficient, and precision-engineered CNC solution designed to maximize productivity in modern manufacturing environments.
