Applications
- Circular saw ripping operations
- Shaper and spindle molder feeding
- Router table production work
- Planer and sander material control
- Straight and curve feeding applications
Designed to improve safety, reduce operator fatigue, and deliver consistent cutting accuracy in production environments.
Specifications
| Model | ST-483FD |
|---|---|
| Feeding Speed | 6 ~ 102 FPM (8 Speeds) |
| Roller Size | 4-3/4" × 2-3/8" |
| Motor | 1 HP, 1 Phase, 230V |
| Roller Suspension | 1" |
| Net Weight | 147 LBS |
| Gross Weight | 153 LBS |
Performance & Construction
- Powerful 1 HP motor provides strong and consistent feeding pressure.
- 8 feeding speeds (6–102 FPM) allow flexibility for various materials and cutting requirements.
- Four heavy-duty feed rollers ensure steady pressure and smooth feeding for accurate results.
- Individual roller suspension holds workpieces securely at varying thickness levels.
- Removable middle roller option allows increased spacing for curve driving applications.
- Forward & Reverse feeding switch for operational versatility.
- Two interchangeable gear sets provide multiple feeding speed stages.

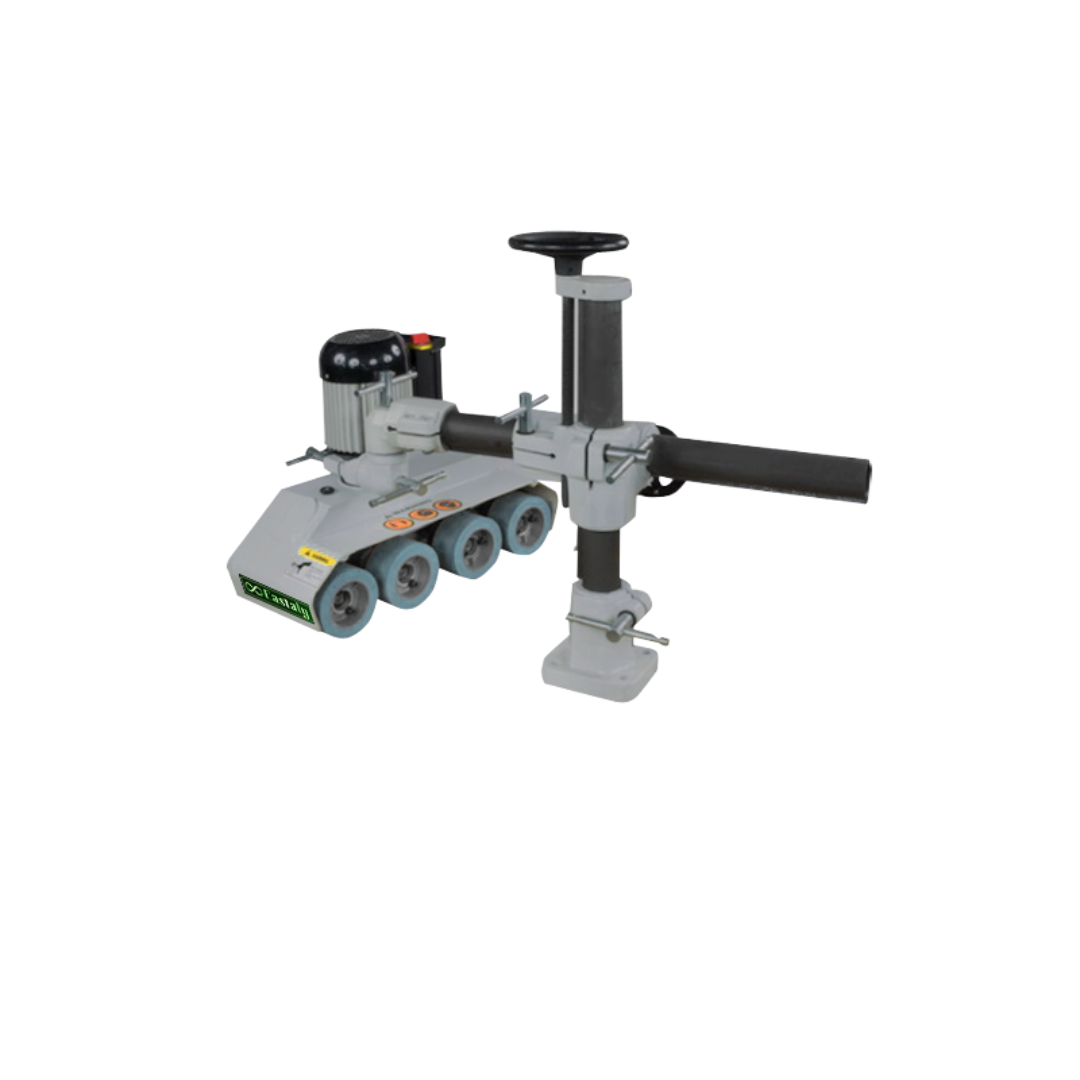

- Universal support stand with cast iron base, heavy-duty bracket, thick refaced column, and aluminum hand wheels for vertical and horizontal positioning.
- Adjustable for side feeding when used on spindle molders to accommodate various processing conditions.
- Quick and simple assembly, dismantling, and adjustments for easy installation across multiple machines.
Optional Accessories
- ST-30FRL – Extra Roller for ST-30: $25.00 Each
- ST-30BT – Extra Base for ST-30: $46.00 Each
Why Choose the Castaly ST-483FD Power Feeder?
- Improves safety by eliminating manual feeding.
- Ensures consistent feed pressure for superior finish quality.
- 8-speed flexibility for various materials and cutting depths.
- Heavy-duty construction for long-term industrial use.
- Functions as a reliable “third hand” in demanding shop environments.
The Castaly ST-483FD Power Feeder delivers precision control, improved safety, and production-level feeding performance for serious woodworking professionals.
