Applications
- Circular saw ripping operations
- Shaper and spindle molder feeding
- Router table and edge profiling
- Planer and surface preparation work
- Straight and curve feeding applications
Designed to increase operator safety while delivering consistent feeding performance and improved finish quality.
Specifications
| Model | ST-303FD |
|---|---|
| Feeding Speeds | 3, 26, 36, 72 FPM (4 Speeds) |
| Roller Size | 4-3/4" × 2-3/8" |
| Motor | 3 Phase, 230V |
| Net Weight | 34 LBS |
| Gross Weight | 47 LBS |
Performance & Construction
- Powerful feeding strength ensures smooth, stable material movement.
- Three precision feed rollers provide consistent contact and improved workpiece control.
- Independent roller suspension system maintains even pressure across varying material thicknesses.
- Removable middle roller allows increased spacing for curve driving applications.
- 4 fixed feeding speeds with interchangeable gear sets for flexible operation.
- Forward & Reverse switch for versatile feeding direction.
- Adjustable for side feeding when used on spindle molders to accommodate different processing conditions.

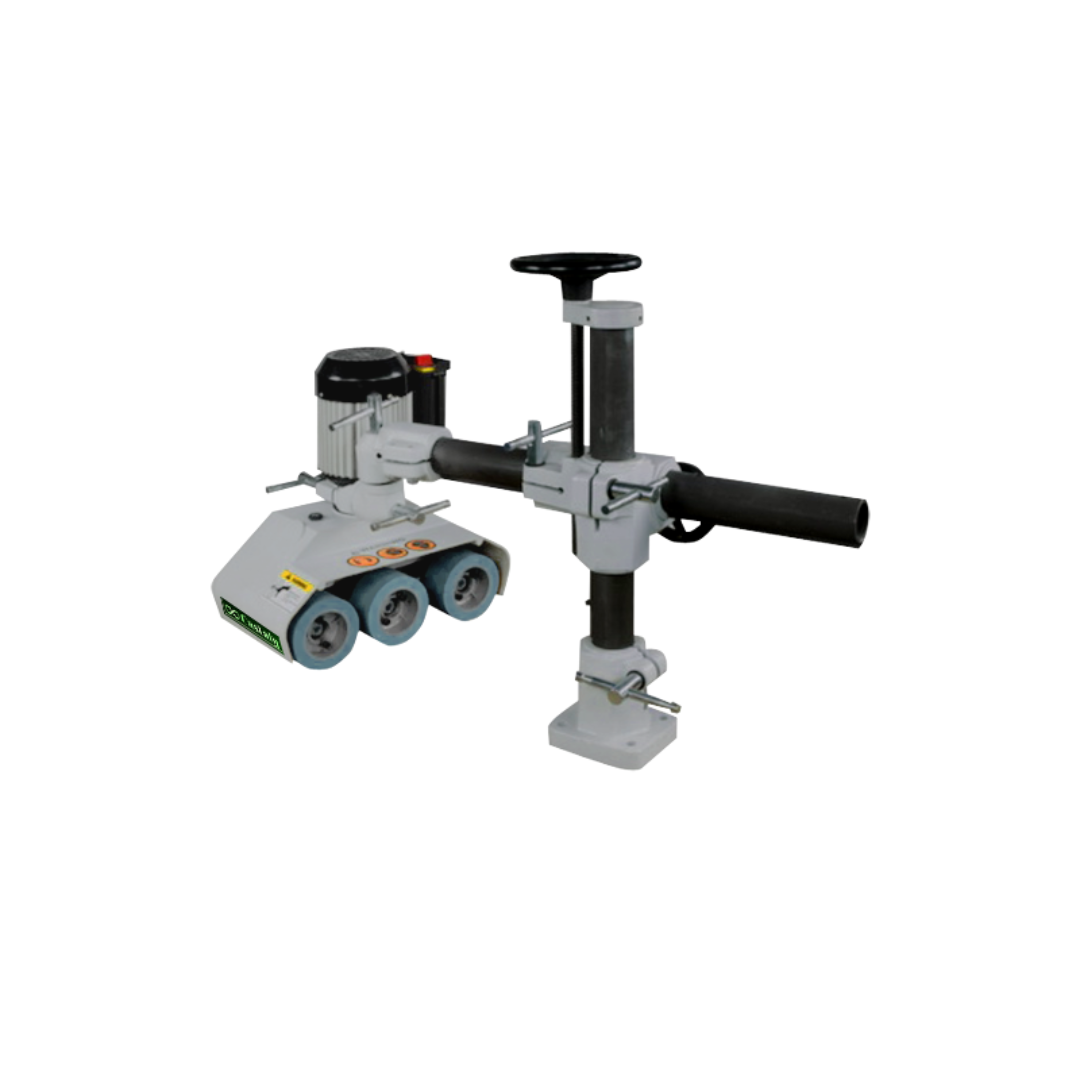

- Universal heavy-duty support stand with cast iron base, reinforced column, and aluminum hand wheels for precise vertical and horizontal positioning.
- Quick and simple assembly, dismantling, and adjustments for multi-machine compatibility.
Optional Accessories
- ST-30FRL – Extra Roller for ST-30: $25.00 Each
- ST-30BT – Extra Base for ST-30: $46.00 Each
Why Choose the Castaly ST-303FD Power Feeder?
- Improves safety by eliminating manual feeding.
- Provides stable and accurate feed pressure.
- 3-phase motor for consistent industrial performance.
- Compact, adjustable design for flexible installation.
- Built for durability and long-term shop reliability.
The Castaly ST-303FD Power Feeder delivers reliable 3-phase performance, controlled feeding precision, and improved operator safety for professional woodworking environments.
