Applications
- Circular saw ripping and cutting operations
- Shaper and spindle molder feeding
- Router table profiling
- Planer and sander material control
- Straight and curve feeding applications
Eliminates manual feeding, increases operator safety, and ensures consistent cutting performance.
Specifications
| Model | ST-301FD |
|---|---|
| Feeding Speeds | 3, 26, 36, 72 Ft/Min (4 Speeds) |
| Roller Size (D × W) | 4-3/4" × 2-3/8" |
| Motor | 1 Phase, 230V |
| Net Weight | 34 LBS |
| Gross Weight | 47 LBS |
Performance & Construction
- Powerful feeding strength for stable, vibration-free material control.
- Three precision feed rollers ensure smooth and even pressure across the workpiece.
- Independent roller suspension system accommodates different material thickness levels while maintaining feed pressure.
- Removable middle roller allows wider spacing for curve driving applications.
- Two interchangeable gear sets create four selectable feeding speeds for various cutting conditions.
- Forward & Reverse feeding switch for operational flexibility.
- Adjustable side-feed positioning for spindle molder applications.

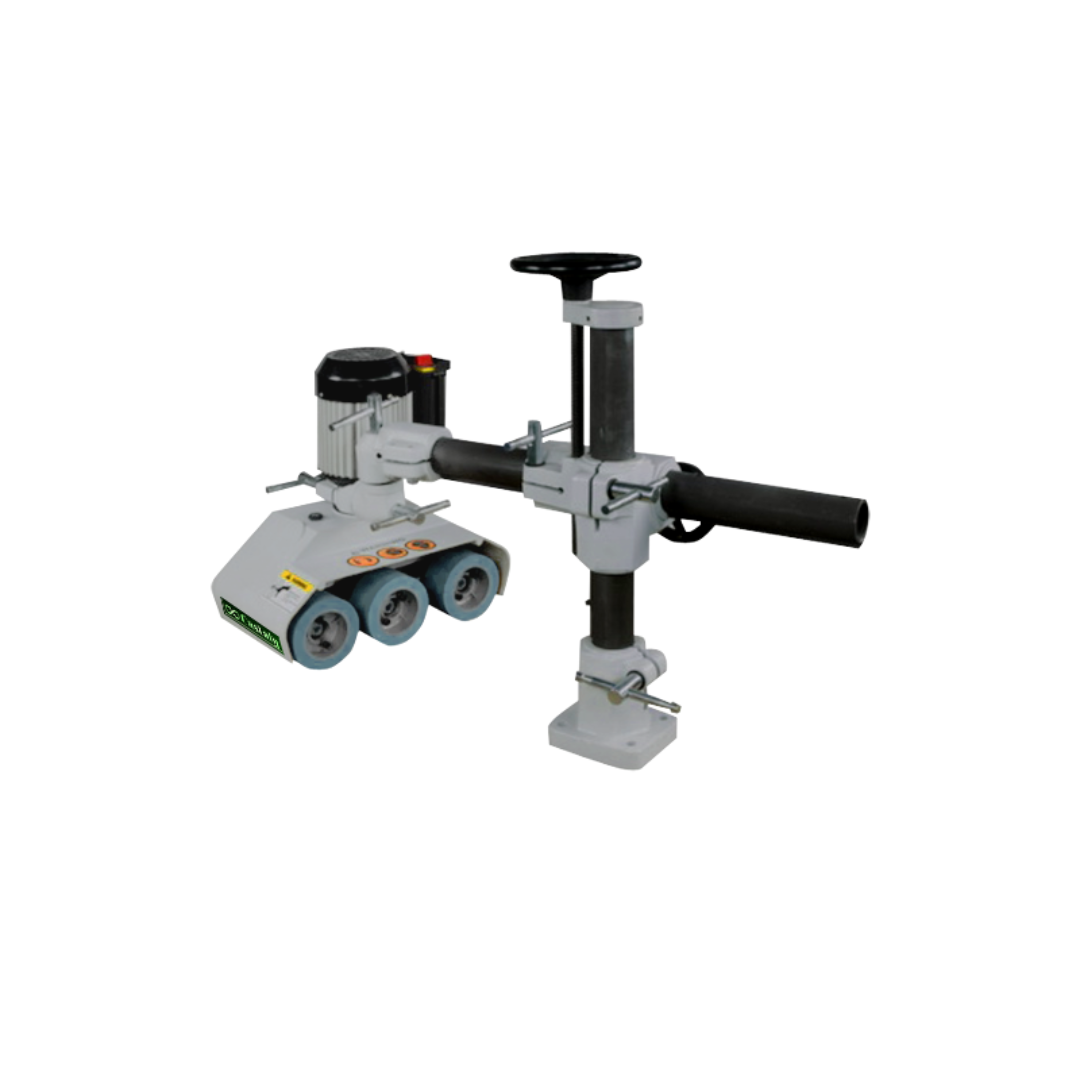

- Universal heavy-duty support stand featuring a cast iron base, reinforced main bracket, thick refaced column, and aluminum hand wheels for precise vertical and horizontal adjustments.
- Quick and simple assembly, dismantling, and repositioning for multi-machine compatibility.
Optional Accessories
- ST-30FRL – Extra Roller for ST-30: $25.00 Each
- ST-30BT – Extra Base for ST-30: $46.00 Each
Why Choose the Castaly ST-301FD Power Feeder?
- Improves safety by eliminating hand feeding.
- Delivers consistent feed rates for superior finish quality.
- Compact 1-phase design ideal for small to mid-size shops.
- Durable construction built for long-term shop performance.
- Flexible installation across multiple woodworking machines.
The Castaly ST-301FD Power Feeder provides dependable feeding control, improved operator safety, and professional-grade performance for demanding woodworking applications.
