Applications
- Table saw ripping and straight-line cutting
- Shaper and spindle molder operations
- Router table feeding
- Planer and sander material feeding
- Light-duty production and custom woodworking
Perfect for small to mid-size shops looking for improved feeding control, cleaner finishes, and increased operator safety.
Specifications
| Model | ST-321FD |
|---|---|
| Feeding Speeds (FPM) | 6, 24, 28, 35 |
| Roller Size (D × W) | 3-1/8" × 1-3/16" |
| Motor | 1/4 HP, 1 Phase, 110 V |
| Roller Suspension | 1/2" |
| Net Weight | 68 LBS |
| Gross Weight | 72 LBS |
Performance & Construction Features
- Powerful feeding strength improves consistency and reduces operator fatigue.
- Three feed rollers with individual suspension systems maintain steady pressure across varying material thicknesses.
- Removable center roller allows increased spacing for curve feeding applications.
- Four fixed feed speeds (gear-driven) for matching feed rate to material and cutting conditions.
- Forward and reverse switch for flexible operation.
- Adjustable for side feeding on spindle molders to meet different processing requirements.
- Universal support stand with heavy cast iron base and thick refaced column for maximum rigidity.
- Aluminum hand wheels allow precise vertical and horizontal positioning.
- Quick assembly, dismantling, and adjustment for fast setup changes.
Optional Accessories
- ST-30FRL – Extra Roller for ST-30 Series: $25.00 each
- ST-30BT – Extra Base for ST-30 Series: $46.00 each
Enhance versatility with additional rollers or a secondary base for multi-machine setups.

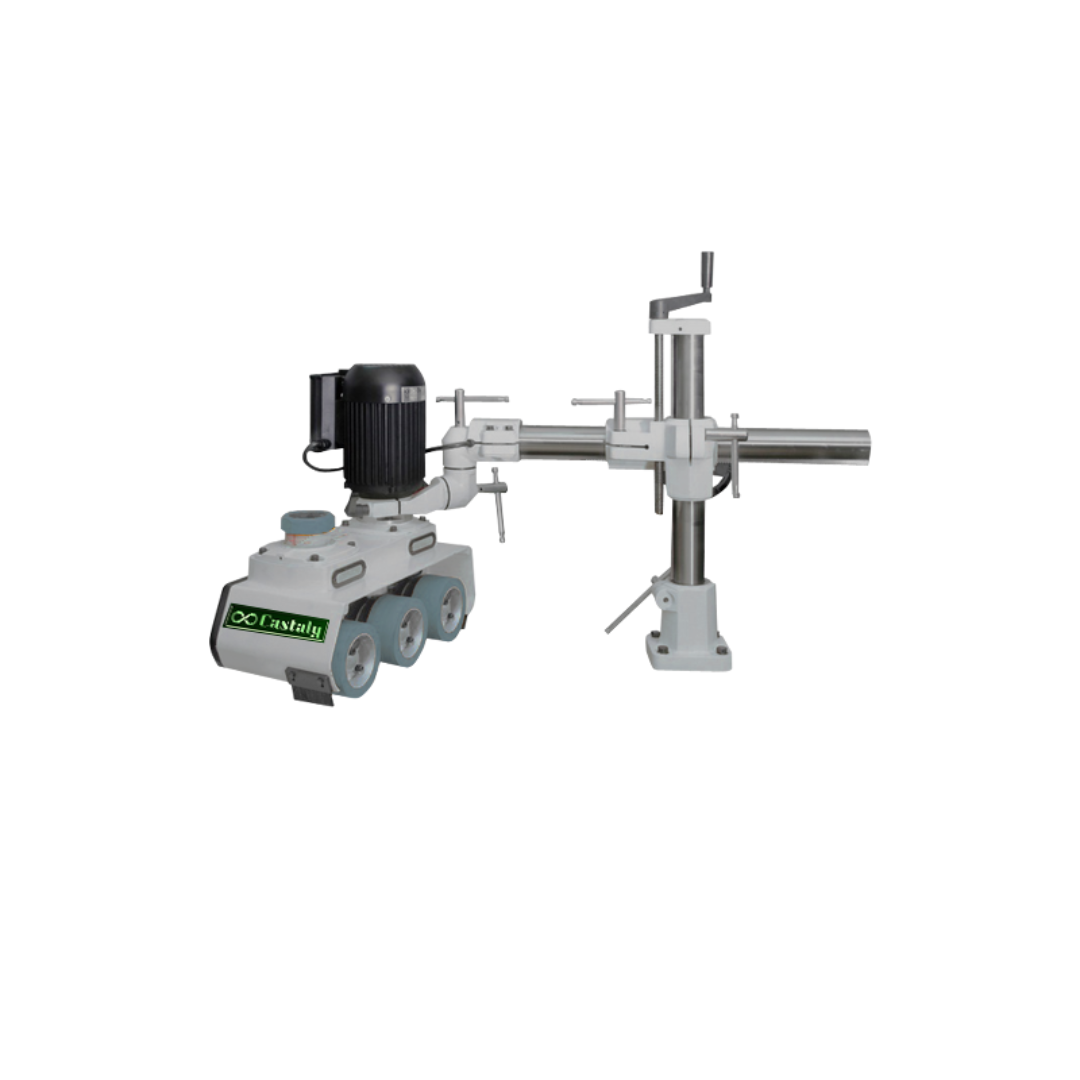

Why Choose the Castaly ST-321FD Power Feeder
- Compact 1/4 HP design ideal for lighter-duty applications.
- Four-speed gear system for controlled, accurate feeding.
- Three precision rollers for smooth and stable material control.
- Improves safety, finish quality, and production efficiency.
- Durable universal stand for long-term reliability.
The Castaly ST-321FD Power Feeder delivers professional feeding performance in a compact, easy-to-adjust design — perfect for shops seeking improved control and cleaner results.
