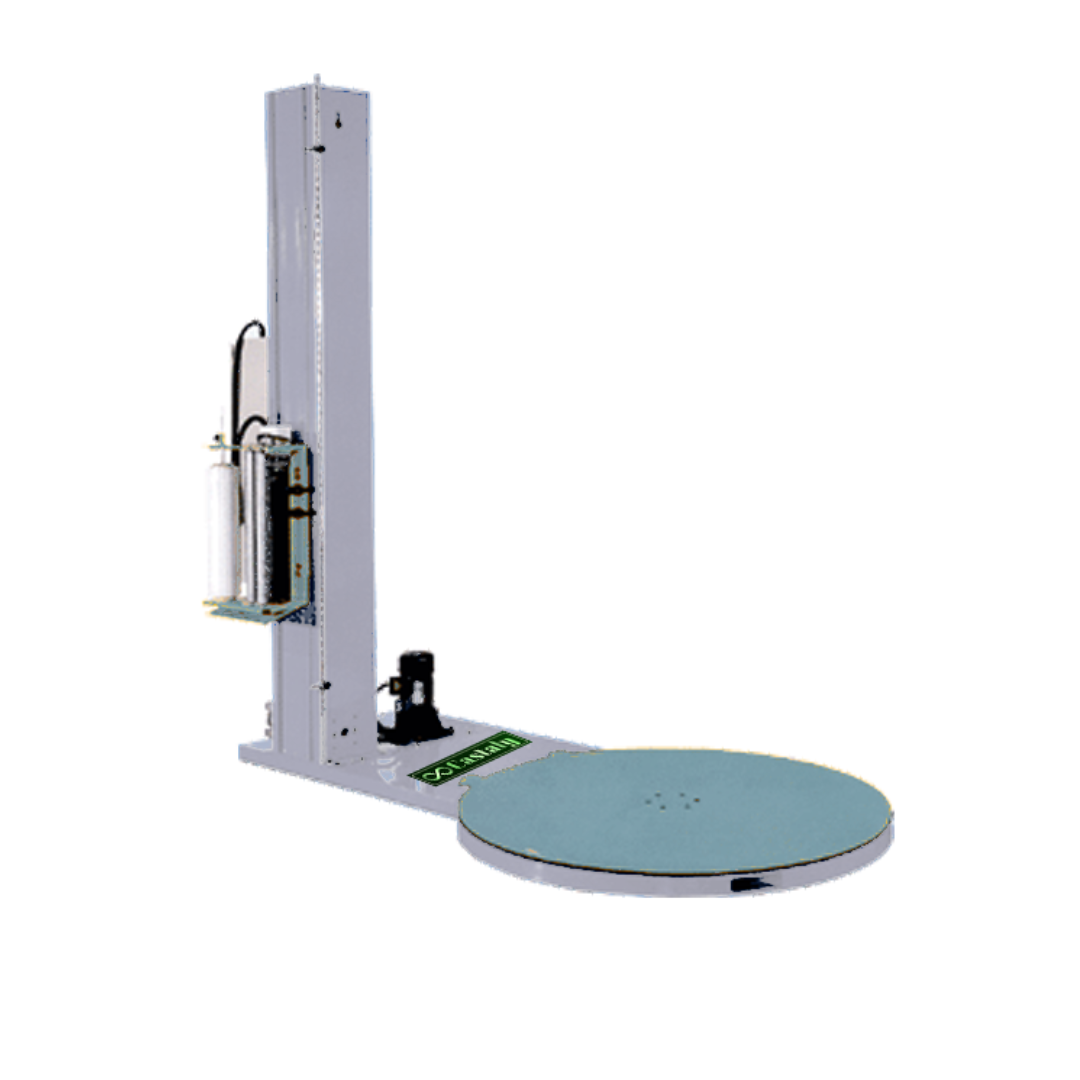

Castaly Pallet Auto Wrapping Machine PK-1521A Applications
- Warehouse pallet stabilization before shipping
- Manufacturing plant end-of-line packaging
- Distribution and logistics centers
- Heavy product pallet wrapping up to 4,400 lbs
Designed for businesses that require reliable, stable, and efficient pallet wrapping with adjustable tension and smooth rotation control.
Castaly Pallet Auto Wrapping Machine PK-1521A Specifications
| Model | PK-1521A |
|---|---|
| Power | 220V or 440V, 1 or 3 Phase |
| Main Motor | 2 HP |
| Wrapping Height | 82.5" |
| Turntable Diameter | 59" |
| Turntable Height | 3.5" |
| Max. Turntable Loading Weight | 4,400 LBS |
| Turntable Speed (Variable) | 5 – 15 RPM |
| Film Carriage Speed (Variable) | 20 FPM |
| PE Stretch Film Internal Diameter | 3" |
| PE Stretch Film External Diameter | 13-3/4" |
| PE Stretch Film Width | 21.5" |
| Film Thickness | 17 – 35 Microns |
| Mechanical Size (L × W × H) | 103" × 59" × 95" |
| Net Weight | 1,570 LBS |
Castaly Pallet Auto Wrapping Machine PK-1521A Performance & Construction
- PLC Control System provides reliable automatic and manual operation modes.
- Inverter-Controlled Motor Speed ensures smooth start, steady rotation, and controlled stopping.
- Adjustable Turntable Speed (5–15 RPM) allows customized wrapping cycles.
- Hinged Drive Film Carriage enables smooth vertical movement with adjustable speed.
- Electromagnetic Brake Device allows unlimited adjustment of stretch film tension.
- Automatic Photoelectric Height Detection reads pallet height for precise wrapping coverage.
- Gentle Start & Stop Rotation enhances product stability and prevents load shifting.
- Two-Dent Turntable Base Design allows easy forklift movement without disassembly.
- Lay-Down Mast Design enables transportation without dismantling, saving time and preventing installation errors.
- Safety Limit Switch installed at the bottom of the film rack for added operational safety.
- Optional Pre-Stretch System available for improved film efficiency and load containment.
- Custom sizes available upon request.
Why Choose the Castaly Pallet Auto Wrapping Machine PK-1521A
- Handles heavy pallets up to 4,400 lbs with stable rotation.
- Adjustable speed controls for both turntable and film carriage.
- Automatic height sensing for efficient and consistent wrapping.
- Durable mechanical structure with inverter-driven smooth performance.
- Flexible voltage options for various industrial environments.
The Castaly Pallet Auto Wrapping Machine PK-1521A delivers dependable pallet stabilization, smooth operation, and industrial-grade durability—making it an essential solution for modern packaging and logistics operations.
