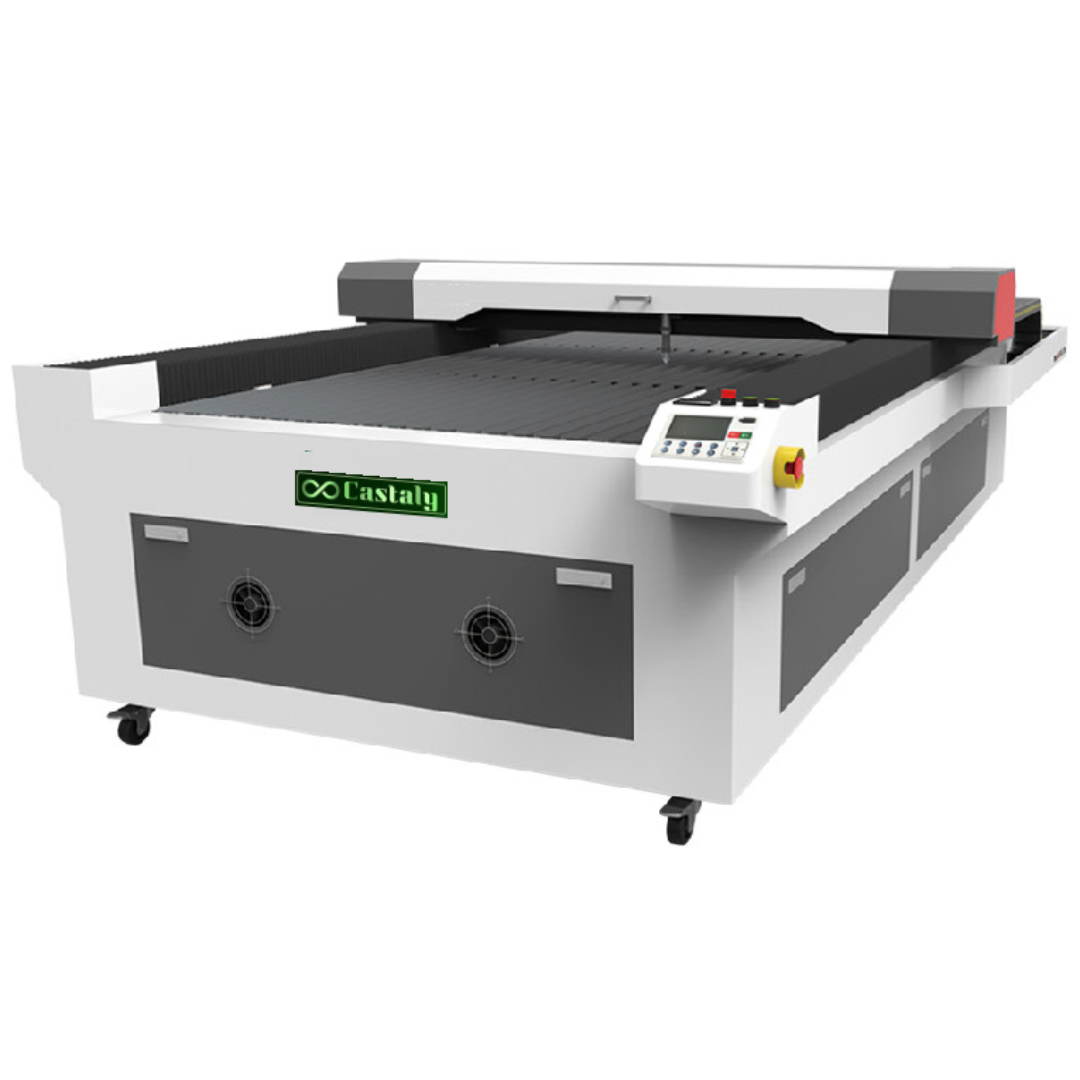

Castaly Engraving / Cutting Laser machine full front view with flatbed working table and control panel

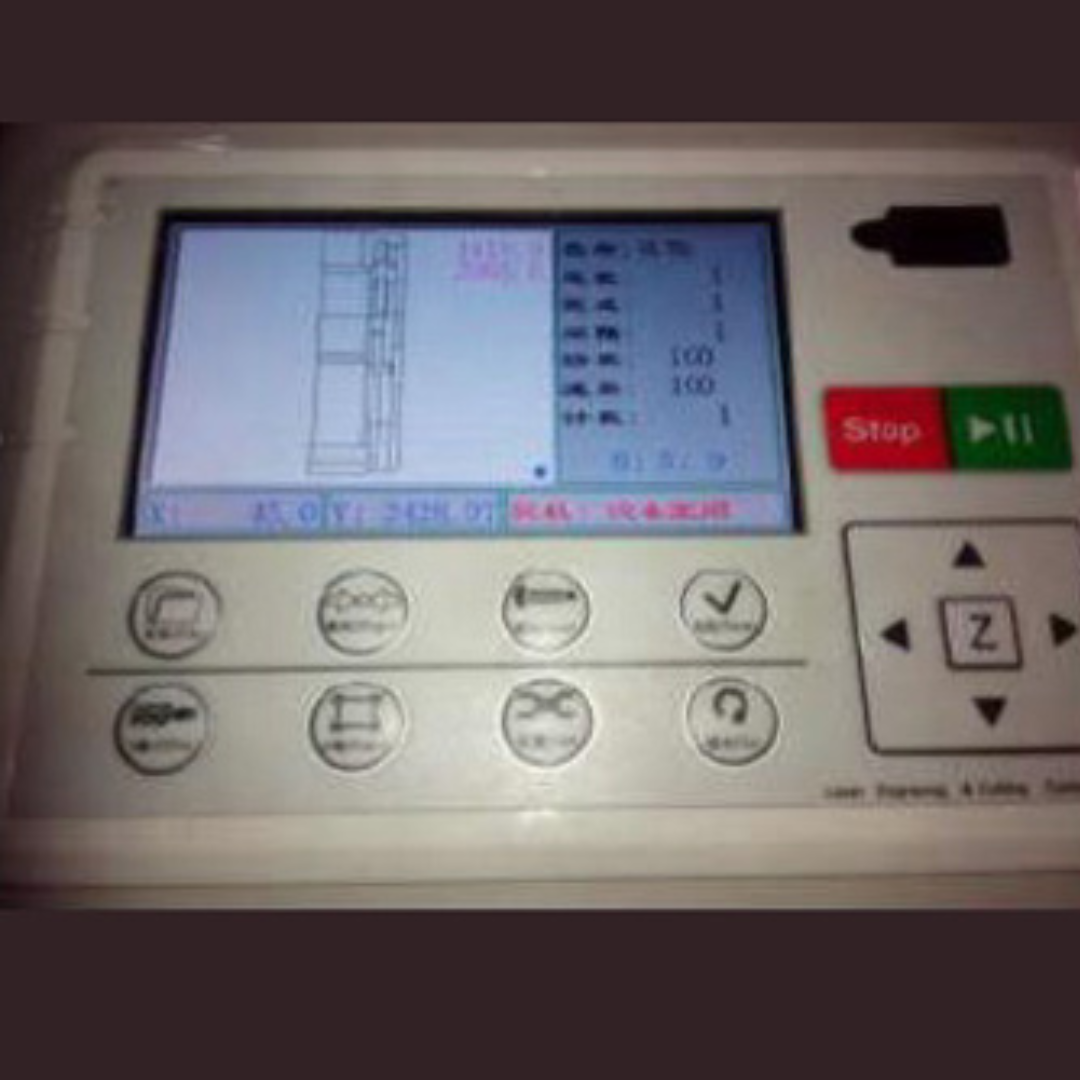

Castaly Engraving / Cutting Laser control panel display showing digital operation interface

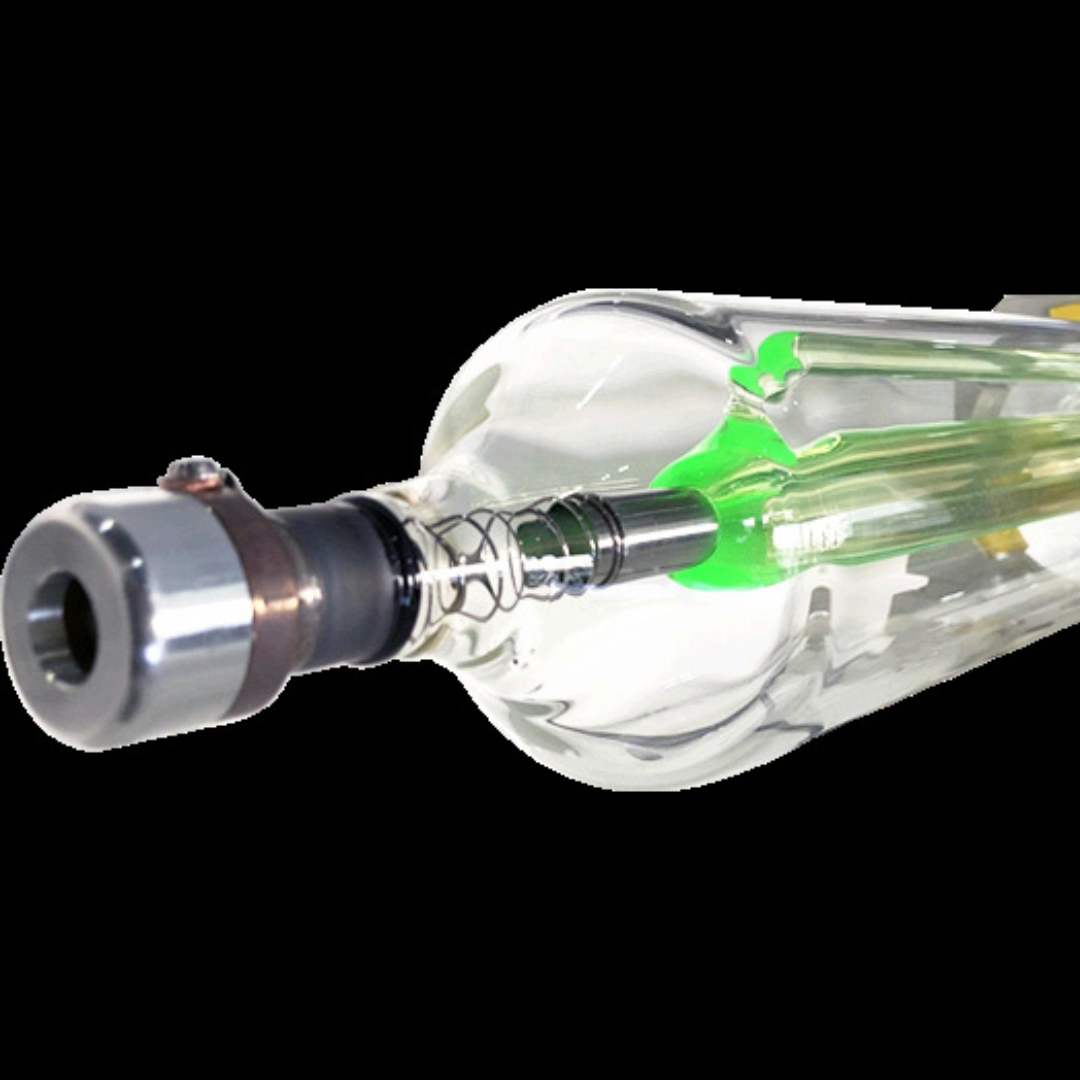

Castaly Engraving / Cutting Laser CO2 laser tube close-up with internal beam detail

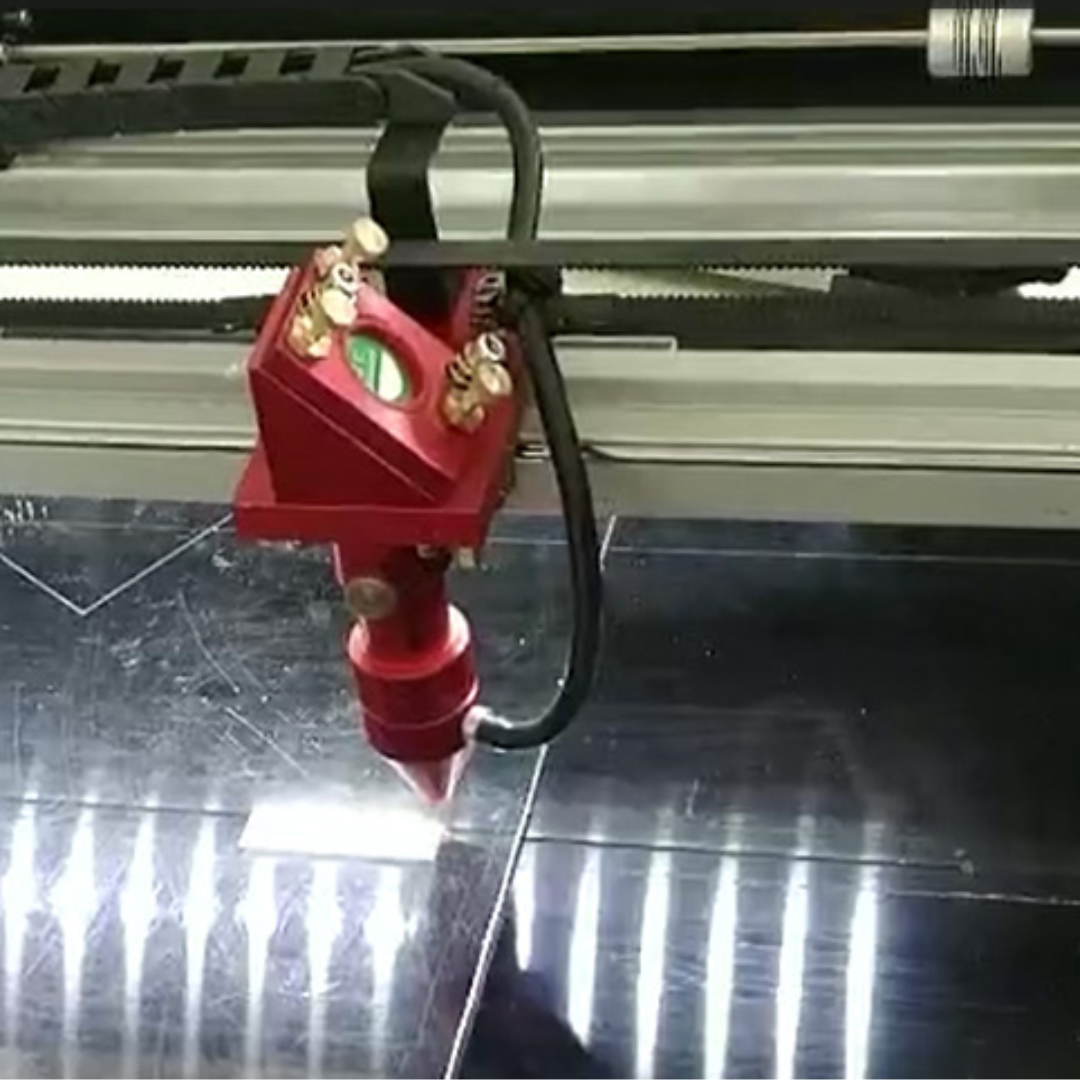

Castaly Engraving / Cutting Laser cutting head engraving material with precision laser beam

Roll over image to zoom in Click on image to zoom

Castaly Engraving / Cutting Laser machine full front view with flatbed working table and control panel

Castaly Engraving / Cutting Laser control panel display showing digital operation interface

Castaly Engraving / Cutting Laser CO2 laser tube close-up with internal beam detail

Castaly Engraving / Cutting Laser cutting head engraving material with precision laser beam

Castaly Engraving / Cutting laser

Iron Line Verified

Authorized Dealer: Castaly

Official Partner

IN STOCK & READY TO SHIP

SKU: Castaly Engraving / Cutting laser

Quick Specs

Power & Laser: 220V (1000W or 1500W max) • 60W or 150W sealed CO₂ laser tube
Performance: 0–2360 ipm or 0–1020 ipm cutting speed • 0.002" or 0.004" reposition accuracy • ±0.01 mm engraving accuracy
Capacity & Weight: 35.5" × 23.6", 55" × 35.5", or 51.2" × 98.4" max working sizes • 452 lbs, 706 lbs, or 2090 lbs machine weight
Hardware & Features: DSP-TMS320 controller • K9 reflect lens & ZNSE focus lens • Auto focus • Red point positioning • Water cooling system

Price:

$15,389.00

Quantity:

Equipment financing available. Up to 60 months Terms. Learn more

We Cover Sales Tax Excluding (Illinois)

Share this product

Section 179
Tax Savings

Save up to $3,231.69 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Flexible Financing

Get Upto 60 Months Financing

CO2 Laser Engraving • Precision Cutting • Multi-Material Capability

Castaly Engraving / Cutting Laser

The Castaly Engraving / Cutting Laser (Models CLC-3624, CLC-5536, CLC-5198) is a high-precision CO₂ laser system designed for engraving and cutting a wide range of materials. Built with a DSP control system, sealed CO₂ laser tube, and advanced optical components, this machine delivers fast cutting speeds, strong accuracy, and reliable performance across multiple industries.

Castaly Engraving / Cutting Laser Applications

The Castaly Engraving / Cutting Laser supports a broad range of materials and applications including but not limited to:

Wood and MDF
Leather and cloth
Marble and glass
Paper and rubber
Acrylic and ABS plastic
Sign making, packaging, crafts, furniture components and more

Accuracy up to ±0.01 mm ensures detailed engraving and clean, precise cutting results.

Castaly Engraving / Cutting Laser Key Features

Sealed CO₂ laser tube with stable cutting performance.
Advanced DSP-TMS320 controller for high speed and interference resistance.
Unique optical structure for improved beam stability and easy adjustment.
K9 reflect lens and ZNSE focus lens for strong reflectivity and cutting efficiency.
Red point positioning light (standard).
Auto focus (standard).
Water cooling & protection system for safe operation.
LCD screen with USB interface for easy data input.

Castaly Engraving / Cutting Laser Software Compatibility

Compatible with CorelDraw, AutoCAD, Photoshop.
Supports file formats: BMP, PLT, DST, DXF, AI, G-code.
DSP control system with high-speed PCI line processing.

Castaly Engraving / Cutting Laser Model Specifications

Specification	CLC-3624	CLC-5536	CLC-5198
Laser Power	60 W	150 W	150 W
Max Working Size	35.5" × 23.6"	55" × 35.5"	51.2" × 98.4"
Cutting Speed	0–2360 ipm	0–1020 ipm	0–1020 ipm
Reposition Accuracy	0.002"	0.002"	0.004"
Machine Weight	452 lbs	706 lbs	2090 lbs
Power Requirement	220V Max 1000W	220V Max 1500W	220V Max 1500W
Cooling System	Water	Standard Coolant	Standard Coolant

Castaly Engraving / Cutting Laser Optional Equipment

Rotary Axis – $659.00
Motorized Table Up & Down – $690.00
Coolant System – $1,290.00

General Information

Models: CLC-3624 / CLC-5536 / CLC-5198
FOB Los Angeles, CA (USA)
Warranty: 1 year
Delivery Time: xx days after deposit
Training, installation, tooling & rigging optional
Customer responsible for local regulations and utilities connection

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On Most Items In The Contiguous United States only
