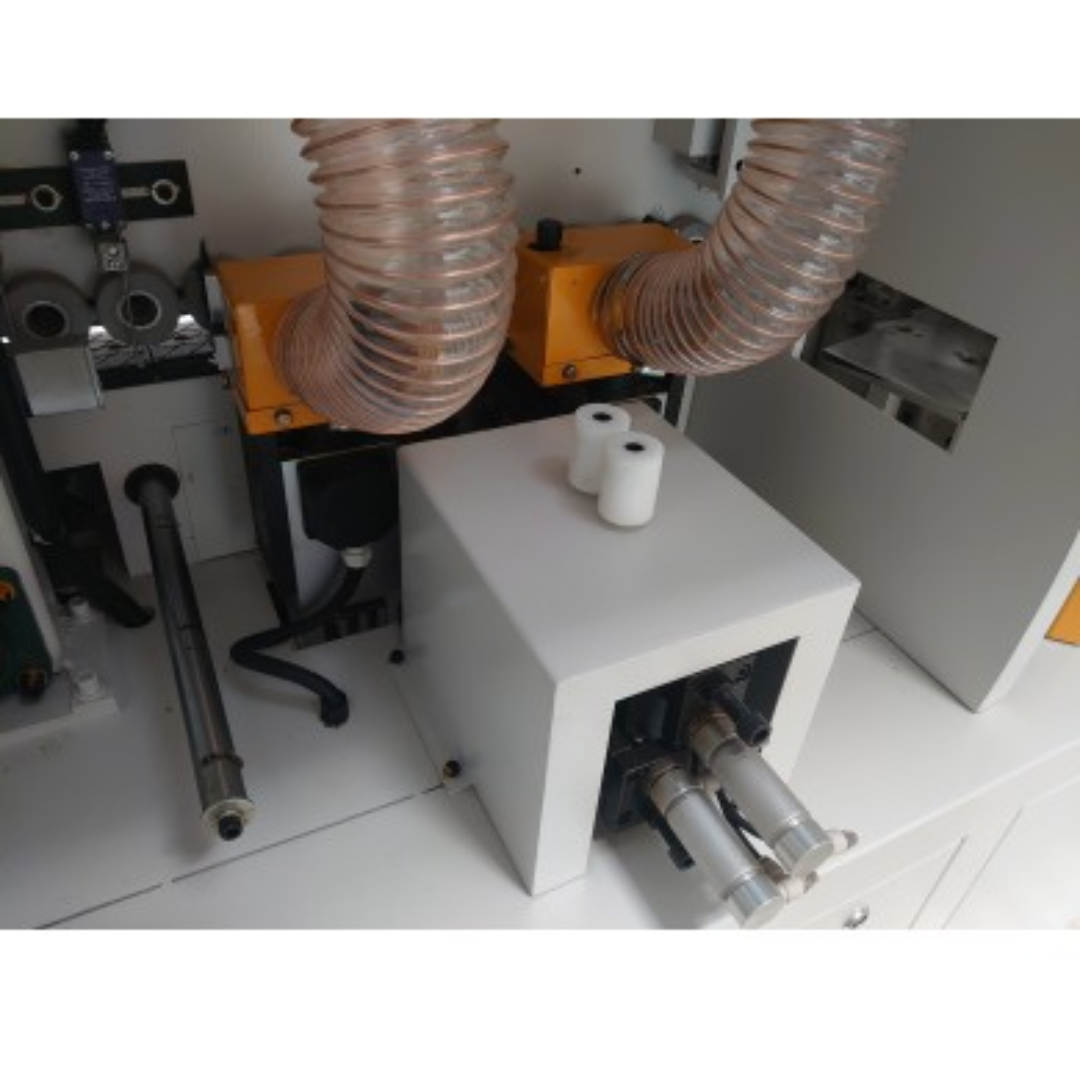

Castaly Edge Bander EB-M7PM edge polishing and dust extraction system detail with dual motors

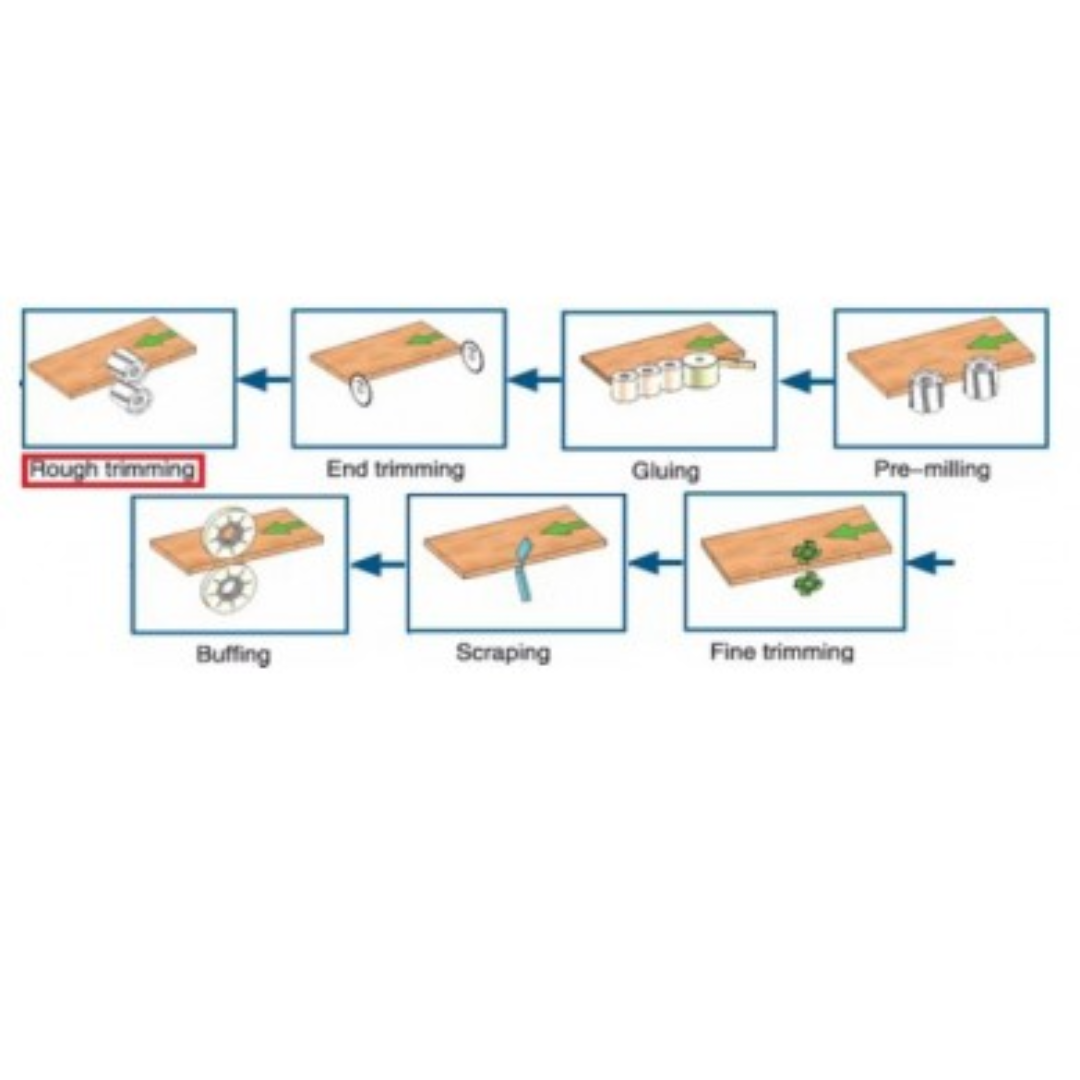

: Castaly Edge Bander EB-M7PM edge banding process diagram showing pre-mill, gluing, trimming, scraping and polishing sequence

Roll over image to zoom in Click on image to zoom

Castaly Edge Bander EB-M7PM

Name: Castaly Edge Bander EB-M7PM
Brand: Castaly
SKU: Castaly Edge Bander EB-M7PM
Price: 22979.00 USD
Availability: InStock

★★★★★

Iron Line Verified

Authorized Dealer: Castaly

Official Partner

IN STOCK & READY TO SHIP

SKU: Castaly Edge Bander EB-M7PM

Quick Specs

Power: 13.6 kW total power • 2.3 kW heating glue tank • 1.5 kW feed motor • 0.75 kW gluing roller
Performance: 43 or 60 FPM feed speed • 12,000 RPM pre-mill (2.25 kW × 2), double end and fine trimming motors (0.7 kW × 2 each) • 1400 RPM dual polishing motors (0.18 kW × 2)
Capacity: 10–50 mm workpiece thickness • 0.4–3 mm edging band thickness • 6.3" minimum workpiece length • 2.5" minimum workpiece width
Stations: Pre-mill • Hot melt gluing • Pneumatic guillotine end cutting • Double end trimming • Top and bottom fine trimming • 2 sets scraping heads • Polishing
Hardware: 2,830 lbs net weight • Precision ground chain track system • Mechanical digital readout thickness adjustment • Outrigger support for wide panels

Price:

$22,979.00

Quantity:

Financing as low as ~$382 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $4,825.59 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Automatic Pre-Mill • Precision Trimming • Production Edge Finishing

Castaly Edge Bander EB-M7PM

The Castaly Edge Bander EB-M7PM is a production-ready automatic edge banding machine built for cabinet shops and furniture manufacturers that require reliable bonding, clean trimming, and smooth edge finishing in a compact yet heavy-duty format. Featuring pre-milling, hot melt gluing, trimming, scraping, and polishing stations, this machine delivers consistent edge quality at industrial feed speeds.

Castaly Edge Bander EB-M7PM Overview

The Castaly Edge Bander EB-M7PM integrates multiple finishing operations into one synchronized automatic feed system. The edging material, whether strip or coil, feeds automatically and stays synchronized with the panel movement to ensure uniform glue application and accurate trimming throughout the entire process.

Feed Speed: 43 or 60 FPM for efficient throughput and stable production performance.

Castaly Edge Bander EB-M7PM Processing Units

Pre-Mill Unit: 2 × 2.25 kW motors at 12,000 RPM prepare panel edges before gluing.
Hot Melt Gluing Unit: 2.3 kW heating tank with synchronously driven glue roller.
Pneumatic Guillotine: Clean cutting of band ends for precise panel finishing.
Double End Trimming: 0.7 kW × 2 motors at 12,000 RPM for front and rear trimming.
Top & Bottom Fine Trimming: High-frequency motors automatically round and smooth edges.
Scraping Heads: 2 sets for removing minor imperfections after trimming.
Polishing Unit: Dual 0.18 kW motors at 1400 RPM for final smooth surface finish.

Castaly Edge Bander EB-M7PM Construction & Stability

Heavy, vibration-resistant frame ensures cutting accuracy and long-term durability.
Pressure beam with staggered rubber rollers for optimal workpiece control.
Precision ground chain track system for accurate linear panel movement.
Rubber pads prevent surface marring during feed.
Mechanical digital readout for thickness adjustment.
Side pressure unit with adjustable driven and idle rollers for straight edge banding.
Sound and safety covers with integrated dust extraction outlets.
Outrigger support for processing wider panels.

Castaly Edge Bander EB-M7PM Technical Specifications

Specification	Value
Workpiece Thickness	10 ~ 50 mm
Edging Band Thickness	0.4 ~ 3 mm
Minimum Workpiece Length	6.3"
Minimum Workpiece Width	2.5"
Feed Speed	43 or 60 FPM
Feed Motor	1.5 kW
Heating Glue Tank	2.3 kW
Gluing Roller Motor	0.75 kW
Pre-Mill Motor	2 × 2.25 kW
End Trimming Motor	0.7 kW × 2 (12,000 RPM)
Fine Trimming Motor	0.7 kW × 2 (12,000 RPM)
Scraping Heads	2 Sets
Polish Motor	0.18 kW × 2 (1400 RPM)
Total Power	13.6 kW
Machine Net Weight	2830 LBS

General Information

Model: EB-M7PM
FOB Los Angeles, CA (USA)
Warranty: 1 year
Delivery Time: xx days after deposit
Training, installation, tooling & rigging optional
Customer responsible for local regulations and utility connections
