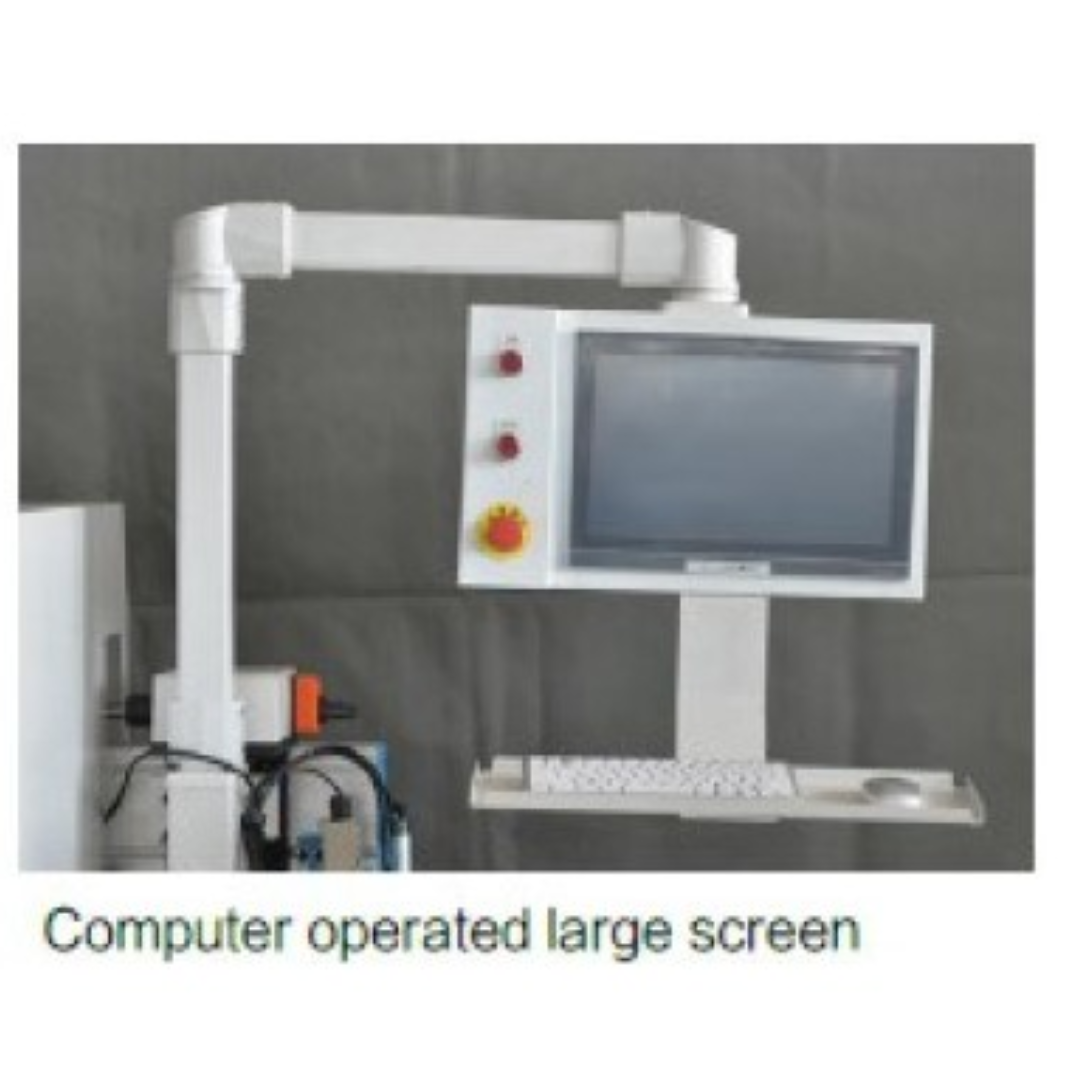

Castaly Edge Bander EB-M12PC-PUR / EB-M13PC-PUR PC touchscreen control panel and operator interface display

Castaly Edge Bander EB-M12PC-PUR / EB-M13PC-PUR process functions diagram showing edge banding stations and trimming steps

Roll over image to zoom in Click on image to zoom

Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR

★★★★★

Iron Line Verified

Authorized Dealer: Castaly

Official Partner

IN STOCK & READY TO SHIP

SKU: Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR-1

Quick Specs

Power & Feed: 43 or 60 FPM feed speed • 2.3 kW heating glue tank • 1.5 kW feed motor • 0.75 kW gluing roller
Motors: 12,000 RPM pre-mill (2.25 kW × 2), end trimming, rough edge, and fine edge motors (0.7 kW × 2 each) • 0.8 kW corner rounding motor • 1400 RPM dual polishing motors (0.18 kW × 2)
Capacity: 10–50 mm workpiece thickness • 0.4–3 mm PVC band thickness • 6.3" minimum workpiece length • 3.5" minimum workpiece width
Stations: Pre-mill • Double PUR + EVA gluing pot • Pneumatic guillotine end cutting • Double end, rough edge, and fine edge trimming • Corner rounding • 2 sets scraping heads • Polishing
Hardware: Heavy vibration-resistant frame • Precision chain track with round guides • Mechanical digital readout thickness adjustment • Side pressure unit with driven and idle rollers

Option: Standard

Variant

Price:

$64,889.00

Quantity:

Financing as low as ~$1081 / month (60 mo. terms) Estimate your payment

We pay your sales tax! (IL excluded) 📦 Order before 7 PM CST for same-day shipping.

Share this product

Section 179
Tax Savings

Save up to $13,626.69 on this equipment Estimate Your Tax Deduction

Calculate Savings →

Commercial Buyer?

Unlock volume pricing and dedicated facility support with Trade Accounts
(Requires minimum of 2+ items)

Order Placed

Ships Out

Delivered

*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.

CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580

Get Questions Answered

Fast & Free

Experience: 20+ Years B2B • Origin: US-Based Support

EXPRESS SHIPPING

Most orders process in 1-3 days. Yes, even if it weights 400lb

Hassle-Free Returns

No restocking fees. Ever.

Manufacturer Warranty

Fully backed by the brands you trust.

Dedicated Rep Mathew

Speak to a US-Based Equipment Specialist: (888) 308-5580

Flexible Financing

Get Upto 60 Months Financing

Double PUR Glue Pot • Full Process Edge Banding • Industrial Finish Quality

Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR

The Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR is a heavy-duty automatic edge banding system equipped with a double PUR glue pot and full finishing stations including pre-mill, trimming, scraping, and polishing. Built for production cabinet shops and furniture manufacturers, this machine delivers strong PUR bonding, precise trimming, and high-quality edge finishing at industrial feed speeds.

Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR Overview

The Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR is designed for cutting and finishing shaped panel parts such as chair components, sofa frames, cabinet panels, and laminated board products. With automatic strip or coil feeding synchronized with panel movement, the machine ensures consistent glue application and smooth material tracking.

Production Capability: Up to 43 or 60 FPM feed speed depending on configuration, providing efficient throughput while maintaining finish quality.

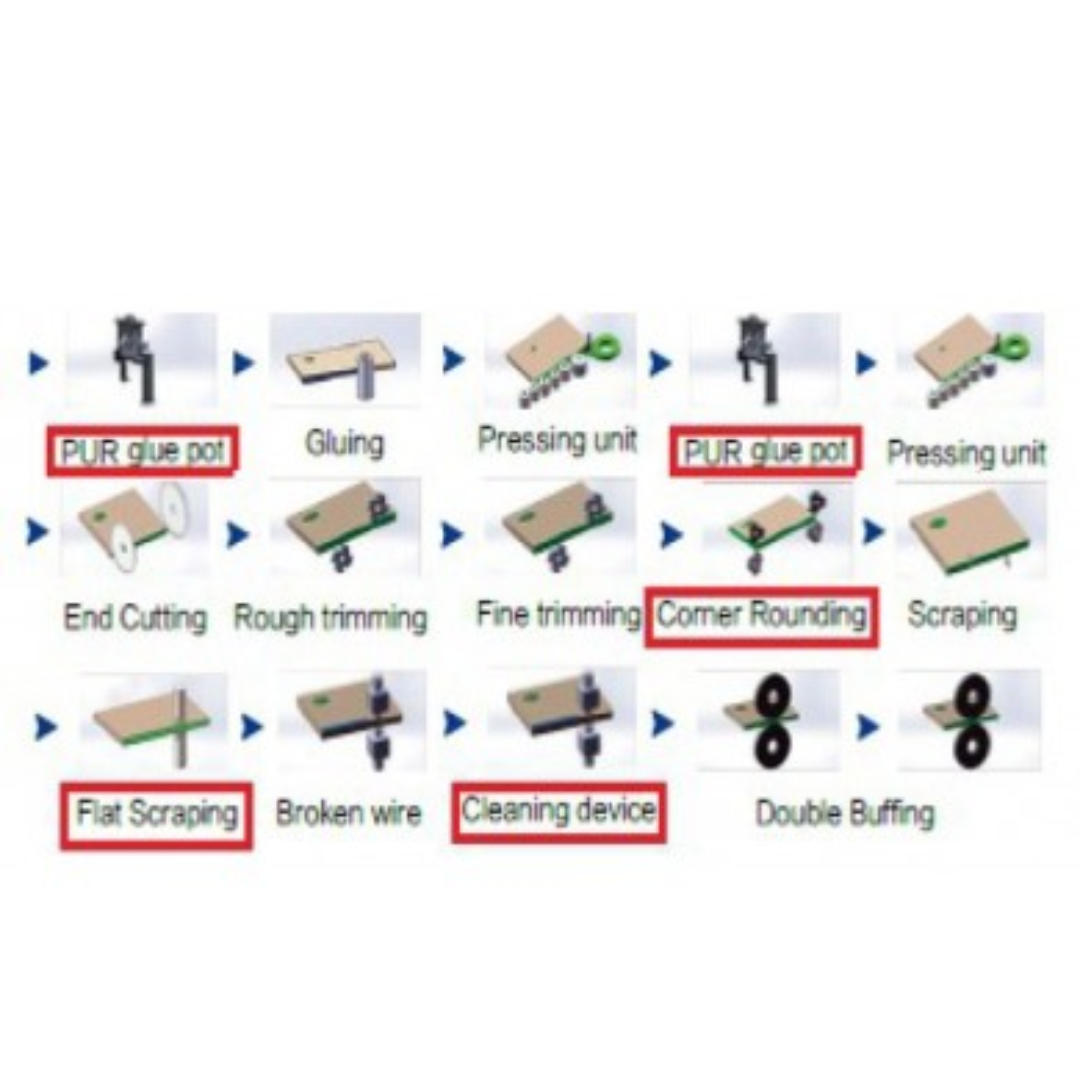

Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR Process Stations

Pre-Mill Unit: 2 × 2.25 kW motors at 12,000 RPM prepare panel edges before gluing.
PUR + EVA Gluing Unit: Double PUR glue pot with synchronously driven glue roller for strong vertical edge bonding.
Pneumatic Guillotine End Cutting: Clean band cutting at panel ends.
Double End Trimming: Two high-frequency inverter-driven motors for precise front and rear trimming.
Top & Bottom Fine Edge Trimming: Automatic rounding and smoothing with high-speed cutterheads.
Scraping Heads (2 sets): Refines edge surface after trimming.
Polishing Unit: Dual motors at 1400 RPM for final smooth surface finish.

Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR Construction & Stability

Heavy, robust construction to eliminate vibration.
Pressure beam with staggered rubber rollers for optimal workpiece guidance.
Chain track with precision round guides and rubber pads to prevent marring.
Cast columns with mechanical digital readout thickness adjustment.
Side pressure unit with driven and idle rollers for straight edge banding.
Sound/safety covers with dust extraction outlets for all units.

Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR Specifications

Specification	Value
Workpiece Thickness	10 ~ 50 mm
Edging PVC Band Thickness	0.4 ~ 3 mm
Min Workpiece Length	6.3"
Min Workpiece Width	3.5"
Feed Speed	43 or 60 FPM
Feed Motor	1.5 kW
Heating Glue Tank Power	2.3 kW
Gluing Roller Motor	0.75 kW
Corner Rounding Motor	0.8 kW
End Trimming Motor	0.7 kW × 2 (12,000 RPM)
Rough Edge Trimming Motor	0.7 kW × 2 (12,000 RPM)
Fine Edge Trimming Motor	0.7 kW × 2 (12,000 RPM)
Polish Motor	0.18 kW × 2 (1400 RPM)

Why Choose Castaly Edge bander EB-M12PC-PUR / EB-M13PC-PUR

Double PUR glue system for strong, moisture-resistant bonds.
Full trimming, scraping, and polishing in one pass.
Stable heavy construction reduces vibration and improves edge quality.
Designed for laminated panels, furniture frames, and shaped components.
Optimized feed system synchronized with edging material for consistent finish.

General Information

FOB Los Angeles, CA (USA).
1 year warranty.
Training, installation, tooling & rigging optional.
Customer responsible for local regulations and utilities connection.

Key Information

Order Cutoff Time: 2:00 PM EST
Order Handling Time: 1–3 business days (Monday–Friday)
Transit Time: 1–7 business days (Monday–Friday)
Total Estimated Delivery Time: 3–11 business days (Monday–Friday)
Shipping Availability: Free Shipping On some Items In The Contiguous United States only
