Castaly Drying Oven TS-HSDO10 Applications

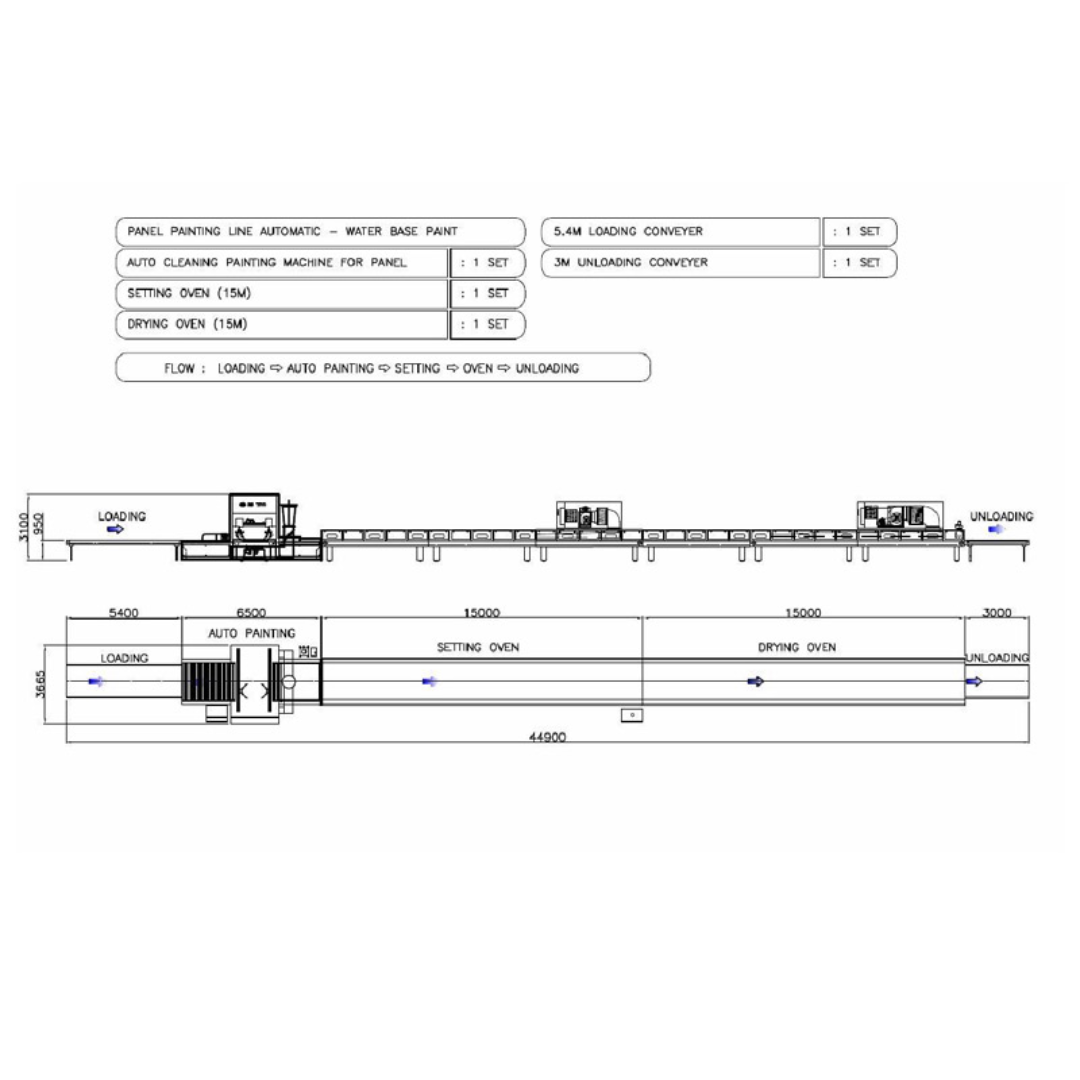

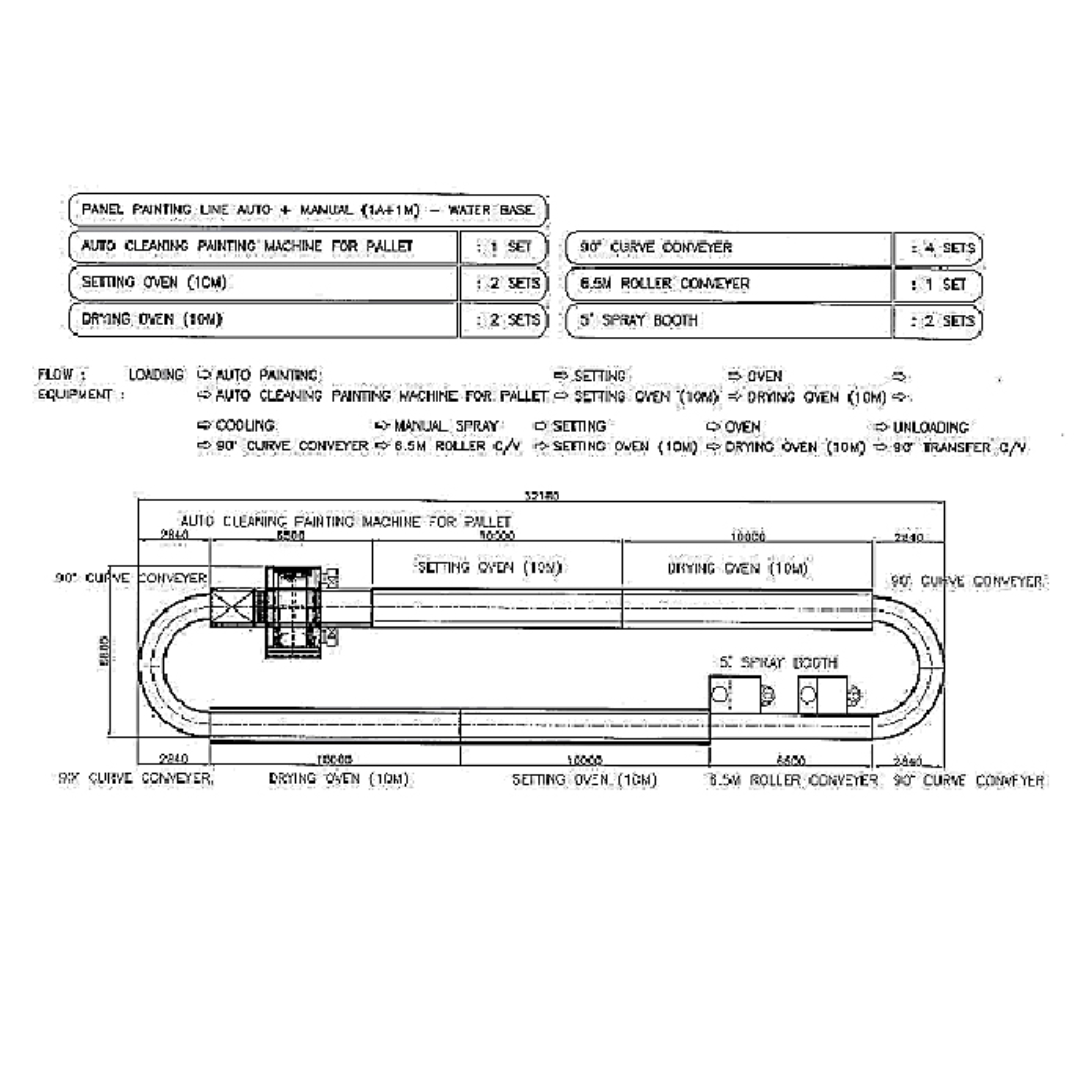

- Integrated drying solution for automatic spray finishing lines
- Panel, board, and component curing after coating
- Wood, MDF, composite, and industrial material finishing
- Custom-configured production environments
Designed as a modular drying solution tailored to customer-specific spray line layouts and heating requirements.
Castaly Drying Oven TS-HSDO10 Specifications
| Machine Size (L × W × H) | 10000 × 1400 × 2600 mm |
|---|---|
| Conveyor Speed | 1 ~ 4 M/min |
| Roller Diameter | ψ38.1 mm |
| Roller Pitch | 102 mm (4") |
| Roller Length | 1050 mm |
| Conveyor Power | 1/2 HP |
| Heating Capacity | 72 kW (Electric Heater or Heat Exchanger) |
| Temperature Control Range | 0 ~ 60℃ ±5℃ |
| Cooling Unit Blower | 1/2 HP |
Castaly Drying Oven TS-HSDO10 System Configuration
- Heavy-Duty Conveyor System with adjustable speed (1–4 M/min) for controlled curing time and production flow.
-
Air-Forced Heating Unit including:
- Pre-filter 24” × 24” × 2” (1 pc)
- Pre-filter 24” × 12” × 2” (1 pc)
- Maintenance access door
- Electric heater or heat exchanger (72 kW)
- Heat isolation piping system
- Precision Temperature Control System maintaining 0–60℃ with ±5℃ tolerance for consistent drying performance.
- Cooling Unit Section with 1/2 HP blower, dedicated air piping, and additional 24” × 24” × 2” pre-filter for controlled post-heating airflow.
Buyer must select either electric heater or heat exchanger configuration. If heat exchanger is selected, hot water or steam system must be prepared by buyer.
Castaly Drying Oven TS-HSDO10 Optional Boiler System
- Hot Water Boiler (Gas) – 1 Set (USD $13,600)
| Boiler Size (L × W × H) | 75 × 120 × 173 cm |
|---|---|
| Inner Capacity | 78 L |
| Output Capacity | 150,000 kcal/hr |
| Max. Water Output Temperature | 90℃ |
| Gas Supply Requirement | 13A 120 mmaq |
- Temperature Controllers – 2 pcs
- Circular Pumps – 2 sets
- Water Tank – 1 pc
Boiler package excludes pipes, valves, and gas tanks. Designed to support oven heating via hot water circulation system.
Why Choose the Castaly Drying Oven TS-HSDO10
- Custom-engineered drying solution for automated spray lines.
- Forced air heating with selectable electric or heat exchanger system.
- Accurate temperature control for consistent curing performance.
- Integrated cooling section for controlled process flow.
- Expandable with dedicated gas hot water boiler system.
The Castaly Drying Oven TS-HSDO10 is a configurable, production-grade drying solution designed to integrate seamlessly into automatic spray finishing lines, delivering controlled heating performance and reliable continuous operation.
