Castaly DC-9100 10 HP Dust Collector Applications
- Cabinet and furniture manufacturing plants
- Production shops running multiple machines on ducted collection
- Wide belt sanders, planers, jointers, shapers, and large saw systems
- Centralized dust collection zones requiring higher static pressure
Best for facilities that need strong suction through longer duct runs and higher resistance systems.
Castaly DC-9100 10 HP Dust Collector Specifications
| Model | DC-9100 |
|---|---|
| Motor | 10 HP (3 Phase) |
| Fan Diameter | 15" |
| Static Pressure (InH2O) | 23 |
| Air Capacity | 6,300 CFM |
| Sound Rating | 85 – 95 dB |
| Connection Outlet Diameter | 10" |
| Top Filter Bag Size (Dia × H) | 13.8" × 59" |
| Top Filter Bag Quantity | 10 |
| Bottom Collect Bag Size | 23.6" × 35.5" |
| Bottom Collect Bag Quantity | 4 |

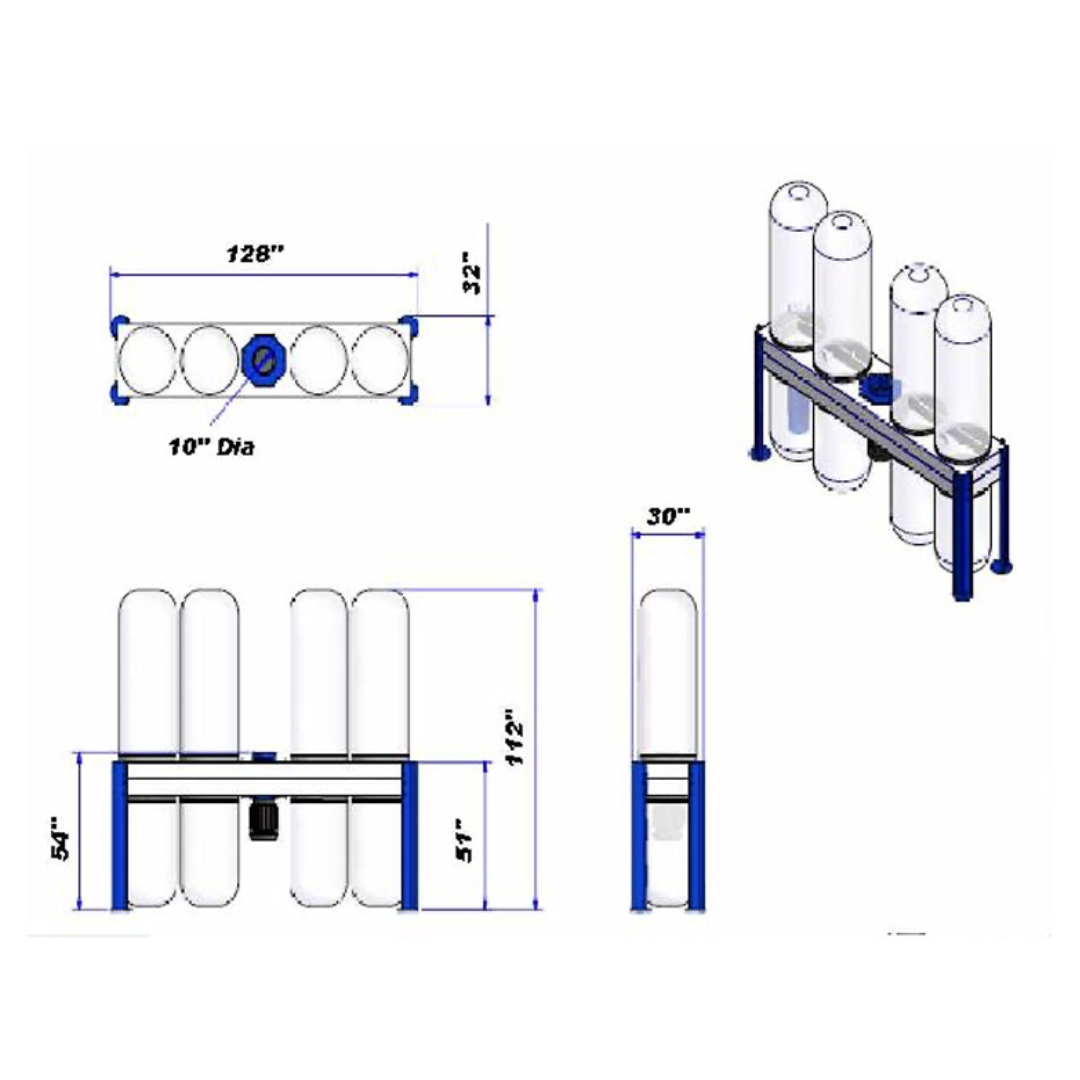

| Machine Size | 138" × 39" × 120" |
| Net Weight | 1,360 |
Castaly DC-9100 10 HP Dust Collector Performance & Construction
- Heavy sheet metal frame and base for stability and long-term durability.
- Extra large radial-fin steel impeller designed for high-efficiency airflow and strong suction.
- Totally enclosed industrial motor built for extended service life and maximum air suction.
- High static pressure (23 InH2O) supports ducted systems with higher resistance.
- Large filter surface area with 10 top filter bags to help capture airborne dust.
- Bottom collection system with 4 bags for handling dust volume in production environments.
- Low sound design helps reduce noise compared to many high-output collectors (actual level: 85–95 dB).
Why Choose the Castaly DC-9100 10 HP Dust Collector
- 6,300 CFM airflow for high-demand shop environments.
- High static pressure for longer duct runs and multiple drops.
- Industrial impeller and enclosed motor for strong suction and long life.
- Large filter and collection capacity designed for daily production use.
The Castaly DC-9100 10 HP Dust Collector is a serious central dust collection solution for production shops that need strong suction, stable airflow, and industrial-grade durability.
