Castaly CR-DU Single 4’x8’ or 4'x4' Dual Table CNC 5 Axis Router Applications
- 3D woodworking applications including cabinet doors, wooden doors, and decorative panels
- Furniture manufacturing and auxiliary processing of plate and panel components
- Advertising industry production such as signage, acrylic cutting, and decorative display systems
- Die and mold manufacturing including aluminum, copper, plastic, PVC, and composite molds
- Custom fabrication of video game cabinets, computer tables, and complex shaped components
Designed for manufacturers requiring advanced 5-axis capability for intricate machining, high-speed production, and versatile material processing.
Castaly CR-DU Single 4’x8’ or 4'x4' Dual Table CNC 5 Axis Router Specifications
| Working Size (X × Y × Z) | 3300mm × 1250mm × 800mm |
|---|---|
| Spindle | CC Brand, 4 Output (7.5kW × 4), Air Cooling |

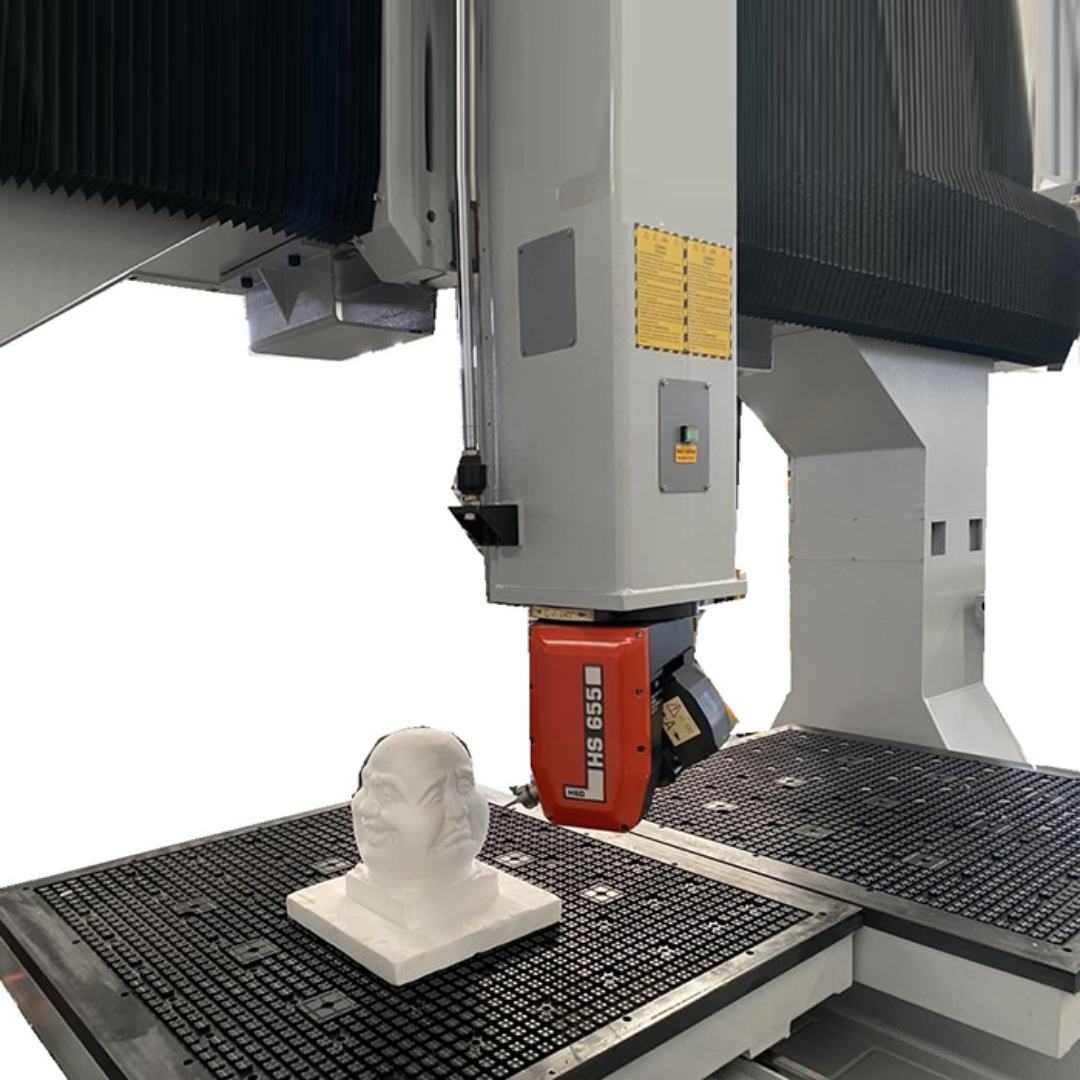

| 5 Axis Range | A Axis ±110°, C Axis ±360° |
| Machine Body | Heavy Duty Welded Steel Structure |
| Vacuum Table | 1200mm × 1200mm × 2 (Twin Table) |
| Control System | Taiwan Syntec 5 Axis (Absolute Value System with RTCP) |
| Driver System | Taiwan Syntec 1000W Servo Motors |
| Ball Screws | Taiwan PMI-4040 (Y Axis), PMI-3210 (Z Axis) |
| Tool Changer | Disc Type ATC with 5 Positions (F63) |
| Linear Guides | Taiwan High Precision 30mm Square Rails (X, Y, Z) |
| Inverter | 7.5kW + 7.5kW |

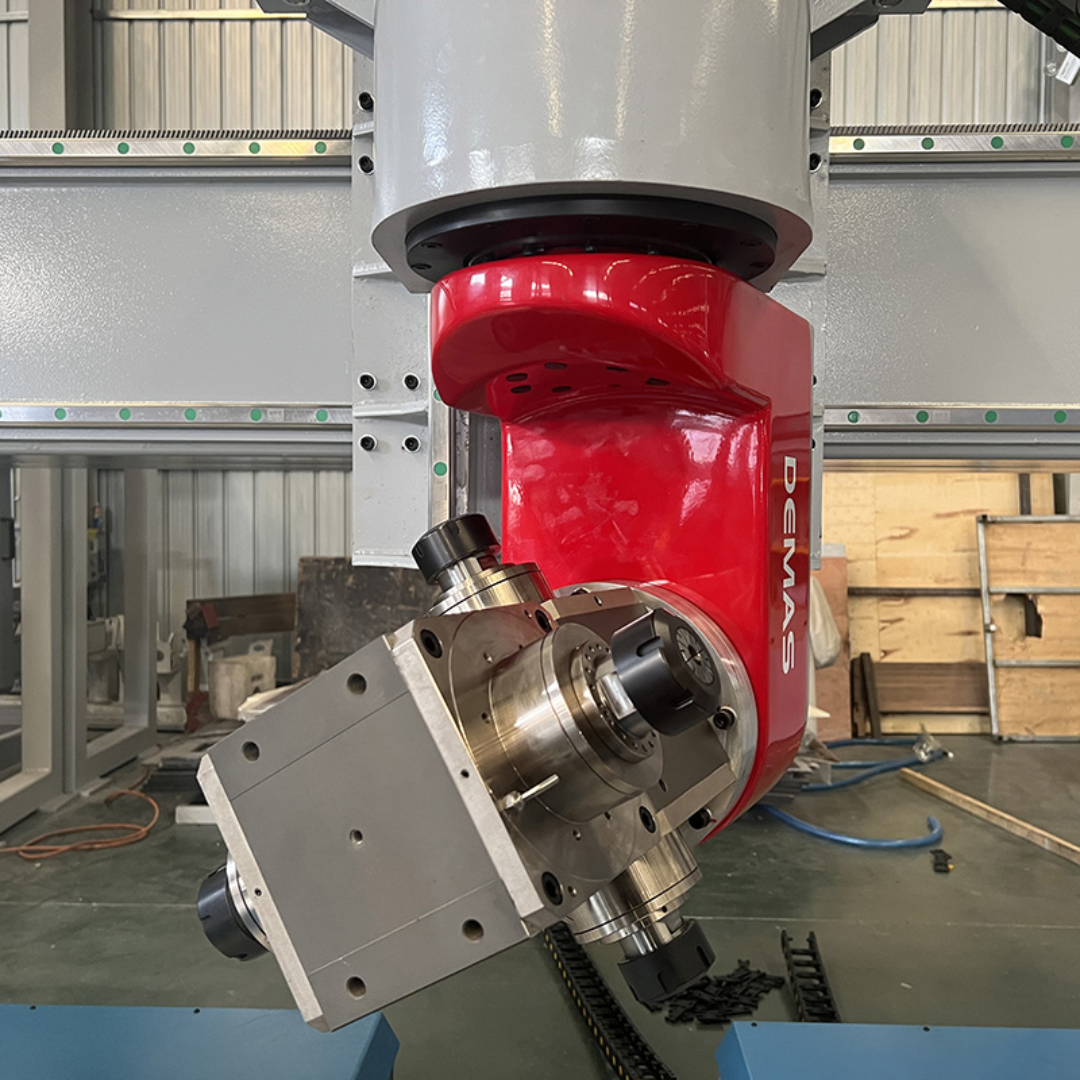

| 5 Axis Head | DEMAS |
| Electrical Components | Schneider (France) |
| Max Travel Speed | 30 – 50 m/min |
| Working Precision | ±0.2mm |
| Repeat Positioning Accuracy | ±0.02mm |
| Lubrication | Automatic Oil Lubrication System |
| Machine Weight | Approx. 5000 kg |
Castaly CR-DU Single 4’x8’ or 4'x4' Dual Table CNC 5 Axis Router Performance & Construction
- Heavy-duty quenched steel frame ensures long-term structural stability, vibration resistance, and machining accuracy.
- Dual moving table design maximizes workflow efficiency while reducing floor space requirements.
- Advanced 5-axis machining capability enables complex 3D cutting, sculpting, and contouring operations.
- High-performance Syntec control system with RTCP provides precise multi-axis coordination and real-time tool path control.
- Precision ball screw transmission with preloaded and ground screws ensures smooth motion, durability, and accuracy.
- Linear guideways with recirculating bearings deliver high-speed movement with exceptional positioning precision.
- Automatic tool changer (ATC) improves efficiency by reducing downtime between operations.
- Automatic spindle braking system allows rapid deceleration for faster tool changes and improved productivity.
- CAD/CAM compatibility supports DXF file import, editing, and seamless G-code generation.
- DSP CNC controller support allows easy programming with standard G-code and conversational interface options.
Why Choose the Castaly CR-DU Single 4’x8’ or 4'x4' Dual Table CNC 5 Axis Router
- Full 5-axis capability for complex and high-precision machining.
- Dual table system for increased productivity and continuous operation.
- Industrial-grade construction for long-term reliability and accuracy.
- High-speed performance with excellent repeatability for demanding production environments.
- Flexible material processing for wood, plastics, composites, and light metals.
The Castaly CR-DU Single 4’x8’ or 4'x4' Dual Table CNC 5 Axis Router is a powerful, precision-engineered solution designed for manufacturers who demand advanced multi-axis capability, consistent accuracy, and high-efficiency production performance.
