Castaly CNC Carving Machine Overview
The Castaly CNC Carving Machine (RT-CAV) is designed for high-output 3D rotary carving with minimal downtime. The system uses multiple rotary carving stations and a PC-based CNC controller to keep programs organized and repeatable—ideal for production carving where you’re running consistent shapes or many variants from CAD/CAM.
Castaly CNC Carving Machine Working Diameter
10" Max
Rotary carving capacity for cylindrical work and full wrap-around engraving.
Castaly CNC Carving Machine Working Depth
15-1/2" (Z Axis)
Deep Z travel supports 3D carving and stronger tool reach flexibility.
Castaly CNC Carving Machine Rapid Speeds
X/Y: 800 IPM • Z: 600 IPM
Fast rapids reduce cycle time across multi-part production runs.
Castaly CNC Carving Machine Spindle Speed Range
8,000–24,000 RPM
Wide RPM range for different tooling and finish targets.
Castaly CNC Carving Machine Built for Production
Automatic rotary carving stations + servo motion + stored G-code programs = more cutting time and less wasted handling time.
Back to top
Castaly CNC Carving Machine Models
The Castaly CNC Carving Machine RT-CAV line is offered in multiple bed sizes and spindle configurations. These two models are the primary 8-spindle configurations used for production rotary carving.
-

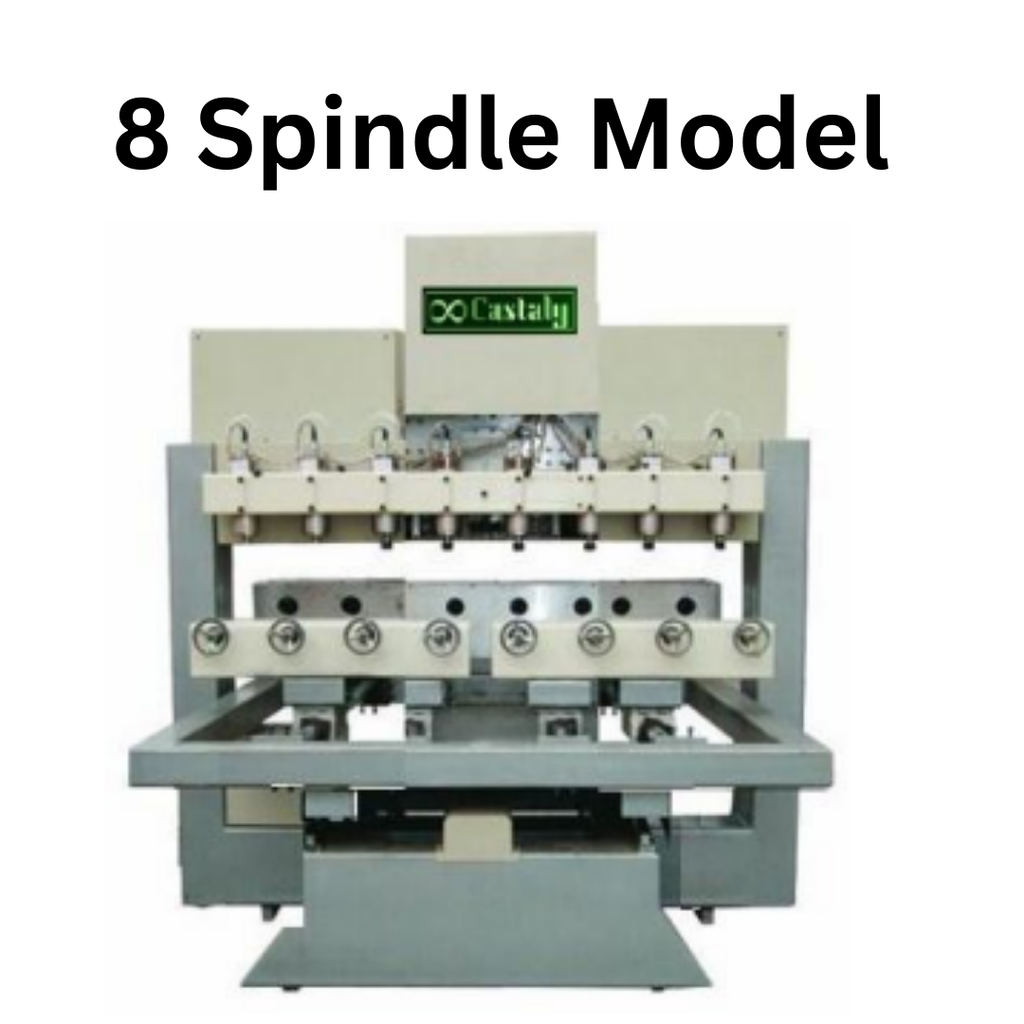

Castaly CNC Carving Machine RT-3210CAV-8: 32" max working length (X) • 10" max working diameter (Y) • 8 carving spindles
-
Castaly CNC Carving Machine RT-4810CAV-8: 48" max working length (X) • 10" max working diameter (Y) • 8 carving spindles
Castaly CNC Carving Machine Table Size
RT-3210CAV-8: 48" × 76"
Sized for rotary carving workflow and operator staging.
Castaly CNC Carving Machine Table Size
RT-4810CAV-8: 59" × 98"
Larger table for longer parts and increased staging area.
Back to top

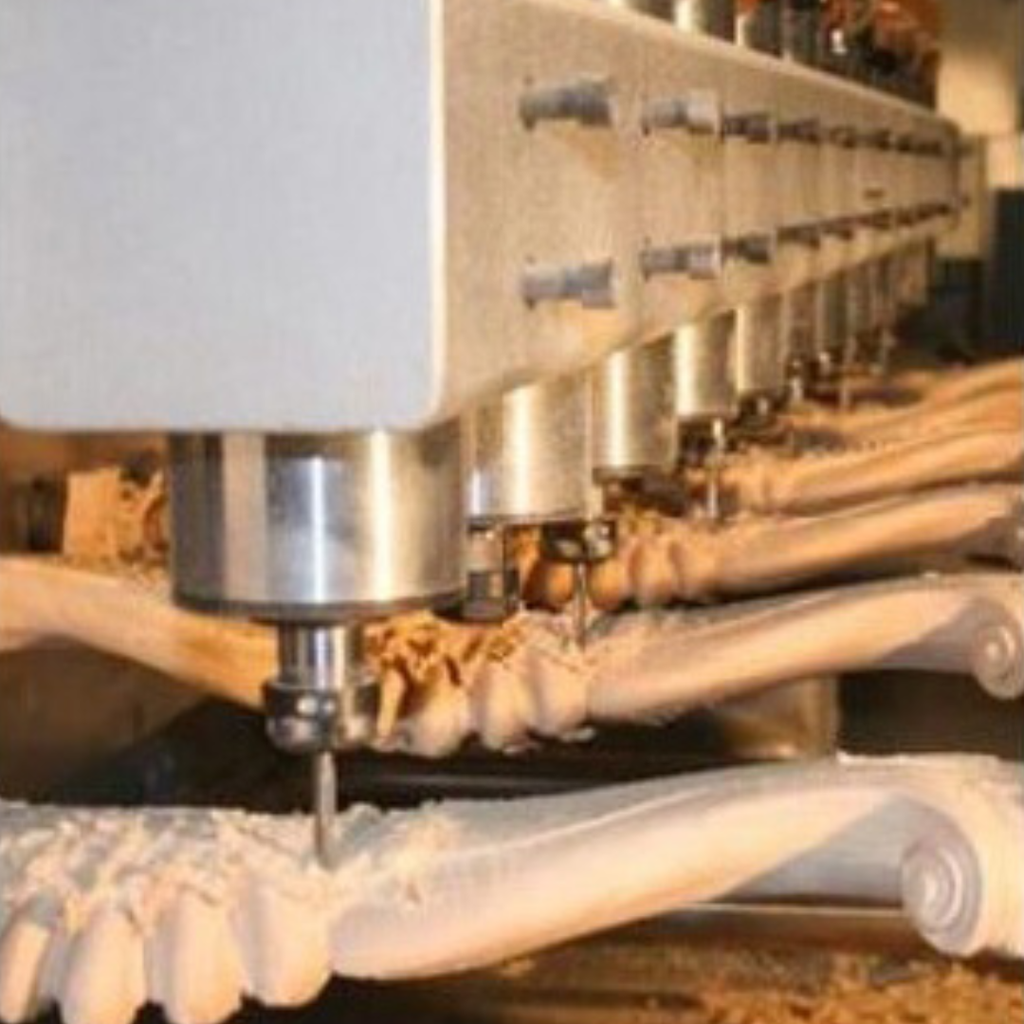

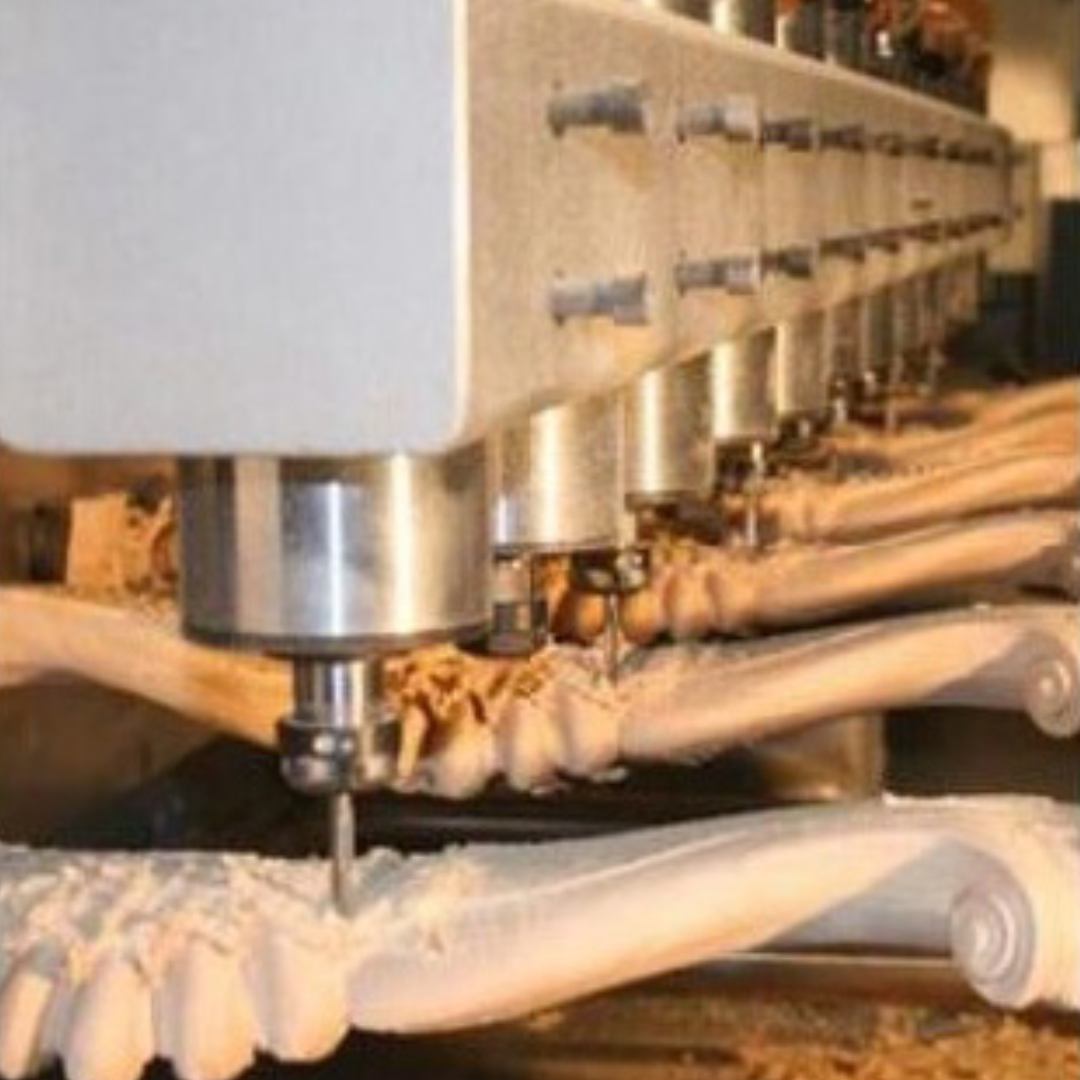

Castaly CNC Carving Machine Rotary Carving Stations

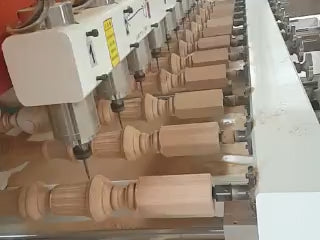

The productivity driver in the Castaly CNC Carving Machine is the automatic eight 360-degree rotary carving stations, designed to increase output for 3D engraving and carving cycles.
-

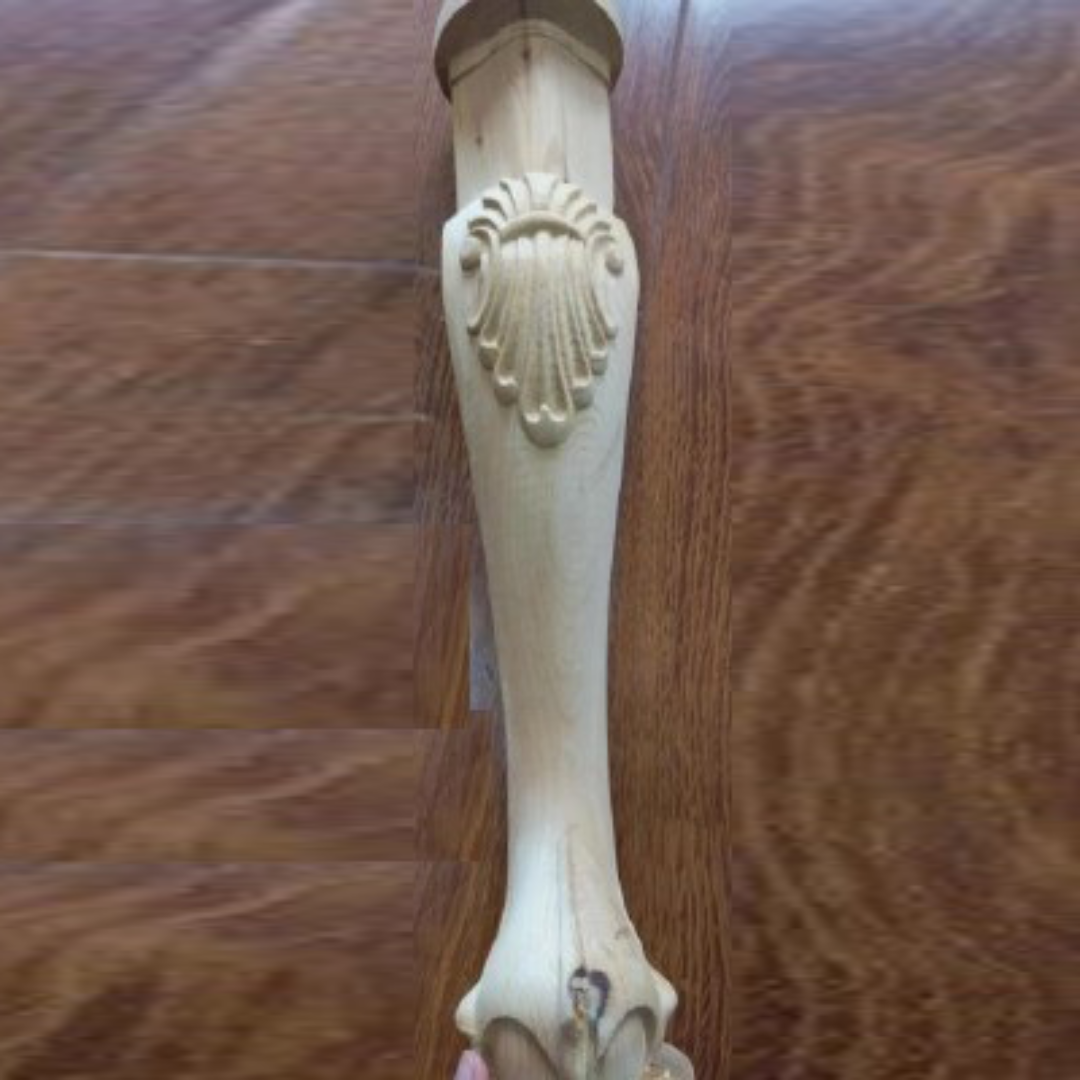

360° carving access: Full wrap-around carving and engraving on cylindrical work.
-

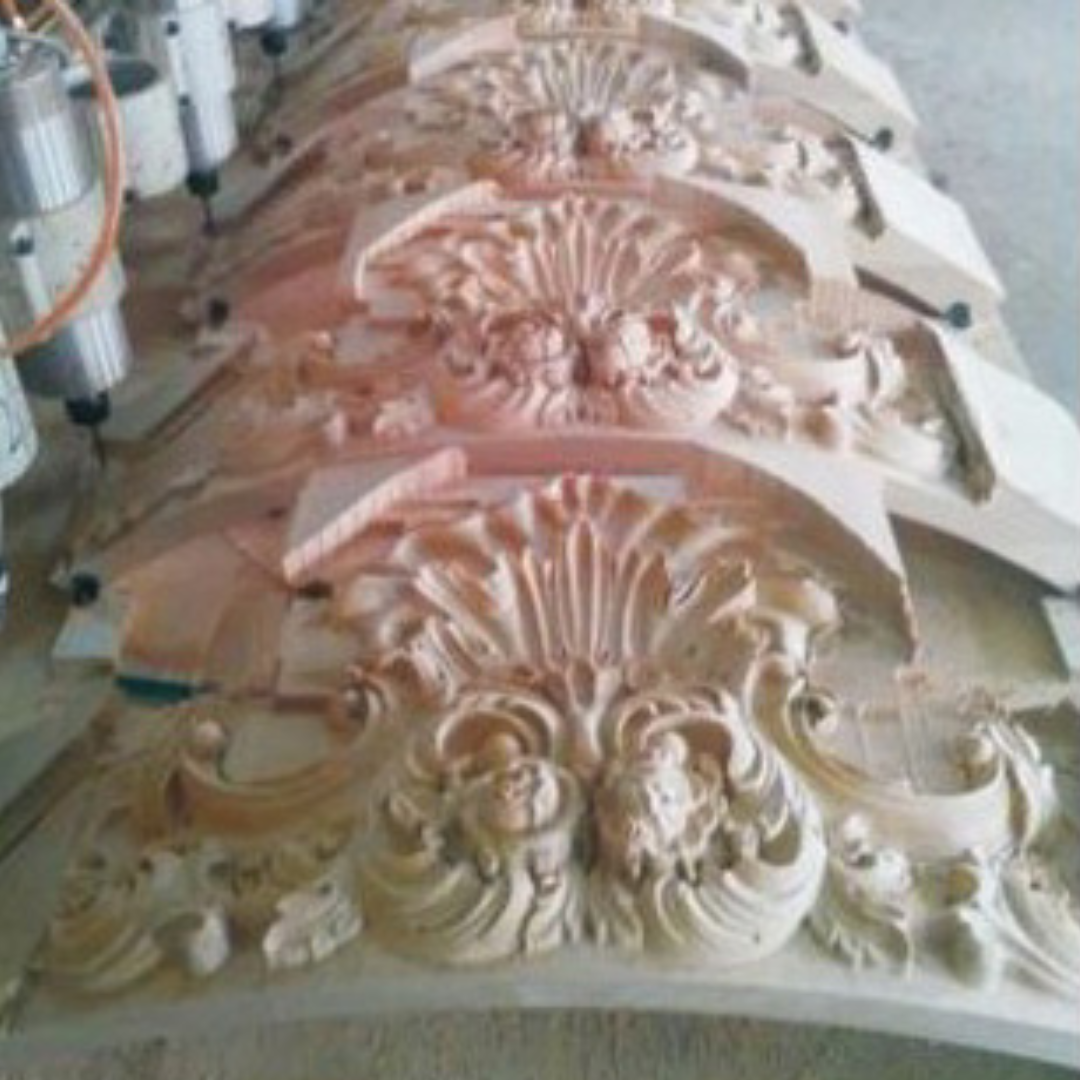

Multi-station throughput: Eight stations reduce bottlenecks and increase output.
-
3D-ready machine design: Built for 3D cutting usage and superior performance.
Back to top

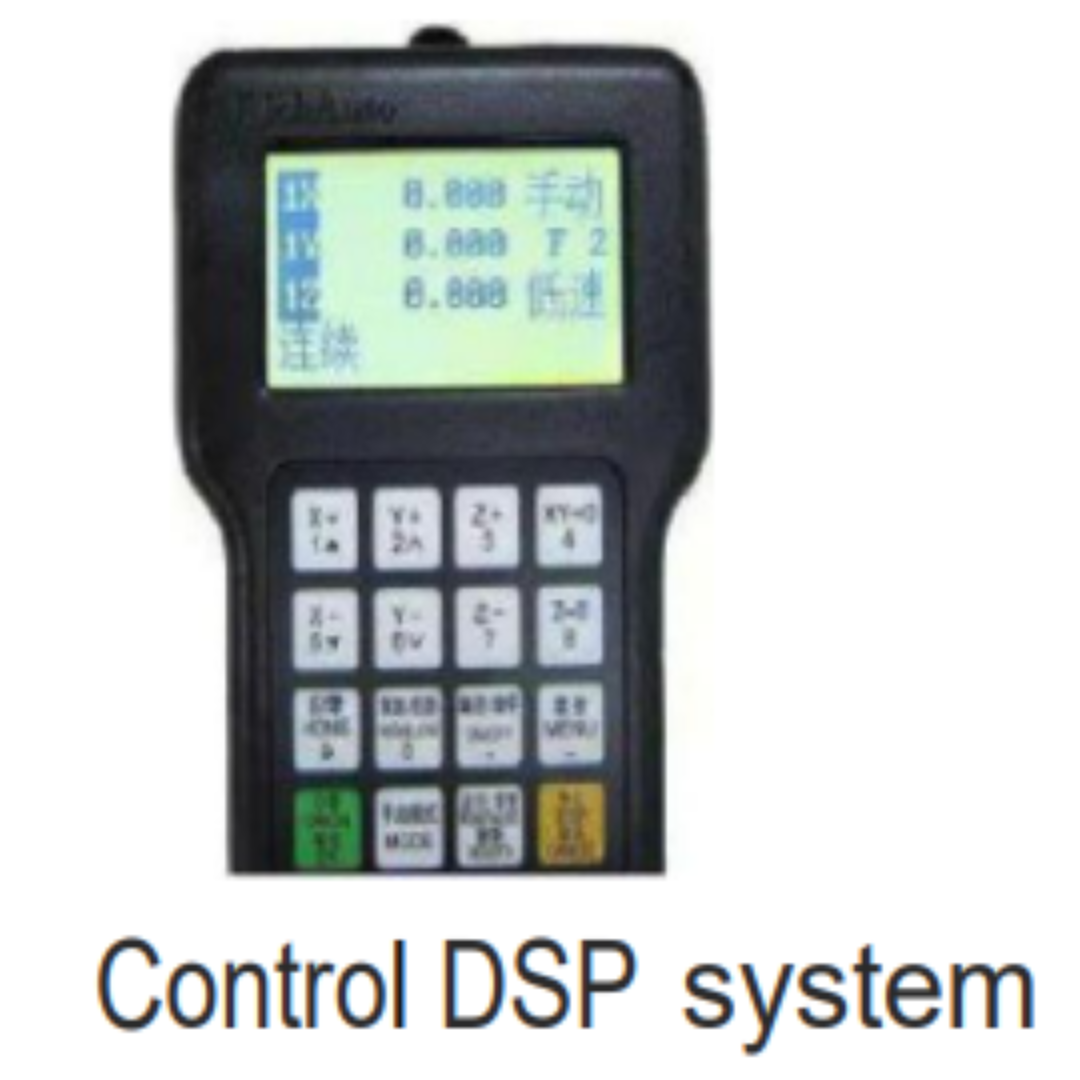

Castaly CNC Carving Machine CNC Control & Programming
The Castaly CNC Carving Machine features a PC-based CNC controller set up to accept standard G-code formats plus onboard conversational applications for faster shop-floor edits and simpler program handling.
-
Standard G-code acceptance for common CAM workflows and compatible programming formats.
-
Onboard conversational applications for practical edits and simpler setups.
-
Programs stored on the PC as text-editable files (no DNC required).
-

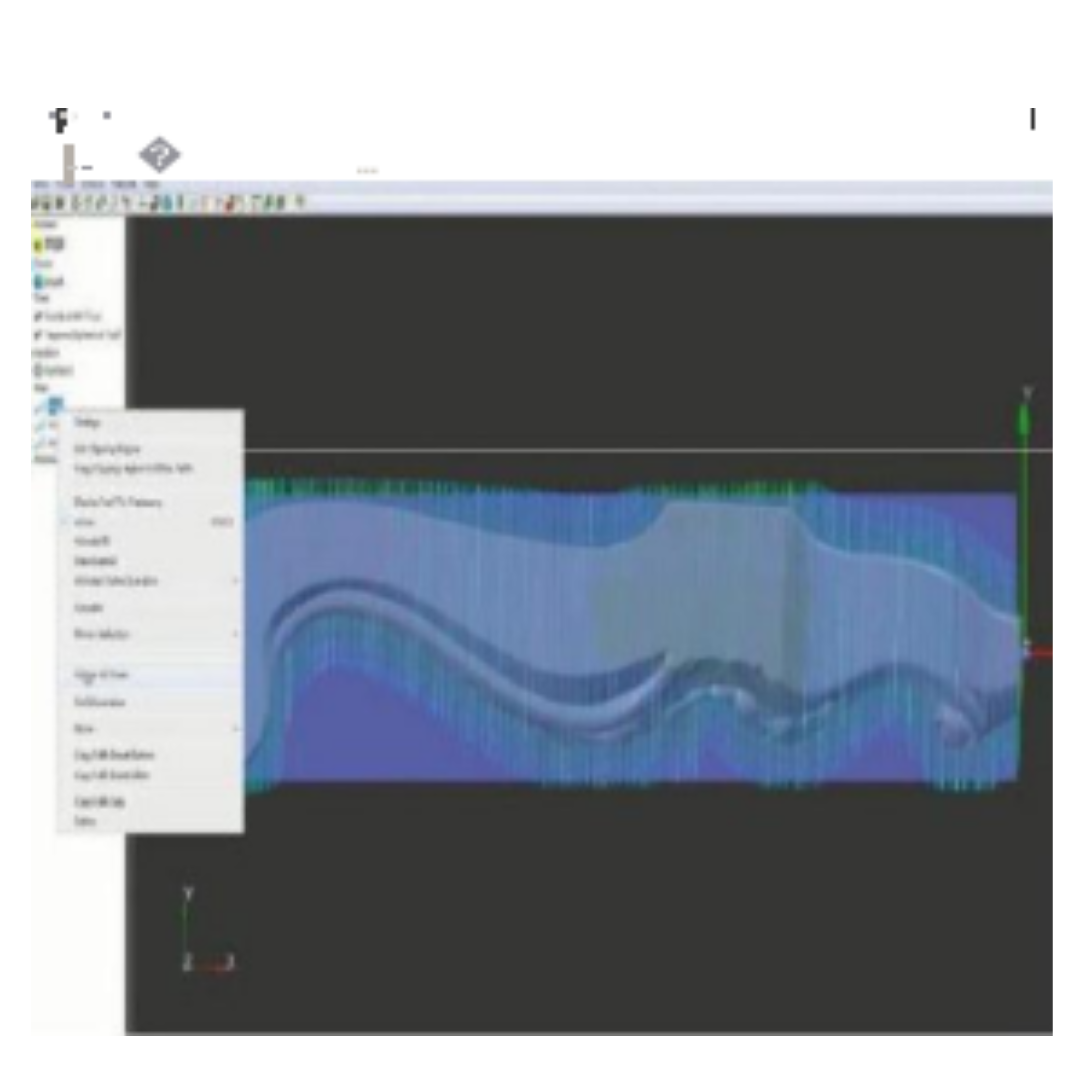

Optional CAD/CAM workflow with DXF import/edit to create G-code.
Back to top
Castaly CNC Carving Machine Motion System & Frame Construction
The Castaly CNC Carving Machine is built for repeatability: stress-relieved steel frame, moving gantry construction, and precision motion components designed for speed and accuracy.
Castaly CNC Carving Machine Drive System

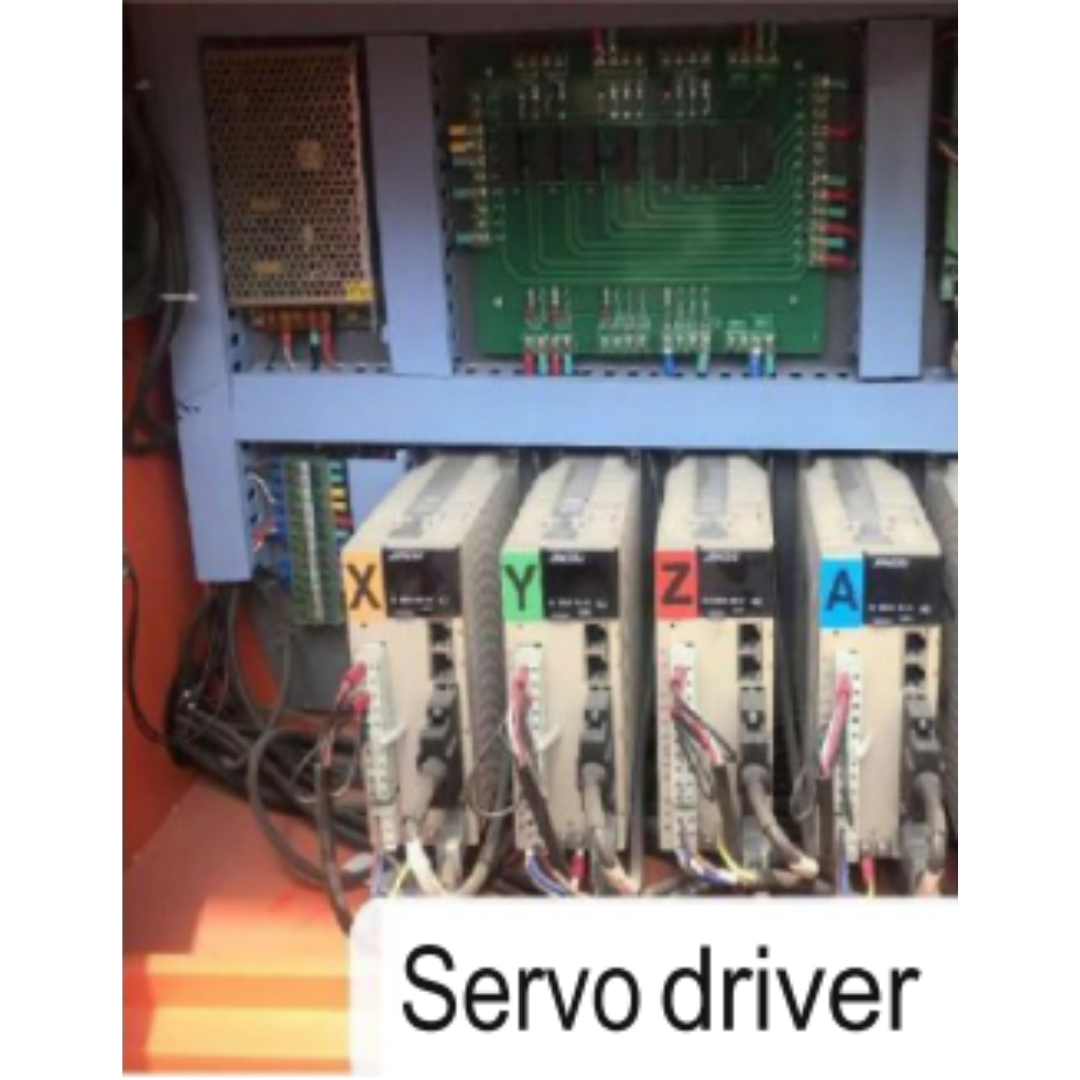

All Servo Motor Driving
Brushless-type high torque AC servo motors drive all axes for controlled motion.
Castaly CNC Carving Machine Linear Motion
Pre-Loaded Prismatic Linear Guides
Recirculating bearing blocks support rapid traverse and precision positioning.
Castaly CNC Carving Machine X/Y Drive
Precision Rack & Pinion
Designed for speed and long-run reliability in production environments.
Castaly CNC Carving Machine Z Drive
Pre-Loaded Ground Ball Screw
Long-life accuracy for depth control and 3D carving stability.
Back to top
Castaly CNC Carving Machine Spindle System

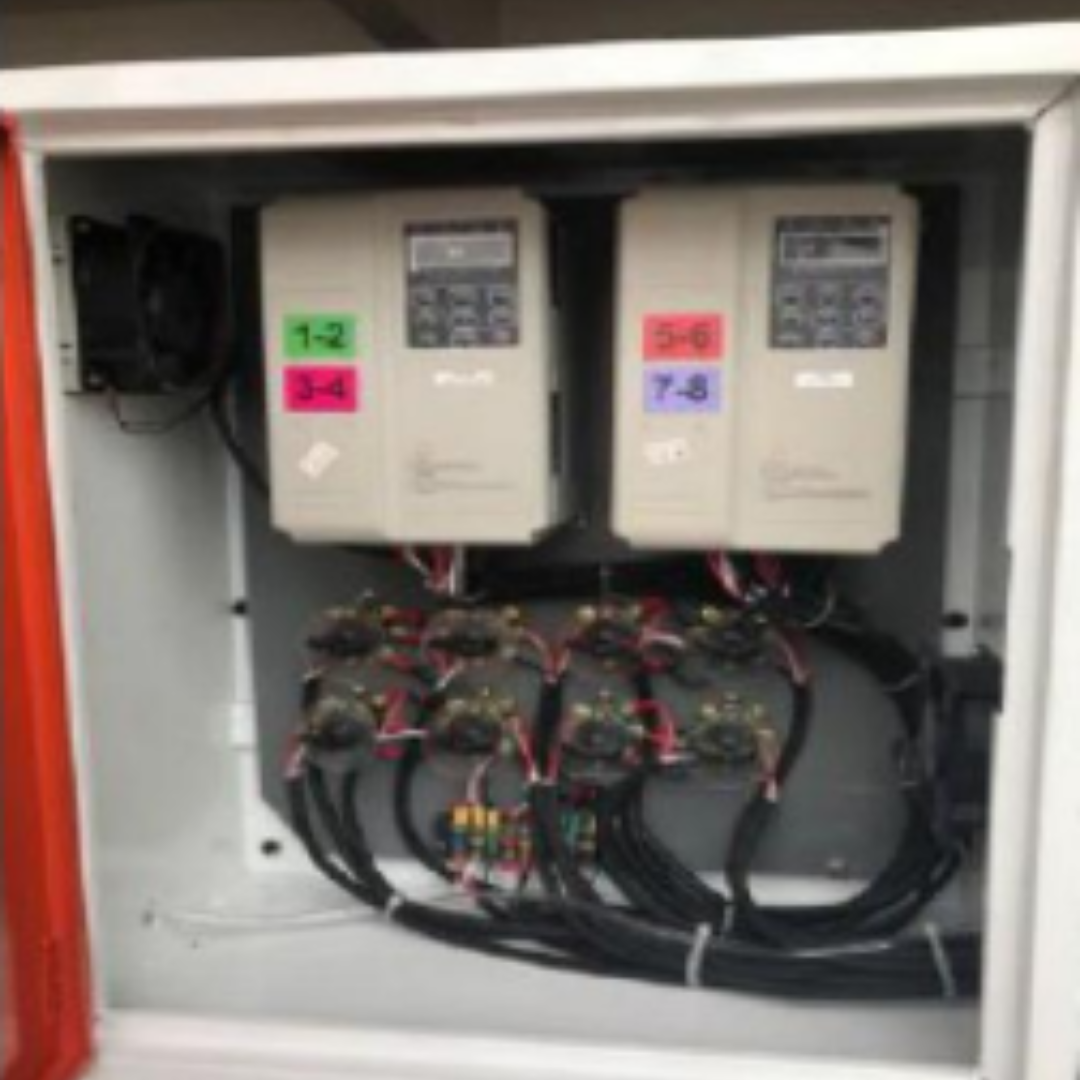

The Castaly CNC Carving Machine spindle system is built for carving speed and cycle-time reduction, with inverter control and an automatic frequency brake for rapid deceleration.
Castaly CNC Carving Machine Collet
ER-32 Collet
Industrial collet format for secure tooling grip.
Castaly CNC Carving Machine Spindle Speed
8,000–24,000 RPM
Wide range for different tooling sizes and material needs.
Castaly CNC Carving Machine Speed Control
Inverter
Adjustable RPM for process tuning and finish control.
Castaly CNC Carving Machine Brake
Automatic Frequency Brake
Rapid deceleration supports faster tool changes and shorter cycle time.
Back to top
Castaly CNC Carving Machine Full Specifications
Castaly CNC Carving Machine Core Performance & Utilities
| Castaly CNC Carving Machine Spec |
Value |
| Max working diameter |
10" |
|
Max working speedalso listed: 790 IPM in model table
|
590 IPM |
| Rapid speed (X / Y / Z) |
X: 800 IPM • Y: 800 IPM • Z: 600 IPM |
| Spindle speed range |
8,000–24,000 RPM |
| Spindle speed controller |
Inverter |
| Power (no pump) |
3PH • 220V • 80 AMP |
| Air consumption |
90 PSI • 15 CFM |
| CAD/CAM software |
Optional |
Castaly CNC Carving Machine Model Comparison
| Castaly CNC Carving Machine Model |
RT-3210CAV-8 |
RT-4810-CAV-8 |

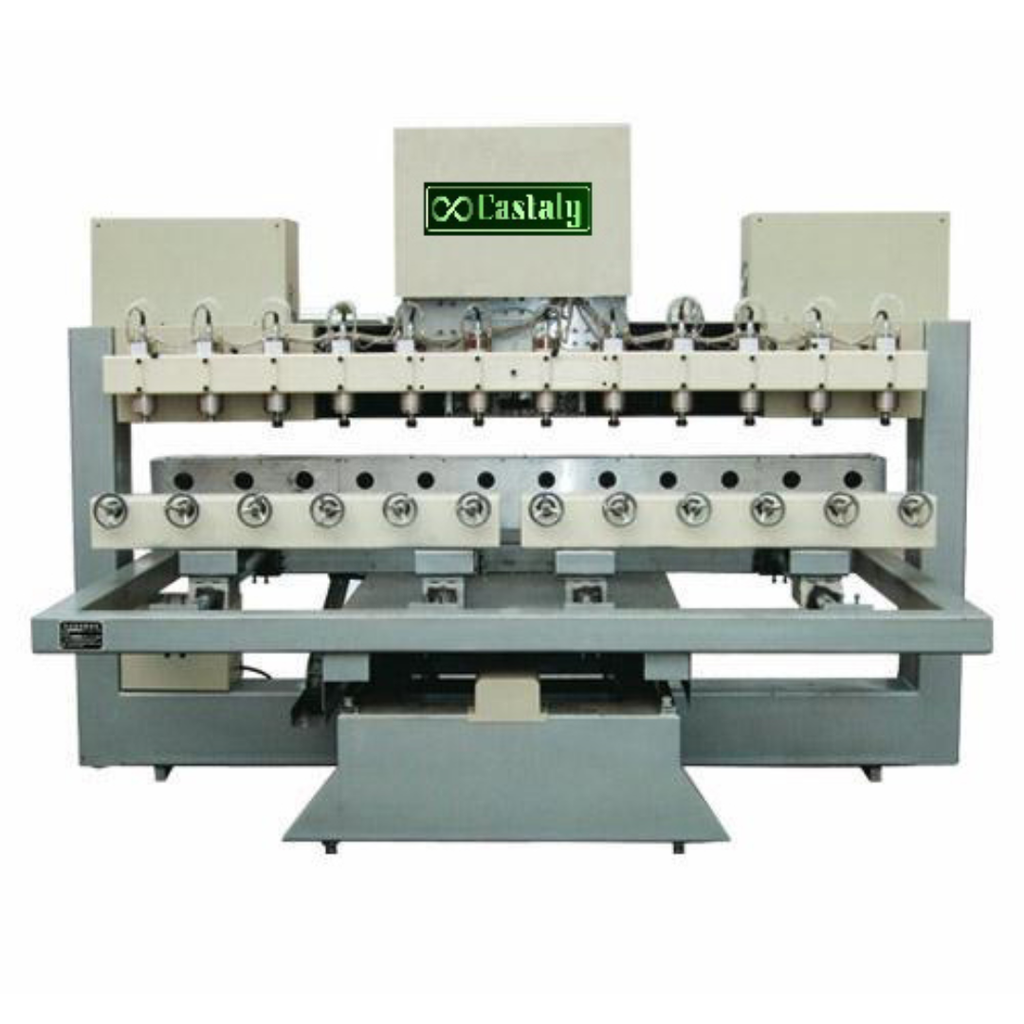

RT-4810-CAV-12 |
| Max working length (X) |
32" |
48" |
48" |
| Max working diameter (Y) |
10" |
10" |
10" |
| Max working depth (Z) |
15-1/2" |
15-1/2" |
15-1/2" |
| Max working speed |
790 IPM |
790 IPM |
790 IPM |
| Carving spindle power (kW) |
2.2 |
2.2 |
2.2 |
| Carving spindle quantity |
8 |
8 |
12 |
| Carving spindle type |
Water cooling |
Water cooling |
Water cooling |
| Carving spindle speed (RPM) |
8,000–24,000 |
8,000–24,000 |
8,000–24,000 |
| Repeat position precision |
0.05 mm |
0.05 mm |
0.05 mm |
| Maximum loading weight capacity |
400 LBS |
400 LBS |
400 LBS |
Castaly CNC Carving Machine Table Size & Load Ratings (Data Sheet)
| Castaly CNC Carving Machine Spec |
RT-3210CAV-8 |
RT-4810CAV-8 |
| Table size |
48" × 76" |
59" × 98" |
|
Max working lengthalso listed as 48" in model table
|
32" |
47" |
| Max working weight |
1700 LBS |
1800 LBS |
Castaly CNC Carving Machine Spec Note
Some provided specs show different values (example: max working speed 590 IPM vs 790 IPM, and max length 47" vs 48"). Use your final factory quote/spec sheet as the source of truth for the exact configuration.
Back to top
Castaly CNC Carving Machine Site Requirements
The Castaly CNC Carving Machine is an industrial CNC system. Before delivery, confirm utilities, airflow, and space planning so installation and commissioning go smoothly.
Castaly CNC Carving Machine Electrical
3PH • 220V • 80 AMP (No pump)
Verify facility supply matches the machine configuration and any installed options.
Castaly CNC Carving Machine Air
90 PSI • 15 CFM
Provide stable compressed air for pneumatic and supporting functions.
Castaly CNC Carving Machine Space Planning
Machine + access + staging
Include operator clearance, maintenance access, material staging, and safe loading/unloading routes.
Castaly CNC Carving Machine Software Workflow
G-code + optional CAD/CAM
Confirm who generates programs and whether DXF import/edit workflow is required.
Castaly CNC Carving Machine Compliance Note
Customer is responsible for local regulations and utilities connecting. Verify electrical codes, air line standards, and shop safety requirements.
