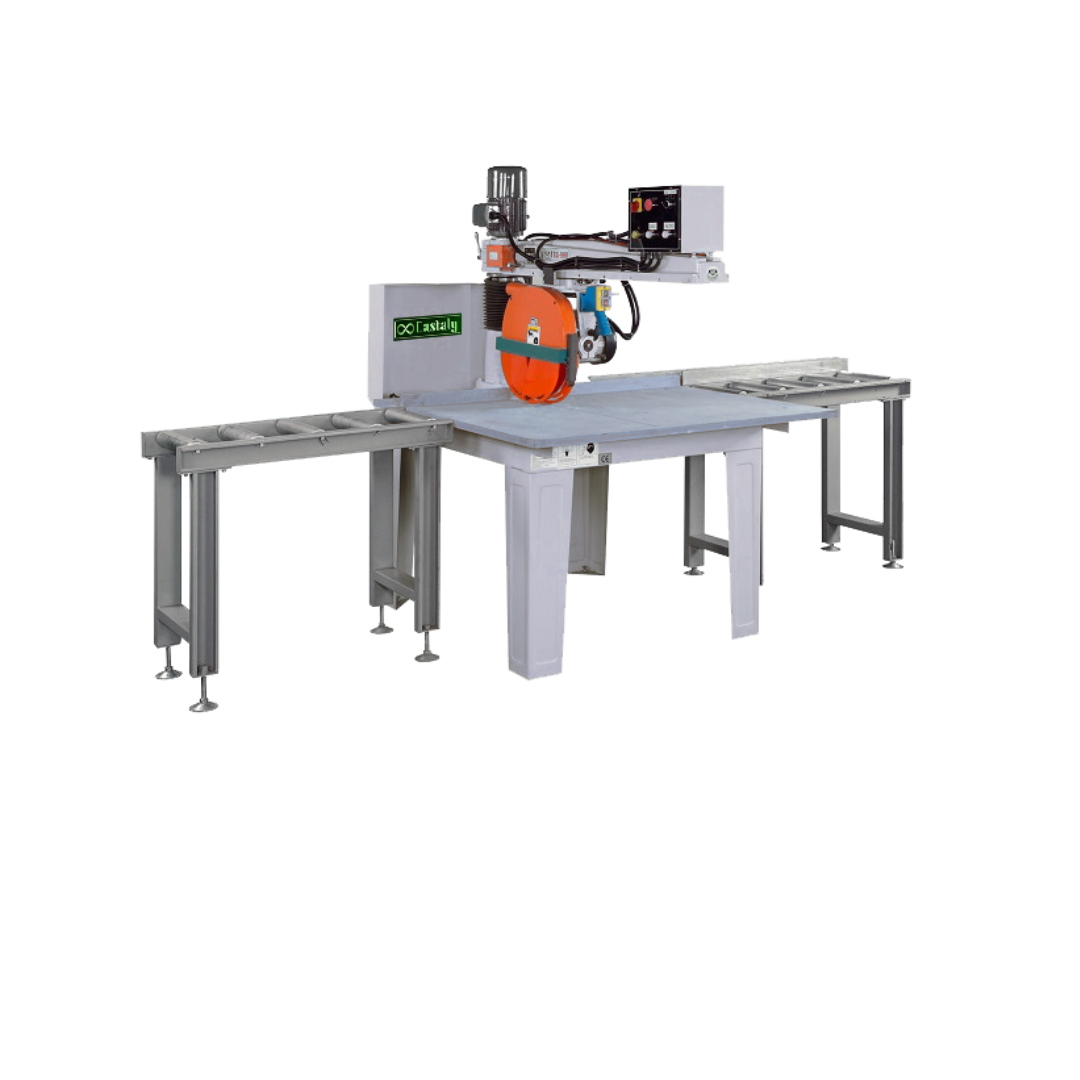

Castaly Automatic Cutting 16" Radial Arm Saw RS-660-AO Applications
- High-volume crosscutting production lines
- Cabinet and furniture manufacturing facilities
- Automated length cutting for lumber and panels
- Industrial woodworking plants requiring labor-saving equipment
- Repeat precision cutting operations with consistent cycle timing
Designed for fast-paced production environments where automation improves efficiency and output consistency.
Castaly Automatic Cutting 16" Radial Arm Saw RS-660-AO Specifications
| Model | RS-660-AO |
|---|---|
| Main Motor | 4.5 HP, 3 Phase, 230V |
| Motor Speed | 2,900 RPM |
| No. of Head Travel Bearings | 8 |
| Spindle Diameter | 1" |
| Saw Blade Diameter | 14" – 16" |
| Max. Depth of Cut | 4-1/2" |
| Max. Cross Cut Length | 31-1/2" |
| Feed Motor | 1 HP (Motorized Cutting Cycle) |
| Table Size (L × W) | 35" × 43-1/4" |
| Machine Size | 57" × 43-1/4" × 74" |
| Net Weight | 1,160 lbs |
Castaly Automatic Cutting 16" Radial Arm Saw RS-660-AO Performance & Construction
- Automatic motorized cutting cycle improves productivity, reduces operator fatigue, and increases cutting speed for high-output operations.
- Integrated laser guide system projects a straight cutting line for precise material alignment.
- Hardened and precision-ground rail ensures maximum wear resistance and long-term sliding accuracy.
- Eight ball-bearing head travel system provides smooth, stable, and effortless movement.
- One-piece cast iron arm enhances structural rigidity and minimizes vibration.
- High-performance self-braking motor improves safety by reducing blade coast-down time.

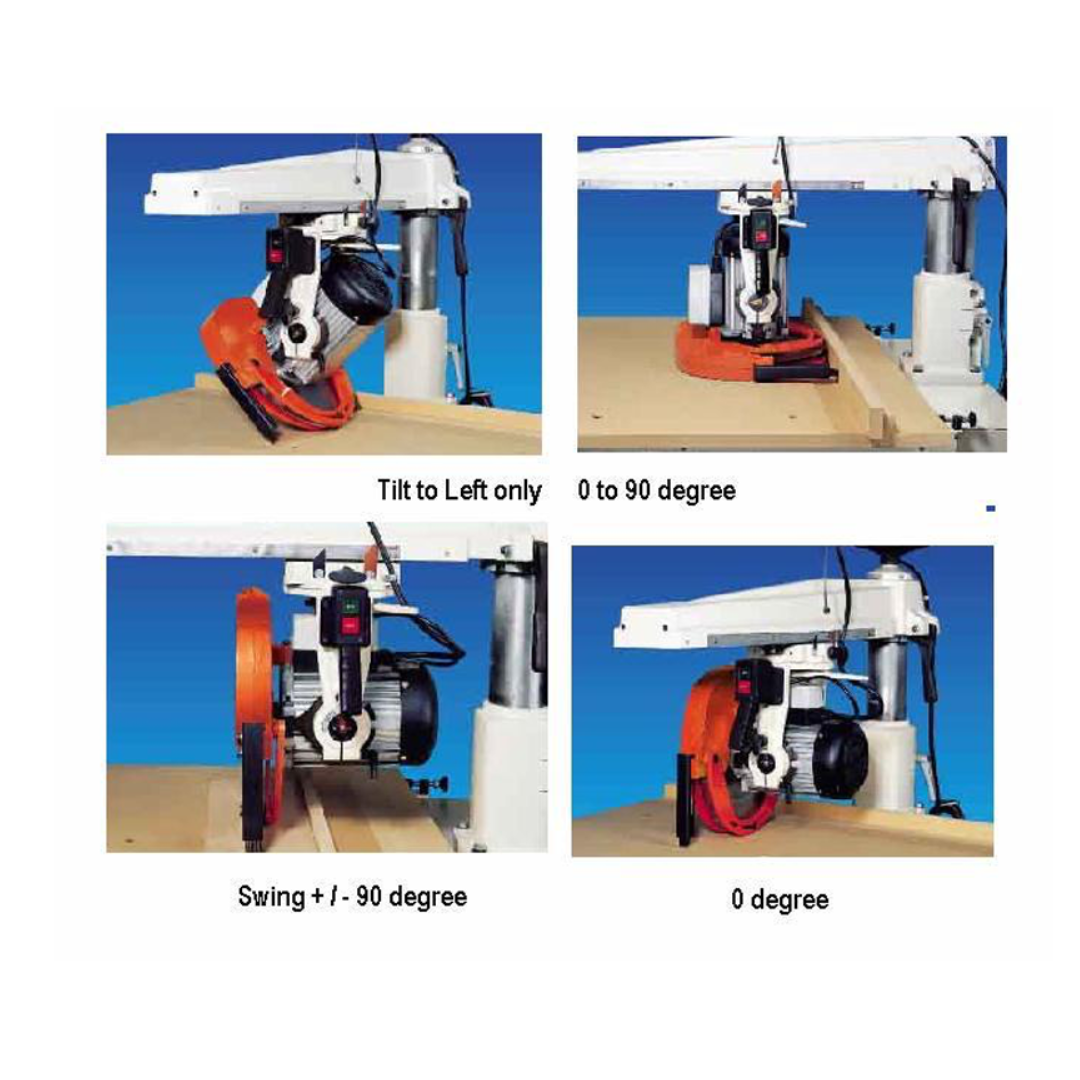

- Adjustable angle positioning allows the saw head to be firmly set at any required cutting angle.
- Heavy-duty safety blade guard enhances operator protection.
- Anti-kickback attachment included to increase operational control and safety.
- Overload protection switch safeguards the motor system during demanding cutting cycles.
- Heavy sheet metal stand and frame provide industrial stability and long-term durability.
Why Choose the Castaly Automatic Cutting 16" Radial Arm Saw RS-660-AO
- Motorized automatic cutting cycle for faster production and reduced labor.
- Powerful 4.5 HP industrial motor with 1 HP feed motor system.
- Precision-ground rail and ball-bearing travel for smooth, accurate cuts.
- Heavy-duty 1,160 lb construction for maximum stability.
- Comprehensive safety features including self-braking motor and overload protection.
The Castaly Automatic Cutting 16" Radial Arm Saw RS-660-AO delivers automated efficiency, industrial durability, and precision performance—making it an ideal solution for production facilities seeking higher output with consistent cutting accuracy.
