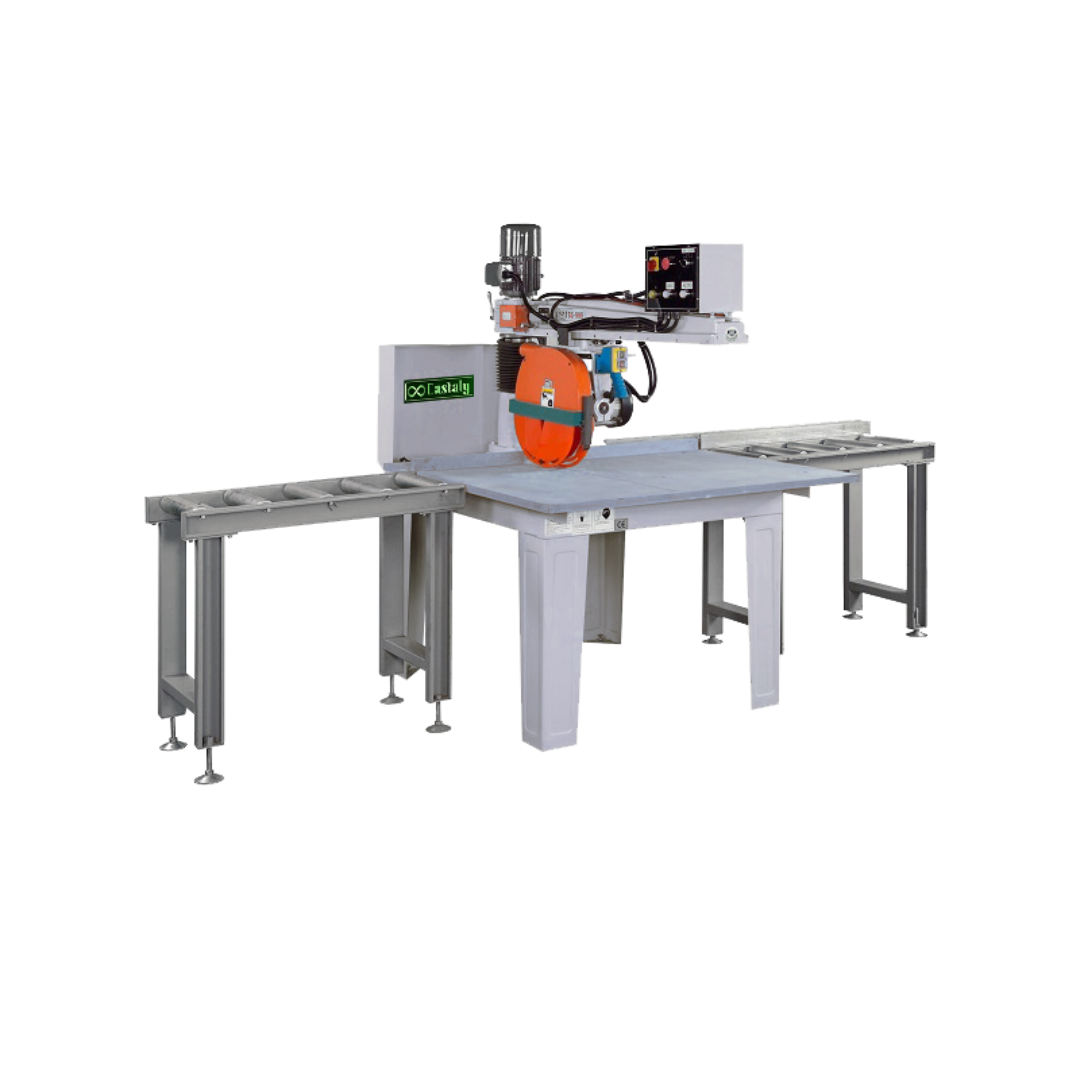

Castaly Automatic Cutting 14" Radial Arm Saw RS-640-AO Applications
- Automated crosscutting production lines
- Cabinet and furniture manufacturing facilities
- High-volume lumber and panel length cutting
- Industrial woodworking plants seeking labor-saving solutions
- Repeat precision cutting with controlled motorized feed cycles
Designed for fast-paced production environments requiring consistent accuracy and improved workflow efficiency.
Castaly Automatic Cutting 14" Radial Arm Saw RS-640-AO Specifications
| Model | RS-640-AO |
|---|---|
| Main Motor | 4.5 HP, 3 Phase, 230V |
| Motor Speed | 3,400 RPM |
| No. of Head Travel Bearings | 8 |
| Spindle Diameter | 1" |
| Saw Blade Diameter | 12" – 14" |
| Max. Depth of Cut | 3-1/2" |
| Max. Cross Cut Length | 24" |
| Saw Travel Motor | 1 HP (Motorized Feed System) |
| Table Size (L × W) | 24" × 43-1/4" |
| Machine Size | 45" × 44" × 69" |
| Net Weight | 1,050 lbs |
Castaly Automatic Cutting 14" Radial Arm Saw RS-640-AO Performance & Construction
- Automatic motorized cutting cycle increases productivity, reduces operator fatigue, and ensures consistent cut timing.
- Laser cutting guide clearly displays the straight cutting line for accurate material alignment.
- Hardened and precision-ground rail provides superior wear resistance and long-term slide accuracy.
- Eight ball-bearing head travel system ensures smooth and effortless saw head movement.
- One-piece cast iron arm construction enhances structural rigidity and vibration control.
- High-performance self-braking motor improves operational safety by minimizing blade stopping time.

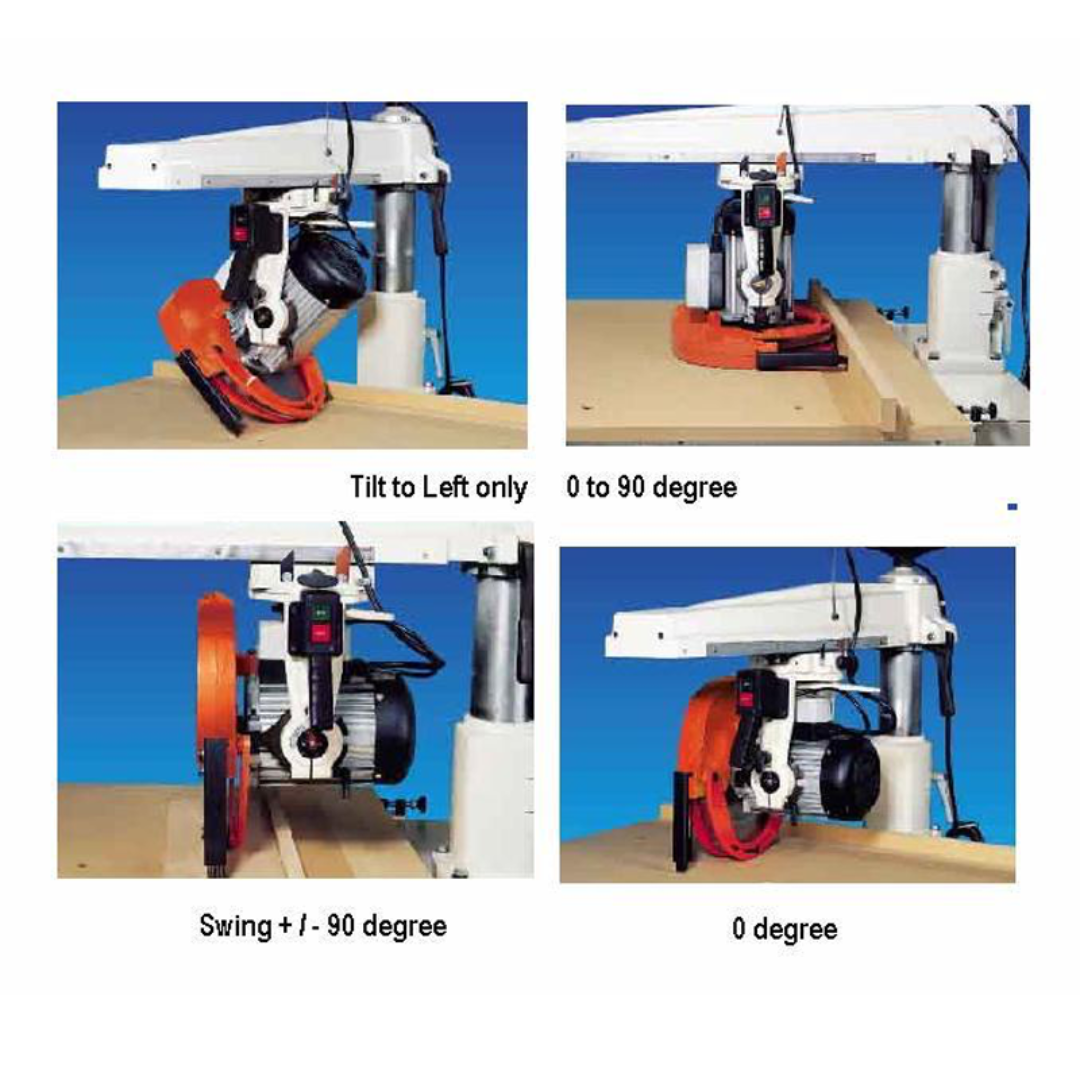

- Adjustable angle positioning allows the saw head to be firmly set at any required cutting angle.
- Heavy-duty safety blade guard enhances operator protection during cutting operations.
- Anti-kickback attachment included for improved control and safer material handling.
- Overload protection switch protects the motor system under demanding production cycles.
- Heavy sheet metal stand provides industrial stability and long-term durability.
Why Choose the Castaly Automatic Cutting 14" Radial Arm Saw RS-640-AO
- Motorized automatic cutting cycle for faster and more efficient production.
- Powerful 4.5 HP industrial motor with dedicated 1 HP feed motor.
- Precision-ground rail system for smooth, accurate head travel.
- Heavy-duty 1,050 lb construction for maximum stability.
- Comprehensive safety features including self-braking motor and overload protection.
The Castaly Automatic Cutting 14" Radial Arm Saw RS-640-AO delivers automated efficiency, precision performance, and industrial durability—making it an ideal solution for woodworking facilities focused on productivity and consistent cutting accuracy.
