Capacity: 0–2000 mm cutting length • 0–120 mm cutting height • 150 mm cutting depth • ±45° cutting angle • 2000 × 1000 × 120 mm max board size
Hardware: 840 mm flywheel diameter • 45 mm flywheel width • L5660 × W13 mm blade size • 45 kgs hydraulic pump capacity • Centric clamp feed plate • Cast iron table
Dimensions: 510 × 320 × 270 cm machine footprint • 4000 kgs net weight • 4300 kgs gross weight
Estimated Delivery Timeline
Order Placed
Ships Out
Delivered
*Please Note: This timeline is an estimate. Certain products may require an additional 1 week for manufacturing. Please speak with your sales rep, Matthew, for official details and confirmation before placing your order.
CALL US FOR THE MOST ACCURATE AND COMPETITIVE LTL SHIPPING RATE, (888) 308-5580
Roll over image to zoom inClick on image to zoom
/
Get Questions Answered Fast
Experience: 20+ Years B2B•Origin: US-Based Support
EXPRESS SHIPPING
Most orders process in 1-3 days. Yes, even if it weights 400lb
Hassle-Free Returns
No restocking fees. Ever.
Manufacturer Warranty
Fully backed by the brands you trust.
Dedicated Rep Mathew
Speak to a US-Based Equipment Specialist: (888) 308-5580

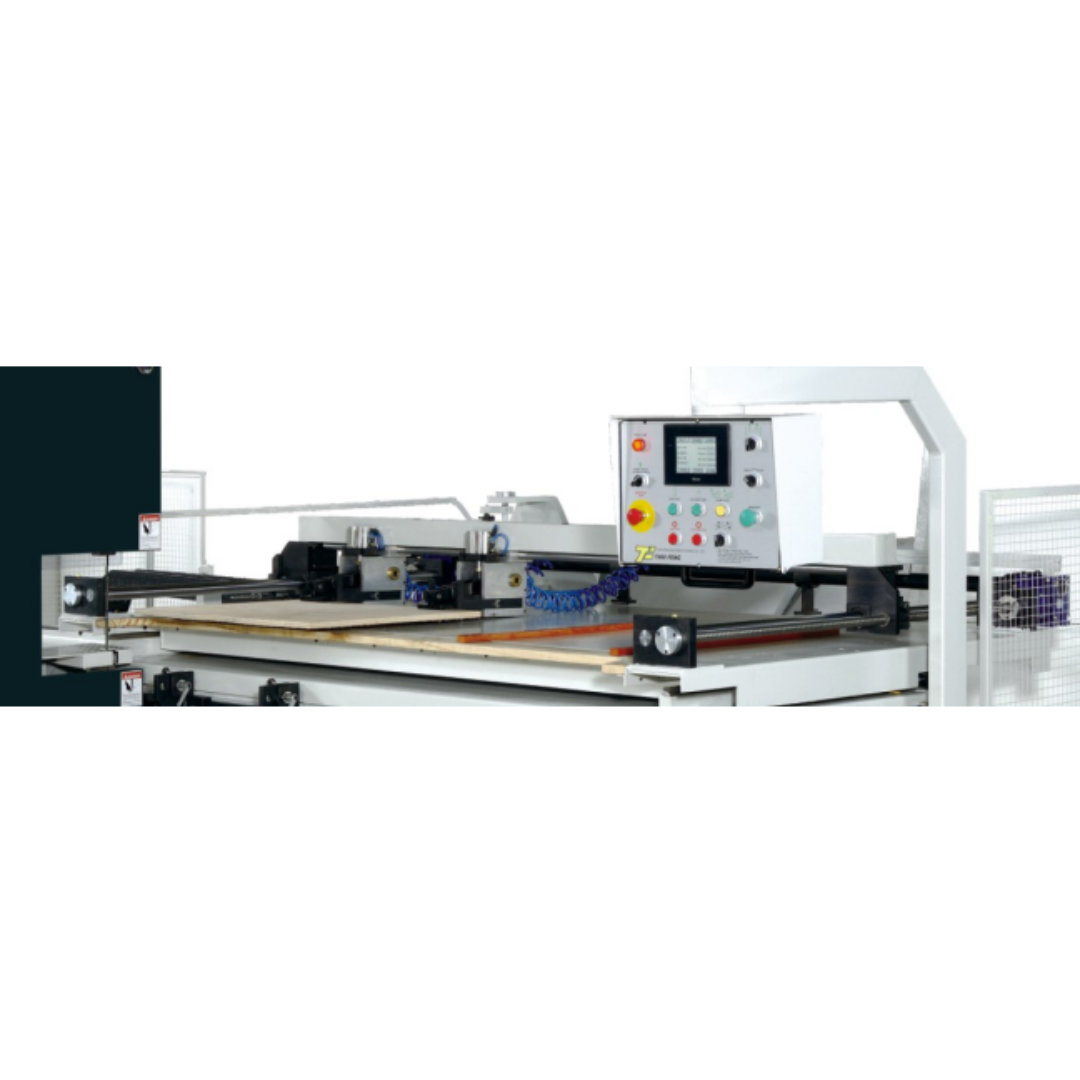

The Castaly Auto Copy Band Saw is engineered for fast, repeatable cutting of shaped panel parts—especially chair and sofa frame components, laminated wood panels, and shaped timber/panel work. With a variable-speed moving table, automatic saw head feed that slows at the workpiece, and production-focused clamping and feed fittings, this machine is built to reduce marks, improve finish quality, and keep output high all day long.
Shaped Panel Copy Cutting5–6 Pieces / MinuteAuto Slow-Down Feed±45° Cutting Angle15 HP Main MotorHydraulic + PneumaticHeavy-Duty Frame
Castaly Auto Copy Band Saw Overview
The Castaly Auto Copy Band Saw is a specialized production band saw designed to cut shaped parts quickly and accurately. It’s built around a moving table system with variable speed, an automatic saw head feed that slows as it approaches the workpiece, and a control layout meant for high-volume operation. The result: repeatable shaped cuts, clean starting points, and less operator “touch” required to keep parts consistent.
Castaly Auto Copy Band Saw Output
5–6 Pieces / Minute
Designed for continuous operation without frequent stops throughout the workday.
Castaly Auto Copy Band Saw Cutting Envelope
Up to 2000 mm length • 120 mm height
Supports longer shaped components and repeated furniture part production.
Castaly Auto Copy Band Saw Angle Capability
+45° / -45°
Angle cutting support for shaped parts requiring bevel or angled profiles.
Castaly Auto Copy Band Saw Main Drive
15 HP
Heavy-duty industrial motor built for maximum cutting capacity.
Castaly Auto Copy Band Saw Key Advantage
Automatic slow-down as the saw head approaches the workpiece helps prevent bump marks and improves the finish at the start point.
The Castaly Auto Copy Band Saw is designed specifically for shaped panel production where speed and repeatability matter. It is particularly suitable for the following use cases:
Chair and sofa frame parts: Shaped components produced in high volume with consistent geometry.
Laminated wooden panels: Cutting laminated panels where clean edge quality and consistent tracking are important.
Timber and shaped panels: Panels with shape features that require steady table movement and stable control.
Small workpieces and detailed furniture parts: Works well with medium/small panels and more complicated shapes.
Complicated sharp objects: Suitable for parts with tighter profiles where stability reduces mistakes.
Castaly Auto Copy Band Saw Production Intent
This machine is built to reduce cost per part by increasing throughput and minimizing rework from cutting marks and inconsistent starts.
Castaly Auto Copy Band Saw Performance & Speed Control
A production machine is only valuable if it stays fast without sacrificing consistency. The Castaly Auto Copy Band Saw is designed to keep cutting speeds high while maintaining accuracy and finish quality—especially around the first contact point.
Fast cutting operation + accuracy: Engineering design focuses on stable cutting and repeatable results.
Variable speed moving table: Allows the operator to run at any cutting speed up to maximum.
Adjustable feed rate: Dial in feed to match stock thickness and the complexity of the component shape.
Automatic slow-down approach: Saw head feed slows as it approaches the workpiece to prevent bumps and start-point marks.
Smooth finish: Reduced marking at start point helps improve final appearance and reduces sanding/rework time.
Castaly Auto Copy Band Saw Table Forward Speed
0–16 m/min
Controlled forward feed speed range for matching different materials and part shapes.
Castaly Auto Copy Band Saw Table Return Speed
35 m/min
Fast return movement improves cycle time and helps maintain high parts-per-minute output.
Castaly Auto Copy Band Saw Controls & Operator Workflow
The Castaly Auto Copy Band Saw is built to reduce operator confusion during high-speed production. Controls are consolidated and arranged for practical use, making touch-up and daily operation simpler.
Centralized control box: Primary operation controls are concentrated in the control box for efficient workflow.
Well-arranged control panel: Controls are laid out for easier touch-up and operation.
Easy setup at any position: Supports quick setup changes and reduced downtime between different part runs.
Castaly Auto Copy Band Saw Operator Advantage
Simple control access helps keep the focus on throughput and consistency instead of constant adjustments.
Castaly Auto Copy Band Saw Material Handling & Standard Fittings
The Castaly Auto Copy Band Saw includes standard fittings intended to help stabilize parts and keep feeding consistent. This is especially important for shaped furniture components and smaller workpieces that can shift during high-speed movement.
Centric clamp feed plate: Standard fitting designed for stable feeding of chair parts, medium and small panels, and similar components.
Optimized for shaped components: Suited for furniture parts with curves, angles, and profiles that need consistent handling.
Adjustable feed to match thickness and shape: Helps maintain optimum output without forcing too aggressive a cut.
Castaly Auto Copy Band Saw Output Tip
For maximum parts-per-minute, keep clamp surfaces clean, confirm consistent stock thickness, and set feed rate to match the tightest curve in the component.
Castaly Auto Copy Band Saw Heavy-Duty Construction
A high-output machine must stay stable under continuous load. The Castaly Auto Copy Band Saw uses heavy structural components to support cutting stability, durability, and long service life in production environments.
Heavy-duty industrial motor (15 HP): Built for maximum cutting capacity and all-day output.
Precision sealed long-life high-speed bearings: Designed for durability and production usage.
Heavy sheet metal frames: Adds rigidity for consistent tracking and reduced vibration.
Cast iron table: Stable work surface for repeatable cutting and improved finish control.
Castaly Auto Copy Band Saw Hydraulic Unit Motor
3 HP
Supports hydraulic functions required for consistent machine operation.
Castaly Auto Copy Band Saw Pneumatic Pressure
6 kgs
Provides pneumatic support for machine functions and clamping/handling as configured.
The Castaly Auto Copy Band Saw is a large industrial machine (4000 kg net weight). Before delivery, confirm floor space, access routes, and required utilities so installation and commissioning go smoothly.
Space planning: Allow room for the full machine footprint plus safe loading/unloading lanes for 2000 mm material movement.
Rigging access: Plan forklift/rigging routes for heavy equipment handling (4000–4300 kg).
Pneumatics: Provide stable air supply consistent with the machine’s pneumatic pressure requirement.
Hydraulic system: Confirm hydraulic unit placement and maintenance access for long-term reliability.
Compliance: Customer is responsible for local regulations and utilities connecting.
Castaly Auto Copy Band Saw Install Planning Tip
For high-throughput production, plan dedicated staging space for incoming blanks and outgoing finished parts to avoid interrupting cycle time.
Run the exact engineering math you need to validate CFM, ROI, and OSHA compliance—before you spend a dime.
LAUNCH FREE TOOLSUITE
×
Engineering Toolsuite
Industrial calculations for facility planning and financial justification.
1. Facility & Utility Sizing
Airflow, thermal load, and suction requirements.
→
2. Safety & OSHA Compliance
Noise limits, combustible dust, and shop layout safety.
→
3. CAPEX & Strategic Analysis
Section 179, Labor ROI, and downtime revenue loss.
→
Facility & Utility Sizing
Airflow Sizer (CFM)
Calculate ventilation for cooling and air quality.
Dehumidification (PPD)
Determine moisture removal for curing or climate control.
Dust Collection (CFM)
Required suction for material extraction.
Machine Thermal Load
Size cooling based on machine BTU output.
Safety & OSHA Compliance
OSHA Noise Exposure
Calculate daily noise dose and legal limits.
Combustible Velocity
Required FPM to move materials safely through ducting.
Heat Stress Index
Workplace danger zones based on heat and humidity.
Safe Machine Spacing
Physical footprint including material handling clearance.
CAPEX & Strategic Analysis
Section 179 Savings
Immediate tax deduction for equipment purchase.
Cost of Inaction
Revenue bleed from legacy equipment downtime.
Labor ROI (Payback)
Months until machine labor savings covers the cost.
Material Waste Savings
Monthly profit increase from scrap reduction.
Airflow Sizer
Recommended Airflow:
0 CFM
Dehumidification
Moisture Removal:
0 PPD
Dust Collection
Min. Suction Needed:
0 CFM
Machine Thermal Load
Heat Output:
0 BTU/hr
Cooling: 0 Tons
OSHA Noise Dose
Daily OSHA Dose:
0%
Duct Velocity
Required Volume:
0 CFM
Heat Stress Index
Feels Like:
0 °F
Safe Footprint
Safe Shop Area:
0 Sq Ft
Section 179 Savings
Tax Savings:
$0
Net Cost: $0
Cost of Inaction
Monthly Loss:
$0
Labor ROI
Payback Period:
0 Months
Waste Reduction
Monthly Savings:
$0
Request Expert Consultation
Our tool specialists are ready to help you find the perfect solution for your specific application.
CAPITAL ACCESS
EQUIPMENT FINANCING
AVAILABLE
Preserve cash flow with up to 60 month financing.
Job Site Proven
Trusted by Facilities and manufacturing centers
Natalie Ochoa | Lingua FrancaField Verified
The Air Compressor at Lingua Franca
"Hi!
We currently have the compressor in-house in our machine embroidery production studio. It's been working great for us!
Thank you for reaching out. I've attached an image of the compressor in our studio.
Best,
Natalie"
"Saw works great. Just what I needed. You may want to update the specs though. It says 110v but it’s 220v. I don’t think it will an 10” saw blade either. Haven’t tried but I don’t think it’s set up for one like it says. Ordering process was nice and easy. Thank you."
"Got the JLT #717C for our shop and it’s an absolute beast for narrow stile doors. The 2-second squaring cycle is legit—we’re easily pushing 100+ perfect doors a day now without stressing over glue joint alignment. Setup is super fast with the pin system, and the heavy-duty build takes daily abuse without losing accuracy."
Lincoln Lakes Ind | Lincoln Lakes Industries LLCField Verified
Thanks for the service!
"Here are 2 pictures of the glue tank in our shop. I hesitated to send anything as it is not in its final place but perhaps it's good enough for you. We are using it for our drawer box station and assembly station. Thanks for the service!"
"haven't had a chance to use it but it looks like a well built product have a few projects down the road and I know this will meet my requirements. so hats off to your team! David"
Stuart Casterlin | Stuart Casterlin Custom Cabinets and Fine Woodworking, Inc.Field Verified
Both Tools Work Great
"Both tools work great and are real time savers . The two tools that I received from your company were replacements for the exact same tools that I've used for the past years, I think its safe to say 20+ years. Extremely pleased with product and service."
"Bought this California Air Tools compressor for the shop and it’s an absolute game changer. It’s incredibly quiet—you can actually have a normal conversation right next to it without yelling. It fills up fast, keeps up with all our nailers and blowguns with zero issues, and the oil-free pump means no maintenance. If you're tired of loud, annoying compressors ruining the vibe on your floor, grab this bad boy. Worth every penny."
Mark D. | Machine Shop ForemanField Verified
Heavy Duty & Precise
"Brought this Jet 16" x 40" Engine Lathe into the shop recently and it’s an absolute beast. The 3-1/8" spindle bore is exactly what we needed for turning larger bar stock, and the geared head runs incredibly smooth from 25 all the way up to 1,800 RPM. It handles our heavy daily metalwork without breaking a sweat, and you can see how solid the build is right in the photo. If you need a reliable 3-phase lathe that holds tight tolerances all day, grab this bad boy. Worth every penny."
"I believe they are working well judging by none of the guys have said anything about them other than a thank you for swapping them out for them hahah. So thanks for checking in."
The Castaly Auto Copy Band Saw is built for cutting shaped panel parts, especially chair and sofa frame components, laminated wood panels, and shaped timber/panel work.
The Castaly Auto Copy Band Saw is designed to output 5 to 6 parts per minute.
The maximum board size on the Castaly Auto Copy Band Saw is 2000mm long x 1000mm wide x 120mm high.
The saw head's feed automatically slows down as it approaches the workpiece, which helps prevent bump marks and start-point marking on the cut.
The Auto Copy Band Saw runs on a 15 HP main flywheel drive motor, a 3 HP hydraulic unit motor, and 6 kgs of pneumatic pressure.
The Castaly Auto Copy Band Saw has a footprint of 510 x 320 x 270 cm and weighs 4000 kg net (4300 kg gross).
