Castaly Auto 24" Feed through Spray Booth 6 Guns TS-24ATSP Applications
- Profile strips and linear moldings finishing
- Simultaneous two-edge spraying in a single pass
- Four-edge panel spraying in one continuous operation
- Cabinet door and furniture component finishing lines
- Production environments requiring fast, repeatable coating cycles
Designed for manufacturers that require high-speed, automated finishing with reduced overspray and improved coating uniformity.
Castaly Auto 24" Feed through Spray Booth 6 Guns TS-24ATSP Specifications
| Model | TS-24ATSP |
|---|---|
| Maximum Working Width | 24" |
| Minimum Working Length | 3-1/2" |
| Maximum Working Length | Infinite |
| Maximum Working Thickness | 2-1/2" |
| Feed Speed | 33 ~ 96 FPM (Variable) |
| Spray Guns | 6 PCS |
| Pneumatic Paint Pump | 1 Set (Standard) |
| Main Motor | 5 HP |
| Machine Dimensions (L × W × H) | 138" × 73" × 78" |
| Net Weight | 3960 LBS |
Castaly Auto 24" Feed through Spray Booth 6 Guns TS-24ATSP Performance & Construction
- Advanced PLC Control System allows easy operator setup and flexible parameter adjustment for different product sizes and coating requirements.

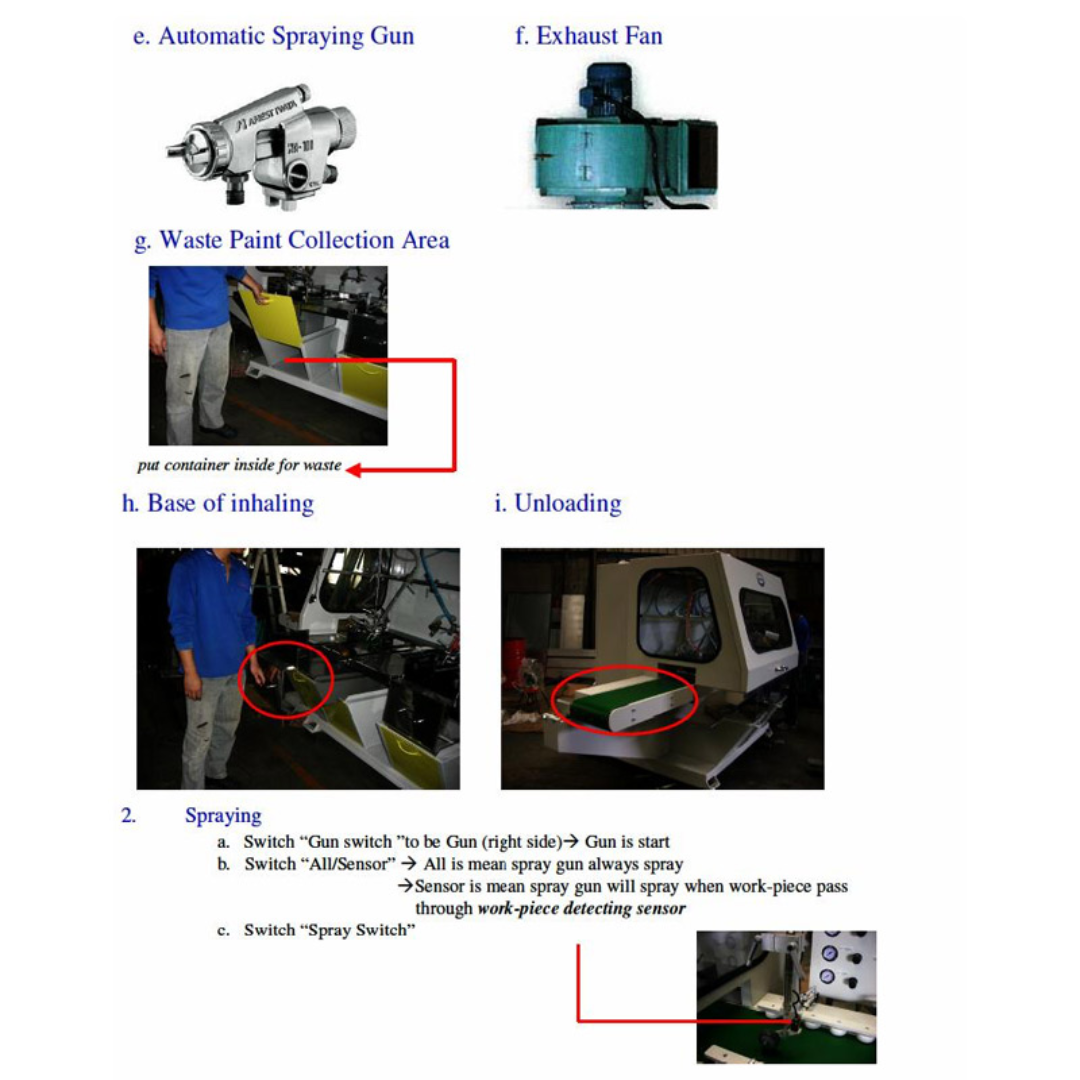

- Photocell-Activated Spray Guns automatically control spray timing, reducing overspray and optimizing paint consumption.
- Independent Paint Volume Adjustment for each spray gun ensures precise coating thickness and balanced coverage.
- High-Speed Feed System (33–96 FPM) with variable control delivers optimal finish quality across different materials.
- Multi-Edge Spraying Capability processes two edges of profile strips or four edges of panels in a single pass for higher productivity.
- Dual Paint Collection Trays capture unused coating material for reuse, minimizing waste and lowering operating costs.
- Powerful Collection Fan with Filtration purifies exhaust air and maintains a cleaner working environment.
- Total Enclosed Cabinet Design constructed from heavy sheet metal to prevent pollution and contain overspray.
- See-Through Viewing Window allows safe monitoring of internal spray operations.
- Standard Configuration includes one pneumatic paint pump and four spray guns, with additional spray guns available as optional upgrades.
Why Choose the Castaly Auto 24" Feed through Spray Booth 6 Guns TS-24ATSP
- Fully automated PLC-controlled spraying for consistent industrial results.
- Photocell sensor technology to reduce material waste and improve efficiency.
- Flexible multi-gun system for profiles and panel edge coating.
- Variable speed feed system for superior surface finish control.
- Heavy-duty enclosed structure for safe, clean, and compliant operation.
The Castaly Auto 24" Feed through Spray Booth 6 Guns TS-24ATSP delivers high-speed, precision-controlled finishing performance for manufacturers seeking efficiency, repeatability, and professional-grade coating quality in a fully enclosed automated system.
