Castaly Auto 12" Feed through Spray Booth TS-12ATSP Applications
- Profile strips and linear moldings finishing
- Two-edge spraying in a single pass
- Four-edge panel edge coating in one continuous operation
- Cabinet door components and furniture parts
- High-speed production lines requiring automated spray control
Ideal for manufacturers seeking precise, repeatable spray finishing with reduced material waste and enclosed environmental control.
Castaly Auto 12" Feed through Spray Booth TS-12ATSP Specifications
| Model | TS-12ATSP |
|---|---|
| Maximum Working Width | 12" |
| Maximum Working Thickness | 3-1/2" |
| Maximum Working Length | Infinite |
| Minimum Working Length | 19" |
| Feed Speed (Variable) | 32 ~ 96 FPM |
| Air Spray Guns | 4 PCS |
| Pneumatic Paint Pump | 1 Set |
| Exhaust Fan Motor | 3 HP |
| Machine Size (L × W × H) | 138" × 62" × 99" |
| Net Weight | 3200 LBS |
Castaly Auto 12" Feed through Spray Booth TS-12ATSP Performance & Construction

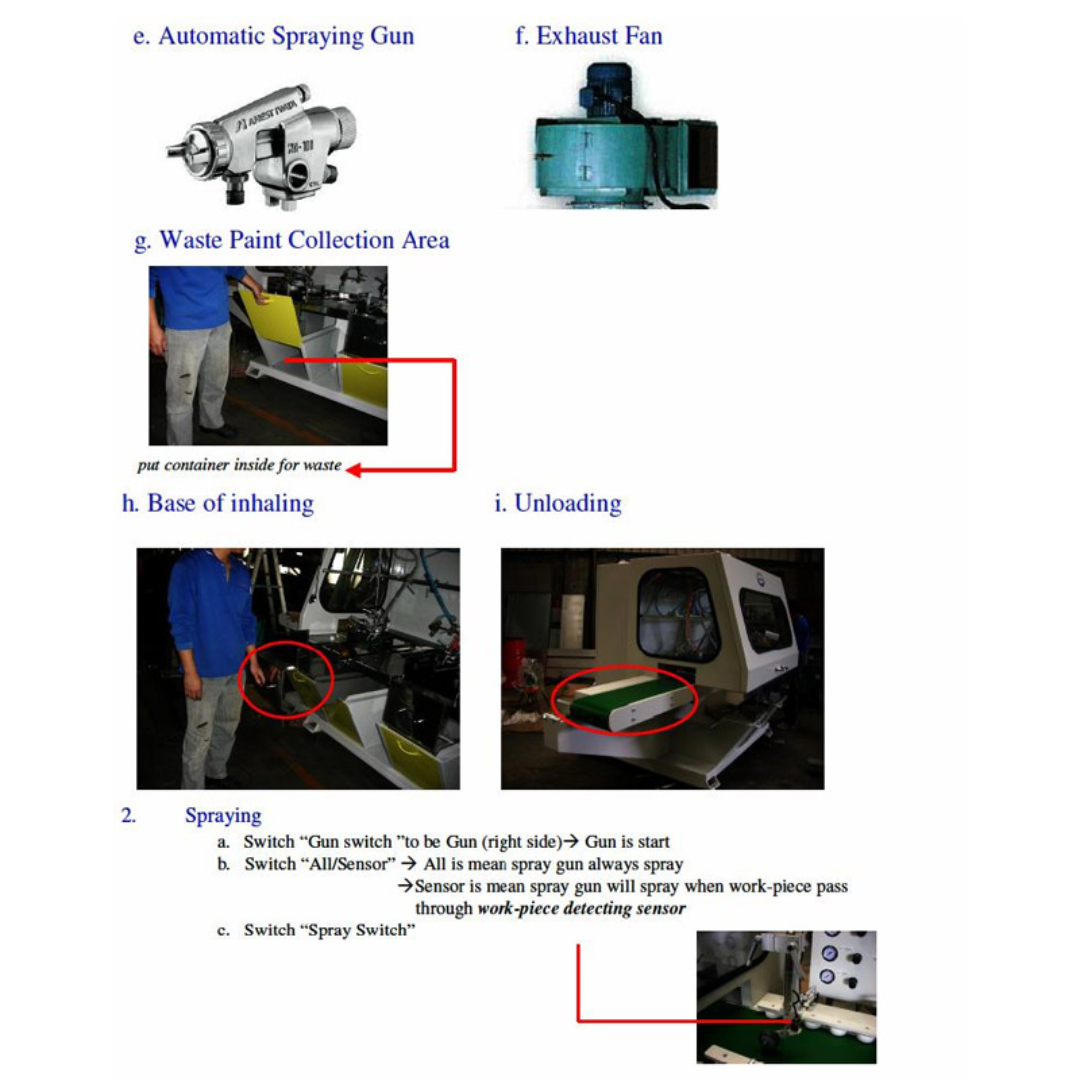

- Advanced PLC Control System enables simple operator setup and flexible adjustment for varying product sizes and coating requirements.
- Photocell Sensor-Controlled Spray Guns automatically activate based on workpiece detection, reducing overspray and saving coating material.
- Independent Paint Volume Adjustment allows precise control of each spray gun for uniform film thickness and superior finish quality.
- Variable Feed Speed (32–96 FPM) ensures optimal coating performance across different materials and finishing specifications.
- Multi-Edge Spraying Capability efficiently processes profile strips or panel edges in a single pass to maximize productivity.
- Dual Paint Collection Trays collect unused paint for reuse, lowering operating costs and minimizing waste.
- Powerful 3 HP Exhaust Fan with Filtration purifies air and supports a cleaner working environment.
- Total Enclosed Heavy Sheet Metal Cabinet prevents pollution and contains overspray within the system.
- See-Through Viewing Window allows safe monitoring of internal spray operations.
- Standard Equipment includes one pneumatic paint pump and four spray guns, with additional spray guns available as optional upgrades.
Why Choose the Castaly Auto 12" Feed through Spray Booth TS-12ATSP
- Compact yet powerful automated spray solution for production lines.
- PLC and photocell automation for material savings and consistent results.
- Variable speed conveyor for superior finish control.
- Fully enclosed, heavy-duty construction for cleaner and safer operation.
- Optimized for efficient profile and panel edge finishing.
The Castaly Auto 12" Feed through Spray Booth TS-12ATSP provides precision-controlled, enclosed automatic finishing performance for manufacturers requiring reliable, high-quality coating results in a compact industrial system.
