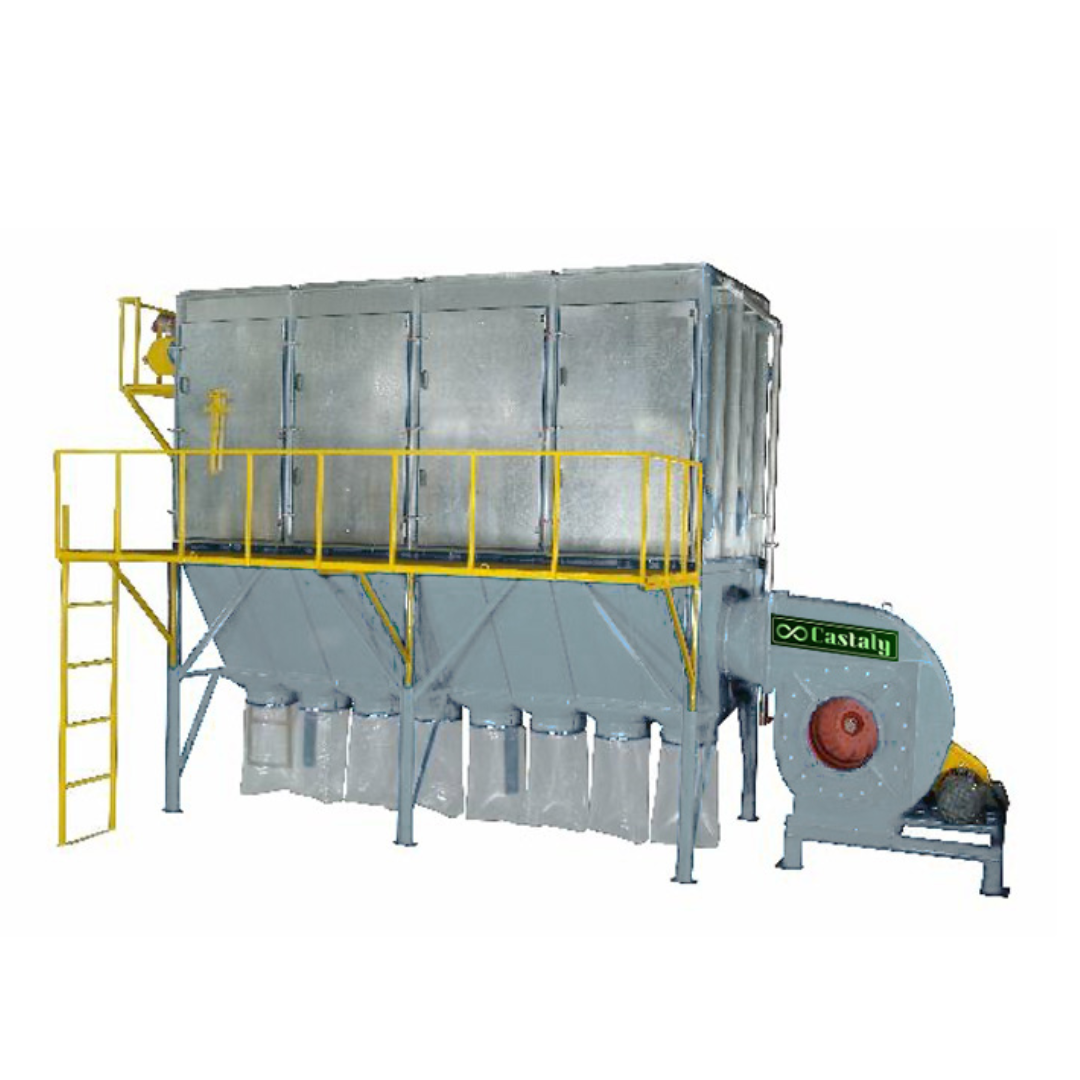

Who the Castaly 50 HP Outdoor Dust Collect System Is For
The Castaly 50 HP Outdoor Dust Collect System is engineered for operations that generate significant volumes of wood dust, MDF dust, sanding debris, and production waste.
- Large cabinet and kitchen manufacturers running multiple CNC routers and edge banders.
- Furniture production facilities operating high-speed saws, sanders, and machining centers.
- Architectural millwork shops with continuous panel processing.
- Factories requiring centralized dust collection for multiple workstations.
- Facilities seeking to reduce indoor dust load by installing an outdoor collection system.
Integrated All-in-One Dust Management
The Castaly 50 HP Outdoor Dust Collect System performs four essential functions within a single industrial unit:
- Collecting: High-efficiency suction draws dust from connected machinery.
- Filtering: Needle-felt top bags provide optimum filtration efficiency.
- Storage: Lower collection trucks and storage space retain dust safely.
- Out Feeding: Rotary valve system automatically discharges collected material.
This integrated design reduces the need for separate handling equipment and simplifies maintenance and waste management procedures.
High-Efficiency Filtration System
- 96 filter bags, each 6" diameter.
- Needle-felt top bags for superior dust capture.
- Pulse Jet System automatically cleans filter bags.
- Auto air vibration cleaning device for scheduled cleaning cycles.
- Individual access doors for each filter module to simplify maintenance.
The automatic pulse jet cleaning system sends compressed air pulses to the filter bags, allowing dust to fall into the lower collection trucks without manual intervention, maintaining consistent airflow and filtration efficiency.
Airflow & Performance Specifications
| Specification | DC-50OD |
|---|---|
| Blower Motor | 50 HP, 3 Phase |
| Air Capacity | 12,000 CFM |
| Air Speed | 93 ft/s |
| Sound Rating | 85 ~ 95 dB |
| Air Inlet Size | 24" Diameter |
The extra-large radial-fin type steel impeller ensures high-efficiency airflow while maintaining stable suction performance across multiple machines.
Heavy-Duty Industrial Construction
- Heavy steel metal frame and base.
- Totally enclosed industrial motor for extended service life.
- Low sound design for quieter operation.

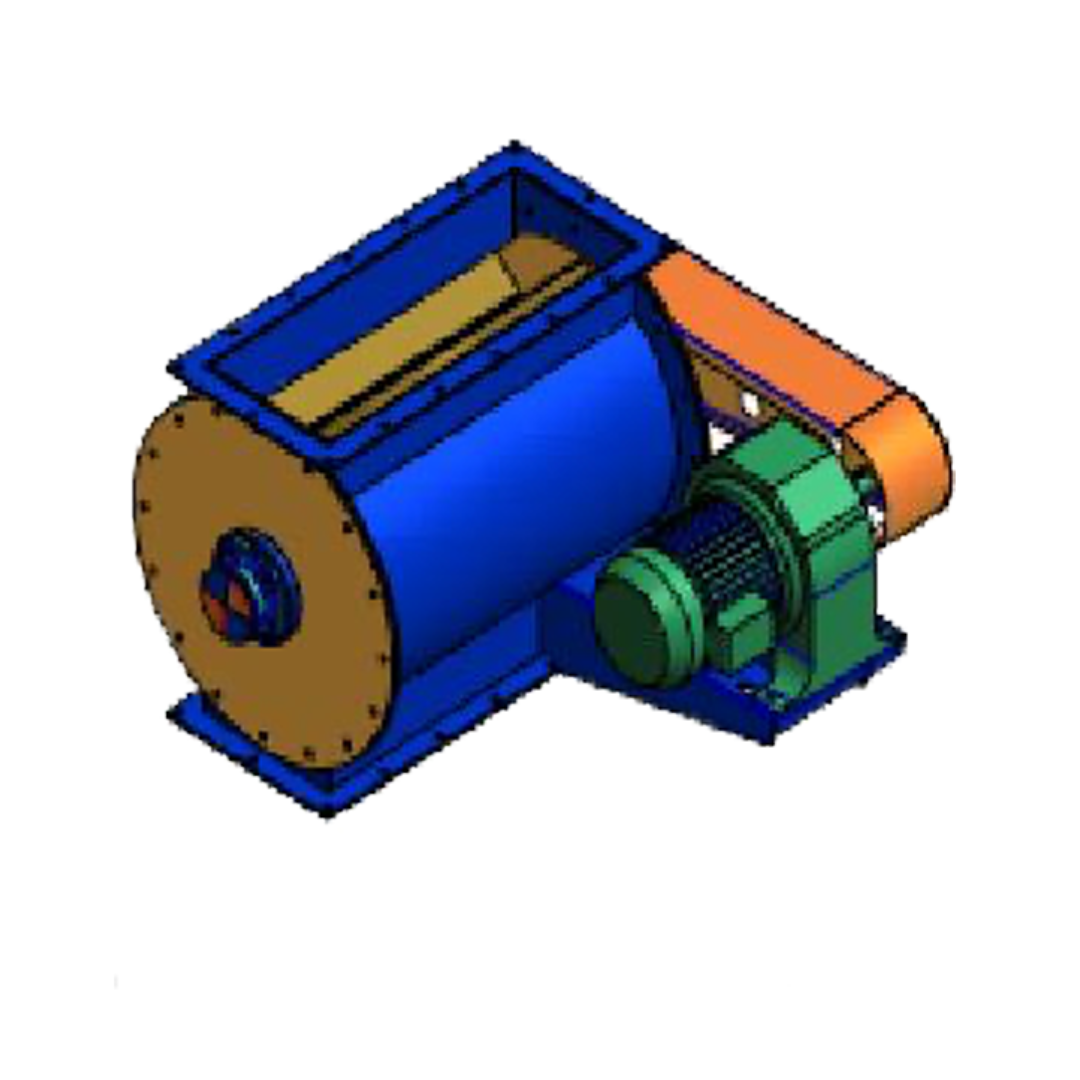

- Rotary valve included for controlled outfeed material discharge.
- Storage space can be custom designed to match facility needs.
Designed for outdoor installation, the robust structure supports long-term operation in demanding industrial environments.

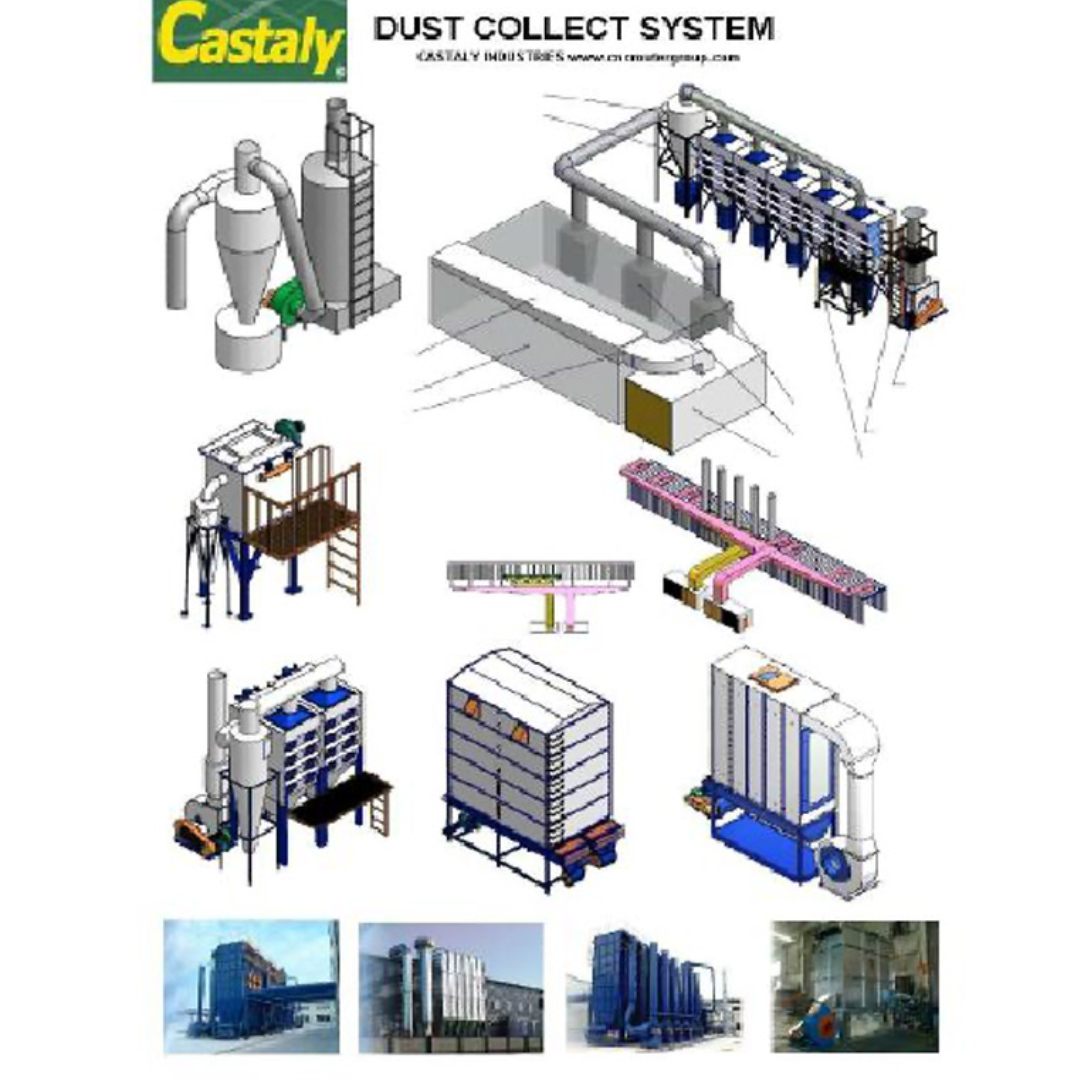

Optional Automation & Air Return Features
- Optional air return device to deliver filtered air back into the facility.
- Optional screw conveyor base for automated dust transfer.
- Optional rotary air lock system for controlled particle delivery.
These optional systems enhance automation and improve workflow efficiency for high-volume production environments.
Why Choose the Castaly 50 HP Outdoor Dust Collect System
- High-capacity 12,000 CFM airflow for large production shops.
- Fully integrated collection, filtration, storage, and discharge system.
- Automated pulse jet cleaning reduces downtime.
- Heavy-duty construction built for continuous industrial operation.
- Expandable with optional automated material handling components.
